CYS-BLS5507 Brushless Motor Metal Gear Core Motor Micro Digital Servo for RC Models
- Stock: In Stock
- Model: ST22000653
- SKU: ST22000653
$54.99
Ex Tax: $54.99
CYS-BLS5507 Brushless Motor Metal Gear Core Motor Micro Digital Servo for RC Models
Description:
Description:
Item No. CYS-S5507
Type Digital
Weight 45g
Size 40.9*20*25.2mm
Control System (+)Pulse Width Control 1500usec Neutral
Operating Voltage 6.0~7.4Volts
Operating Temperature Range (-)10 to +50 degree C
Operating Speed (6.0V) 0.06sec/60° at no load
Operating Speed (7.4V) 0.05sec/60° at no load
Stall Torque (6.0V) 5kg.cm
Operating Temperature Range (-)10 to +50 degree C
Operating Speed (6.0V) 0.06sec/60° at no load
Operating Speed (7.4V) 0.05sec/60° at no load
Stall Torque (6.0V) 5kg.cm
Stall Torque (7.4V) 6kg.cm
Operating Angle 45deg.one side pulse traveling 500 usec
360 Modifiable No
Direction Anticlockwise/Pulse Traveling 1000~2000usec
Current Drain (6.0V) 4mA/idle and 100mA no load operating
Current Drain (7.4V) 5mA/idle and 150mA no load operating
Current Drain (6.0V) 4mA/idle and 100mA no load operating
Current Drain (7.4V) 5mA/idle and 150mA no load operating
Stall Current 3.2A/3.9A
Dead Band Width 2usec
Motor Type Brushless motor
Bearing Type Dual Ball Bearing
Horn gear spline 25T
Gear Type Titanium
Important Notes:

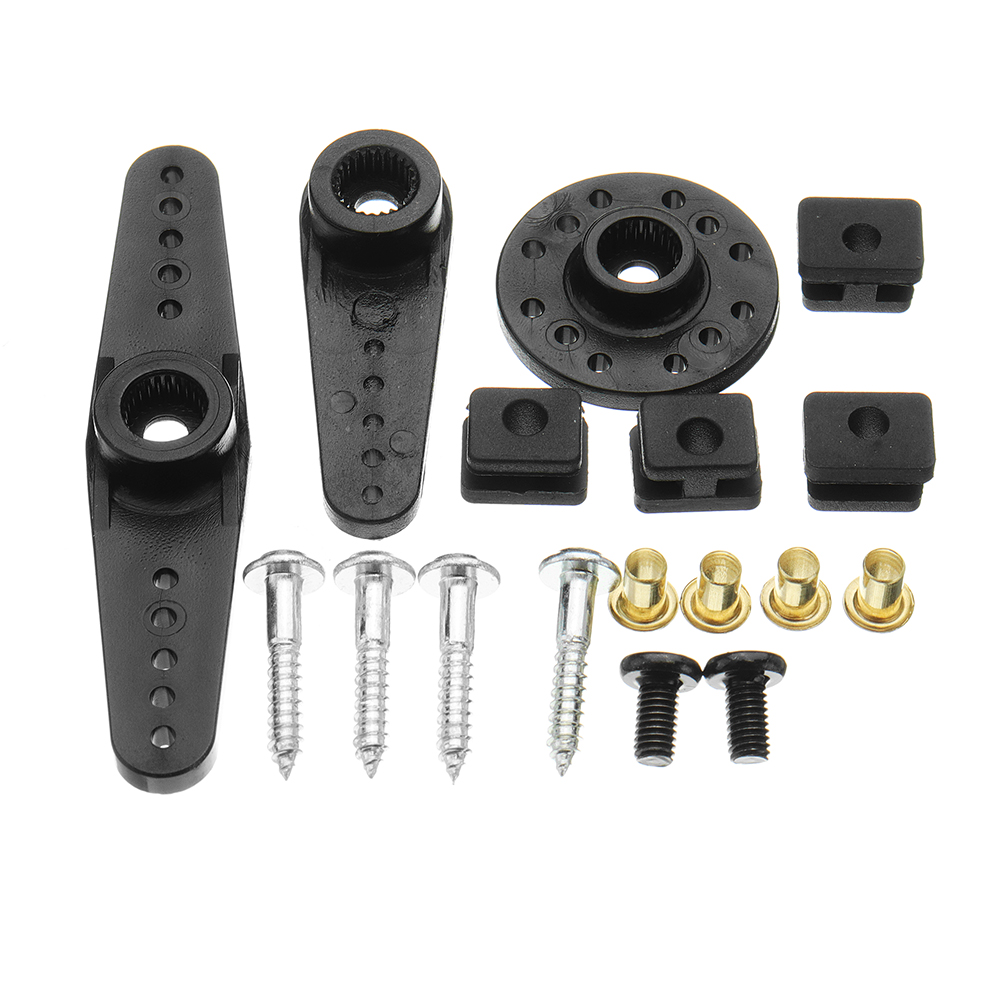

-Refer to the figure when installing the servo accessories.
-Refer to the figure when installing the servo accessories.
-For engine powered airplanes and boats, rubber must be used to reduce vibration.
- Please choose correct model for your application.
-Torque over-loaded will damage the servo's mechanism-.
- Keep the servo clean and away from dust, corrosive gas and humid air.

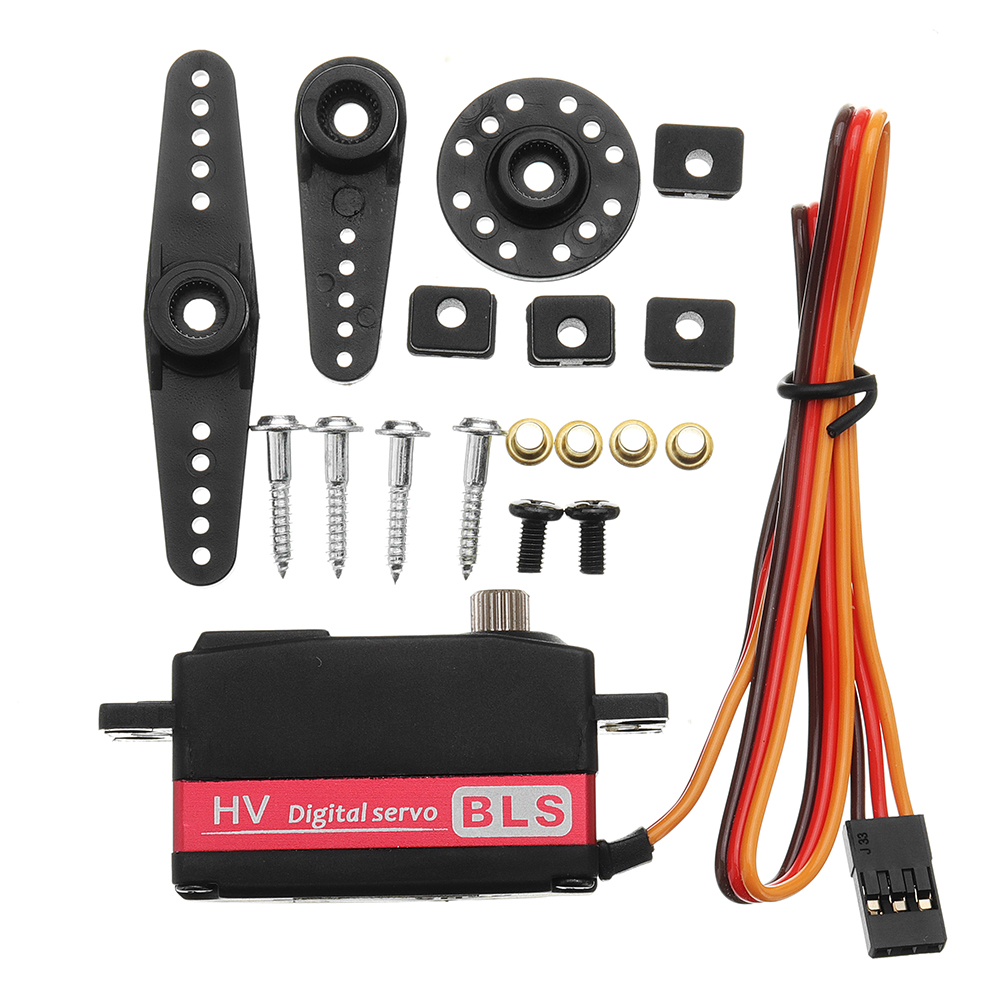

Package Included:
1 x CYS-BLS5507 Brushless Motor Metal Gear Servo
