Rocker Module for Micro:bit Dual Axis Button XY Gamepad Sensor

Introduction of Rocker module

1. Working principle

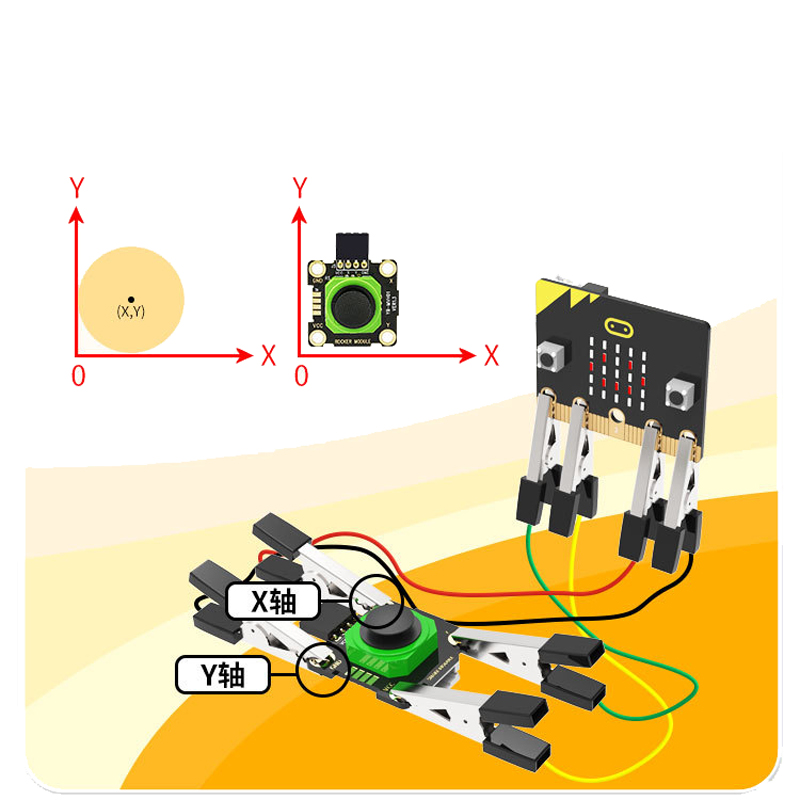

The rocker module can be regarded as a potentiometer with two channels, which can output the analog values of the X and Y axes. When moving to the left, the smaller the X value of the output. When moving to the right,the larger the X value of the output. When moving to the up,the larger the Y value of the output. When moving to the down,the smaller the Y value of the output.

The output analog range of the X and Y axes is from 0 to 1023.

2. Practical application

2.1 Game machine rocker control.

2.2 Remote control car control direction.

3. About module

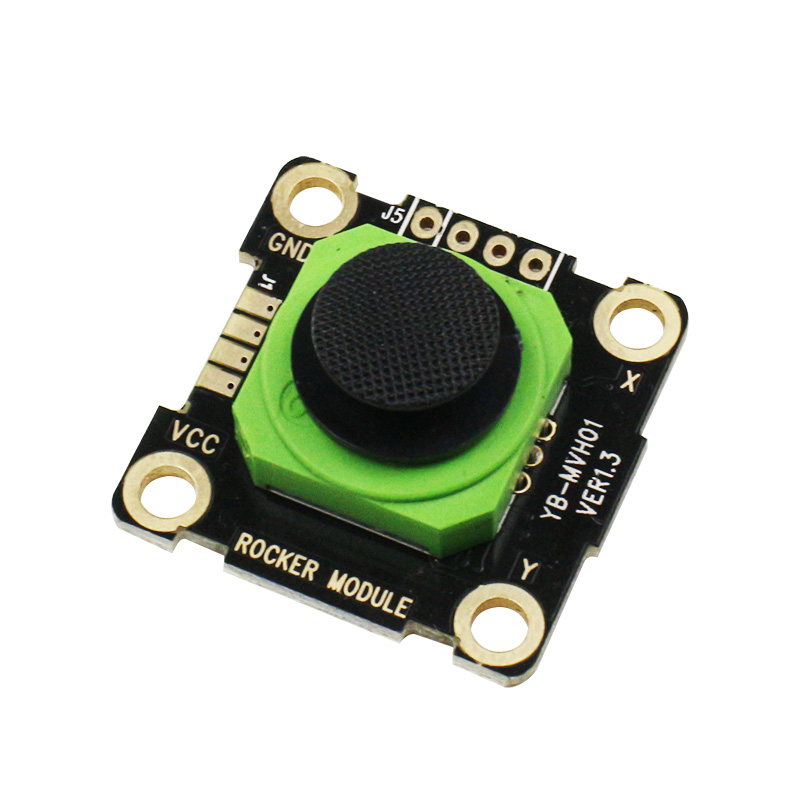

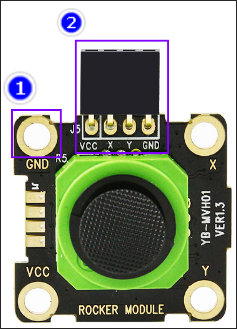

3.1 Rocker module possess 4 Alligator clip port, Corresponding to GND, VCC, Y and X. The X and Y pins are the signal output pins of the rocker module.

3.2 4 pin female socket.

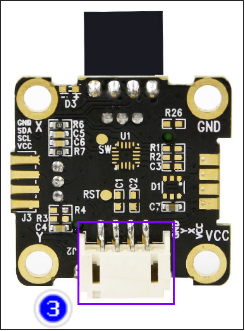

3.3 PH2.0 cable interface.

The default output has both X and Y values of 512.

When moving to the left, the smaller the X value of the output. When moving to the right,the larger the X value of the output.

When moving to the up,the larger the Y value of the output. When moving to the down,the smaller the Y value of the output.

Working Voltage: 3.3V/5V

Paramaters:

VCC: Power supply interface, can be connected to 3.3V/5V
GND: Ground
X: Output the coordinate simulation value in the X axis direction
Y: Output the coordinate simulation value in the Y axis direction

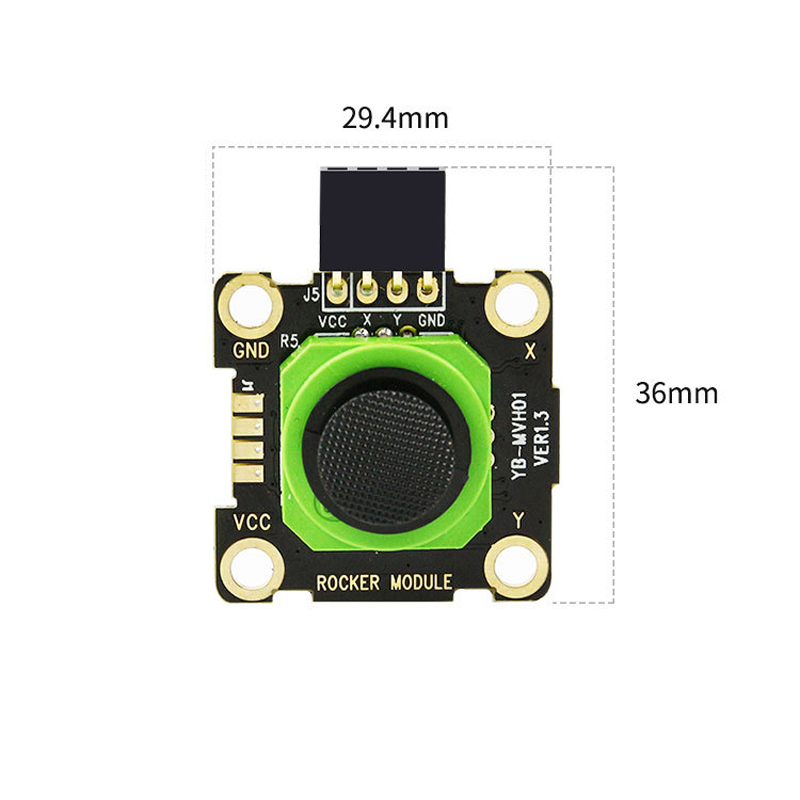

Module size: 29.4*36mm

Package Included:

1 x Rocker Module
