LoRa1262F30 RF Module 1.5W SX1262 868 915 MHz Wireless Module

LoRa1262F30 RF Module 1.5W SX1262 868 915 MHz Wireless Module
LoRa1262F30 RF Module 1.5W SX1262 868 915 MHz Wireless Module
LoRa1262F30 RF Module 1.5W SX1262 868 915 MHz Wireless Module
LoRa1262F30 RF Module 1.5W SX1262 868 915 MHz Wireless Module
LoRa1262F30 RF Module 1.5W SX1262 868 915 MHz Wireless Module
LoRa1262F30 RF Module 1.5W SX1262 868 915 MHz Wireless Module
LoRa1262F30 RF Module 1.5W SX1262 868 915 MHz Wireless Module
LoRa1262F30 RF Module 1.5W SX1262 868 915 MHz Wireless Module
LoRa1262F30 RF Module 1.5W SX1262 868 915 MHz Wireless Module
  • Stock: In Stock
  • Model: ST230049485
  • SKU: ST230049485
$23.99
Ex Tax: $23.99

Available Options

Feature:


Frequency Range:868/915 MHz

Sensitivity up to -148dBm @Lora

Receive power consumption < 7 mA

Maximum output power: 33dBm(2w)@6V

Data transfer rate:0.018-62.5 Kbps

Packet engine up to 256 bytes with FIFO and CRC

Modulation mode:Lora TM、(G)FSK

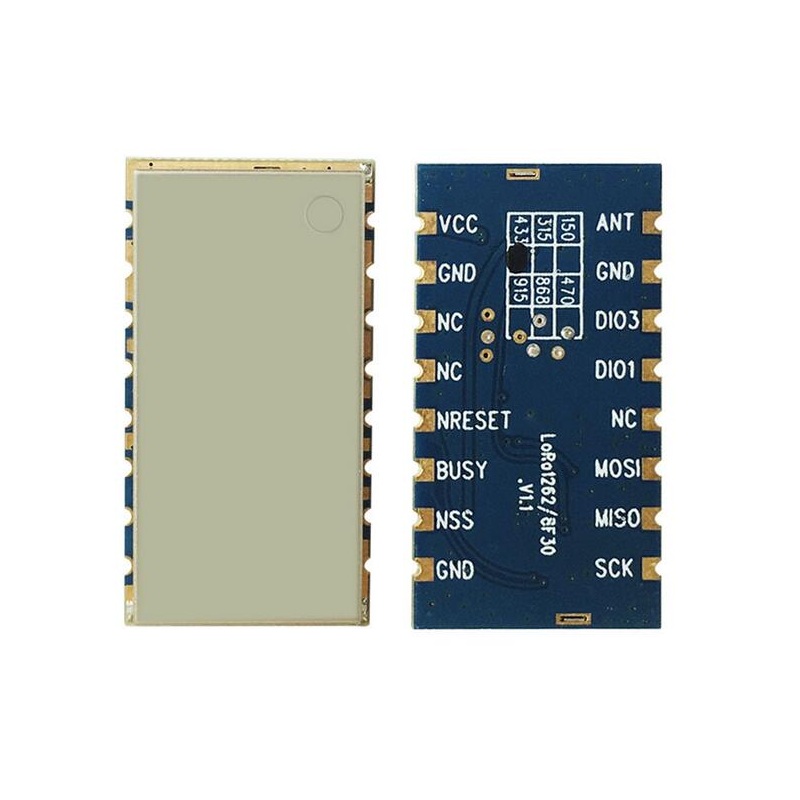

Pins:


VCC: Power Supply

GND: Power Ground

NC: Hanging

NRESET: Reset trigger input

BUSY: For status indication,see chip information

NSS: SPI chip select input

GND: Power Input

SCK: SPI Clock

MISO: SPI data output

MOSI: SPI data input

DIO1: Digital I/O.customizable

DIO3: Digital I/O, customizable

GND: Power ground

ANT: 50 ohm coaxial antenna


Package Included:


1* LoRa Module




SIWEI-LoRa1262F30-RF-Module-15W-SX1262-868-915-MHz-Wireless-Module-1699766-1

SIWEI-LoRa1262F30-RF-Module-15W-SX1262-868-915-MHz-Wireless-Module-1699766-2

SIWEI-LoRa1262F30-RF-Module-15W-SX1262-868-915-MHz-Wireless-Module-1699766-3

SIWEI-LoRa1262F30-RF-Module-15W-SX1262-868-915-MHz-Wireless-Module-1699766-4

SIWEI-LoRa1262F30-RF-Module-15W-SX1262-868-915-MHz-Wireless-Module-1699766-5

SIWEI-LoRa1262F30-RF-Module-15W-SX1262-868-915-MHz-Wireless-Module-1699766-6
