HD 3 118mm F4 3-4S 3 Inch Toothpick FPV Racing Drone BNF w/ Caddx Baby Turtle V2 1080P Camera
- Stock: In Stock
- Model: ST22001074
- SKU: ST22001074
$205.69
Ex Tax: $205.69

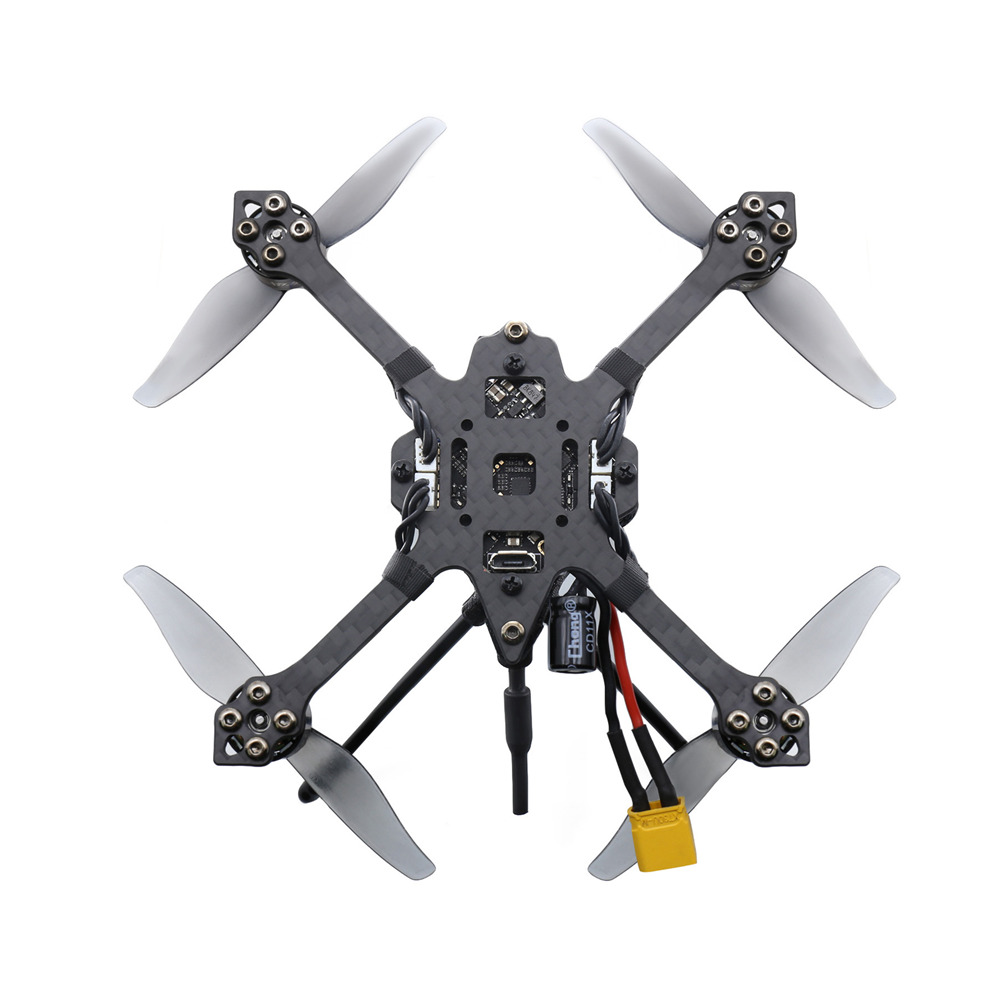

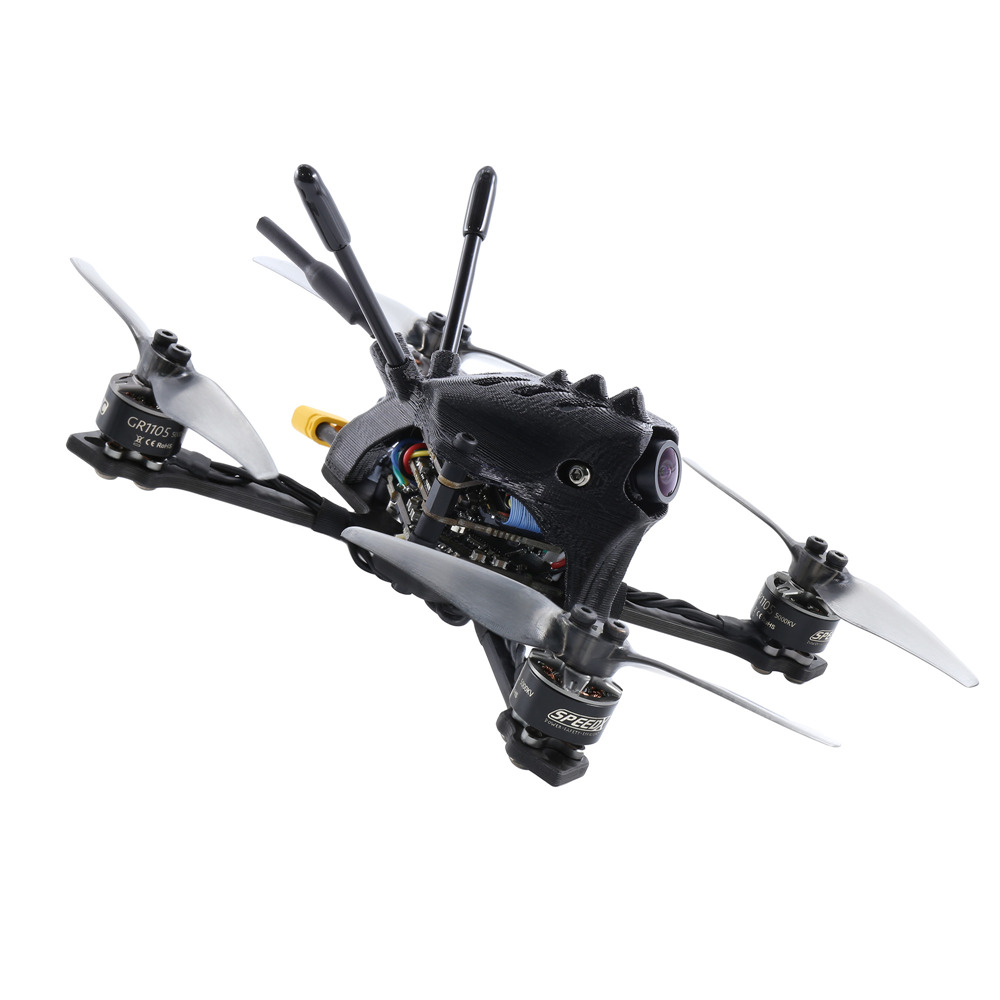

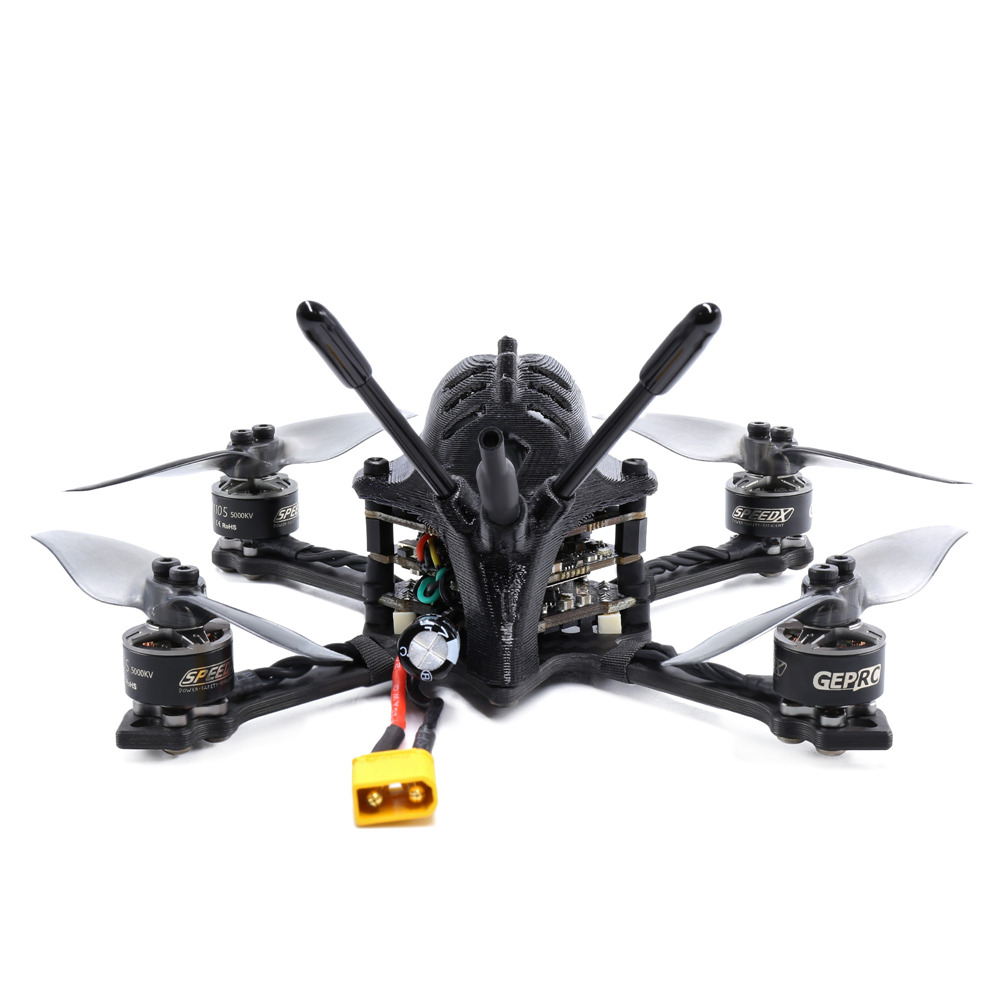

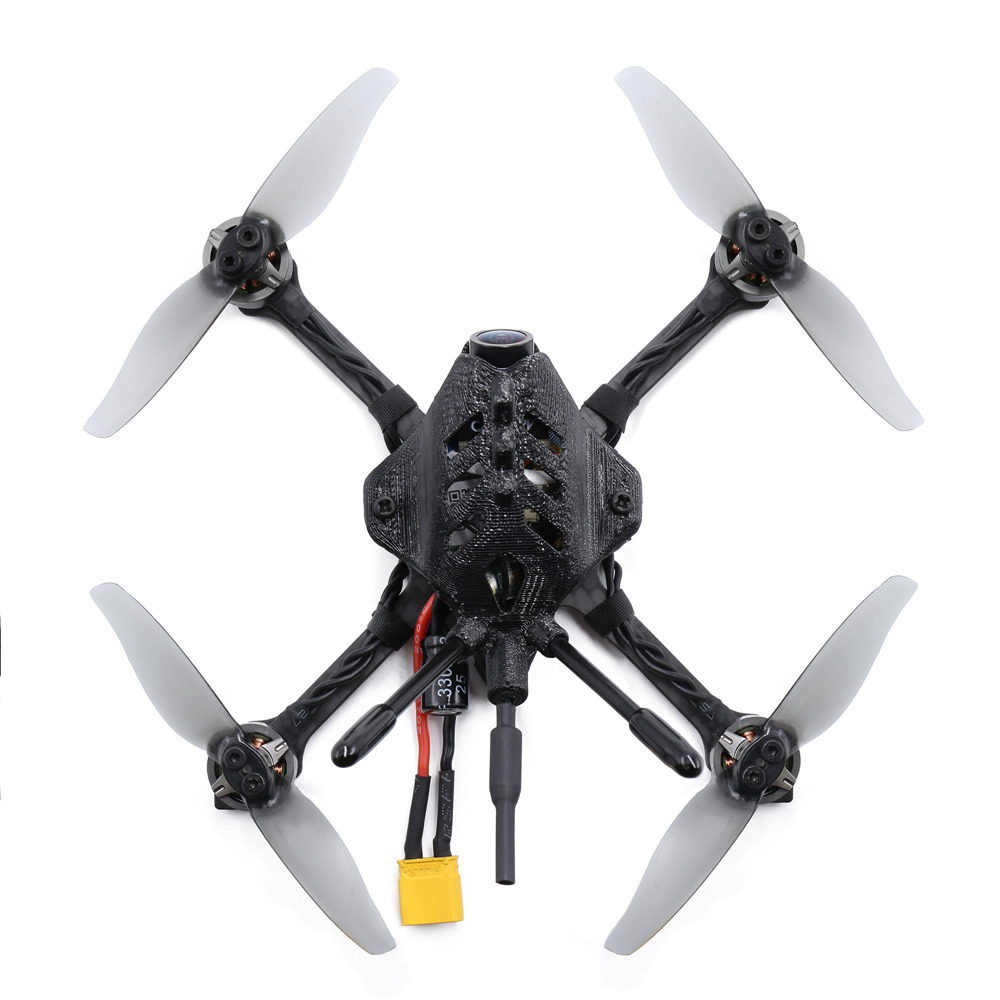

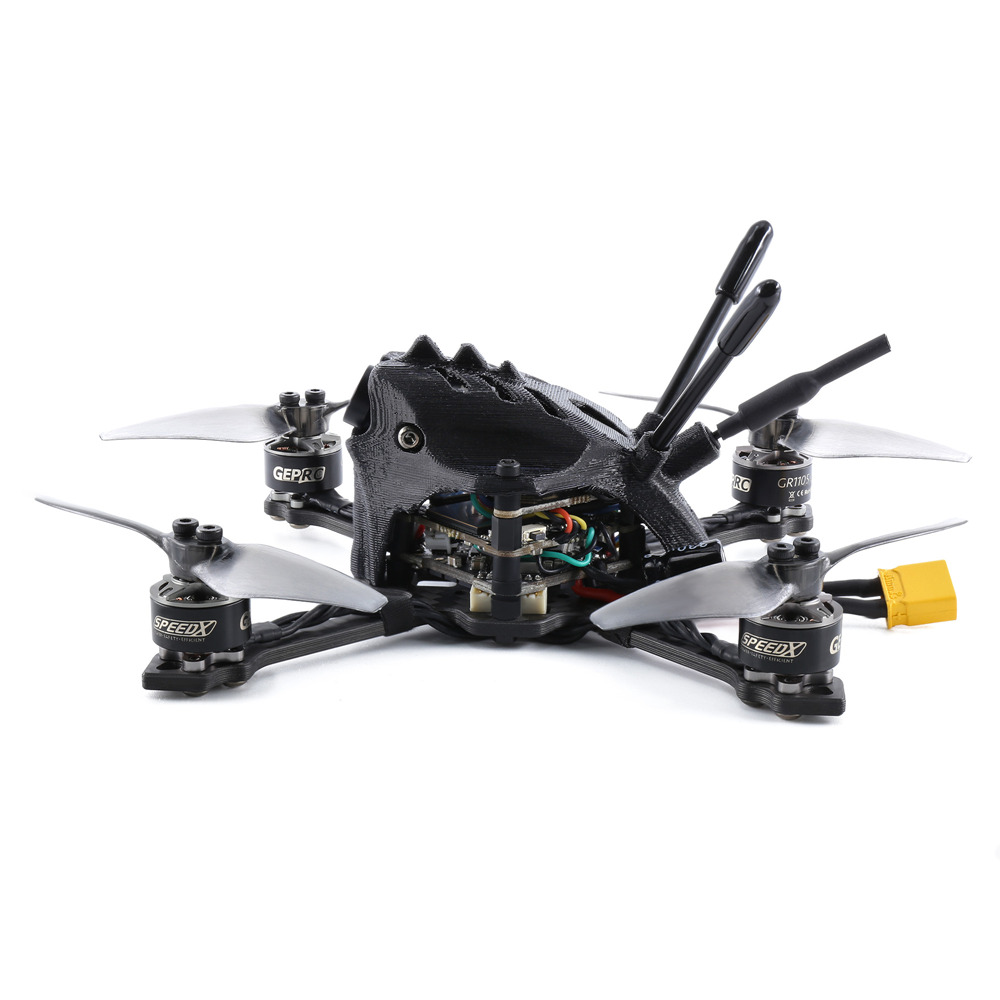

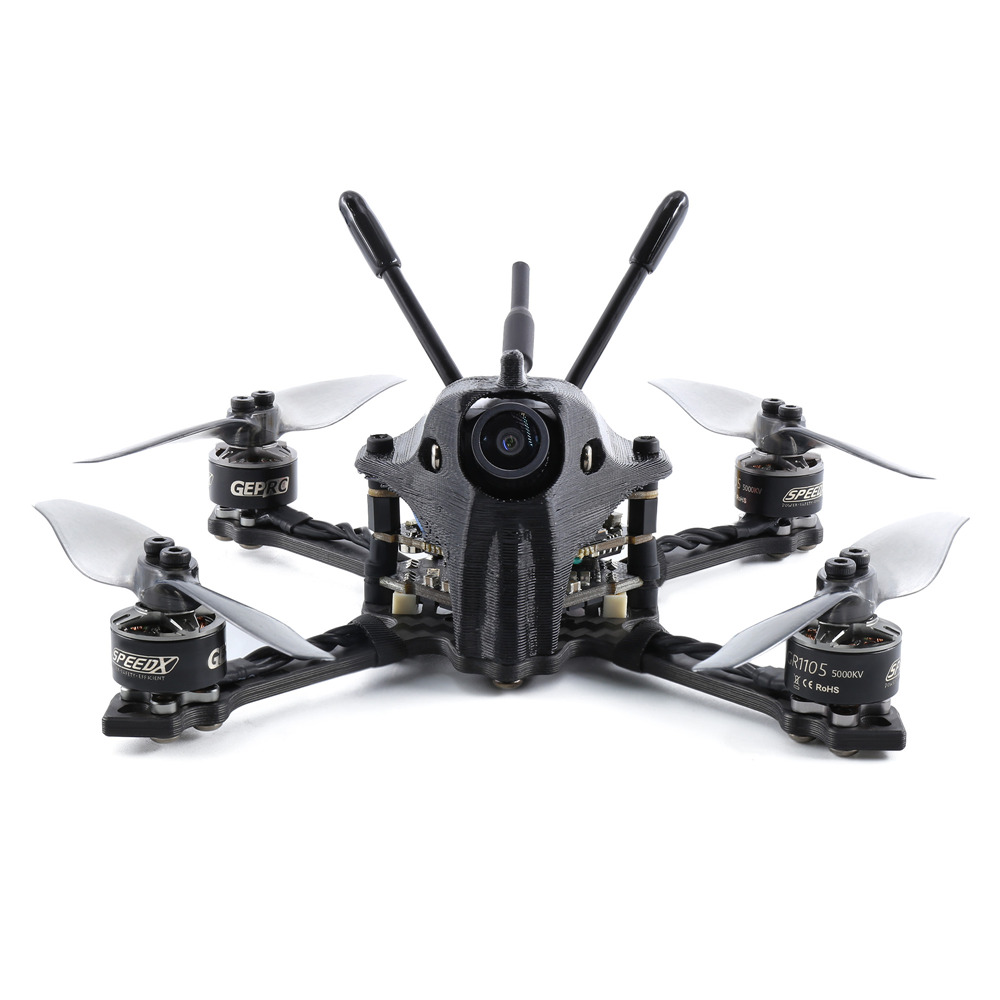

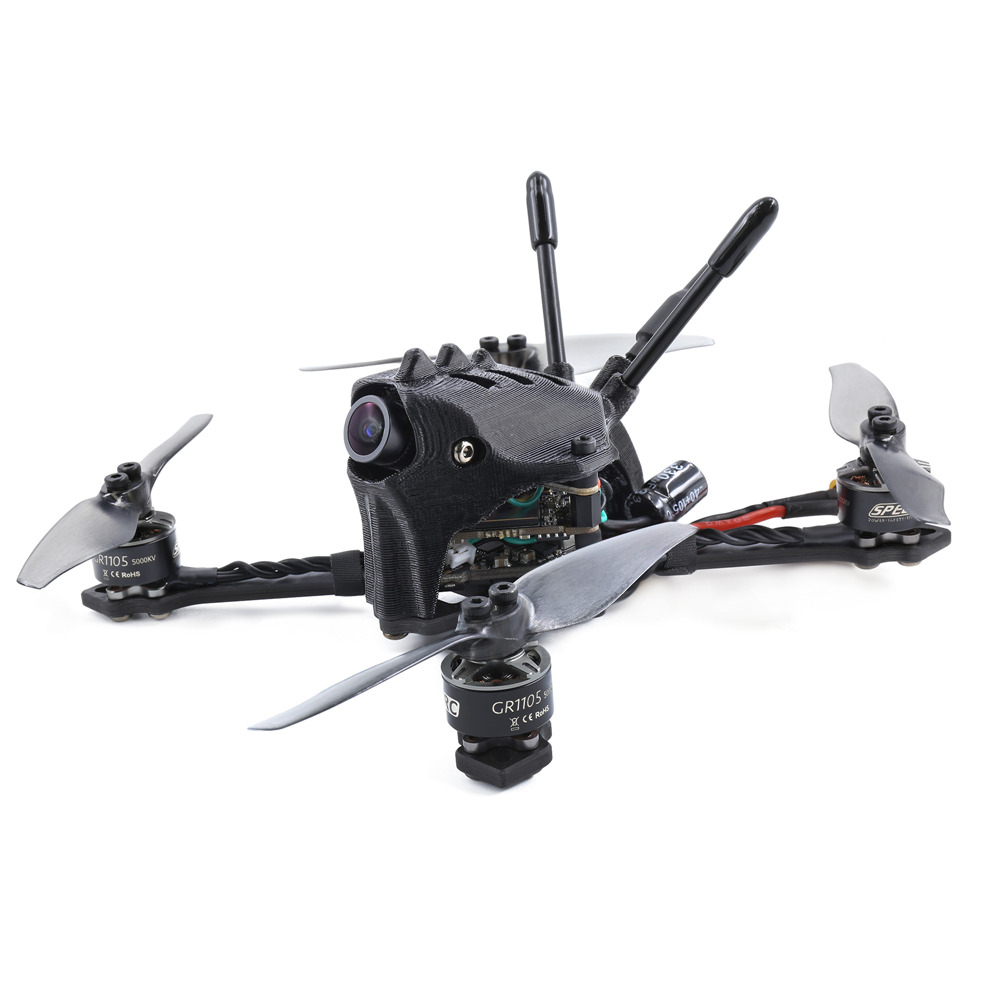

Geprc SKIP HD 3 118mm F4 3 Inch Toothpick FPV Racing Drone BNF w/ Caddx Baby Turtle V2 1080P Camera
Notice:

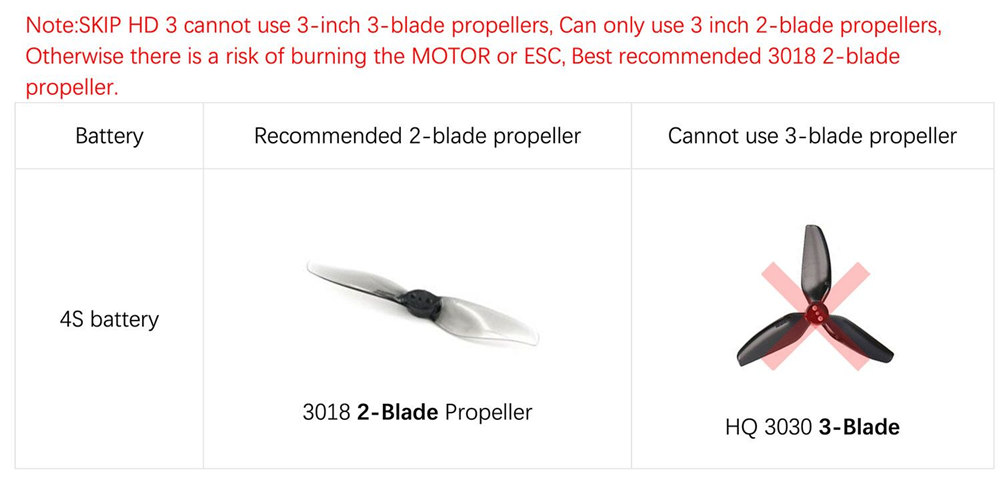

DO NOT use the 3030 3-blade with a 4S battery, which will increase the current and possibly burn the motor.
It is highly recommended that the 3-4S battery use a 3018 2-blade propeller.
Specification:
Model: SKIP HD
Item Name: 118mm F4 3 Inch Toothpick FPV Racing Drone w/ Caddx Baby Turtle V2 Camera
Version: BNF ( With Frsky XM+ Receiver)
Drone Wheelbase: 118mm
Drone Arm Plate Thickness: 2.5mm
Weight: 72g (without battery)
Flight time: Almost 5mins in a smooth flight
Features:
Notice:
DO NOT use the 3030 3-blade with a 4S battery, which will increase the current and possibly burn the motor.
It is highly recommended that the 3-4S battery use a 3018 2-blade propeller.
Specification:
Model: SKIP HD
Item Name: 118mm F4 3 Inch Toothpick FPV Racing Drone w/ Caddx Baby Turtle V2 Camera
Version: BNF ( With Frsky XM+ Receiver)
Drone Wheelbase: 118mm
Drone Arm Plate Thickness: 2.5mm
Weight: 72g (without battery)
Flight time: Almost 5mins in a smooth flight
GEP-12A-F4 Flight Controller AIO ESC |
Model: GEP-12A-F4
MCU: STM32F411
IMU: MPU6000 gyro/accelerometer (SPI)
OSD: BetaFlight OSD w/ AT7456E chip
Baro:NO
BEC Output: 5V@1A
Integrated LC Filter
Firmware target: MATEKF411
ESC MCU: BB21F16G
Continuous current: 12A
Input:2-4s lipo
Supports Dshot600 ,Oneshot42/125,Multishot
Current meter: 210
Target: G_H_30
Size: 28.5×28.5mm board,25.5mm mounting holes (M2)
Installing Hole: 25.5×25.5mm, M2
Weight: 5.6g |
GEPRC GR1105 5000KV 3-4S Motor |
Item name: GR1105 5000KV 3-4S Brushless Motor
KV: 5000KV
No.of Cells(Lipo): 3-4S
Configuration: 9N12P
Stator Length: 1.9mm
Shaft Diameter: 1.5mm
Motor (Dimension(Dia.*Len)): Φ 14.2*16mm
Rotor: N52H arc magnets
Weight: 6g |
3018 2-Blade Propeller ( Can NOT use 3-Blade) |
Item Name: 3018 3 Inch 2-Blade Propeller Color: Transparent Grey Quantity: 2 CW & 2 CCW |
5.8G 25/100/200mW VTX |
Power : PIT/25/100/200mW
Antenna interface : IPEX (UFL)
Telemetry: IRC Tramp
Integrated LC Filter |
Caddx Baby Turtle V2 1080P Camera |
Image sensor: 1/2.7" CMOS sensor
Horizontal: 800TVL
TV system: NTSC/PAL,changeable
Video Resolution: 1080P@60fps / 1080P@30fps / 720@60fps
Power Input: DC 4.5-20V
FPV FOV: 155°
Recording FOV: 170°
Mini Illumination: 0.01lux
Image Resolution: 2 Megapixels
Lens: 1.8mm Turbo Eye Lens
Working Current: 380mA@5V/160mA@12V (low consumption)
OSD Menu: Yes (Support Voltage Display)
Video Files: MP4
Audio: Support
Electronic Shutter : PAL : 1/50-100,000 NTSC : 1/60-100,100
S/N Ratio: >60dB (AGC OFF)
Video Output: CVBS
Max Micro SD Card Supported: 8-64GB(need Class 10 or above, recommend Class 10/UHS-I/UHS-II)
Net weight: 12g(more or less) |
Lipo Battery ( NOT Included) | Recommend 3S / 4S 450mAh Lipo Battery |
Features:
- Ultra-light weight
- Caddx baby turtle V2 1080P Caemra
- Reliable electronic equipment, reducing weight
- High-definition TPU printing
- Full 3K carbon plate
Package Included:
1x Geprc SKIP HD 3 118mm FPV Racing Drone
Package Included:
1x Geprc SKIP HD 3 118mm FPV Racing Drone
