- Stock: In Stock
- Model: ST22001574
- SKU: ST22001574
Notice: Get nofication from iFlight, all of their Flight controller will come without Barometer.
Oct. 26th, 2021.
Notice:
Because DJI Air Unit is out of stock, this drone replce it to CADDX Nebula Nano HD Digital System.
All of them will come with Caddx Nebula Nano HD Digital System.
May 5th, 2021, BeiJing Time
Introduction:
Having one of the most successful FPV companies link up with the global drone market leader, combining DJI's digital FPV system with our highest standards racing, freestyle and cinematic drones to create a HD pilot experience!

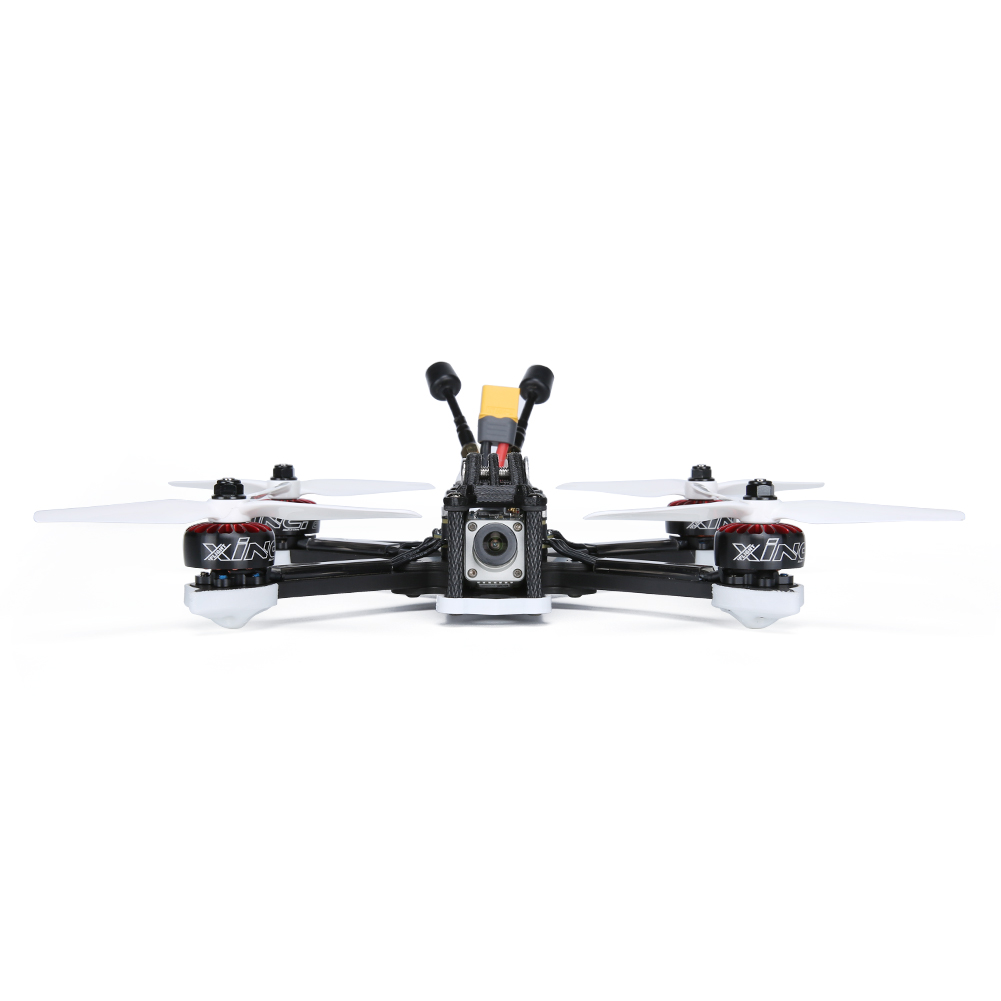

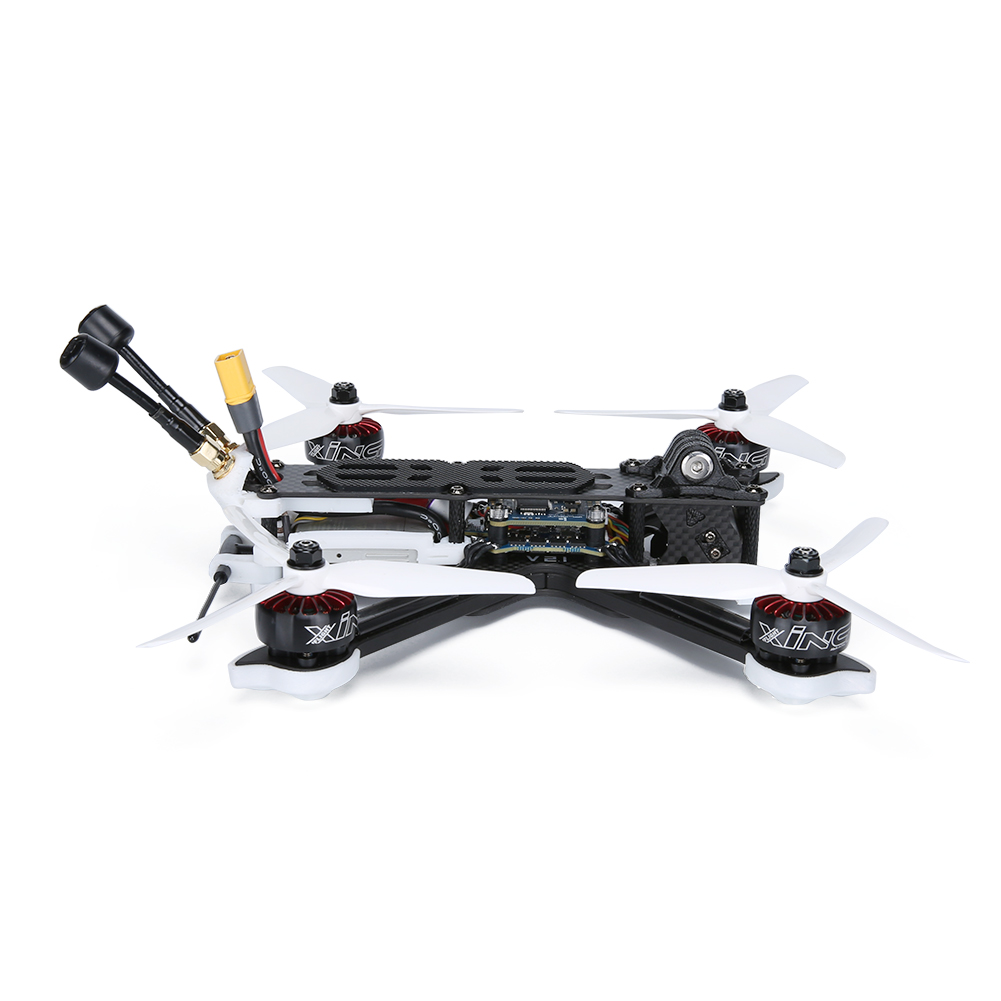

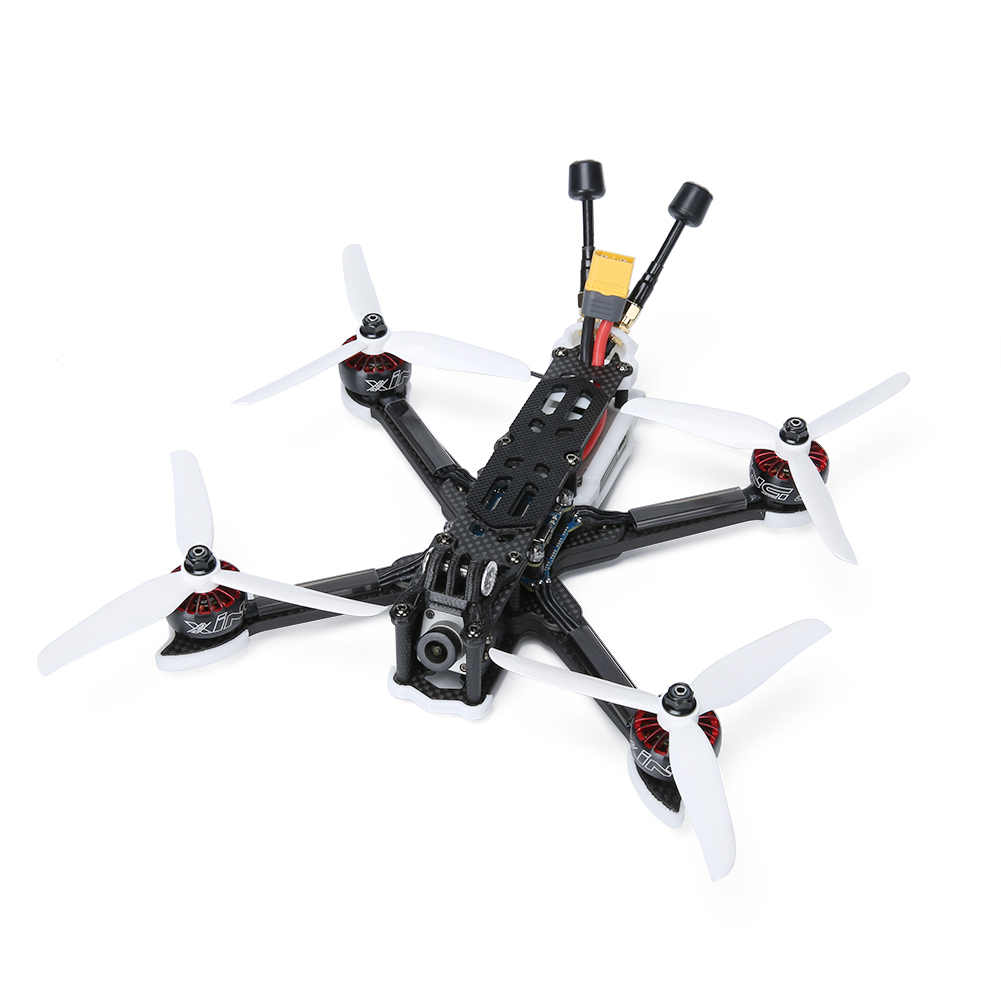

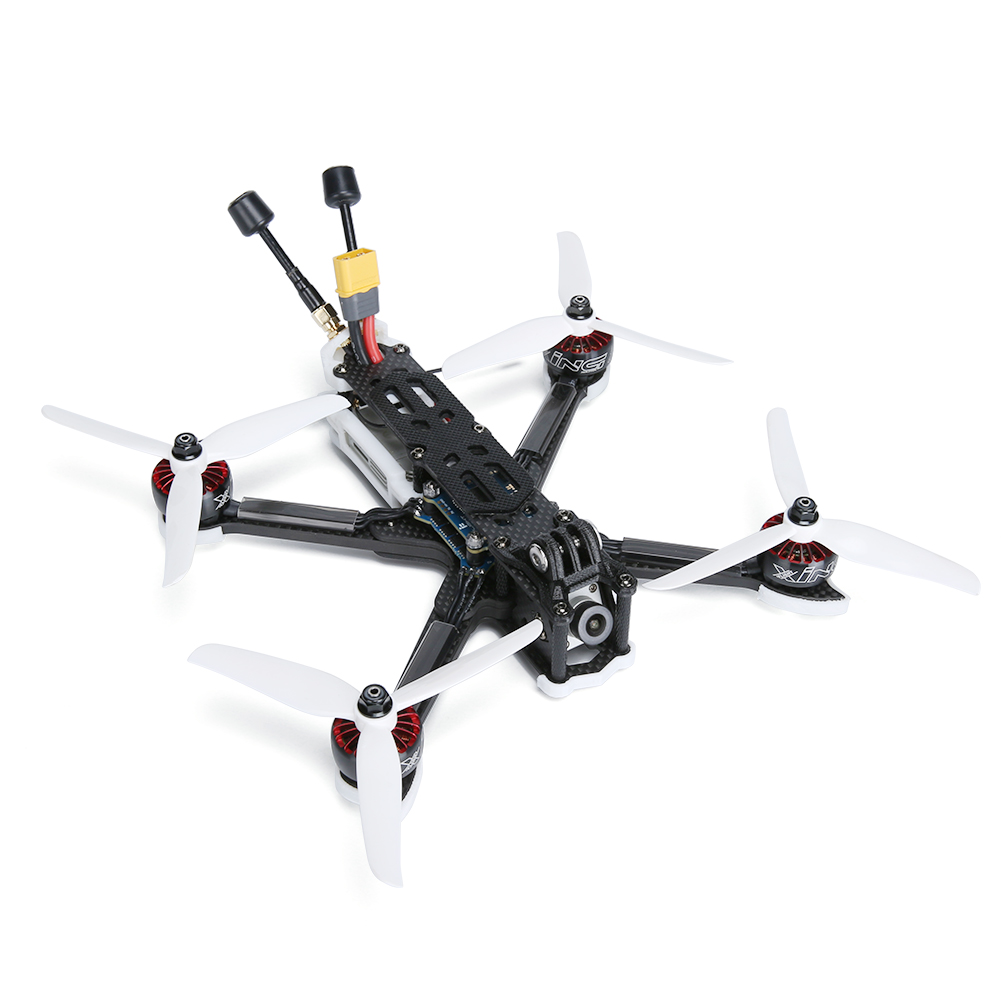

The Cidora SL5 V2.1 HD w/ DJI Air Unit BNF features the amazing new DJI FPV system, this quad makes flying FPV truly breathtaking.
With the 720p video shown at 120fps through the goggles, DJI has set the bar at a new high for clarity and image quality in an FPV system.
This frame offers a squashed X layout for maximum control, equipped SucceX-D F7(50A 4-in-1 ESC) stack and popular XING motors.
Everything you just need to bind and fly!
Different power version (4S and 6S available) to fit most pilots requirements. Choose your receiver option to get your FrySky or CRSF installed and ready to be bound to your radio.

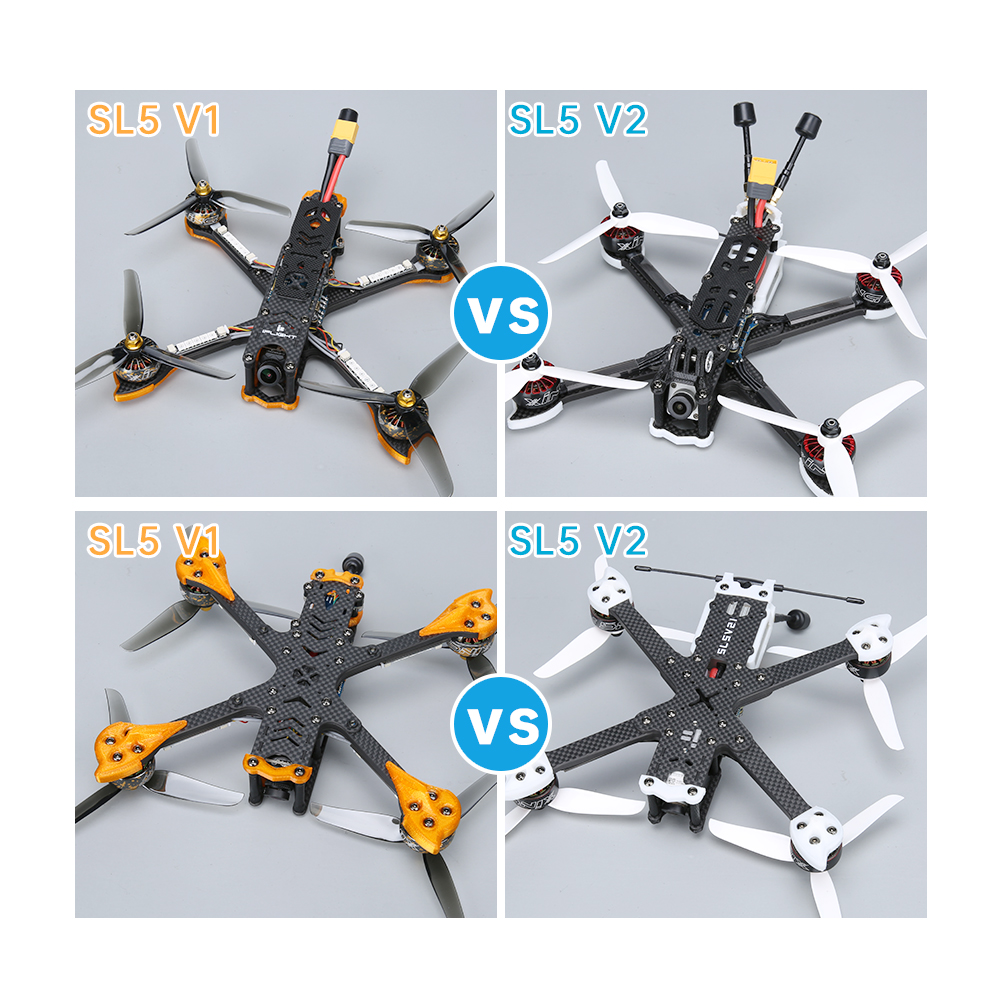

Main Changelog V2.1:
- LED illuminated Logo
- Bottom carbon thickness increased from 2mm to 2.5mm
- The Wheelbase increased from 215mm to 217mm
- TPU parts are not compatible, color is different
Features:
- Everything you need to bind and fly!
- Optimized weight distribution: DJI unit and Stack centered

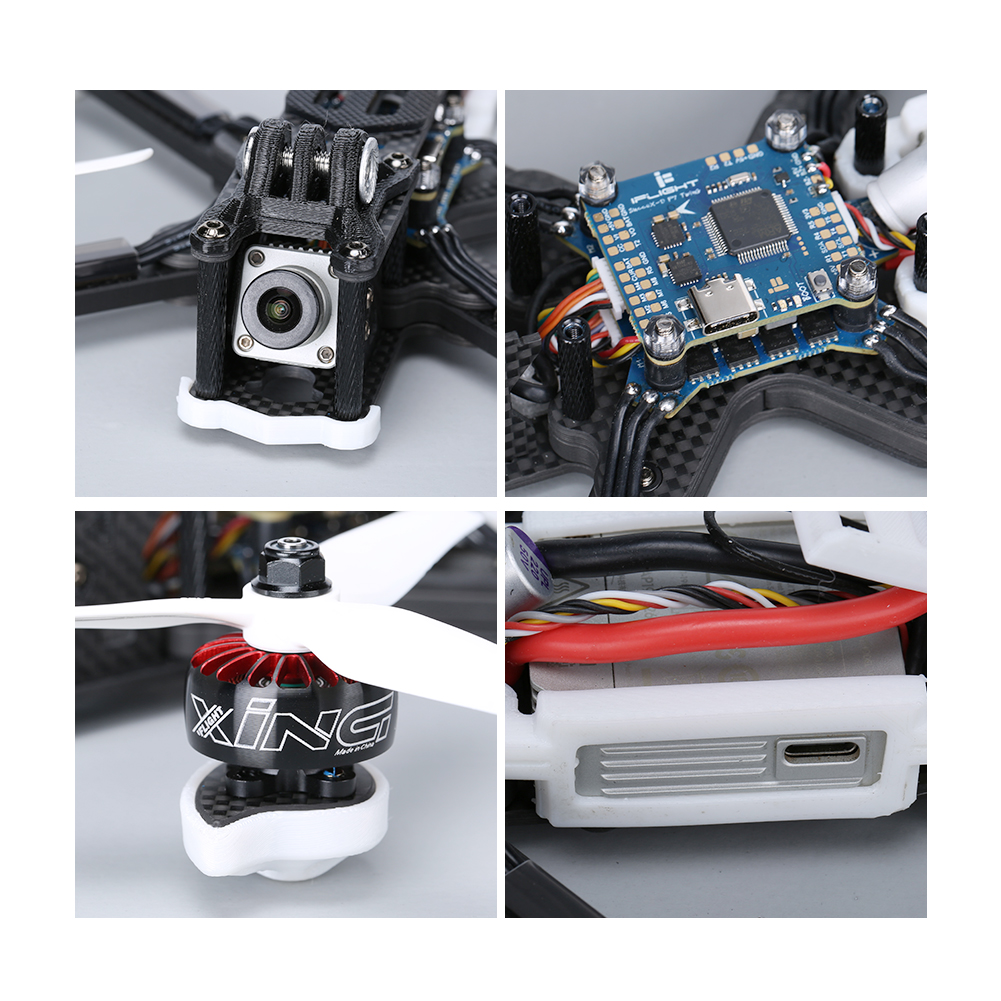

- Equipped with SucceX-D F7(SucceX 50A BLHeli32 4-in-1 ESC) Stack
- Equipped with the DJI FPV Air Unit -Bind and Fly
- Buttery-smooth 720p 120fps FPV feed
- Pre-tuned with smooth freestyle settings

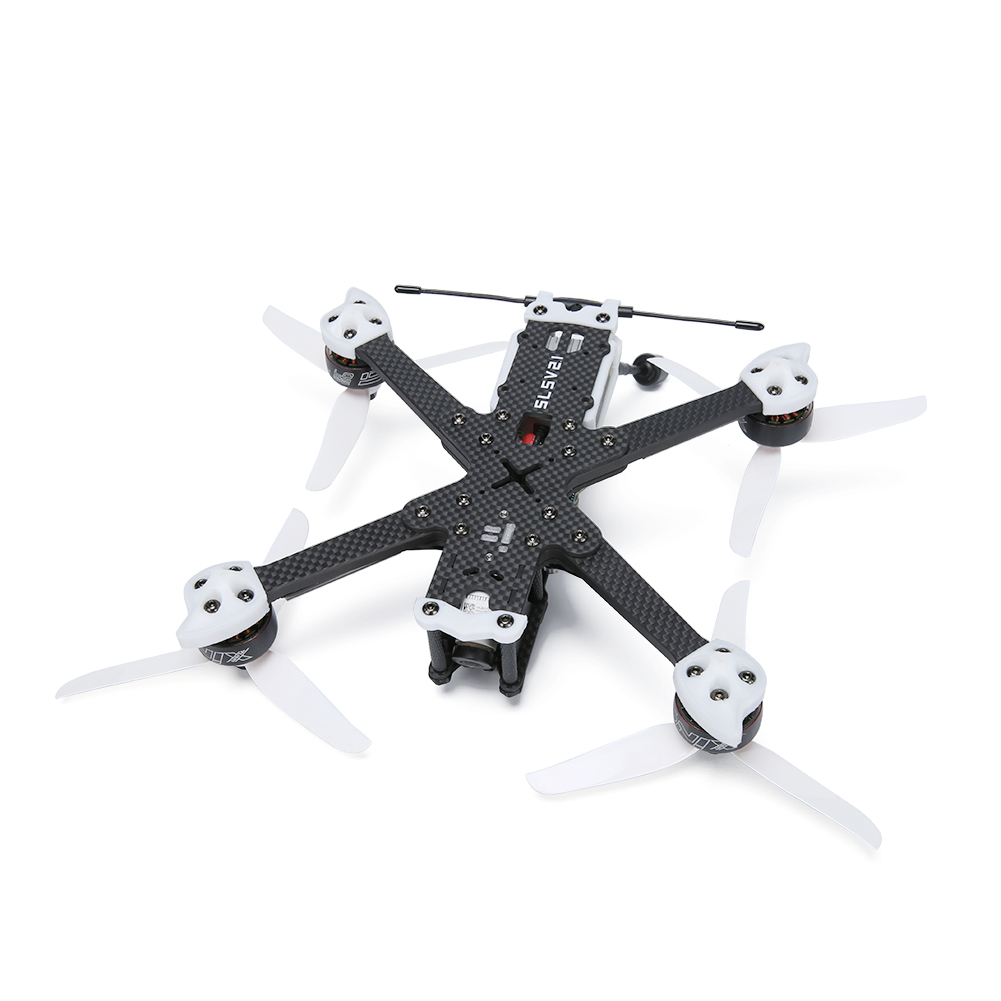

- Full 3K Carbon Fiber airframe with chamfered arms
- Equipped with XING 2207 motors

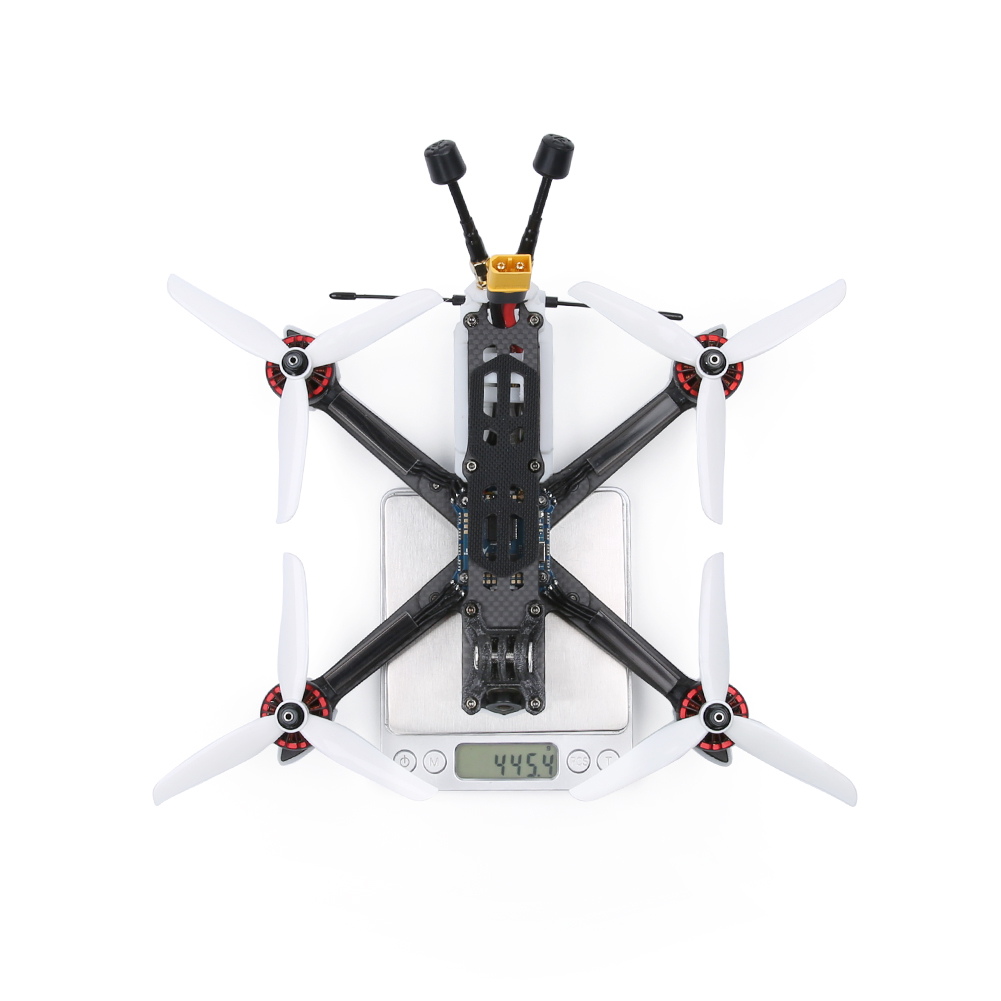

- Weight: 445.4g without battery and Camera mount
- LED illuminated Logo
Specification:

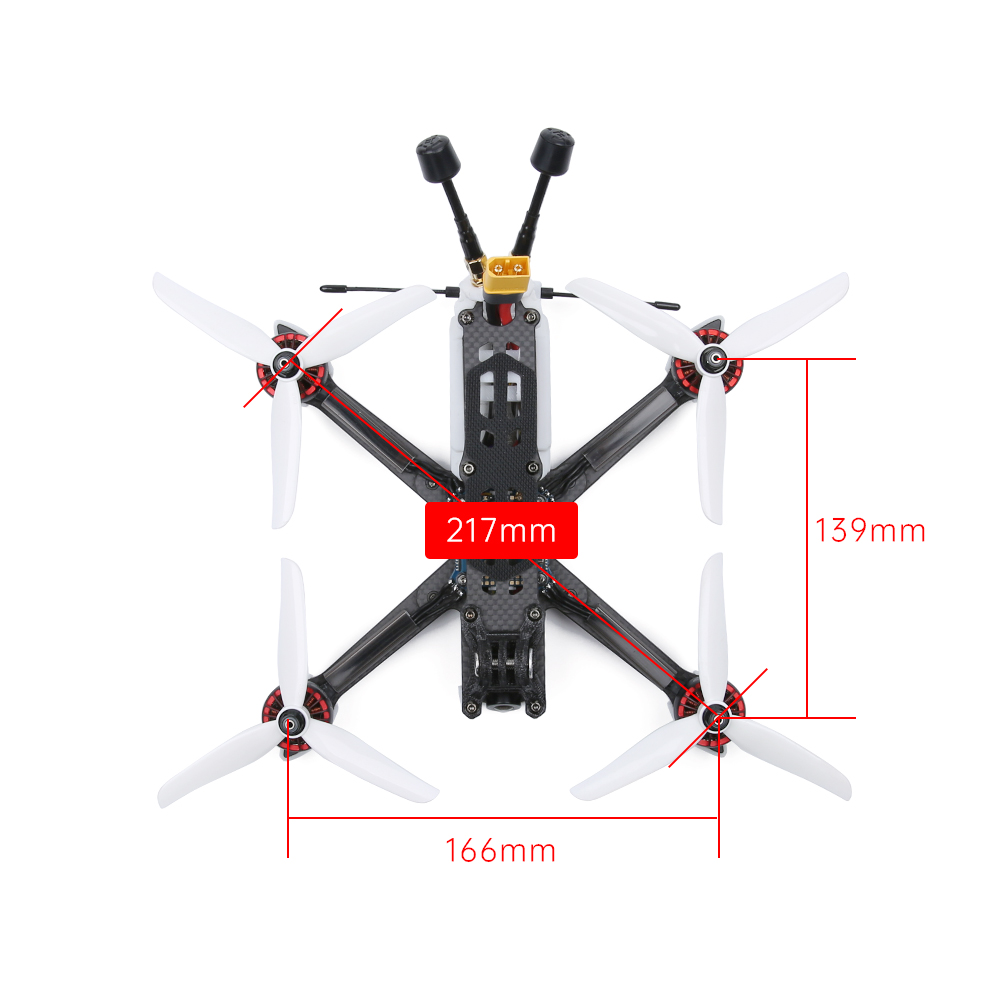

| 217mm Frame Kit | Wheelbase: 217mm Material: Full 3K Carbon Fiber Arm Thickness: 5.5mm Bottom Plate Thickness: 2.5mm Top Plate Thickness: 2.5mm Middle Plate Thickness: 3mm Camera Mount Plate Thickness: 2.5mm (included TPU inserts) Bottom to top distance: 28mm Dimension: 166x139mm (body dimension) |
SucceX-D F7 TwinG V2.1 Flight Controller ( Product Link) | Input Voltage: 2-6S, Max. 8S Firmware Target: IFLIGHT_F722_TWING MCU: 216MHz STM32F722 Gyroscope: 2x ICM20689 Barometer: NO Blackbox：32MB Betaflight OSD: YES BEC: 5V 2.5A & 9V 2.5A Current sensor scale: 100 Inverter for SBUS input (UART2-RX) Smartaudio & Tramp VTX protocol supported Beeper pad : Yes RSSI input pad: No urrent sensor scale: 100 Inverter for SBUS input (UART2-RX) Smartaudio & Tramp VTX protocol supported Beeper pad: Yes RSSI input pad: No UARTs: 5 - Motor outputs: 8 - 8 pin 4in1 ESC port (GND, VBAT, M1, M2, M3, M4, CUR, R5) - 6 pin DJI Air Unit port (R1, GND, R2, T2, GND, 9V) - BLHeli32 Telemetry: RX5 Dimensions: 36x36mm ; Mounting Hole: 30.5x30.5mm φ4mm with Grommets φ3mm Weight: 7.5g USB type-C |
| SucceX 50A 2-6S BLHeli_32 4in1 ESC | Input Voltage: 2-6S Lipo STM32F051 MCU, 48Mhz Runs BLHELI 32.X Firmware Current sensor: Yes Telemetry：Supported BEC: No Dimension: 43x39mm ( Mounting Holes: 30.5x30.5mm/Φ3mm) Weight:14.4g Supports: DShot DShot150/300/600/1200/MultiShot/ OneShot42/Oneshot125 etc. Target: iFlight-BL32-4IN1 BLHeliSuite download (BL32): Link |
XING 2207 1800KV 6S Motor ( Product Link) | Configu-ration: 12N14P Stator Diamter: 22mm Stator Length: 7mm Shaft Diameter: 5mm |
Nazgul 5140 3-Blade Propeller | Item Name: 5140 Durable 3-Blades Propeller Quantity: 2 CW & 2 CCW Color: may vary |
DJI Air Unit | DESCRIPTION Weight : Air Unit (Camera included): 45.8 g / 3.9 g (MMCX elbow each) Dimensions Air Unit: 44 x 37.8 x 14.4 mm Camera: 27.4 x 21.1 x 20.1 mm Coaxial Cable: 100 mm SPECIFICATION Operating Frequency: 5.725-5.850 GHz Transmitter Power (EIRP): FCC/SRRC: <30 dBm; CE: <14 dBm Max. Transmission Distance: FCC/SRRC: <4 km; CE: <0.7 km Video Format: MP4 (Video format: H.264; Audio format: ACC-LC) Input Power: 7.4-17.6 V, about 4-9 W Sensor: 1/3.2'' CMOS; Effective Pixels: 4 M Lens: 2.1 mm, f/2.1 Shutter: Rolling shutter ISO: 100-25600 FOV: 150°(D); 122°(H); 93°(V) Dimension: 22.1 x 21.1 x 20.1 mm Weight: 8.2 g |
Recommend Parts (Not included):

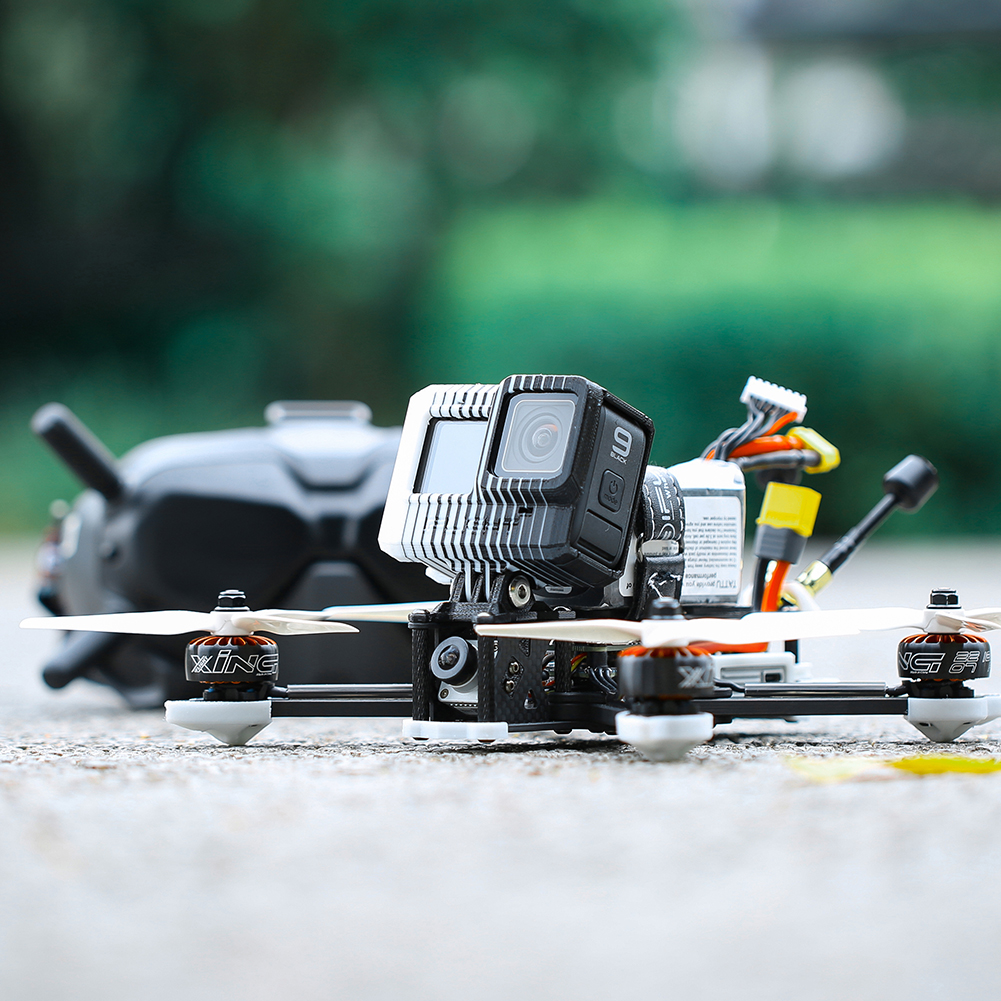

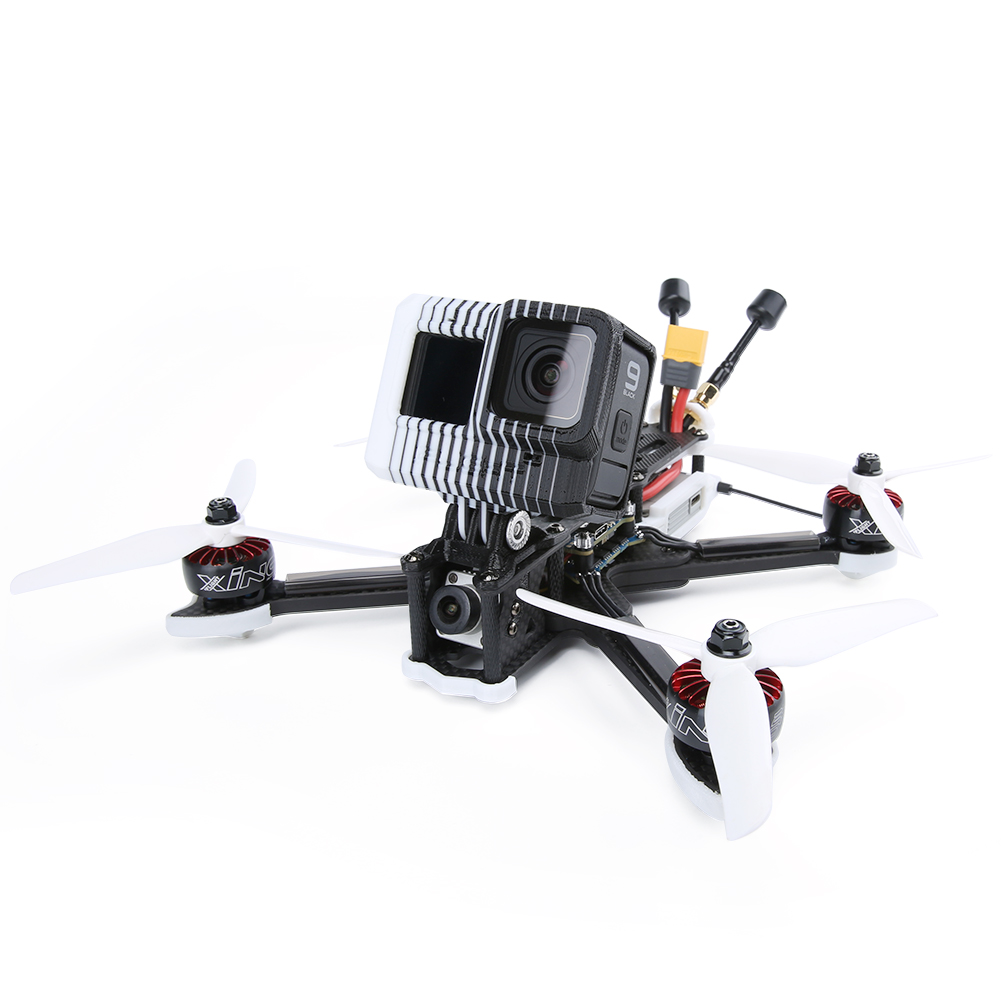

- TPU 3D Printed Camera Mount for Hero 5/6/7/8/9 with ND8 Filter (LINK1) (LINK2)
- TPU 3D Printed Camera Mount for Session (LINK)
Recommend Lipo Battery ( NOT Included): 6S 1300mAh 120C Lipo Battery XT60 Plug
Package Included:
1x Cidora SL5 V2.1 4S 6S FPV Drone BNF
1x DJI FPV camera
1x DJI FPV Air Unit Module
2x DJI LHCP RP-SMA 5.8g FPV antenna
2 sets x Nazgul 5140 propellers (Set of 4 - Color may vary)
1x 20*250mm battery strap (Color May Vary)
1x 20*200mm battery strap (Color May Vary)
1x TPU bottom stand incl. lock screw
