Description:

SYN6988 speech synthesis module has small size, SMD package, simple hardware interface, low power consumption, clear and round tone, close to human voice, and extremely high cost performance; in addition, SYN6988 has added English text parsing and English sound library, It is a Chinese and English speech synthesis chip for high-end industry applications. The SYN6988 chip is fully compatible with the SYN6658 chip in hardware and communication interface.
SYN6988 realizes the conversion of text to speech (or TTS speech) through the UART interface or SPI interface, and the text data is connected. There is a four-bit DIP switch on the module to select the baud rate, with a power indicator light, the size of the positioning hole and the position of the pin header are the same as those of the 5152 module.

Features:

1. Clear, natural and accurate Chinese and English pronunciation synthesis effect. The chip supports the synthesis of Chinese and English texts, and can use three encoding methods: GB2312, GBK and Unicode. The amount of text synthesized each time can reach 4K bytes.
2. Two communication modes: The chip supports two communication modes, UART and SPI. When the user's UART serial port resources are occupied, the SPI interface can be selected.
3. The chip supports Standby mode. Using control commands can put the chip into Standby mode.
4. The communication baud rate supported by the chip: 4800bps, 9600bps, 57600bps, 115200bps.

Package includes:

1 x Speech Synthesis Module

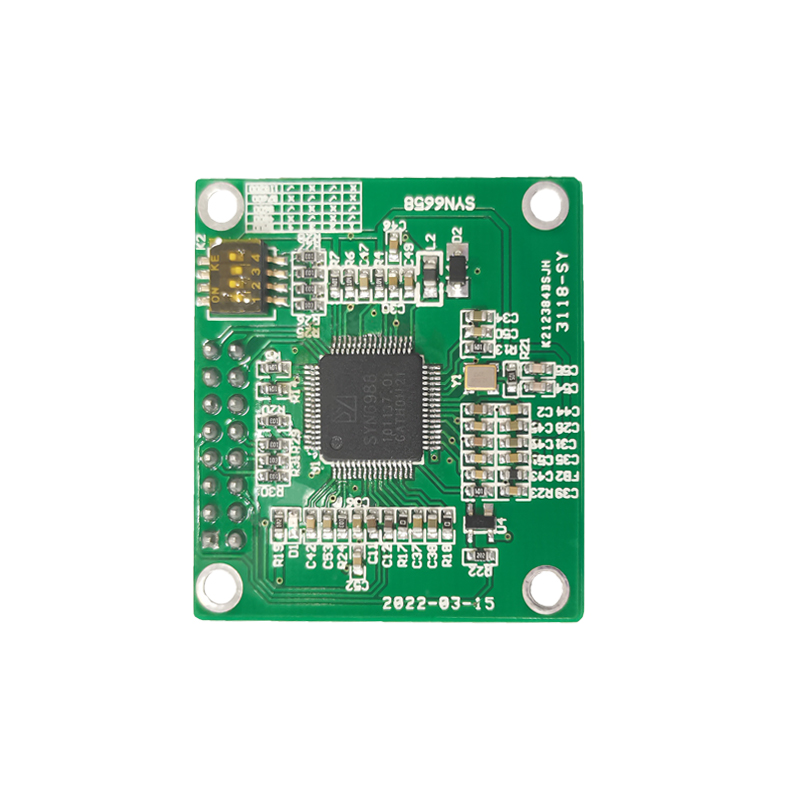

1. DIP switch: used to select the baud rate, please refer to the instructions in the silk screen for details;

1234BAUD
XX4800
XX9600
XX57600
XX115200

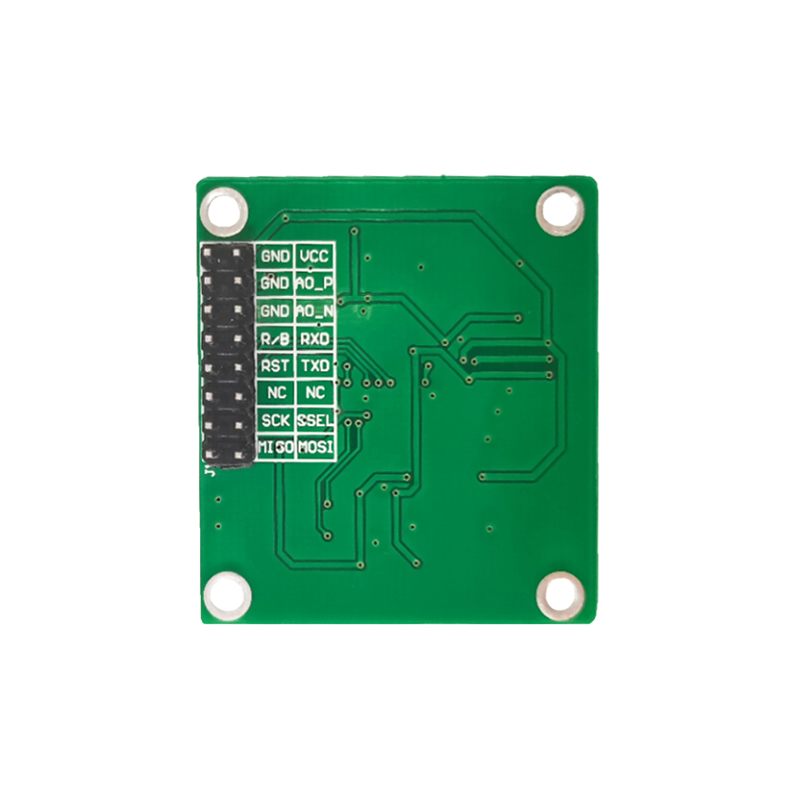

2. Pin function:

GNDGround reference signal
VCC +3.3V working power supply
AO_PSound output signal+
AO_NSound output signal-
R/BWorking status indication output, low level means idle
RXDUART serial data input
TXDUART serial data output
RSTExternal reset signal input
SCKSPI serial clock input
SSELSPI enable select input
MISOSPI serial data output
M0SISPI serial data input
NCEmpty feet

Note: The module does not have a power amplifier chip, and the audio output is only enough to drive headphones. If you need to connect a speaker, you need an external power amplifier circuit.
