Mega ATmega2560 Development Board 16MHz For Arduino
- Stock: In Stock
- Model: ST230042225
- SKU: ST230042225
$48.99
Ex Tax: $48.99
Product Details:

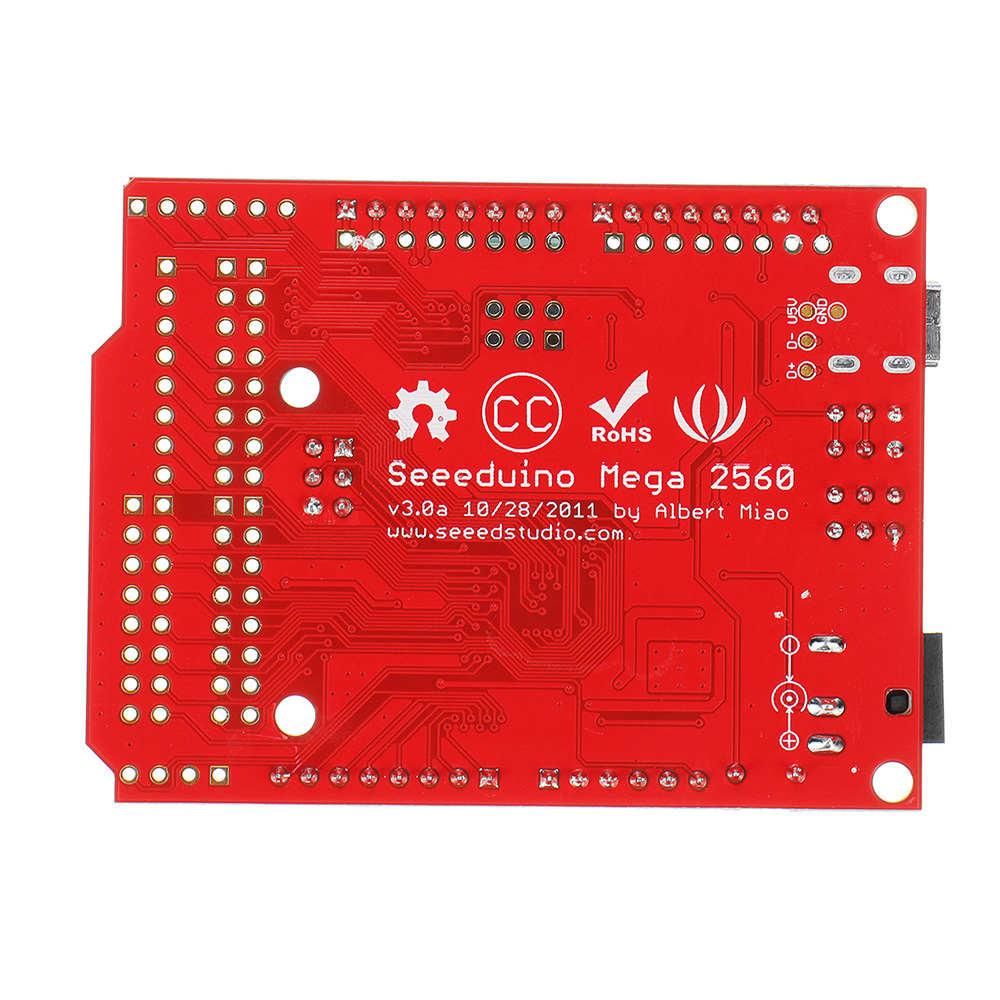

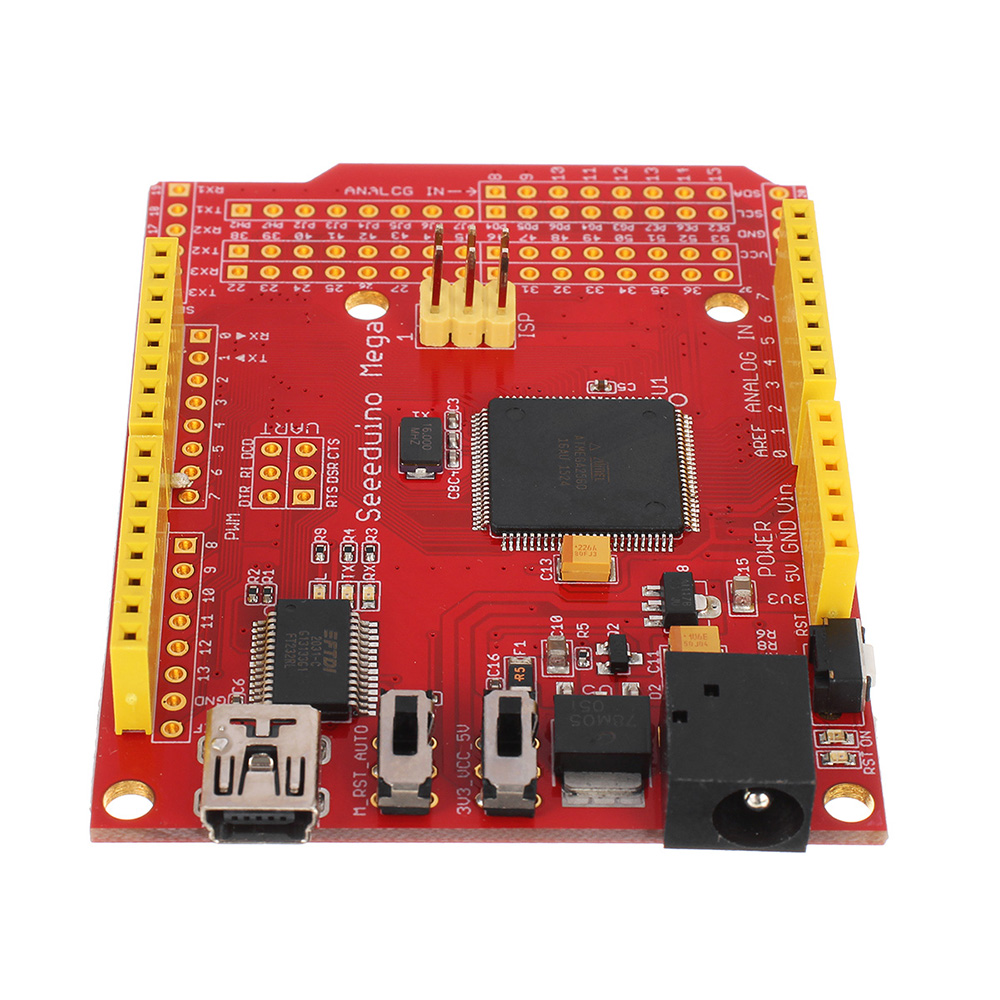

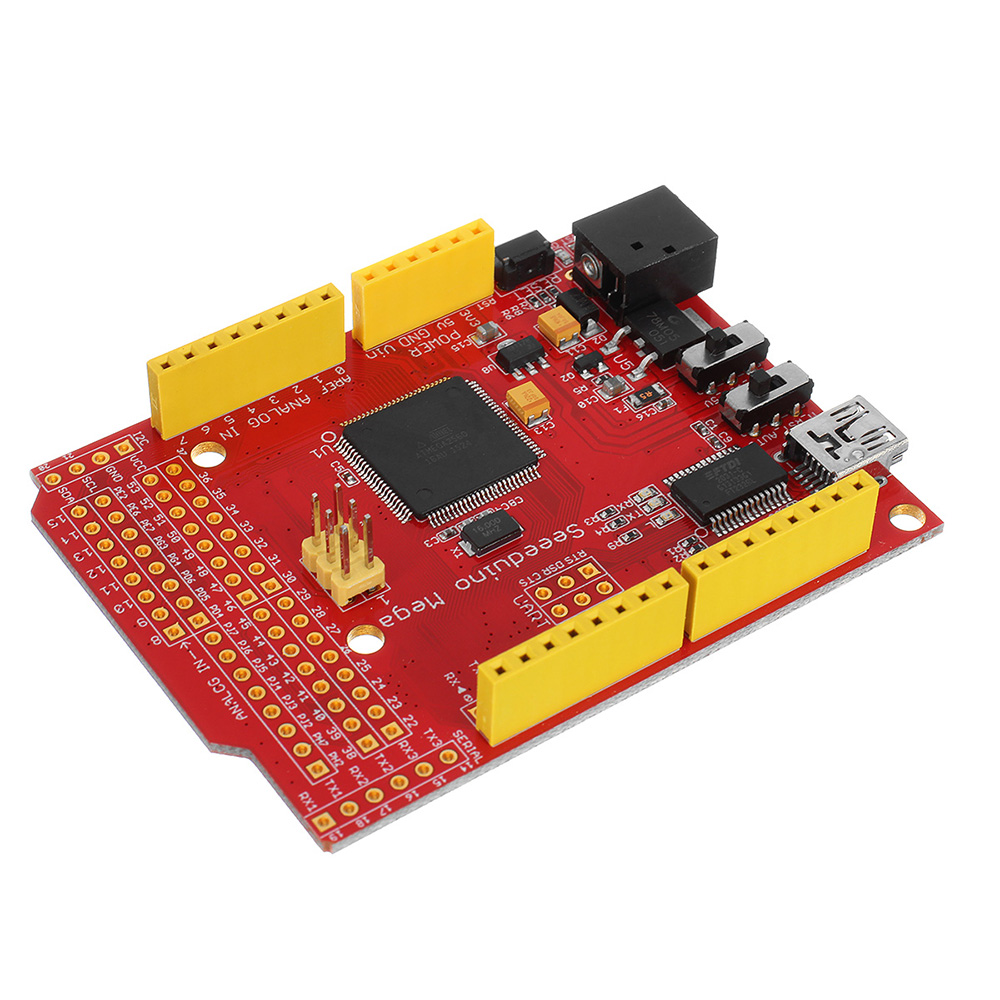

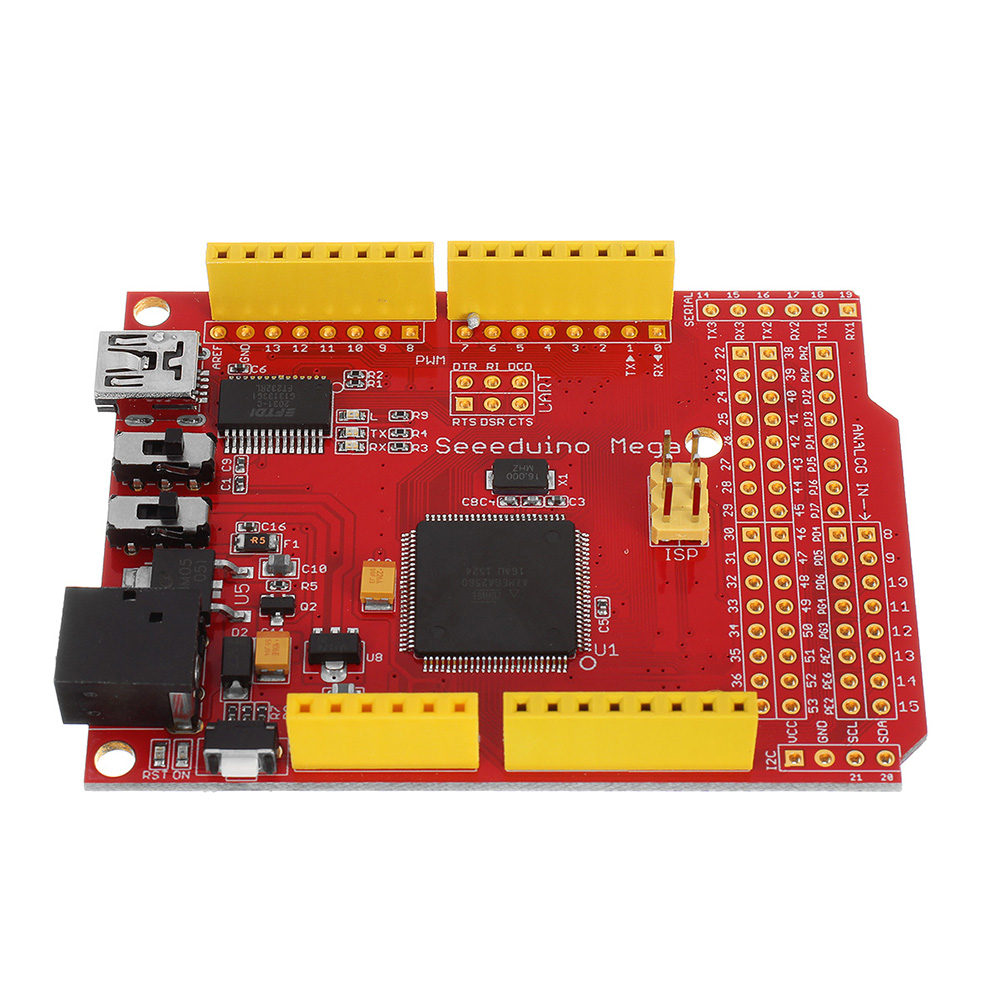

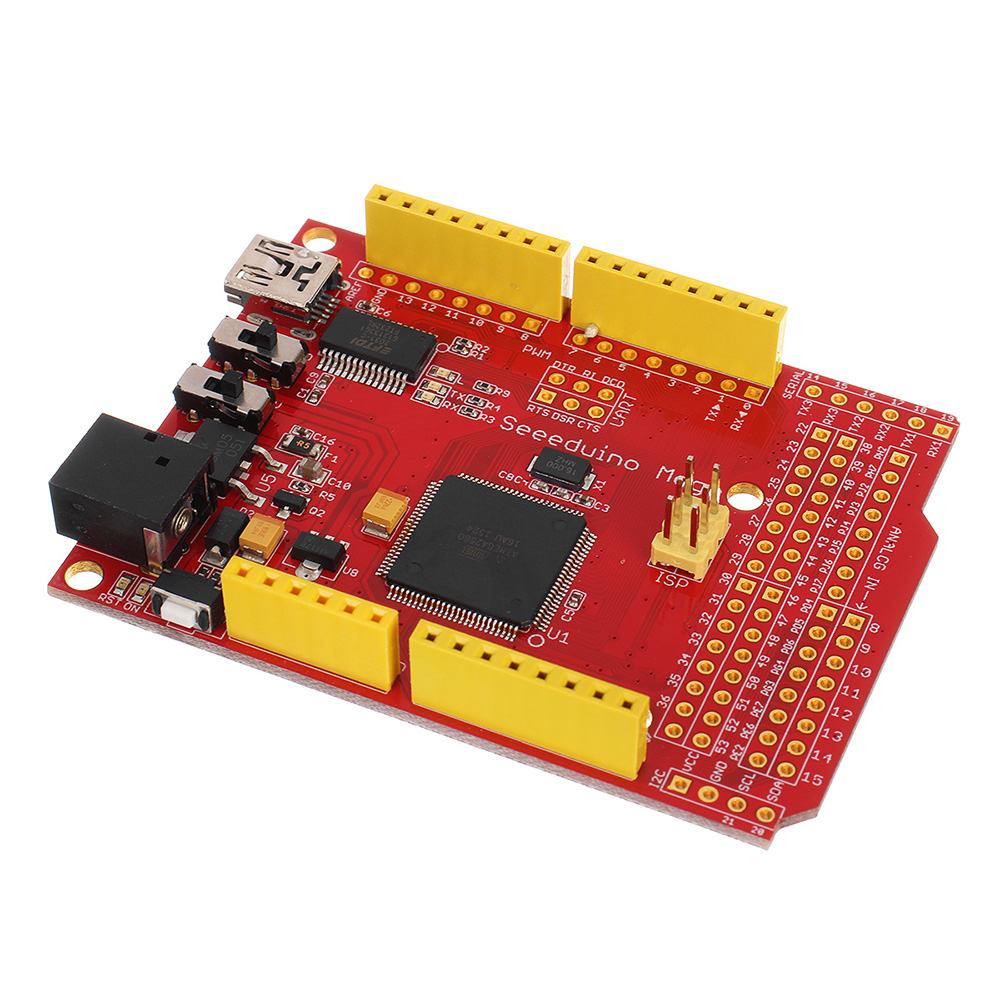

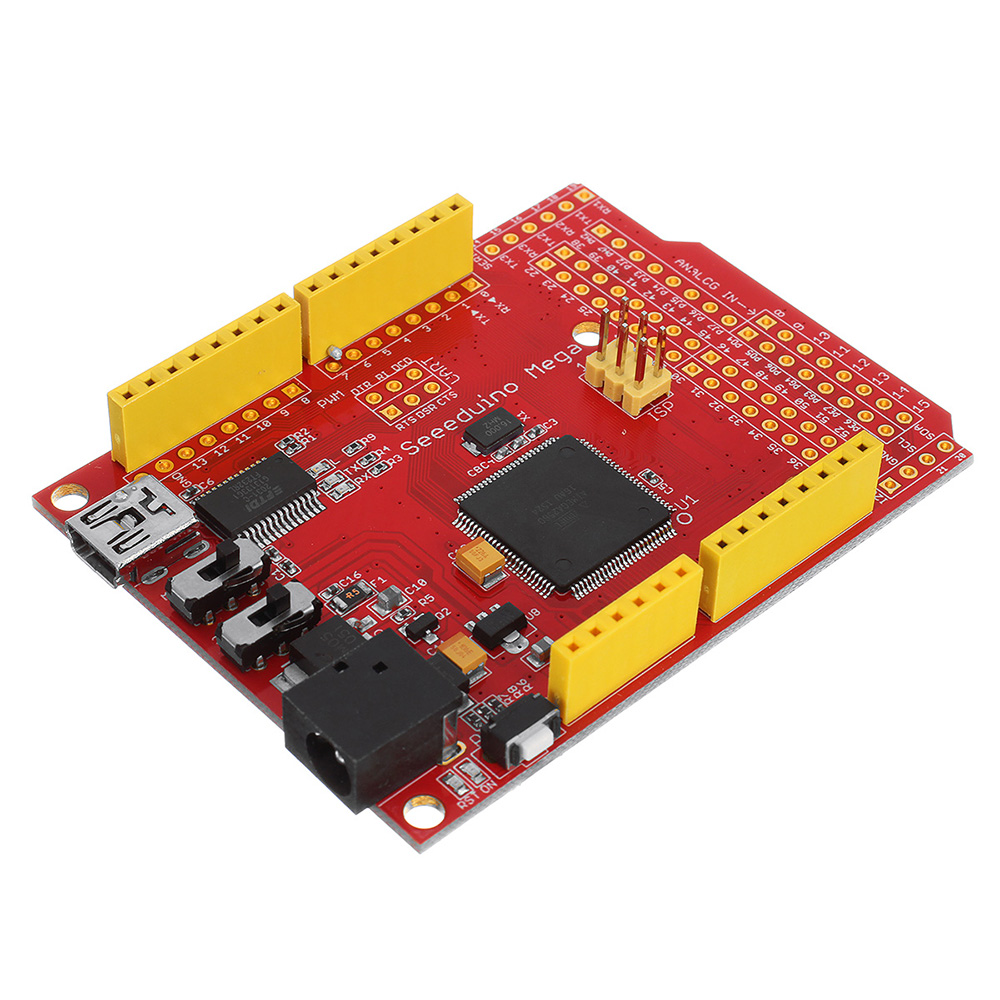

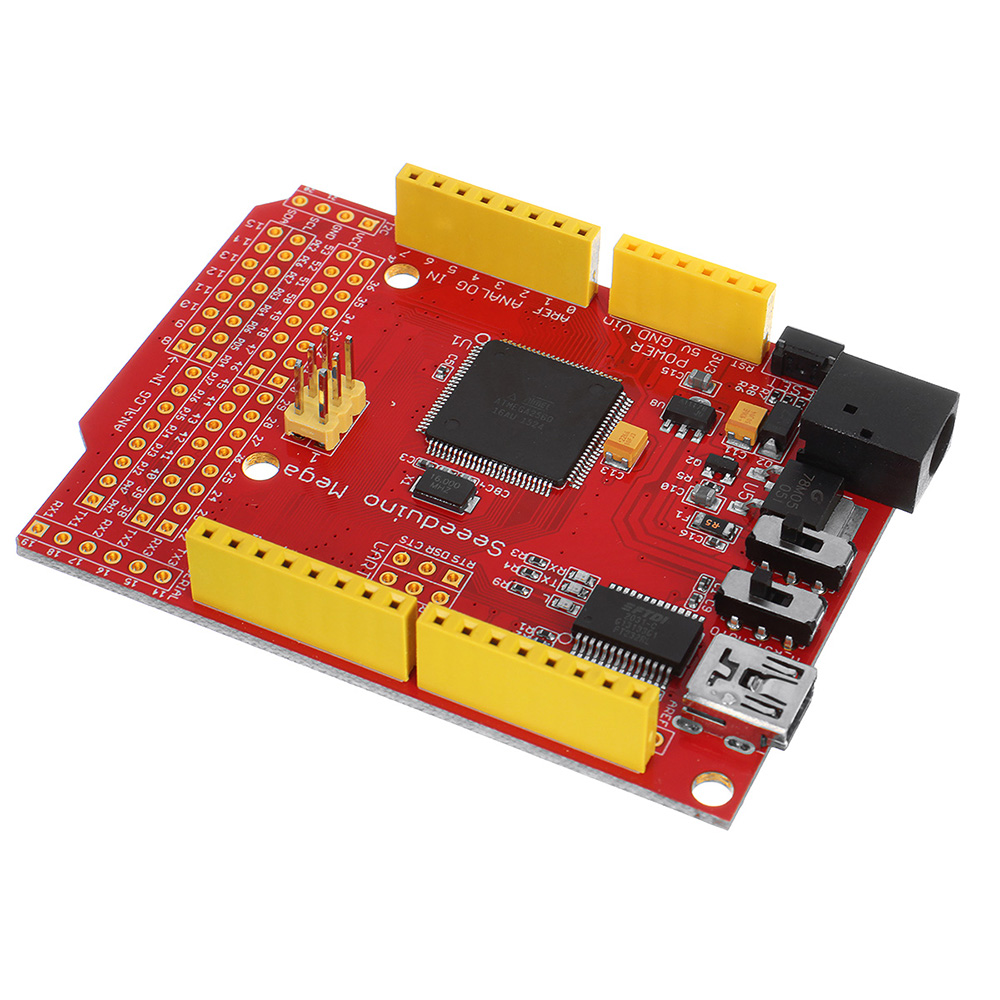

Seeeduino Arduino Mega is a powerful micro-controller derived from Mega. It features ATmega2560 processor which brings a large number of I/O pins, as much as 70 digital I/O, 16 analog inputs, 14 PWM, and 4 hardware serial ports. Compared to Mega, we shrunk the volume of Arduino Mega by at least 30% and made it 100% compatible with Seeed Shield products. And as a member of Seeeduino series, Seeeduino Arduino Mega inherits deliberate details from Seeeduino, like selectable operating voltage(3.3V/5V), right angle reset button, and so on.
Features:
ATmega 2560 @ 16MHz
Selectable 5V/3.3V operation
70 Digital IO
16 Analog inputs
14 PWM outputs
4 Hardware serial ports (UART)
Compatible with most Duemilanove and Diecimila Shields
Small form factor, 30% smaller than Mega
Easy to program, no additional hardware is required to load firmware – just plug to a USB port and you’re good to go.
ICSP Header
Can be powered through a battery or through a AC to DC adaptor
| Technical details | |

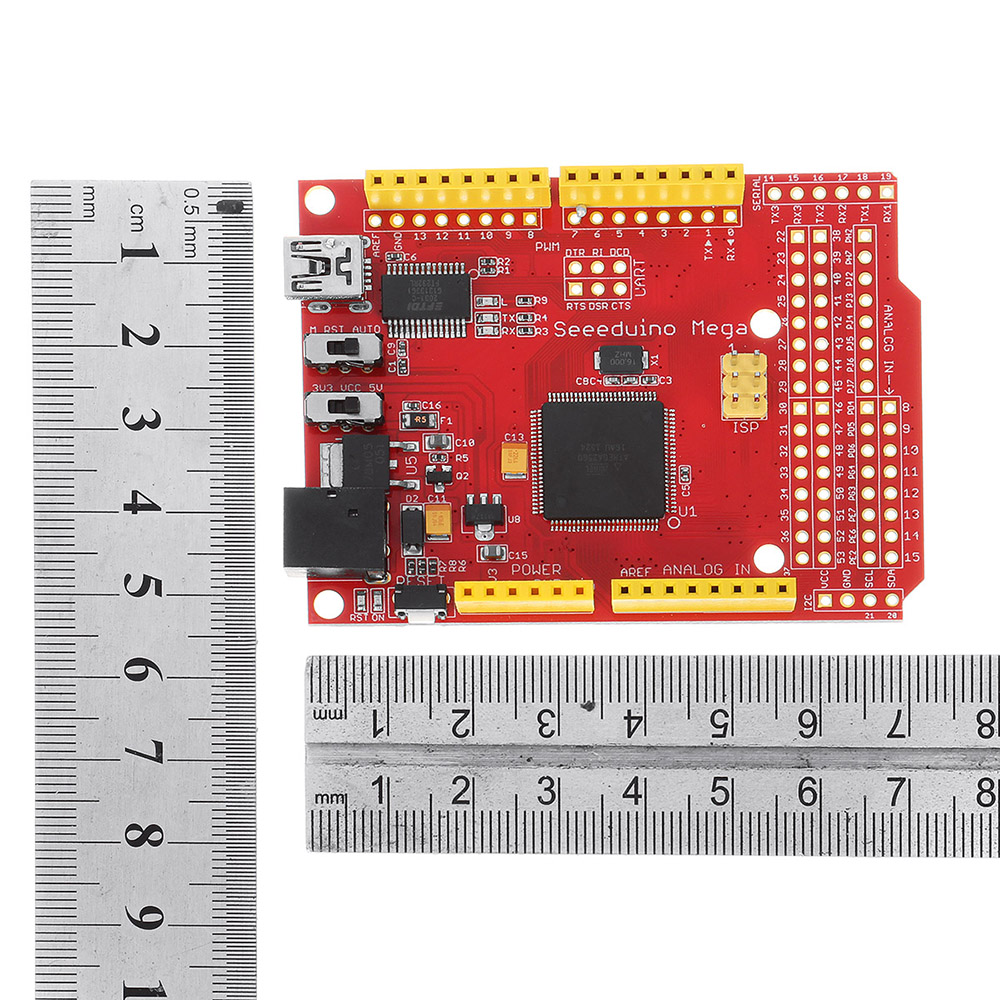

| Dimensions | 115mm x75mm x25mm |
| Weight | G.W 54g |
| Battery | Exclude |
| Item | Value |
| Microcontroller | ATmega2560 |
| Operating Voltage | 5V/3.3V |
| Input Voltage | 7-12V |
| Digital I/O Pins | 70 |
| PWM Channels | 14 |
| Analog Input Channels | 16 |
| DC Current per I/O Pin | 20 mA |
| Flash Memory | 256 KB |
| RAM | 8 KB |
| EEPROM | 4 KB |
| Clock Speed | 16 MHz |
Documentations:
Seeeduino Mega Eagle File
Seeeduino Mega Pin Mapping PDF
Getting Started with Arduino
Arduino Language Reference
Download the Arduino Software(IDE)
Arduino FAQ
Arduin0 Introduction
Wikipedia page for Arduino
WIKI datasheet
Package includes:
1 x Mega board
