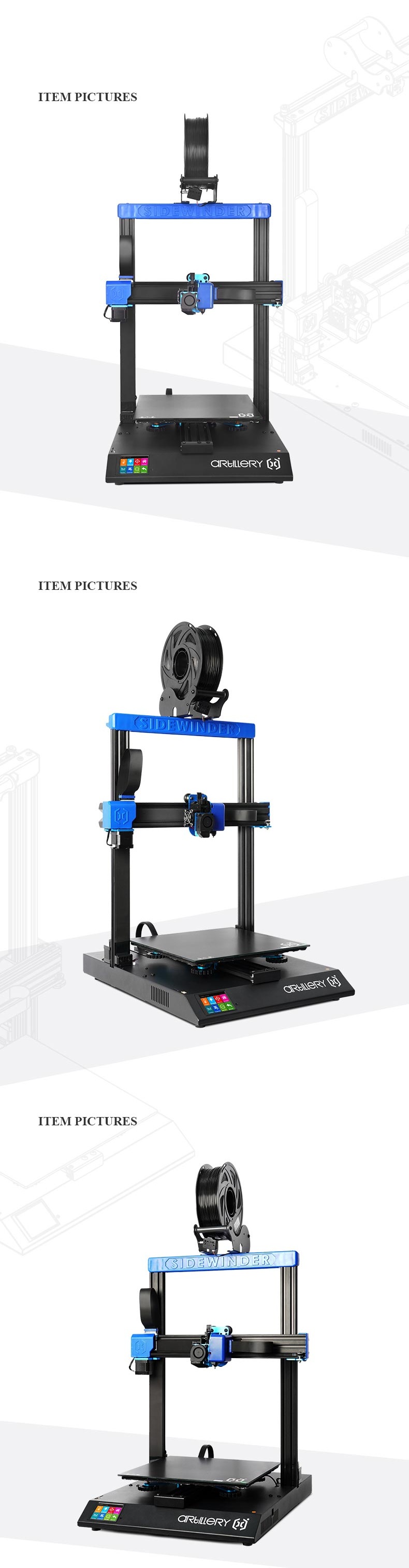

Sidewinder X2 & Sidewinder X1 3D Printer Kit with 300*300*400mm Large Print Size Support Resume Printing&Filament Runout Detection
- Stock: In Stock
- Model: ST230036945
- Dimensions: 300.00mm x 300.00mm x 400.00mm
- SKU: ST230036945
$400.00
Ex Tax: $400.00
Sidewinder X2 & Sidewinder X1 3D Printer Kit with 300*300*400mm Large Print Size Support Resume Printing&Filament Runout Detection With Dual Z axis/TFT Touch Screen
Features:
● Standard Building Volume:
300*300*400mm large print size; 150mm/s max print speed. High accuracy printing quality, down to 50 microns.
● Easy Installation and Stable Performance:
95% pre-assembled, easy for installation.
With full aluminum frame design, very stable structure
● Developed Function:
Synchronized Dual Z System
Support power loss detection andrecovery.
Support filament runout detection andrecovery
● Powerful high quality accessories:

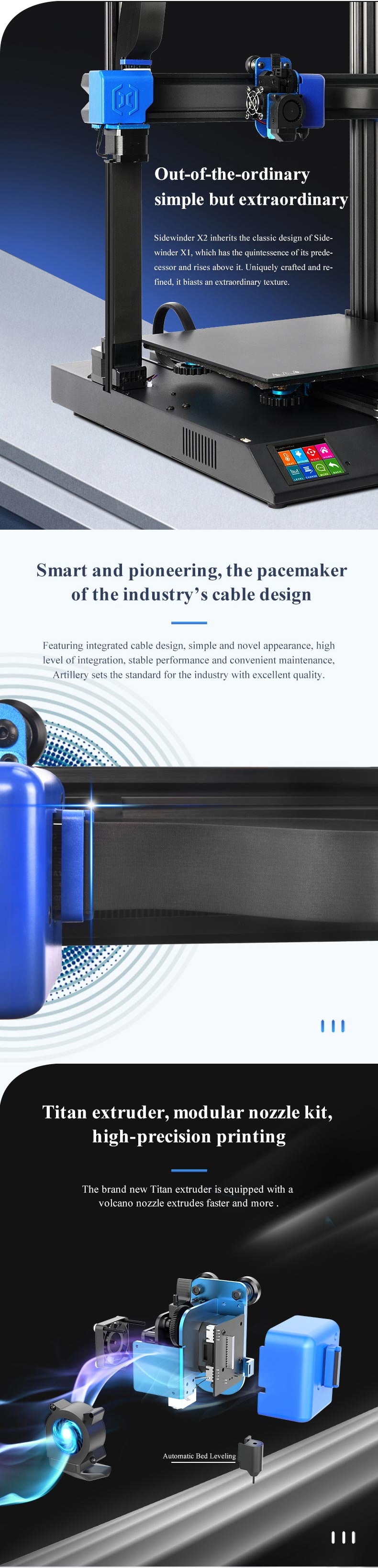

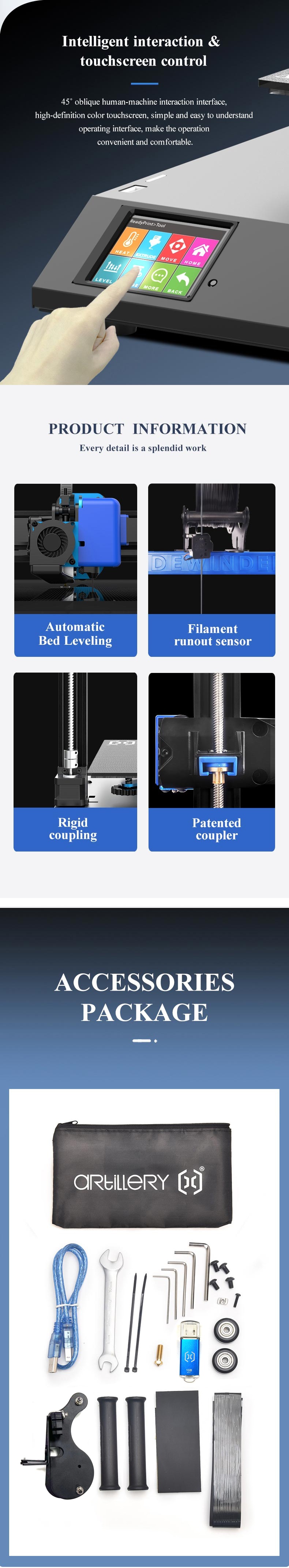

With touch screen control, AC heatbed, Ultra-quiet Stepper Driver. And titanstyle direct-drive extruder to support flexible materials.
● User-friendly matching: 110v and 220v are available, suitable for working voltage in most parts of the world.
With touch screen control, AC heatbed, Ultra-quiet Stepper Driver. And titanstyle direct-drive extruder to support flexible materials.
● User-friendly matching: 110v and 220v are available, suitable for working voltage in most parts of the world.

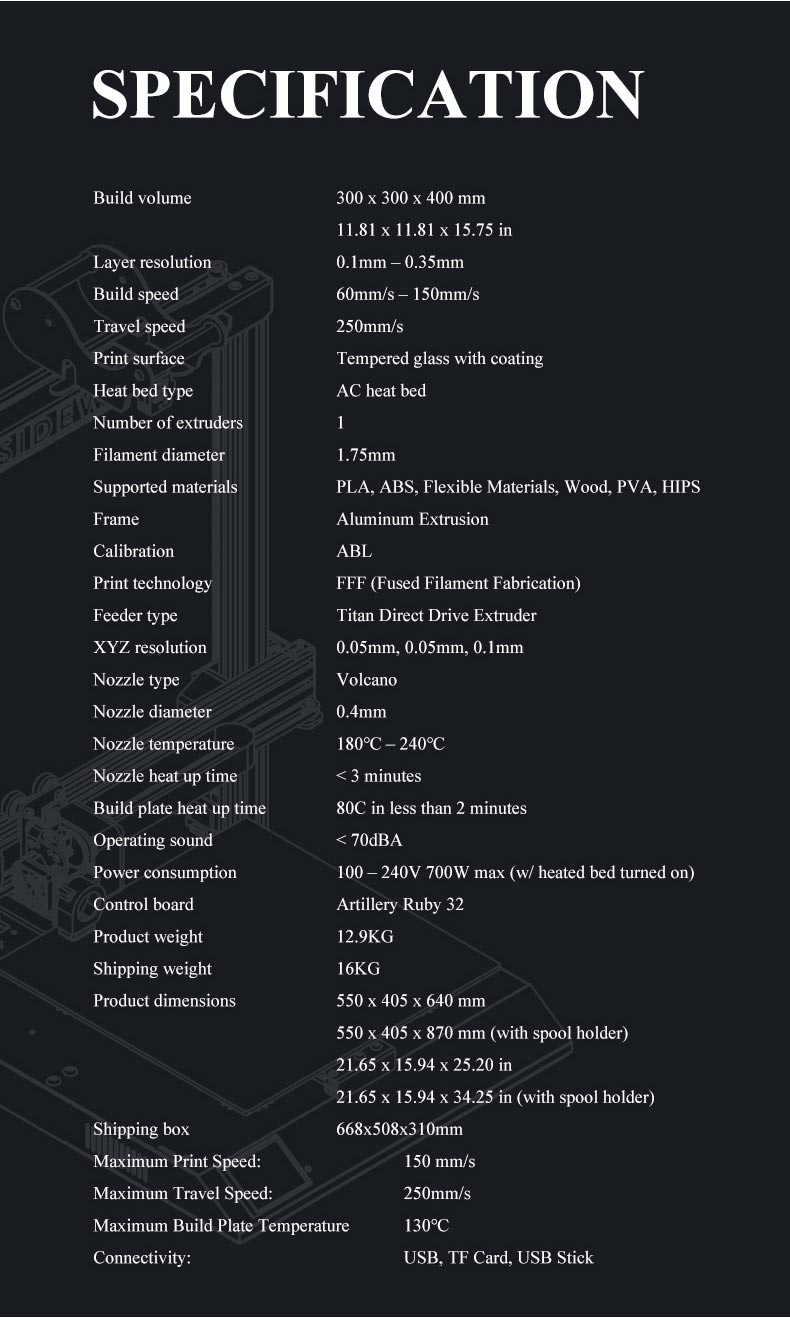

| Specification | |
| Build Volume | 300 x 300 x 400mm (11.8 x 11.8 x 15.75in) |
| Layer resolution | 0.01mm |
| Maximum print speed | 150mm/s |
| Maximum trave speed | 250mm/s |
| Print bed | Glass-ceramic |
| Heat bed type | Rapidheating AC heat bed |
| Build plate heat up time | 80℃ in less than 2 minutes |
| Filament diameter | 1.75mm |
| Supported filament | PLA, ABS, Flexible PLA, TPU, Wood, PVA, HIPS… |
| Bed leveling | Manual |
| Print technology | FFF (Fused Filament Fabrication) |
| Extruder type | Direct Drive Extruder (Titan type) |
| XYZ resolution | 0.05mm, 0.05mm, 0.1mm |
| Nozzle type | Volcano |
| Nozzle diameter | 0.4mm |
| Nozzle temperature | up to 240℃ |
| Nozzle heat up time | < 3 minutes |
| Noise level | < 60 dBA |
| Power consumption |
100V-240V 600W max (with heated bed turned on) |
| Power supply |
Plug EU Standard(220v) or US Standard(110v) - Optional |
| Control board | MKSGen L |
| Stepper driver |
Exclusive ultra-quiet stepper driver (256 micro-stepping) |
| Advanced sensors | 3 inductive endstop sensors |
| Machine weight | 14kg |
| Shipping weight | 16.5kg |
| Machine dimensions |
550 x 405 x 640mm 550 x 405 x 870mm (w/ spool holder) |
| Shipping box dimensions | 780 x 540 x 250mm |
| Suitable filament recommended to you | |
| ABS filament 1.75mm 1kg | id 1378636 |
| PLA filament 1.75mm 1kg | id 1491898 |
| Replacement Parts recommanded | |
| Extrusion Kit | id1704534 |
| Glass Plate | id1704524 |
| Adaptor Boards | id1704544 |
| X limited Switch | id1706647 |
| Y limited Switch | id1706584 |
| Z limited Switch | id1706566 |
| Trianglelab Matrix Extrusion Kit | id1833564 |
Package Included:
1 x& Sidewinder X1 X2 3D Printer(Choose the Version you need)
1 x Tools Kits
1 x USB Disk
