Sipeed Tang Primer 20K GOWIN GW2A FPGA Development Board Deep Learning Core Board
- Stock: In Stock
- Model: ST230047855
- SKU: ST230047855
$38.99
Ex Tax: $38.99
Specifications:
Logical Unit: 20736
Flip-Flop: 15552
Shadow-SRAM S-SRAM bit: 41472
DSP-: Support 9x9 18x18 36x36bits Multiplier and 54 bit-accumulator
18x18 Multiplier: 48
SPI Flash: 32M-bit
Display interface: SPI Screen interface connector
Connector: TF-card slot, SPI screen connector 8P 1.0mm IO-Pad JTAG lead out
DRAM: Onboard 128MB DDR3 Chip
Features:
1. brand new and high quality
2. Primer 20K core board uses GW2A-LV18PG-256C817 designed by GOWIN Semiconductor as the-main chip
3. It contains rich internal resources, such as high-performance -DSP, high speed LVDS interace and BSRAM memory resources.
4. On board peripheral components such as DDR chip and power chips help users use this core board quickly develop and verify- projects.Suitable for high-speed and low cost situations.
5. It includes a core board and a Lite- Ext-board. The Lite- ext-board has out almost all IO- ports to Pin headers and PMOD interfaces,by which uses can easily connect other peripheral modules or circuits for secondary development.

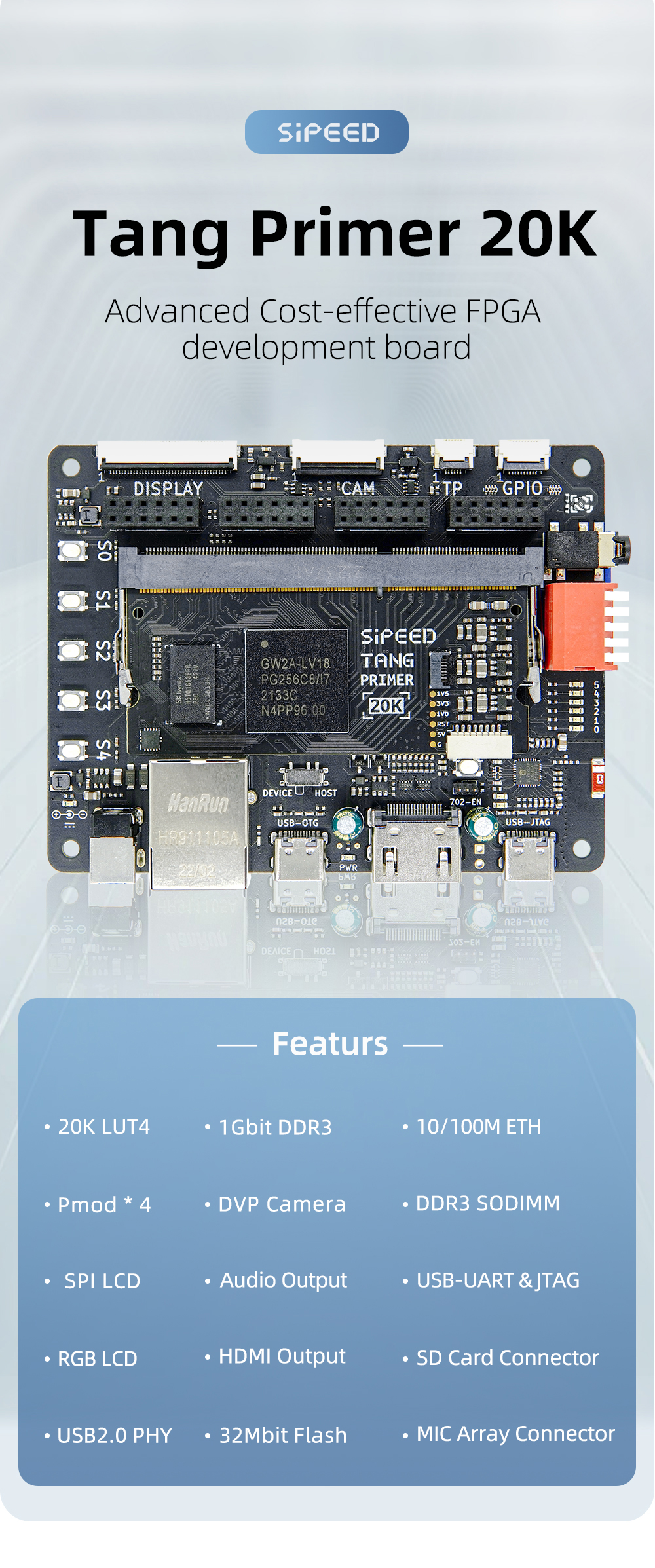

6. Primer 20K Dock ext-board equippedwith a wealth of peripheral resources, such as onboard use-JTAG&UART programmer, Ethernet and network- connector port, USB2.0 PHY HDMI-TX connector, Audio-output and headphone connector, RGB screen connector, camera connector.

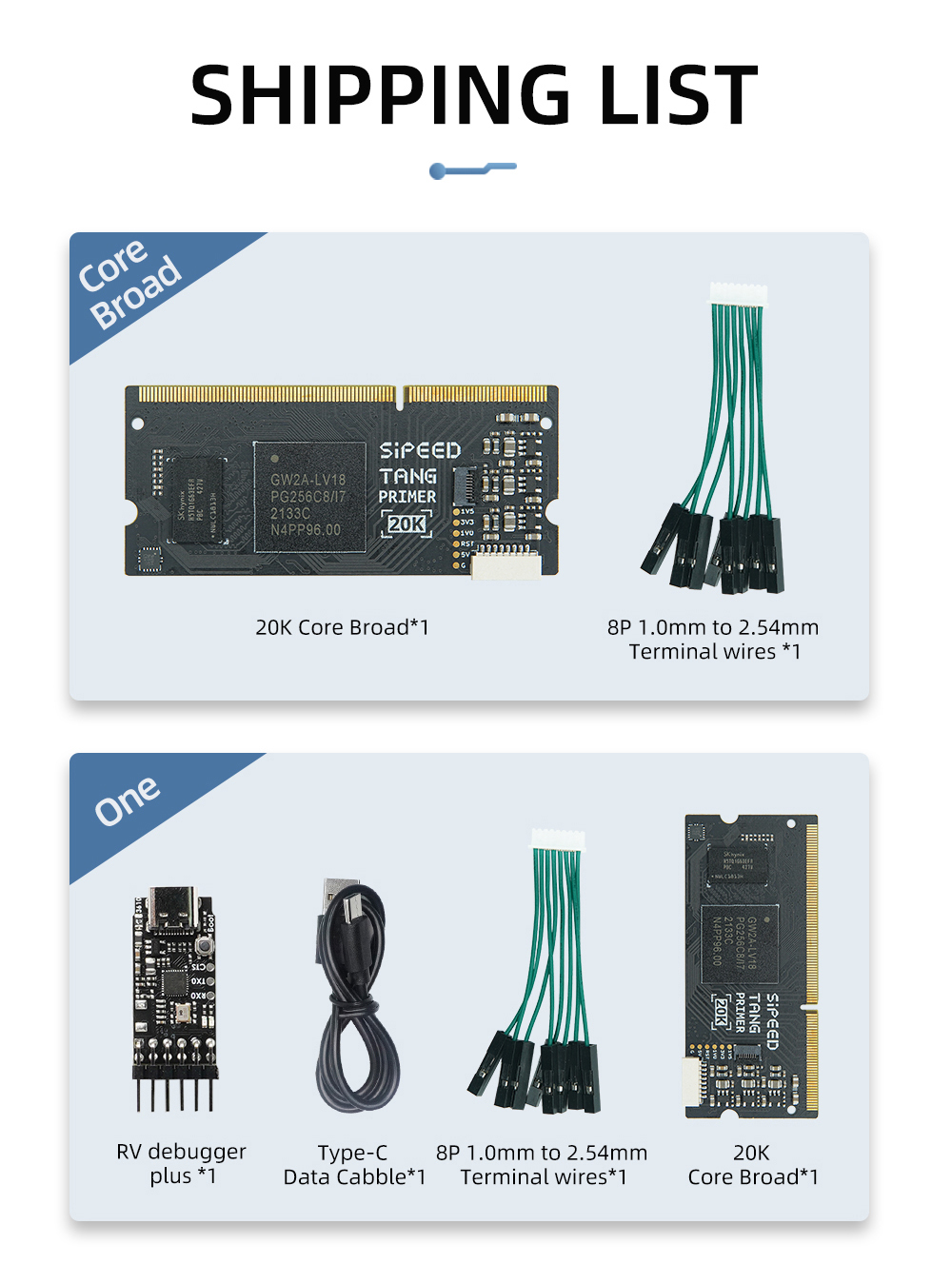

Package Include:
1【Core Board】:
1×20K Core Board
1×8P1.0mm to 2.54mm Terminal Wire
2【Package Set】:
1×20K Core Board
1×8P1.0mm to 2.54mm Terminal Wire
1×RV Debugger Plus
1×Type-C Data Cable
