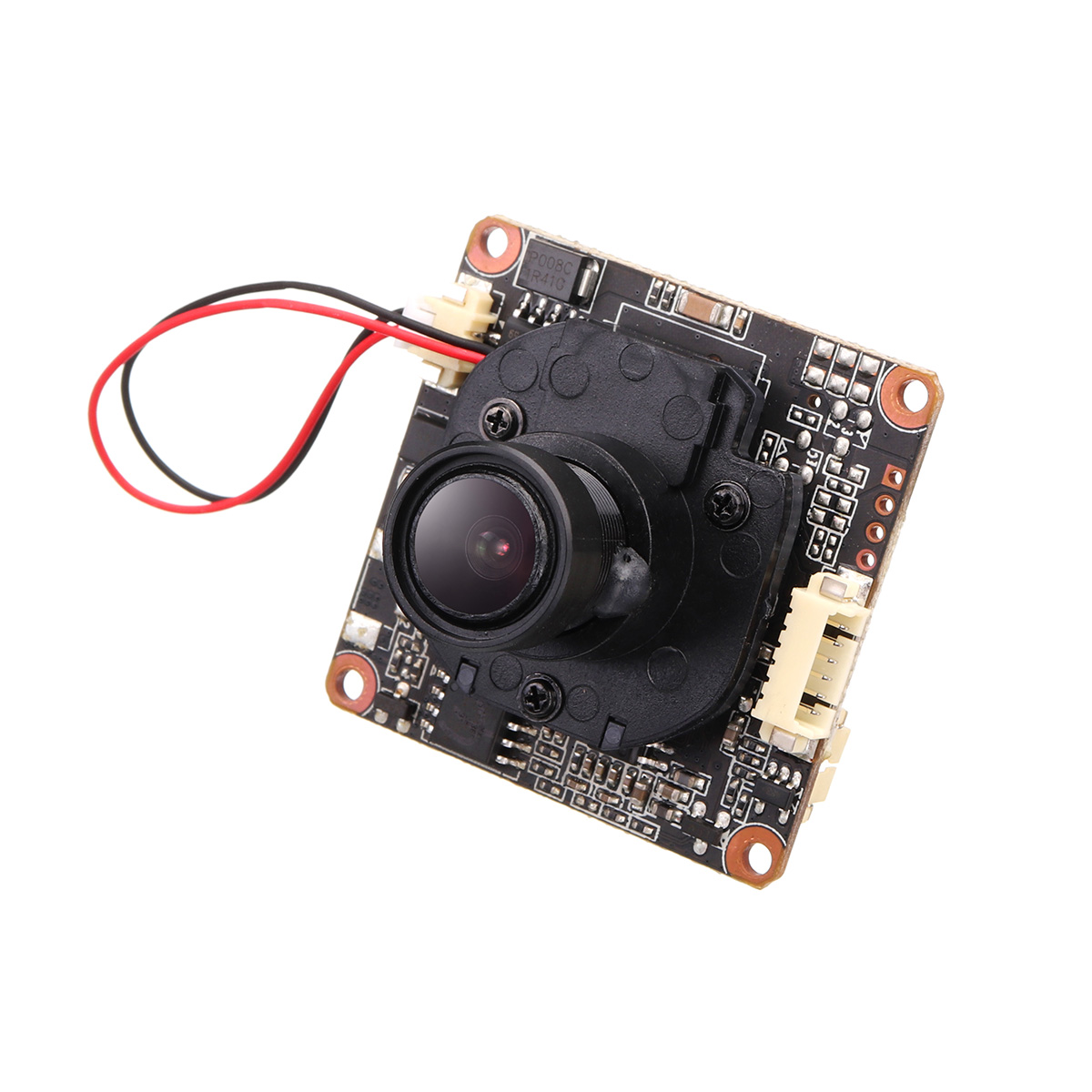

Mstar 200 Million 1080P Webcam Module H.265 With Audio Network Module DC12V 1.2W
- Stock: In Stock
- Model: ST230047370
- SKU: ST230047370
$11.96
Ex Tax: $11.96
Interface Pin Definition: http://img.banggood.com/file/products/20180510031418Interface-Pin-Definition2.pdf
Feature:
Feature:
2 million 1080P 38X38 single board
2 million 1080P entry star module
Support Haikang private agreement
Support P2P, cloud storage
Good night vision performance
Computer client:seetong
Mobile App: Danale
| Specification | |
| Hardware Structure | MSTAR MSC313E + 200-megapixel 1/2.7" Low-light CMOS SC2135 |
| Minimum Illumination | Color 0.1 Lux@F1.2, black and white 0.005 Lux@F1.2 |
| Wide Dynamic Range | Digital Wide Dynamic |
| Signal to Noise Ratio | ≥50dB |
| Image Quality | Saturation setting, contrast setting, sharpness setting, brightness setting, auto white balance, manual white balance setting, backlight compensation setting, strong light suppression setting, auto exposure, 2D/3D noise reduction intensity setting, fog setting , WDR mode strength settings |
| Video Features | Masking, OSD Character Overlay, Motion Detection |
| Interface | Audio linear input and output. |
| Coding Format | H.264 Main Profile/High Profile, |
| H.265/HEVC Main Profile/High Profile | |
| Image Resolution | 2 million main stream: 1920*1080, 1-20 frames/second |
| 1.3 million main stream: 1280*720, 1-30 frames/sec | |
| Substream: 640*480, 640*360, 1-30 frames/sec | |
| Image Mode | Support corridor mode, horizontal flip and vertical flip |
| Video Compression Rate | 32Kbps-3.5Mbps continuously adjustable, support CBR / VBR |
| Audio Code | G.711/AAC audio codec standard, support two-way voice intercom function, support audio and video synchronization |
| Network Interface | 10/100M adaptive Ethernet interface, lightning protection design |
| Protocol Support | Supports HTTP/RTSP/FTP/PPPOE/DHCP/DDNS/NTP/ONVIF/P2P network protocols and supports Haikang's proprietary protocol |
| Digital Storage | The memory card is not supported. Supports multiple storage mechanisms for back-end storage |
| Mobile Client | Support Windows Mobile, iPhone, iPad, Android platform |
| Function | 1/2.7" SC2135 CMOS sensor, using the latest MSTAR MSC313E program, standard single-layer 38mm * 38mm, support day and night conversion infrared sensor, support for photosensitive resistor signal linkage |
| General Parameters | DC12V/POE, 1.2W Max, 38x38x15mm (without lens), 60g net weight |
Package includes:
1 x Webcam Module
1 x Webcam Module
