  • Stock: In Stock
  • Model: ST220015781
  • SKU: ST220015781
$119.99
Ex Tax: $119.99
15W 17V Solar Power Panel Q1350L/H H150cm Fountain Pump
Built-in polymer Li-ion battery support 4~10 hours working even in windy days!Also can be recharged while spraying water.
Built-in water-level monitoring system, auto-stop when lack of water to protect the pump.

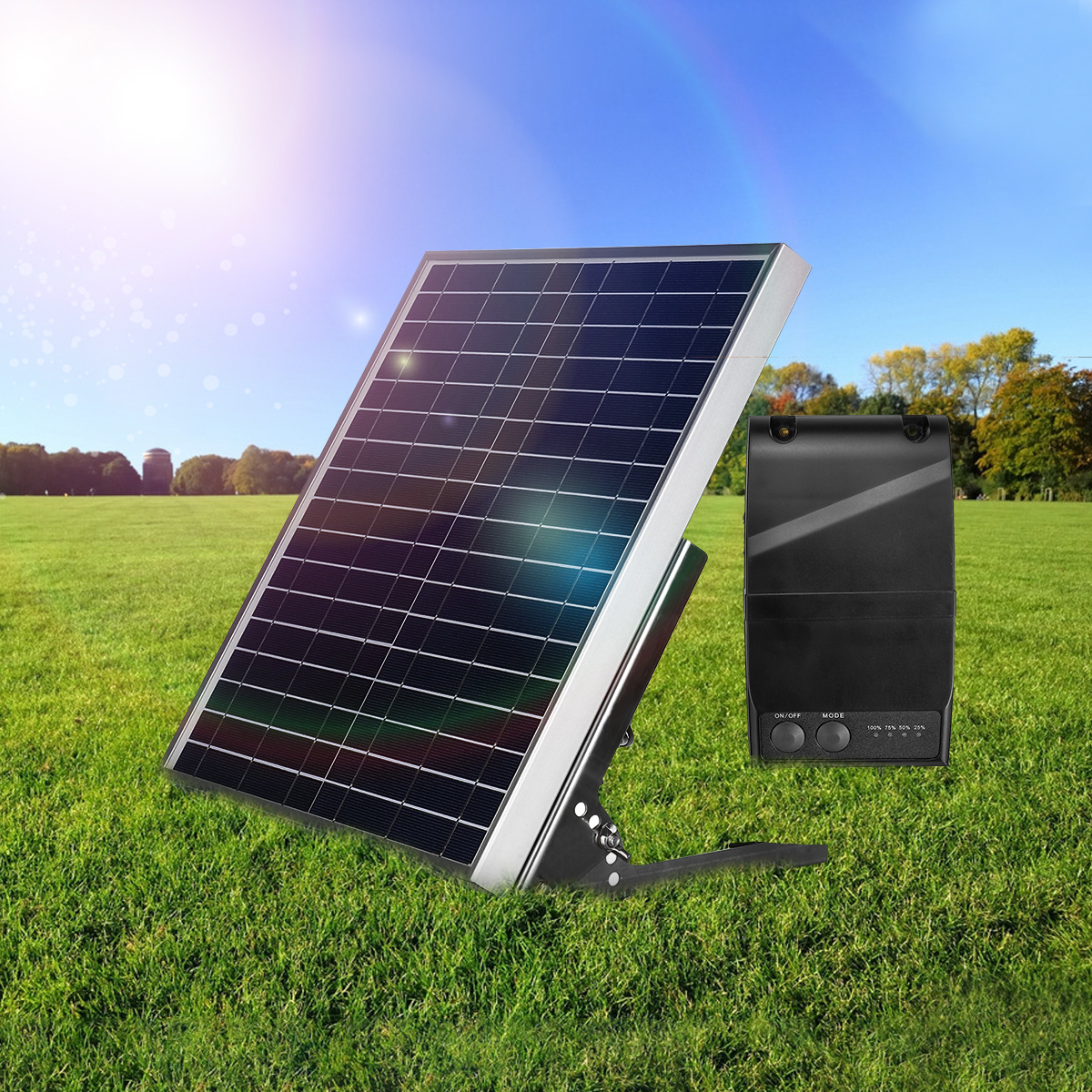

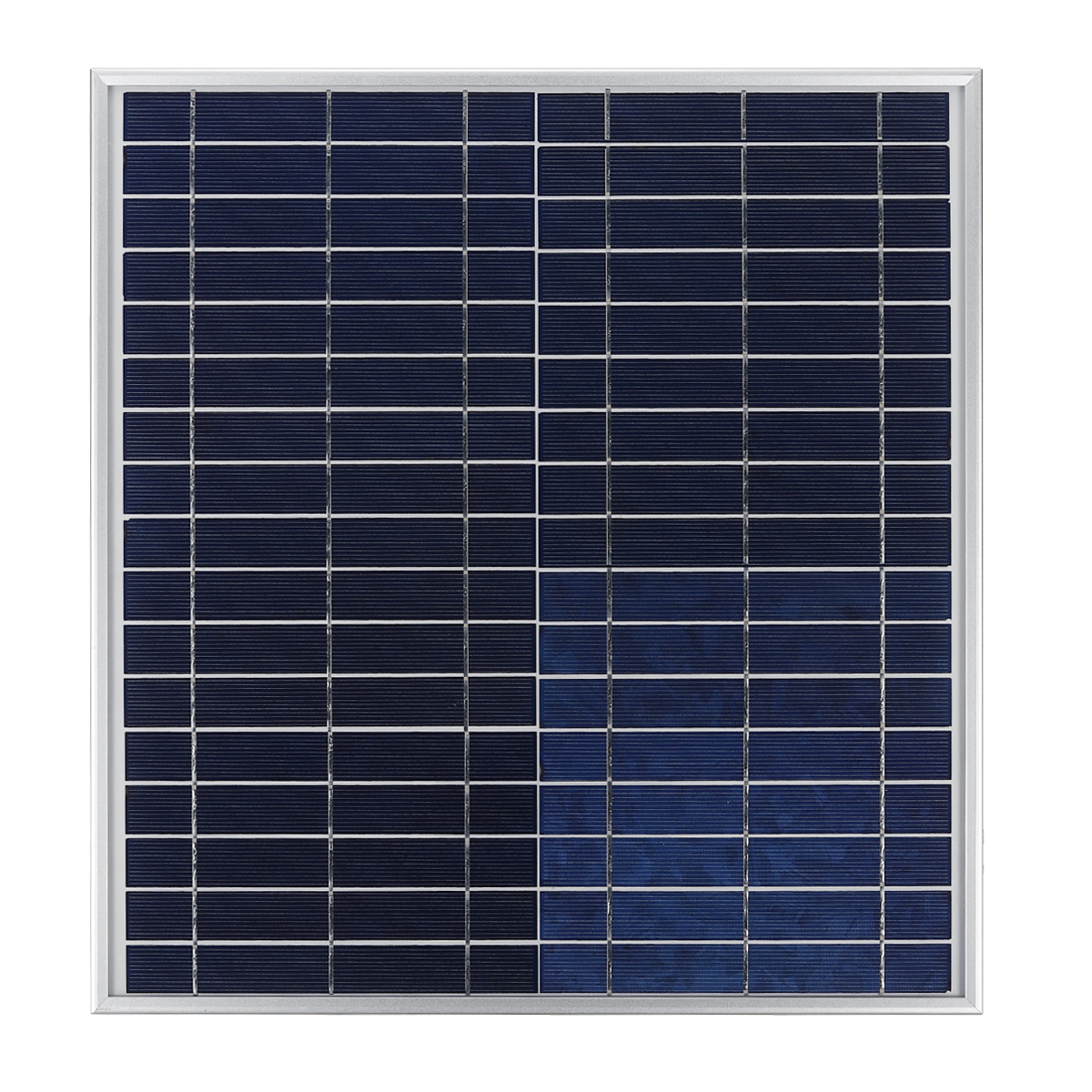

Main Parameters of Solar Panel:
Cells: Polycrystalline
Processed: Glass Laminated
Pmax: 15W
Vpmax: 17V
Ipmax: 0.88A
Voc: 20.4V
Isc: 0.97A
Maximum System Voltage: 1000V DC
STC: 1000W/m2, AM1.5and25℃
Efficiency: 19%
Junction Box IP Grade: IP65
Size: Approx. 360x340x25mm
Weight Approx.: 1370g
Cable Length Approx.: 5m

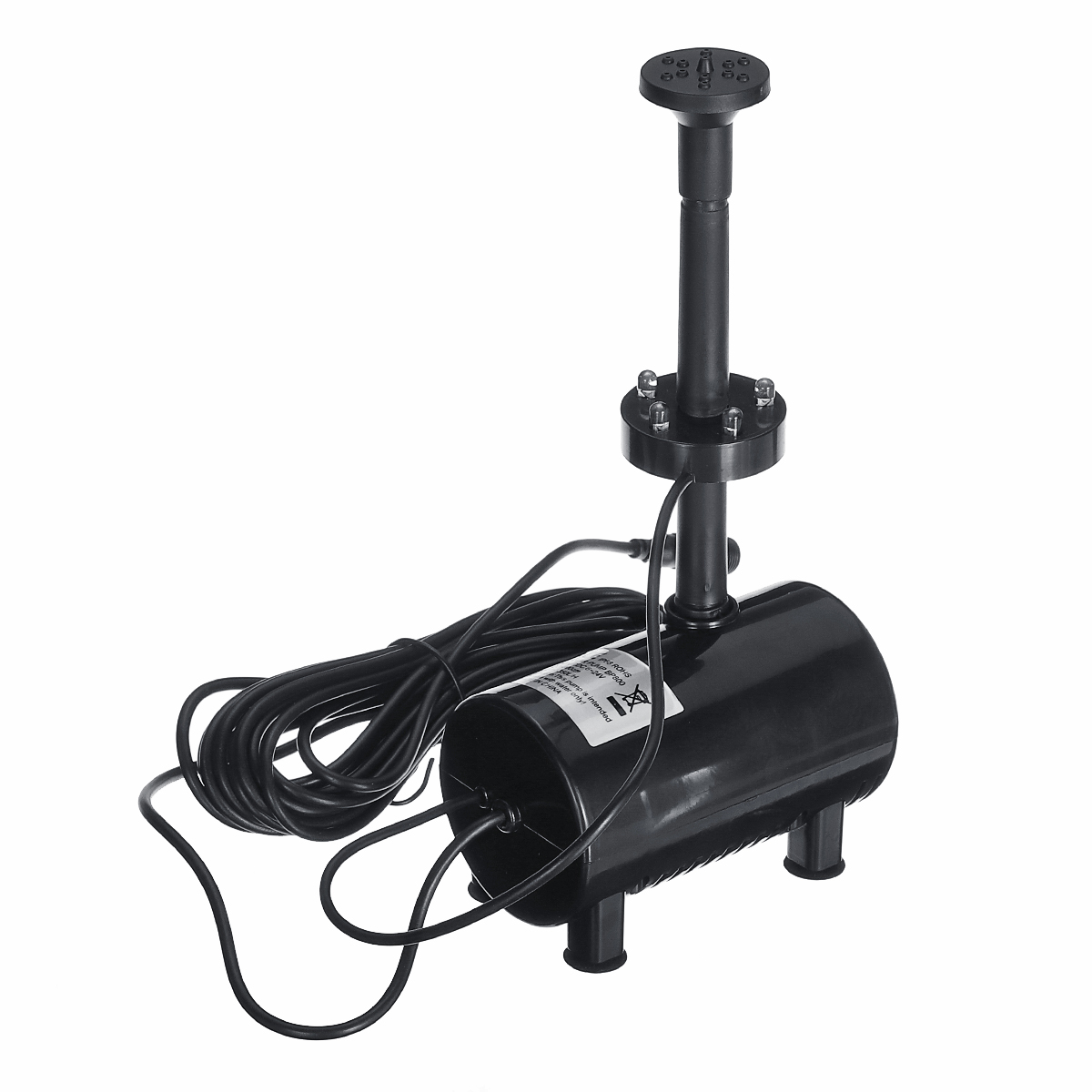

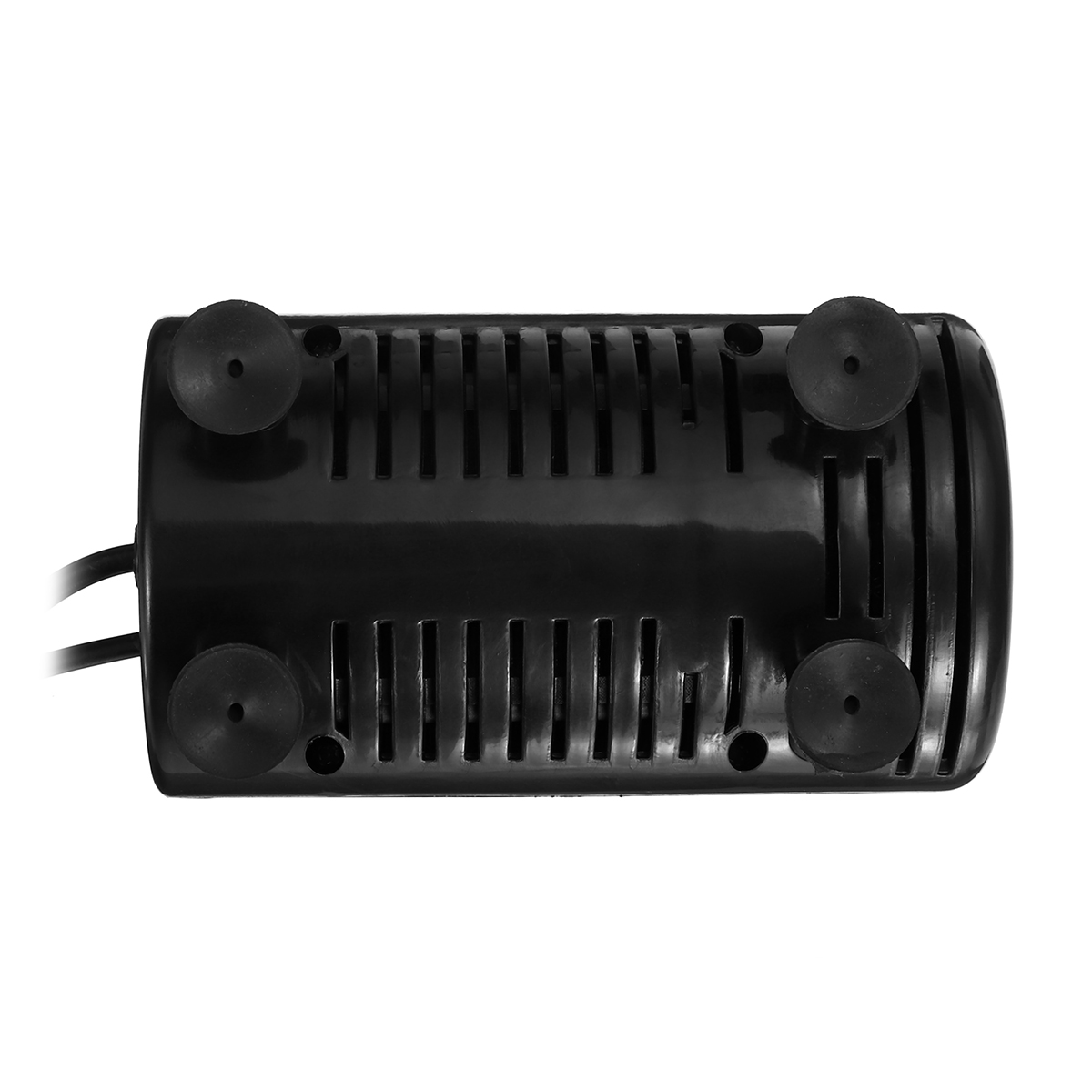

Main Parameters Of Pump:
Motor Type: Brushless Direct Drive Motor
Model: BP800
Input Voltage: 6~24V
Q (Pumping Flow Quantity): 0~1350L/H
H (Pumping Head): 0~150cm
Pump IP Grade: IP68
LED IP Grade: IP68
Main Material: ABS
Size: Approx. L100mm x D58mm x H63mm
Weight Approx.: 340g
Cable Length Approx.: 5m

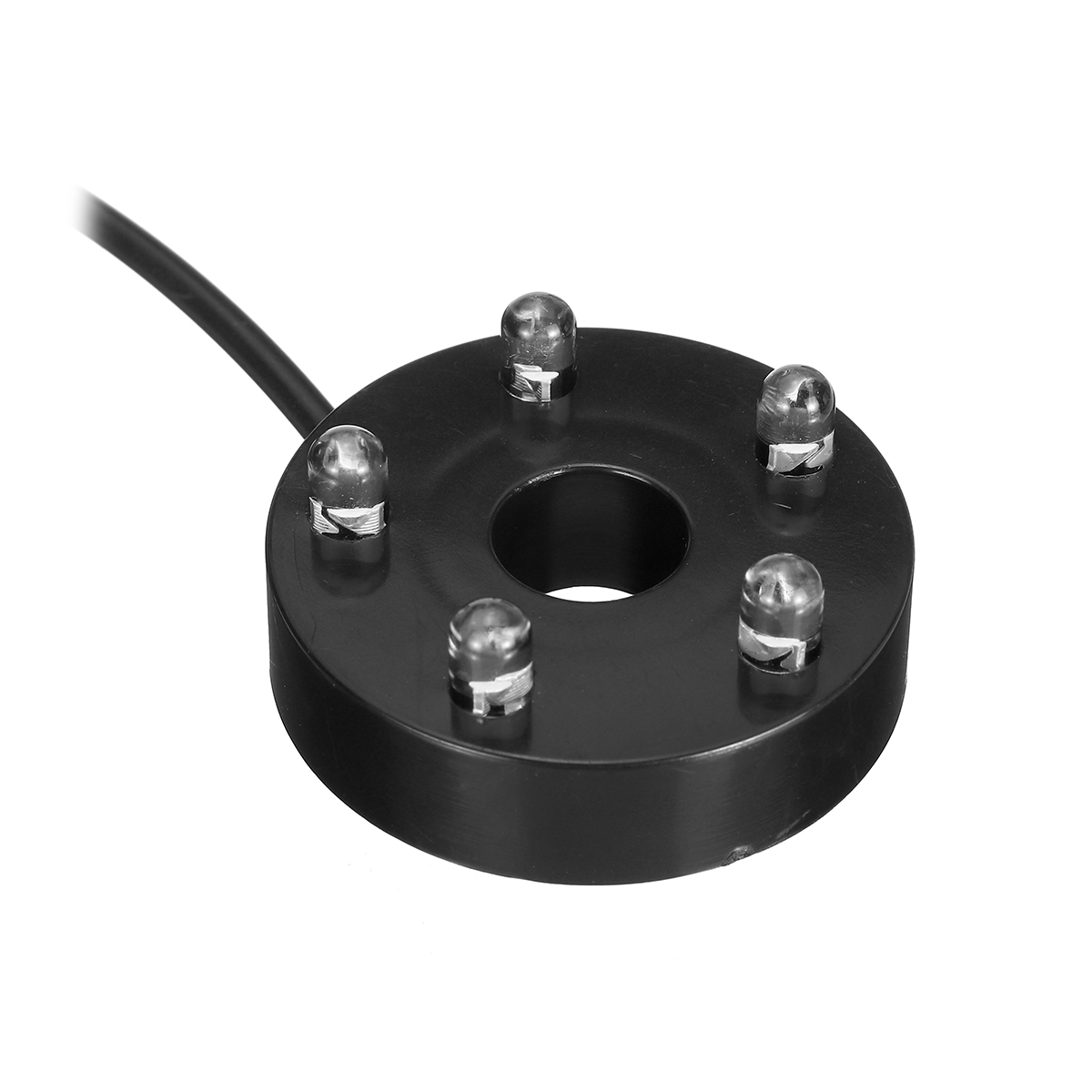

Main Parameters Of LED:
Wattage: 2W
Quantity: 5 Pcs
Cable Length Approx.: 0.3cm

Main Parameters Of Base Controller:
Battery Type: 6Pcs Polymer 18650 Li-ion Battery Pack
Battery Capacity: 4400mAh
Battery Rated Voltage: 11.1V
Charging High Voltage Protect: 12.6V
Discharging Low Voltage Protect: 9.2V
Charging Hours: 6-8h
Working Hours: 4-10h
IP Grade: IP65
Size: Approx. 150mm x 90mm x 47mm
Weight Approx.: 450g
Cable Length Approx.: 15cm

Operation Guide (by base controller or remote):
Press the ON/OFF to turn ON/OFF the pump, it will be auto-activated in sunlight.
1.Press the MODE to adjust the flow in 100%, 75%, 25%.
2.If the battery is completely drained, when it`s recharged about 50%, the system will auto-start again.
3.The wireless remote control distance is about 10-15 meters and the frequency is 433.92mhz.

Other User Guide:
1.Apply in the pools with abundant sunshine.
2.The pump works in solar-powered direct drive mode, the height of water spraying is related to the strength of sunlight.
3. Please use the filter bag to cover the pump to prevent blocking.
4.If the pumps stop working when using, please check if the water pump is short of water, or check if the water inlet of the pump is blocked by sundries , and clean them in time.
5.Please regularly clean the panel surface to keep a normal efficiency.
7.If the cable is not long enough, please ask us for a link to buy an extension cable.
8. The remote is powered by 3V CR2025 battery.

Note:
1. Don`t make the pump work without water for a long time, or its lifespan will be shortened or even be damaged.
2. Don`t shade the solar panel when using.
3. The pump is driven by the sunlight, so it works continuously only when the sunlight is enough.

Certificate: CE, FC, RoHS

Package:
Package Weight: Approx.3130g
Package Size: Approx. 40cm x 38cm x 10cm

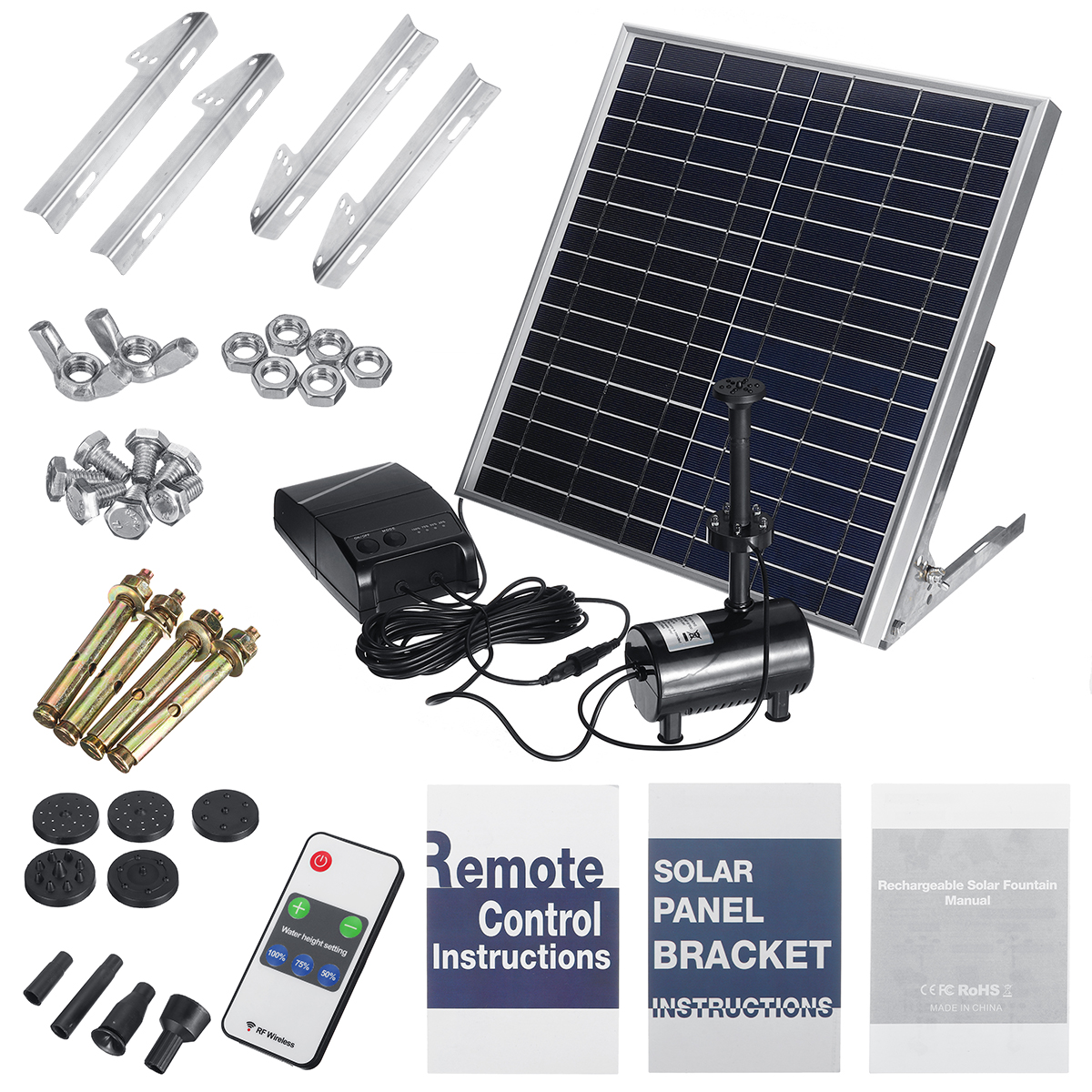

Package Include:
1x Panel w 5m Cable
1x Pump(w LED Light) w 5m Cable
1x Remote

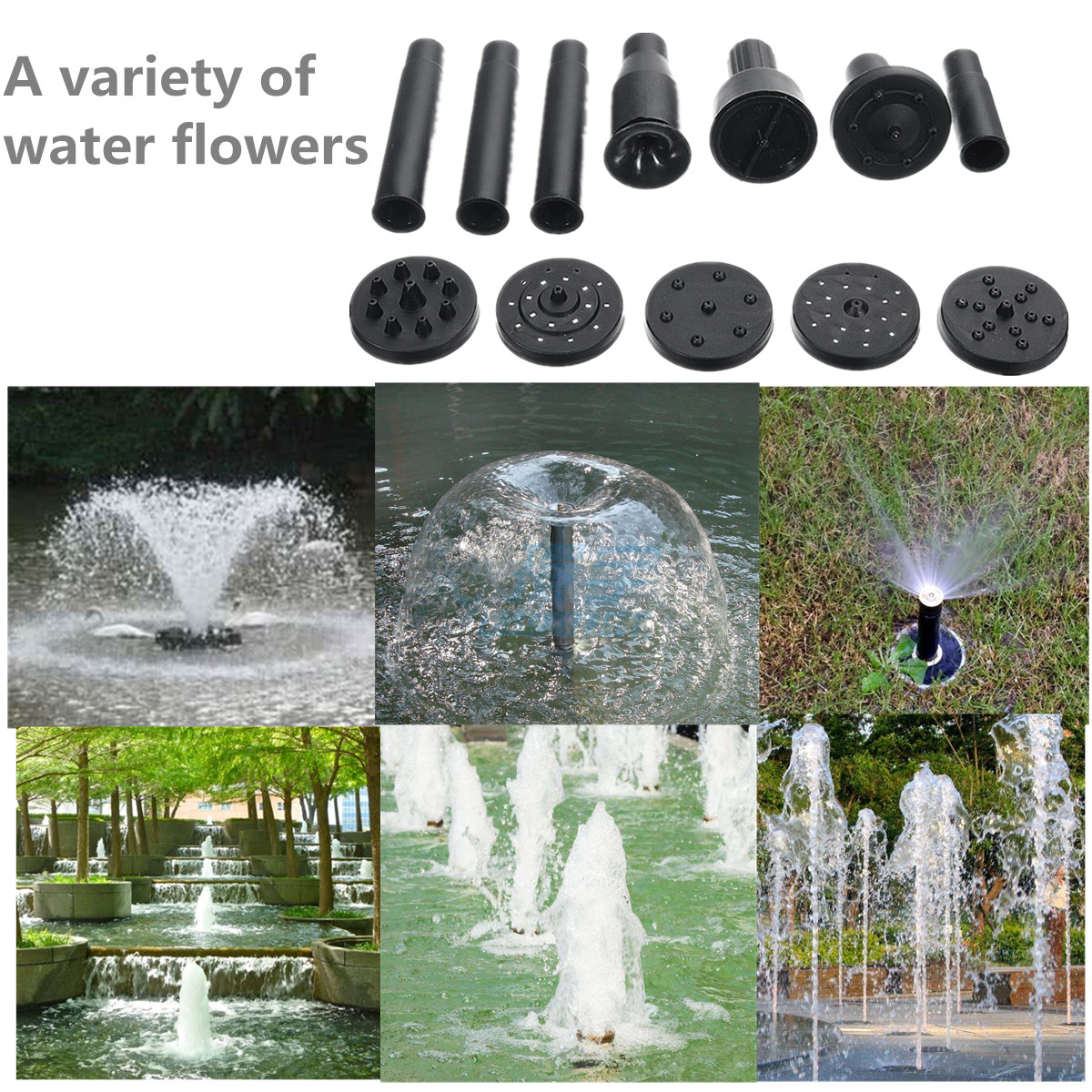

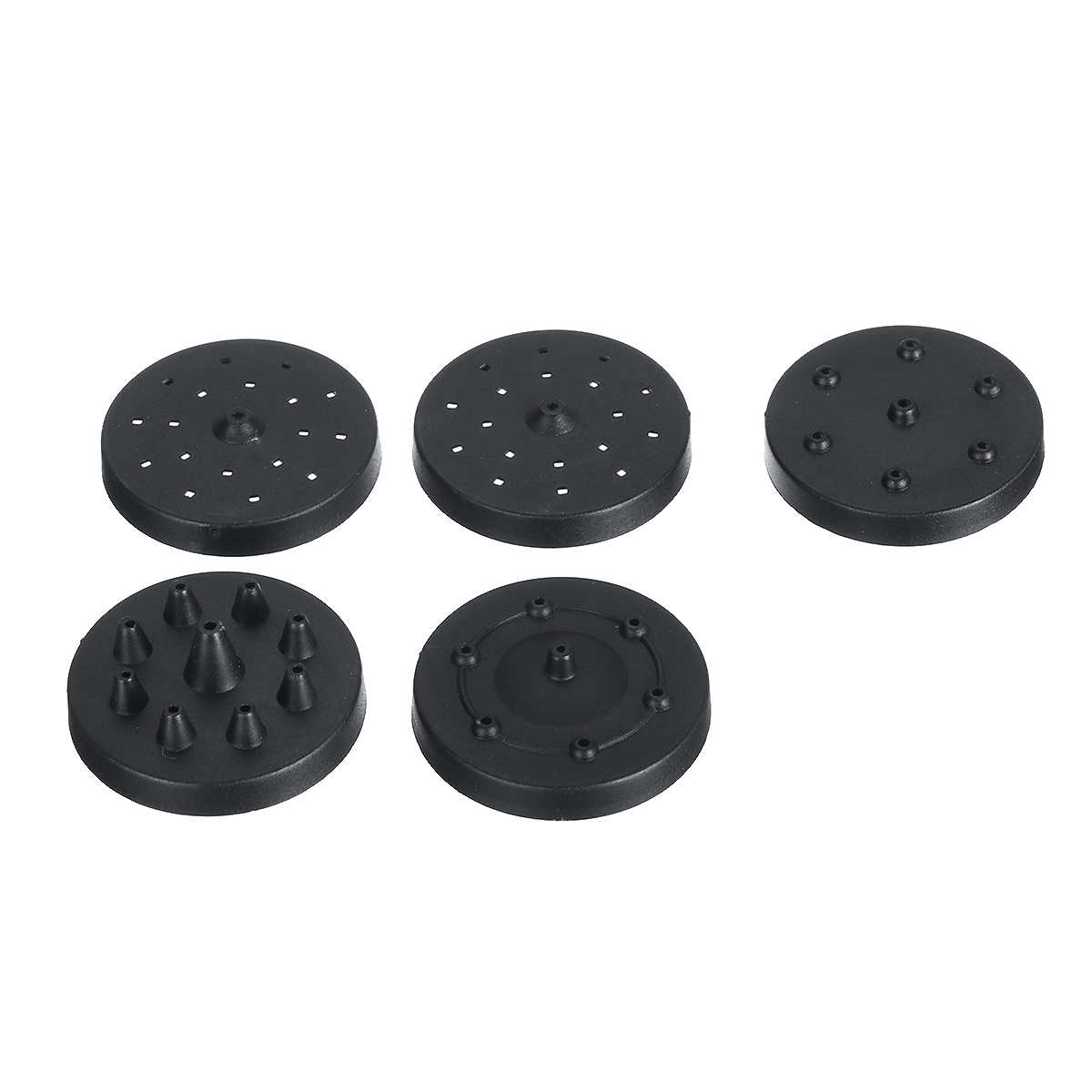

9x Fountain Nozzle Accessories
4x Panel Stand
4x Expension Screws
8x Hex Screw
8x Nuts
1x Filter Net
3x User English Manual
