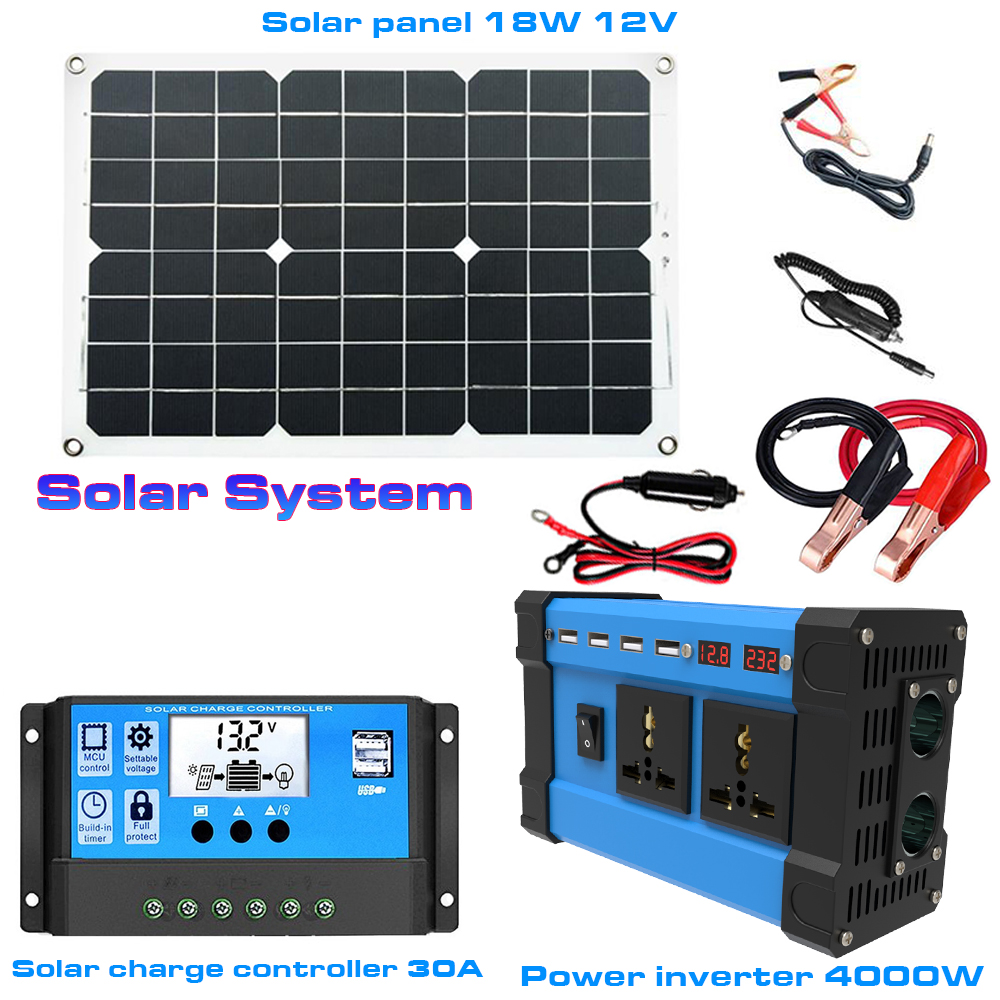

Solar Power Generation System Dual USB 18W Solar Panel+4000W Power Inverter with Dual USB Charger Ports+30A Solar Charge Controller Solar system Set

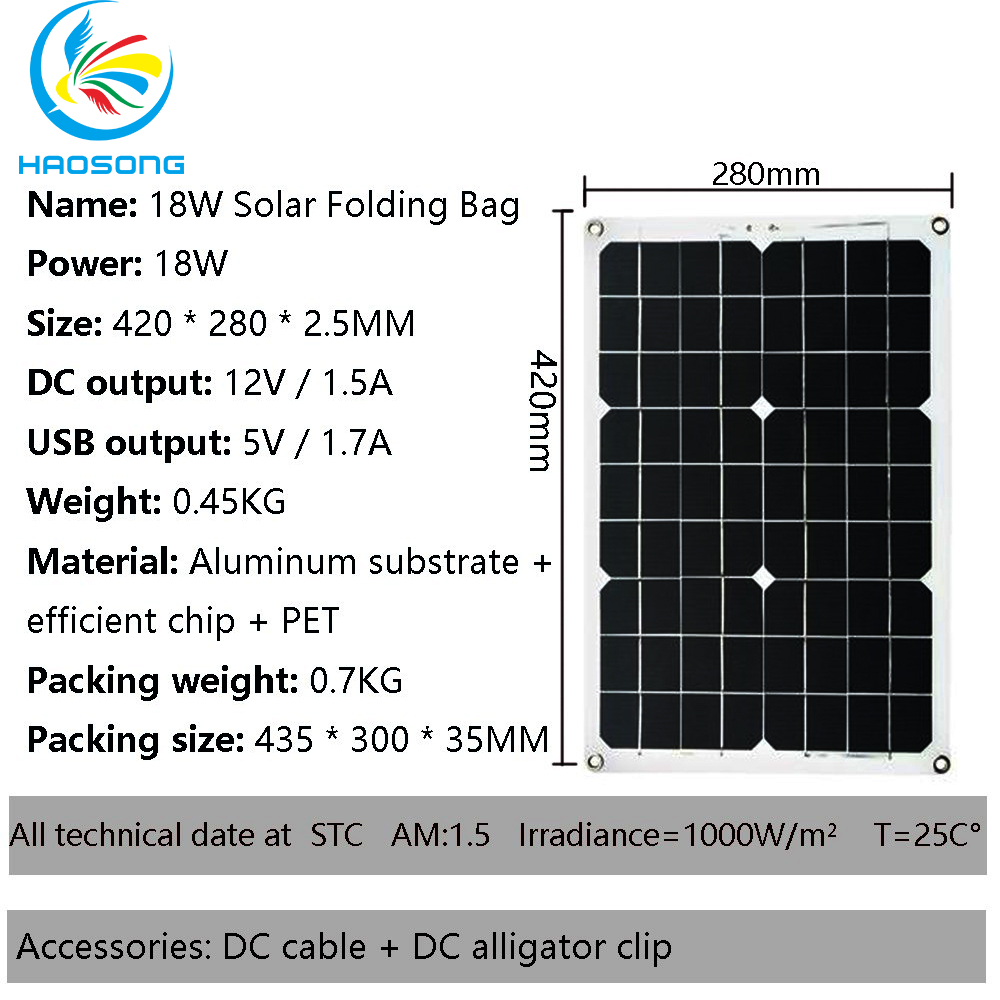

Power: 18W± 5%

Size: 420x280x2.5mm

DC outout: 12V/1.5A

USB output: 5V/1.7A

Weight:0.7kg

Type: Mono Solar Panel

Material: Aluminum substrate

Output accessories: DC cable + DC alligator clip

Input voltage: DC 10.5V~15V,

(When the battery voltage is lower than 10.5V, the inverter is low voltage protection, when the battery voltage is higher than 15V, the inverter high voltage protection)

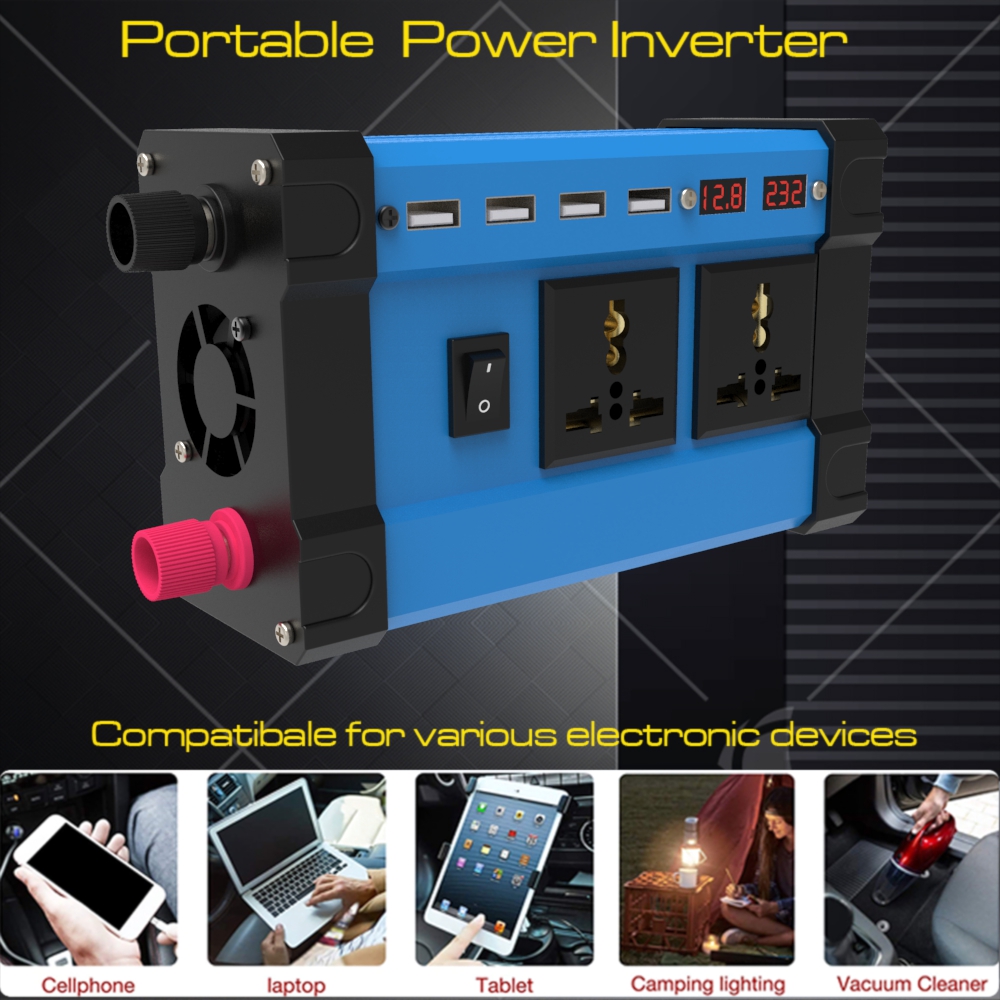

Output voltage : AC 220V

Output frequency is: 50Hz

Peaks Power : 4000W

Rated power:300W(Please make sure that the total rated power of the connected devices is ≤ 300W).

Output waveform: Modified sine wave

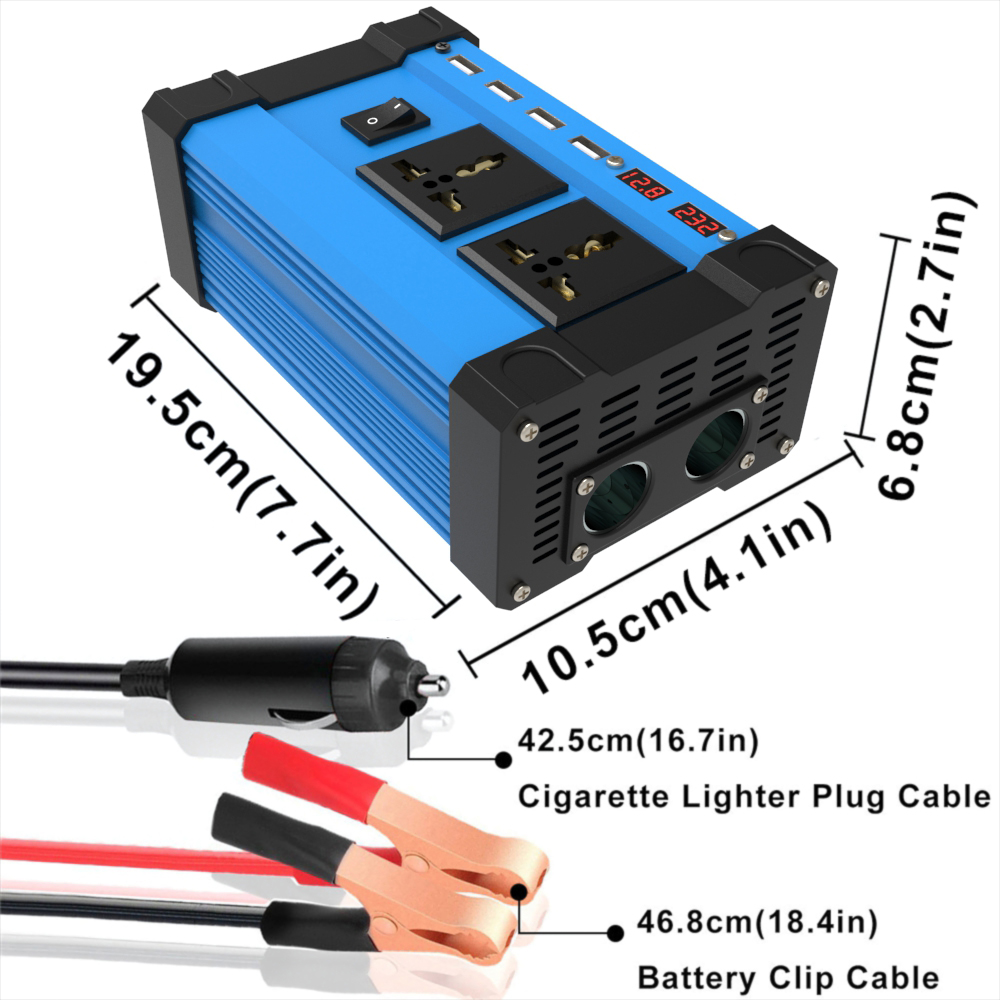

Product Size for inverter: 195*105*68mm

[Two Cigarettes lighter splitter hole] In the car, Two Cigarettes lighter splitter hole can help you to use the Cigarettes appliance at the same time, For example, you can use your car audio and driving recorder at the same time, it helps you solve the embarrassment of having only one cigarettes lighter hole in the car.

[LED Green&Red Work Lights] When inverter work normal, the green LED Lights work and tell you it is working well, but when it is on protection status, such as low voltage, high voltage, over temperature, or over load, the Red Led Lights will light up and you need to turn off the inverter, and check which protection function is work, and try to solve it then the inverter can work again.

[Intelligent LCD Voltage Screen display] Colorful smart LCD Display shows the battery Input battery voltage and output voltage in real-time, when the battery voltage is lower than 10.5V, the inverter is low voltage protection, please try to charge your battery full power then try again. When the battery voltage is higher than 15V, the inverter high voltage protection)

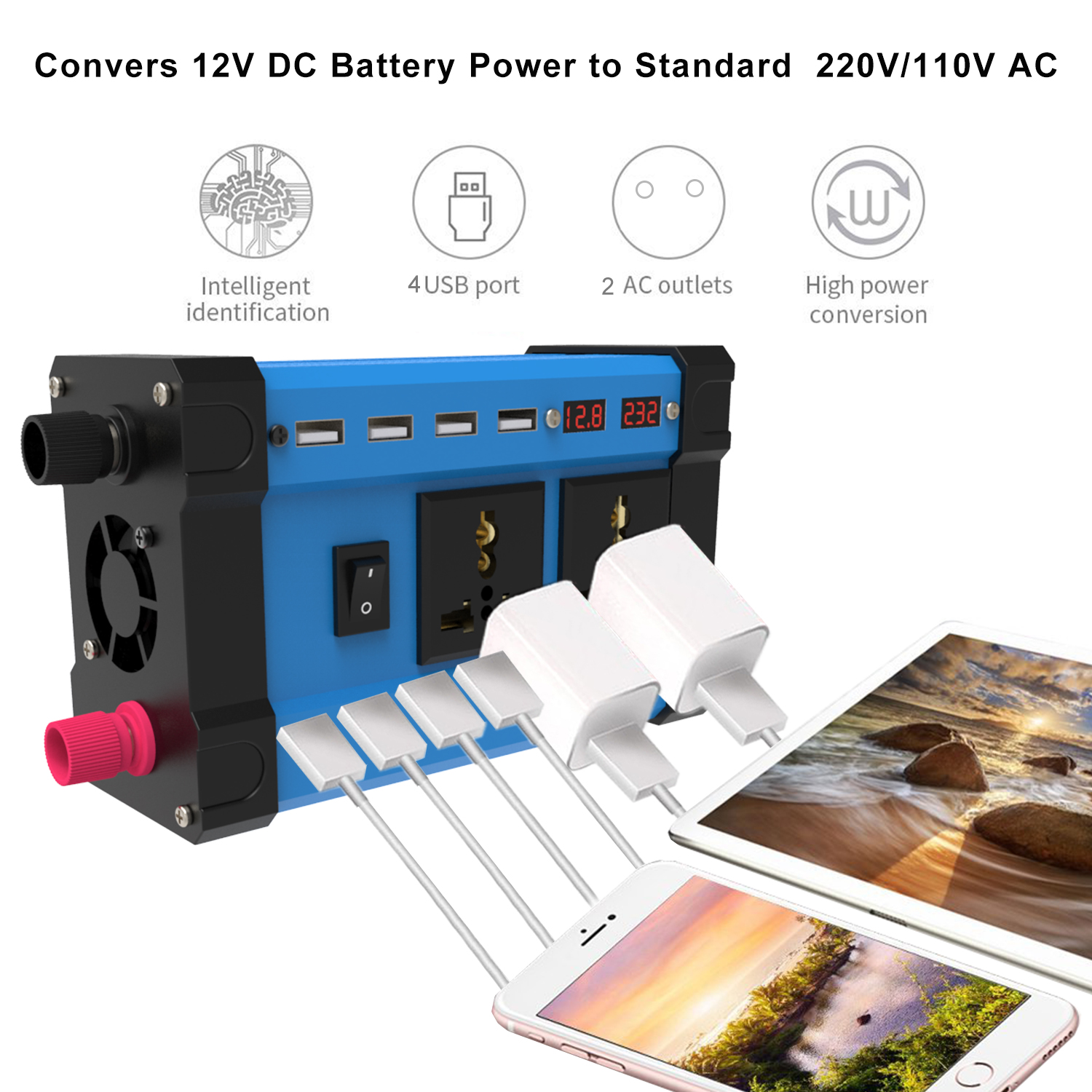

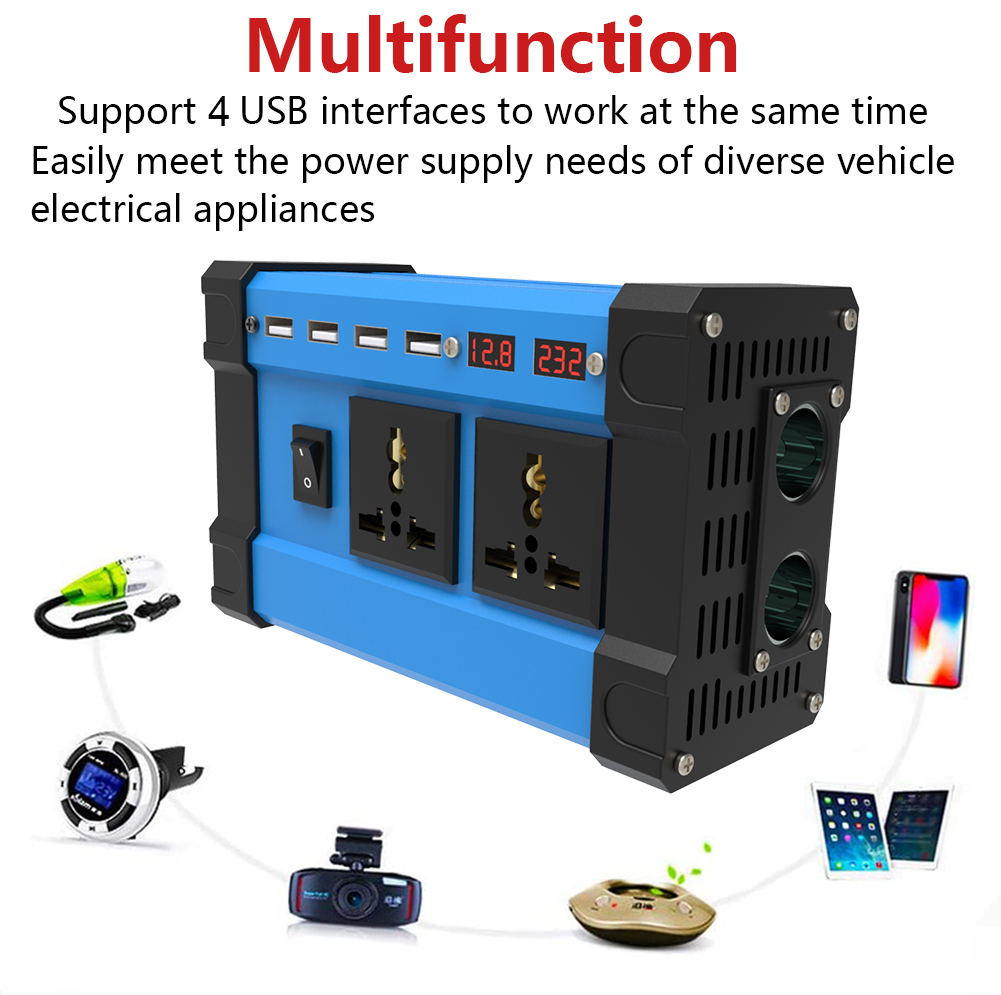

[Fast Charging Four USB ports ] Two Internation Universal AC Outlets and support four usb charger ports 3.6A to work at same time and it can offer 100% fast charging for Mobile phones, computers, laptop,breast pump, Nebulizer, Razors, medical rescue device, emergency equipment etc. Easily meet the power supply needs of the diverse vehicle electrical appliance and it can be as a Emergency Power Supply.

[Multi Protection] Built-in fuses, safe charging design and cooling fan prevents the car power converter from over-heat, saving power and energy, over voltage, overload, over-current, short circuiting, under-voltage, overheating, short circuit protection.

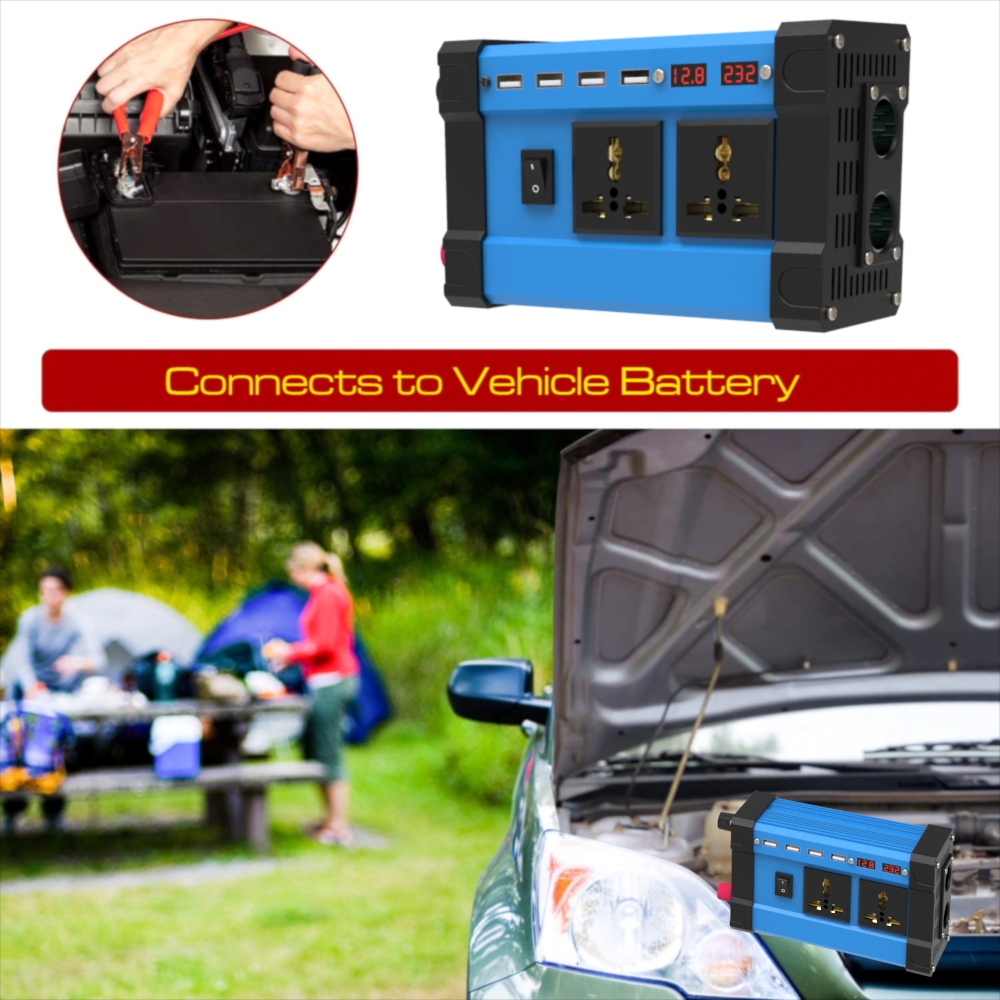

[Lightweight design &Top Quality] Lightweight and compact, ideal for vacations, camping and work trips. It can be plugged into almost any 12V power output vehicle, providing charging opportunities anywhere.

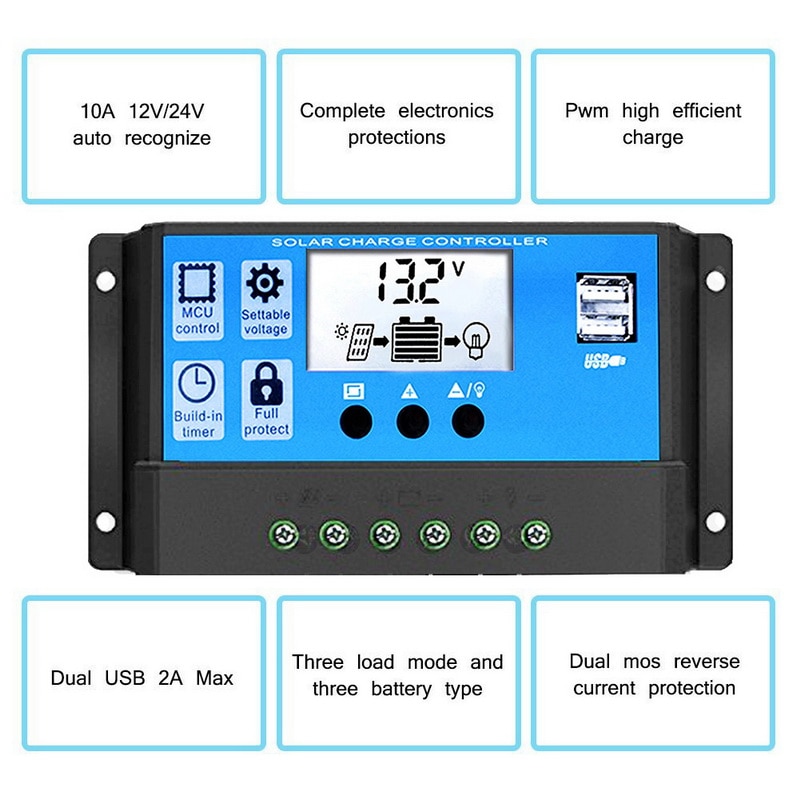

Charge Current: 30A

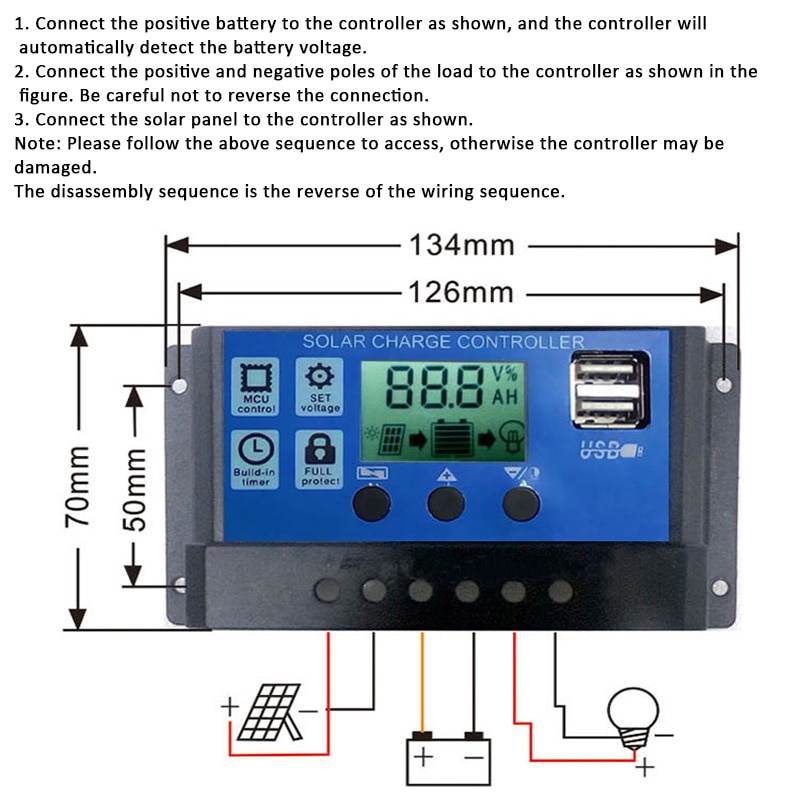

Product Size: 148.5x78x35mm

Voltage: DC 12V / 24V Auto intelligent conversion

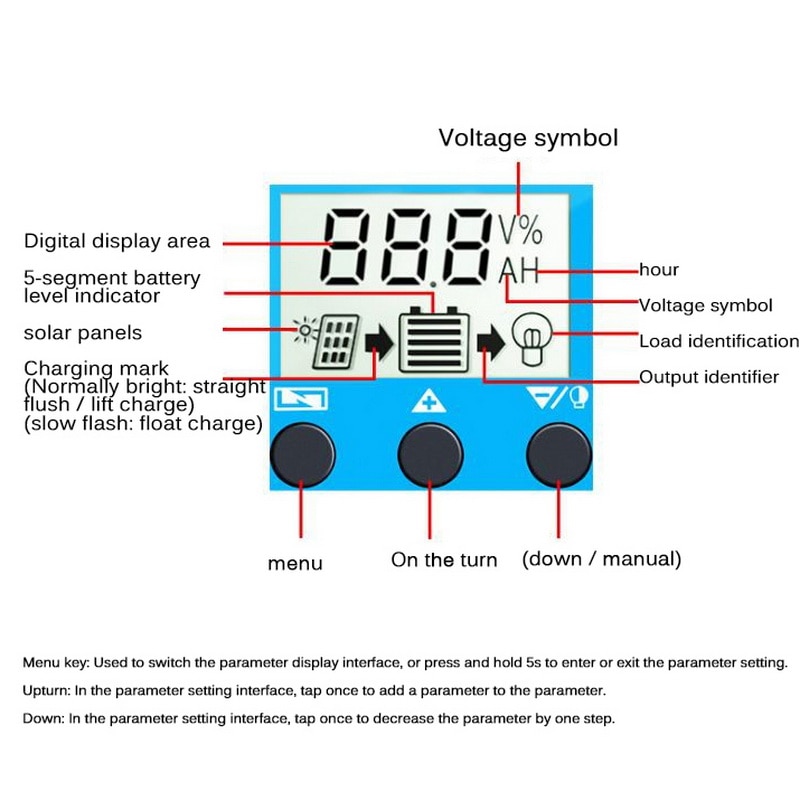

Display: LCD digital display

USB Charger Ports: Dual USB 5V 2.1A

Operating Temperature: -35~+60

Max Solar Input: 12V battery, the highest 23V

Float Charge: 13.7V (defaul, adjustable)

Discharge Stop: 10.7V (defaul, adjustable)

Discharge Reconnect: 12.6V (defaul, adjustable)

Charge Reconnect: 13V

Voltage of Open Light: Solar Panel 8V (Light lights delay)

Voltage of Close Light: Solar Panel 8V (Light off delay)

USB Output: 2 way USB output, 5V/2.5A (MAX)

The size you choose depends on the watts (or amps) of what you want to run (find the power consumption by referring to the specification plate on the appliance or tool). We recommend you buy a larger model than you think you'll need (at least 10% to 20% more than your largest load).

1 x Power Inverter

2 x Battery Clip

1 x Cigarettes Lighter Plug（gift）

1 x User Manual

1 x Solar Panel 18W 18V

1 x Solar Charge Controller 30A 12V/24V
