T2-Search Infrared Thermal Imager 256*192 Mini Mobile Phone Type-C Outdoor Hunting 150M Night Vision Thermal Imaging Camera
- Stock: In Stock
- Model: ST22010879
- SKU: ST22010879
$479.99
Ex Tax: $479.99
Specification:
Model | T2 Search |
Resolution | 256X192 |
Pixel pitch | 12Hm |
Spectral Band | 8〜14Hm |
Focal length | 9.0mm |
FOV | 19.6°X14.7° |
Focusing mode | Manual |
Frame rate | 25Hz |
NETD | ≤50mk |
MRTD | ≤500mK |
Operating temperature | -10℃~50℃ |
Power consumption | <350mW |
Weight (with lens) | <20g |
Dimension (with lens) | 26mm X26mmX26.6mm |
Supported system | Android 6.0 and above, |
Image enhancement | Digital detail enhancement (DDE) |
Reticle | Support, with hot/cold spot tracking |
Color palette | White hot, black hot, red hot, and other pseudo colors |
Secondary development | Provide SDK for secondary development |
Magnification | Support lX~4X continuous digital zoom |
Video saving | Support photo and video saving |
APP updating | Support APP online updating |
Package Included:
1 x Thermal Imager
1 x Type-C cable
1 x Manual
1 x Packing box
Note: You can search for "search" or scan the following QR code on Google Play to download and install, the function guide explains the video.
Common Problem:
1.
Q: Why can't the image of OPPO, VIVO, IQOO mobile phone be displayed after connecting?
A: The method is as follows: mobile phone settings option ― search bar ― input OTG ― after finding the option, set it to the on state.
2.
Q: If it is an old mobile phone, how to connect the thermal imager if the interface is Micro?
A: Need to use Type-C female port to Micro male port adapter to use, and must support OTG function.
3.
Q: Can the Apple version and the Android version be compatible?
A: No. These are two completely different systems, and the interface hardware is essentially different, so they cannot be used universally through adapters.

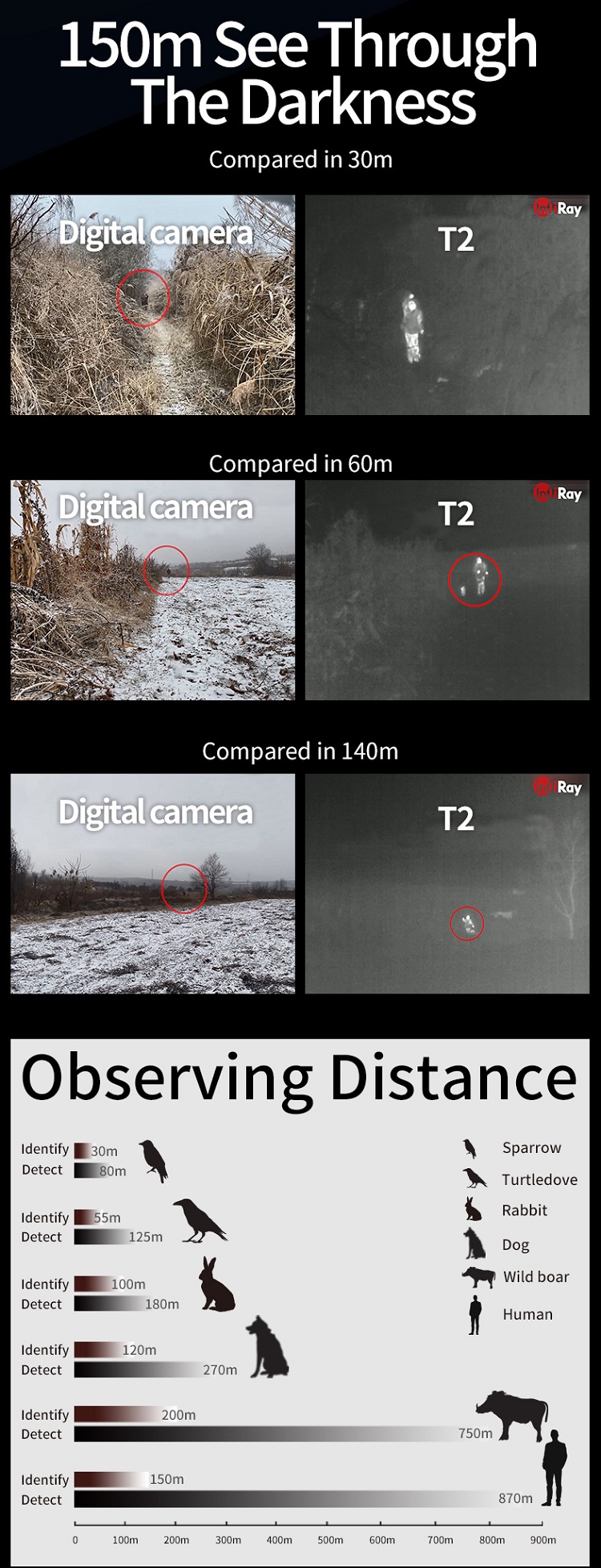

Details Pictures:
