TC66/TC66C Type-C PD Trigger USB Voltage Ammeter Capacity Meter 2 Way Measurement Charger Battery APP PC USB Tester
- Stock: In Stock
- Model: ST230043293
- SKU: ST230043293
$21.99
Ex Tax: $21.99
Feature:
Model: TC66 without bluetooth version / TC66C with bluetooth version (optional)

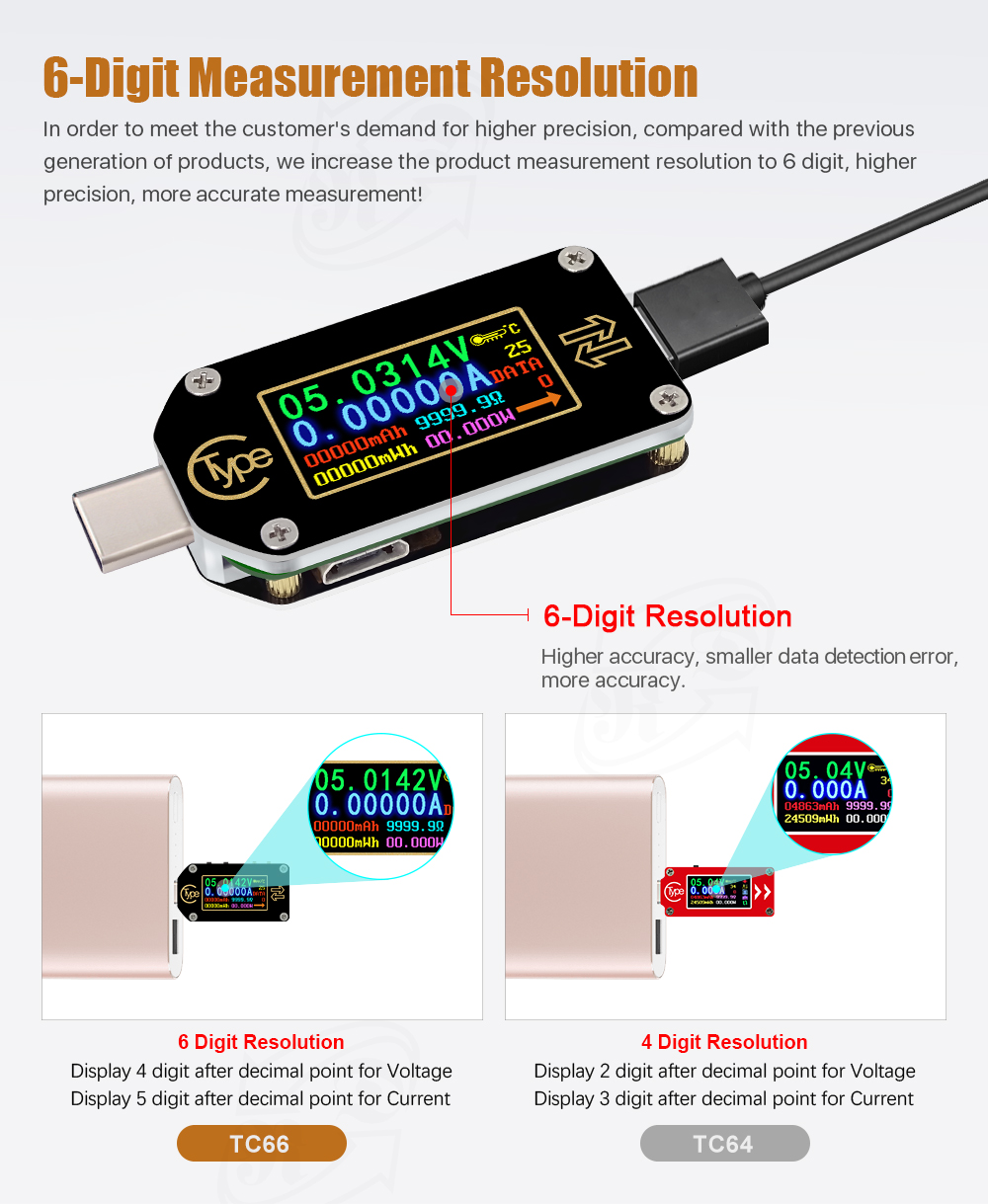

| Model | TC66/TC66-C | Display screen | 0.96 Inch color IPS display |
| Voltage measurement range | 0.005V-30.0000V | Voltage measurement resolution | 0.0001V(0.1mV) |
| Current measurement range | 0-5.00000A | Current measurement resolution | 0.00001A(0.01mA) |
| Supply voltage | 3.5-24V | Screen Resolution | 160*80 |
| Capacity accumulation range | 0-99999mAh | Voltage measurement accuracy | ±(0.5%+10digits at 23℃) |
| Energy accumulation range | 0-99999mWh 999.99Wh | Current measurement accuracy | ±(1%+20 digits, at 23℃) |
| Load impedance range | 1Ω-9999.9Ω | Power measurement range | 0-150W |
| Temperature measurement range | 0℃~80℃/32℉~176℉ | Refresh rate | 2Hz |
| Working temperature range | 0~45℃/32℉~113℉ | Auto screen off time | 0-9mins |

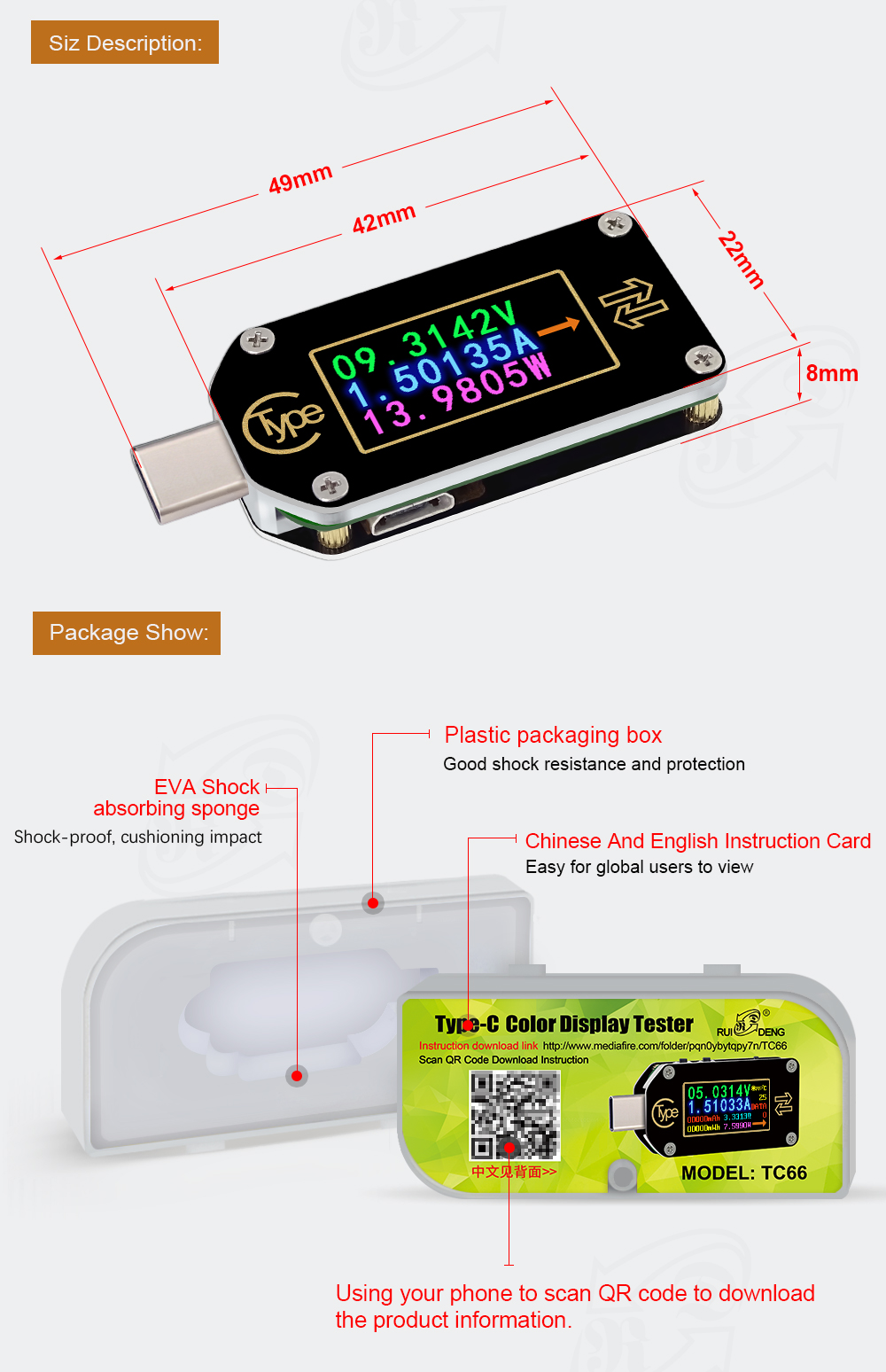

| Dimensions | 49mmx22mmx8mm | Product weight | about 8g (about package 22g) |
| Quick charge recognition mode | QC2.0, QC3.0, APPLE 2.4A/2.1A/ 1A/0.5A, Android DCP, SAMSUN | ||
Note:
TC66 and TC66C difference: TC66 don't have bluetooth board, don't support APP. TC66C have.
Because firware is constantly updated, Please refer to the products actually received.
When using TC66 to detect the charger, it is necessary to turn on the CC drop down. When using TC66 to detect the charging process of mobile phone, it is necessary to turn off the CC drop down.

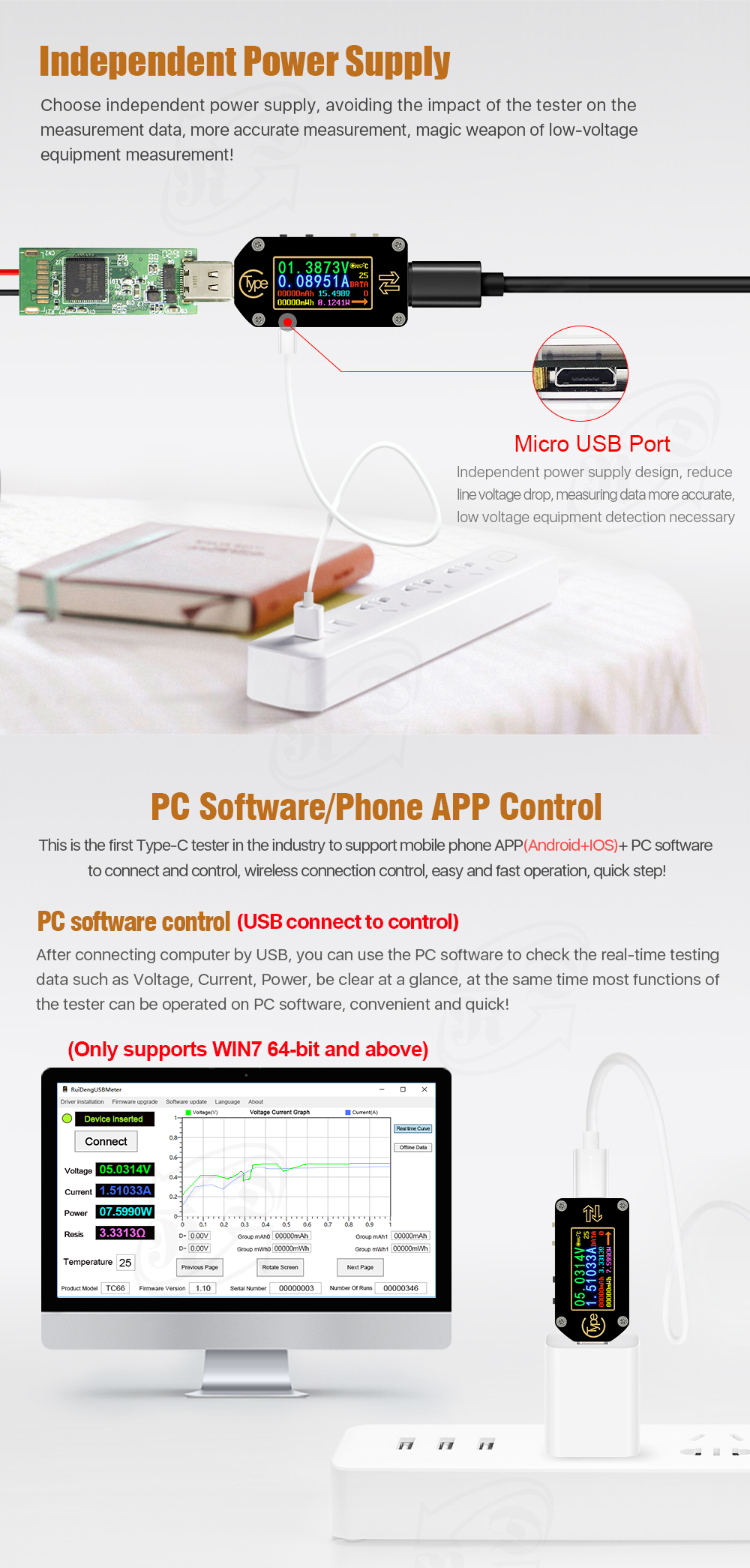

The switch ON the product is the power supply switch for the system. When in use, set it to ON. If the voltage is less than 3.5v, use Micro to supply power independently and set the switch to OFF.
When TC66 USES the double-headed Typec line for the decoy triggering operation, only one side can be used. If it is not bright, please flip the interface.
TC66(C) operation , PC soltware, APP instruction download link: http://www.mediafire.com/folder/pqn0ybytqpy7n/TC66
Operation and test video : https://youtu.be/SCVcSjDMx2g
| TC64 | TC66(C) | |
| USB port | Type-C port | Type-C port |
| Expansion port | None | Micro-USB |
| Voltage measurement range | 3.70-30.00V | 0.005V-30.0000V |
| Voltage measurement resolution | 0.01V | 0.0001V(0.1mV) |
| Current measurement range | 0-4.000A | 0-5.00000A |
| Current measurement resolution | 0.001A | 0.00001A (0.01mA) |
| Power measurement range | 0-120W | 0-150W |

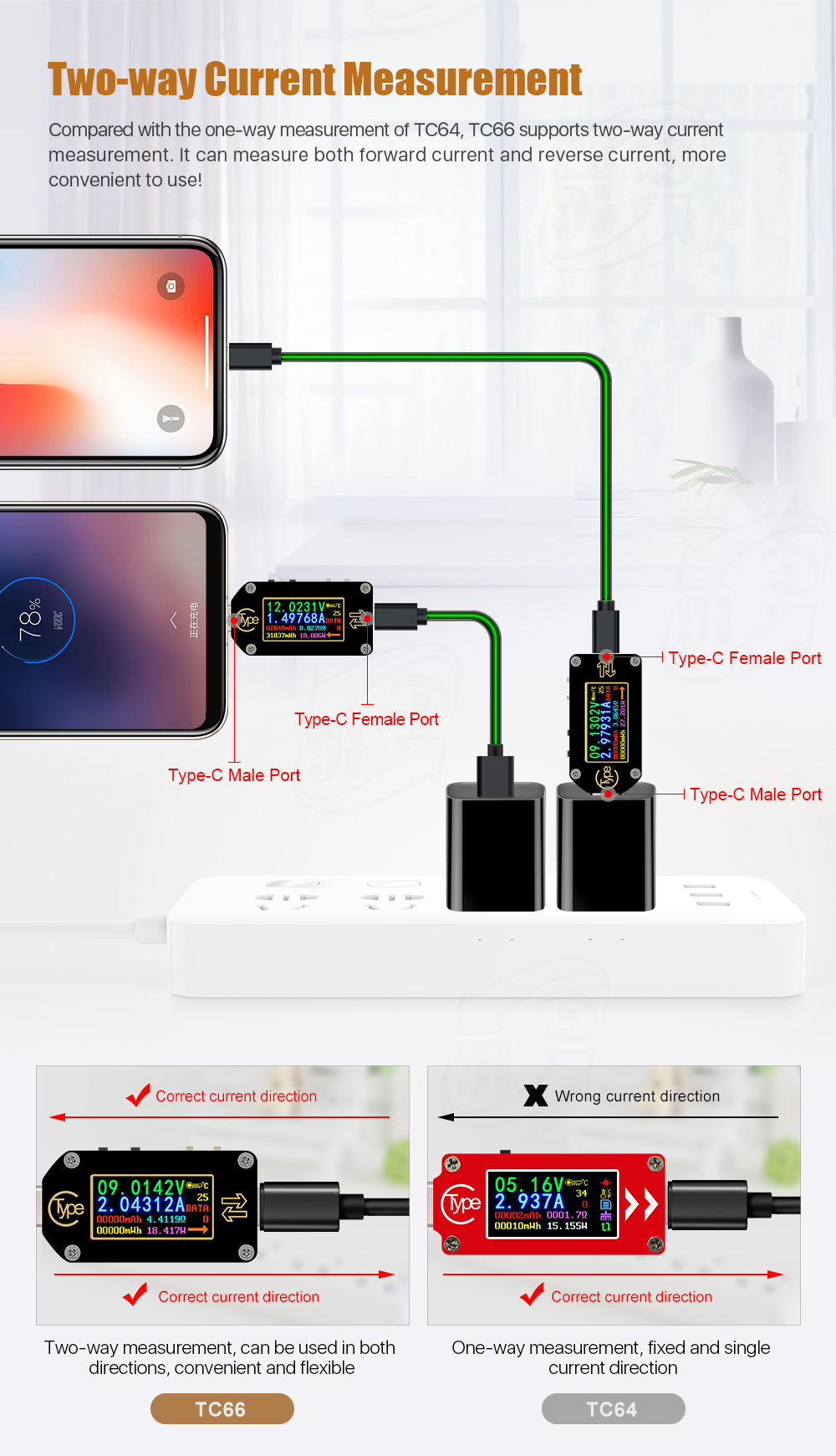

| Measurement method | Current can pass in one direction | Current pass in two direction |
| Identifiable fast charge protocol | QC2.0, QC3.0, APPLE2.4A/2.1 A/ 1A /0. 5, Android DCP, SAMSUN | |
| Supported fast charge protocol | None | QC2.0, QC3.0, Huawei FCP, Huawei SCP, SAMSUN , PD |
| Trigger/decoy protocol | None | QC2.0, QC3.0, Huawei FCP, Huawei SCP, SAMSUN , PD2.0, PPS |

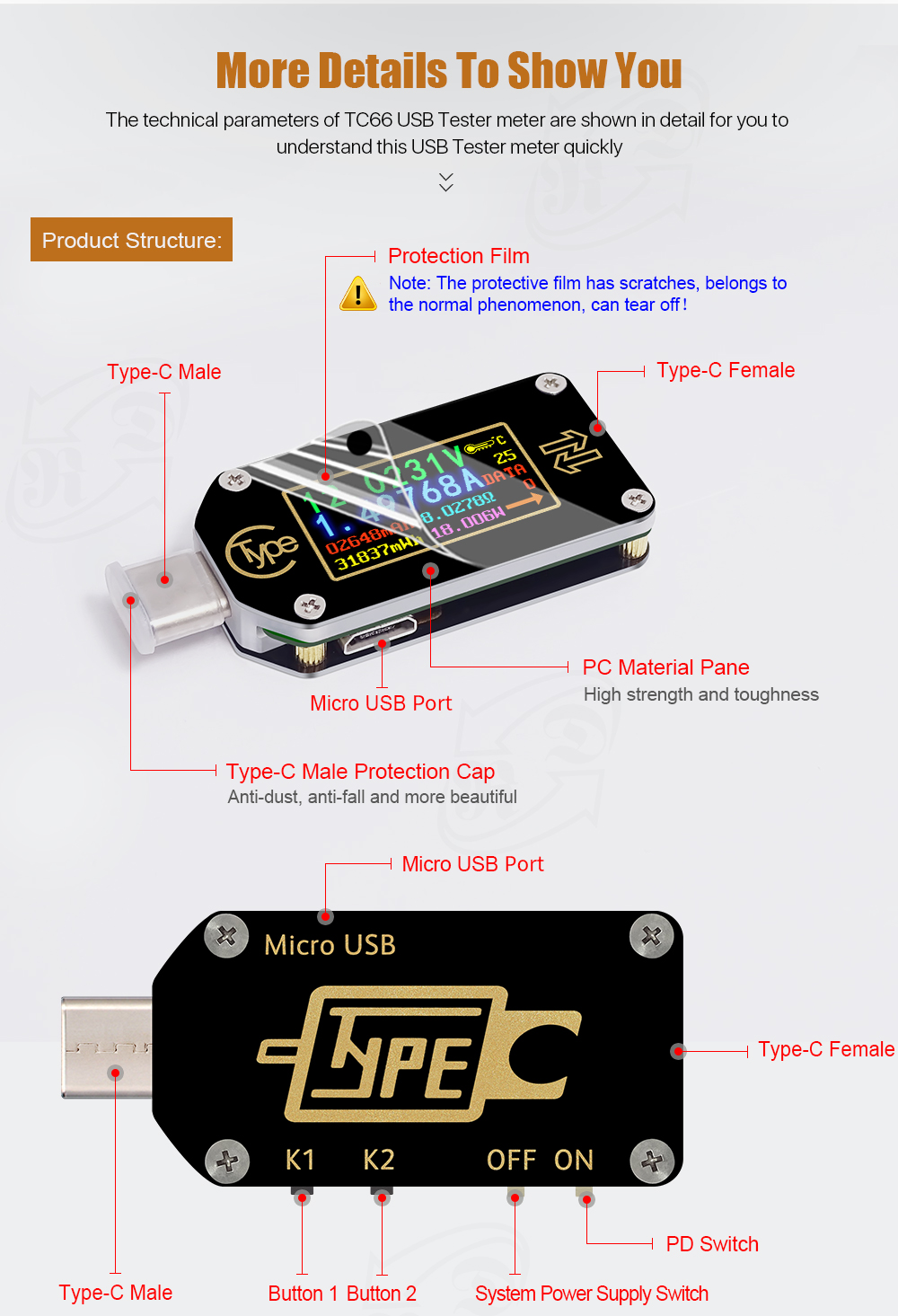

| Interface Introduction |
Main Interface Quick Charge Recognition Interface |

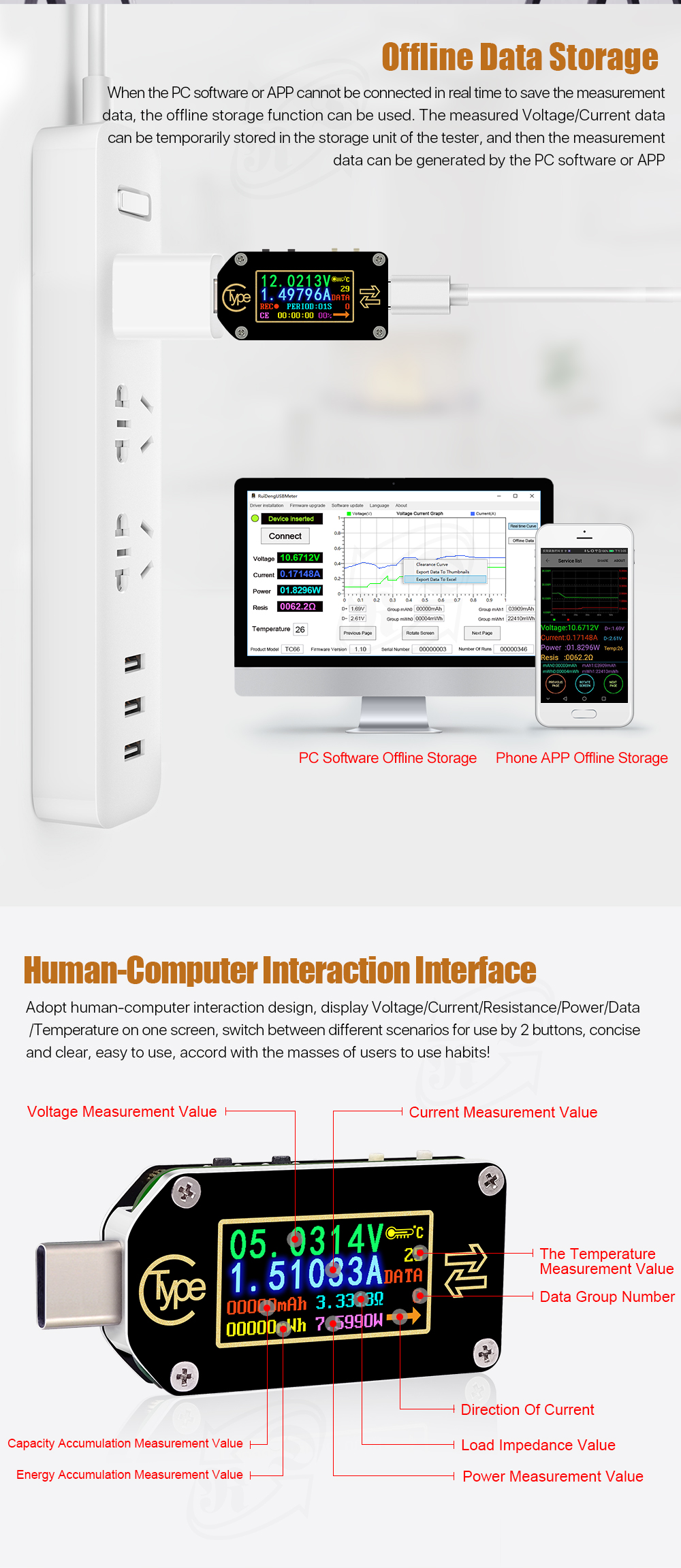

- Main Interface - Offline Recording C14Interface - Quick Charge Recognition Interface - Quick Charge Protocol Detection Interface - Trigger Interface - System Setting Interface - System Information Interface - Simple Measurement Interface |
| Communication Function | None |

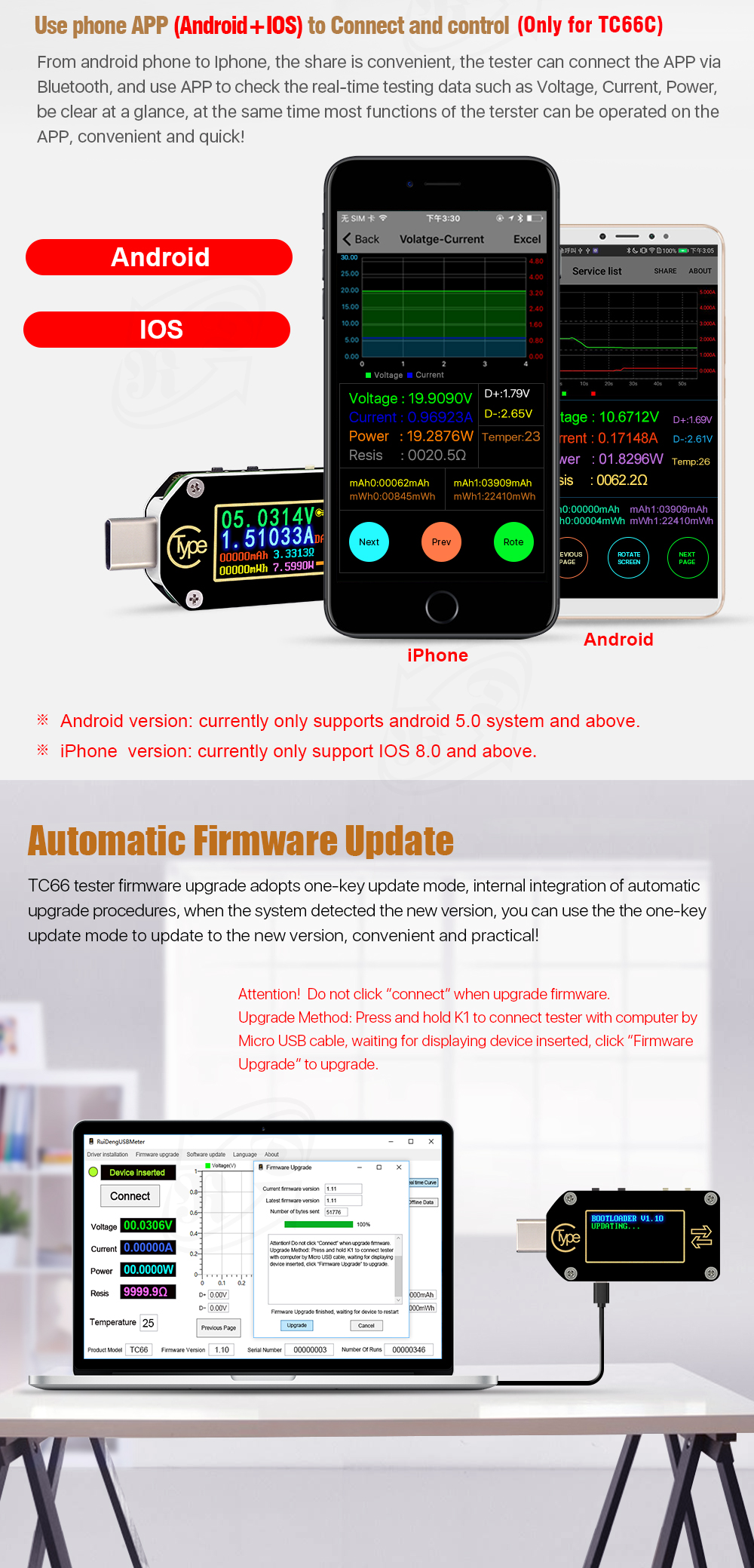

- PC software: work on Win7 or above (PC software can only be connected by Micro-USB cable) - Mobile Phone: Android5.0 or above; IOS8.0 above (Mobile Phone can only be connected to TC66C by bluetooth) |
| Special Function | None |
1. Detect supported/unsupported fast charge protocol 2. TC66(C) can store Voltage/Current data temporarily,and view data on PCsoftware/APP when connected. 3. Trigger/decoy operation/PD trigger operation 4. Adjust screen brightness 5. Rotate screen direction 6. CC line mode select 7. Language select 8. Reset 9. Check Products series number/Firmware revision number/Boot times/Running time 10. Only show Voltage measurement/Current measurement/Power measurement/Current direction at Simple Measurement Interface |
Package includes:
1 x TC66/TC66C Tester (optional)
