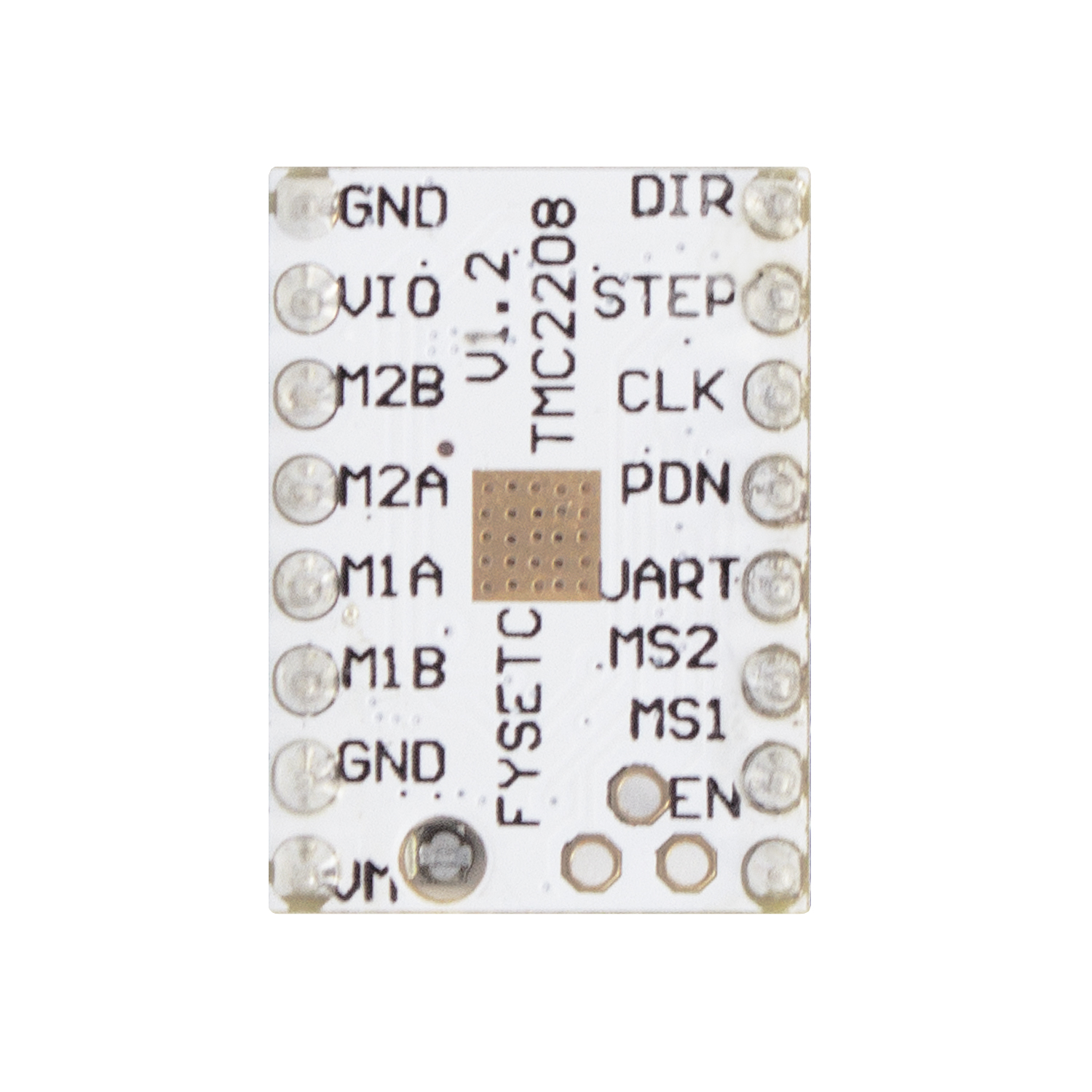

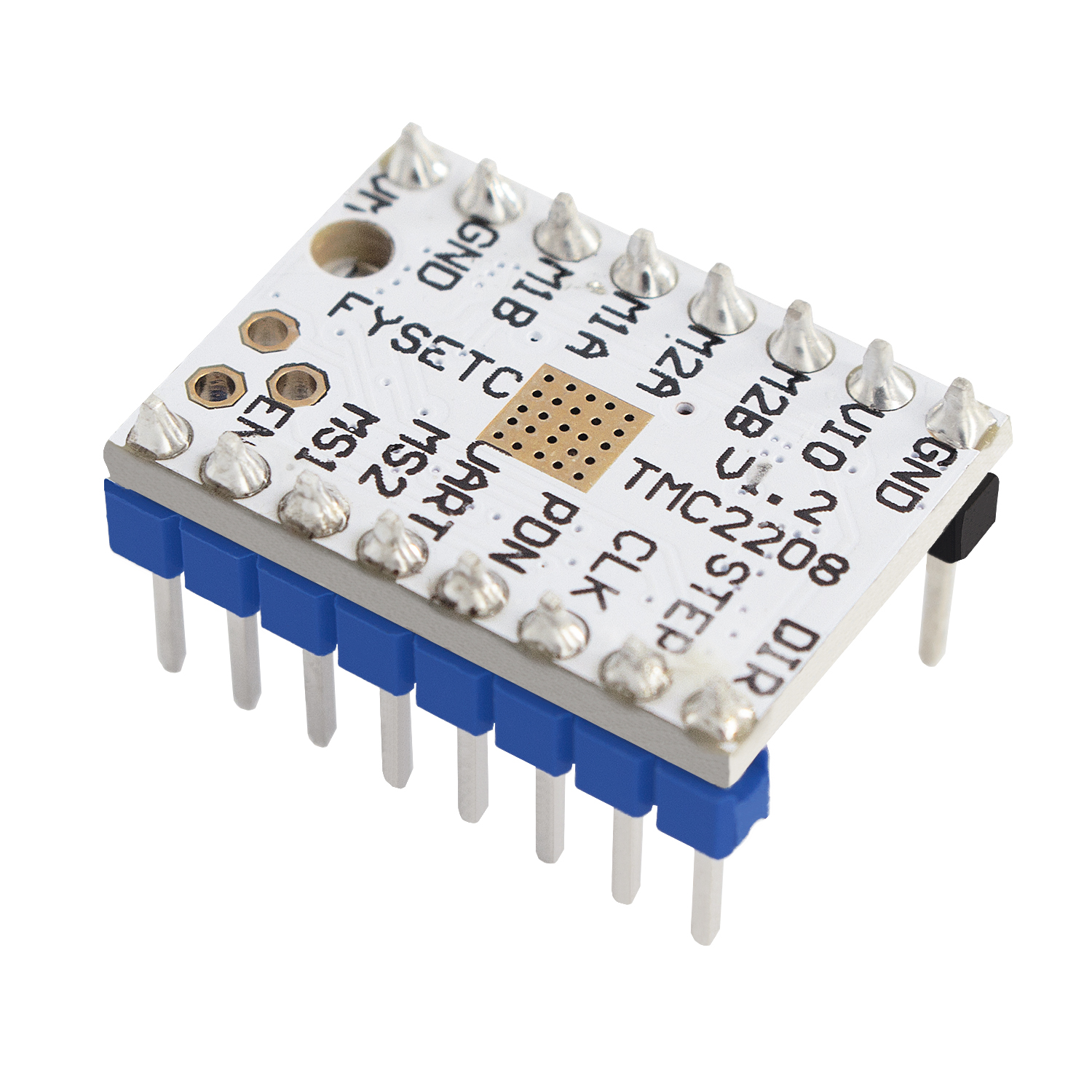

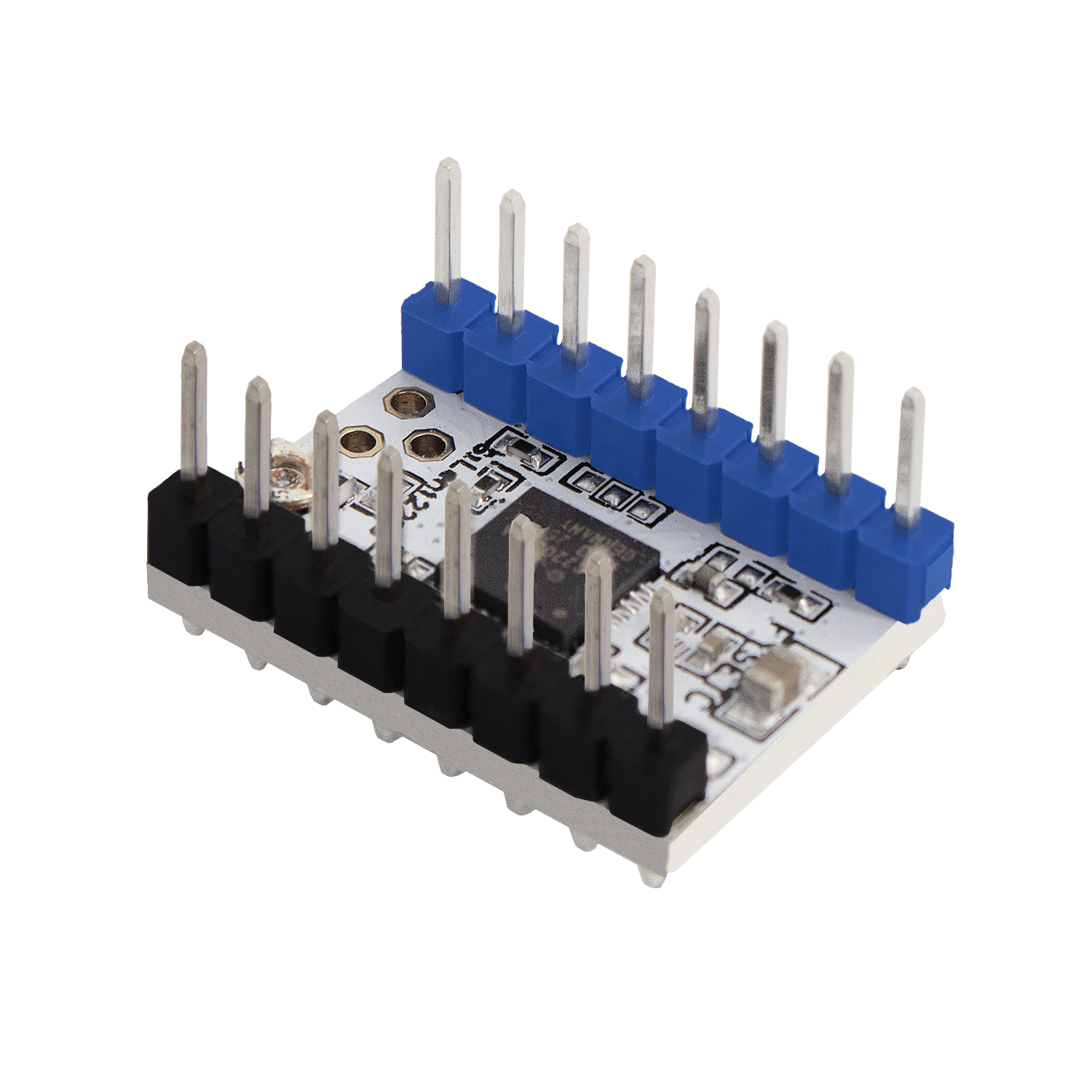

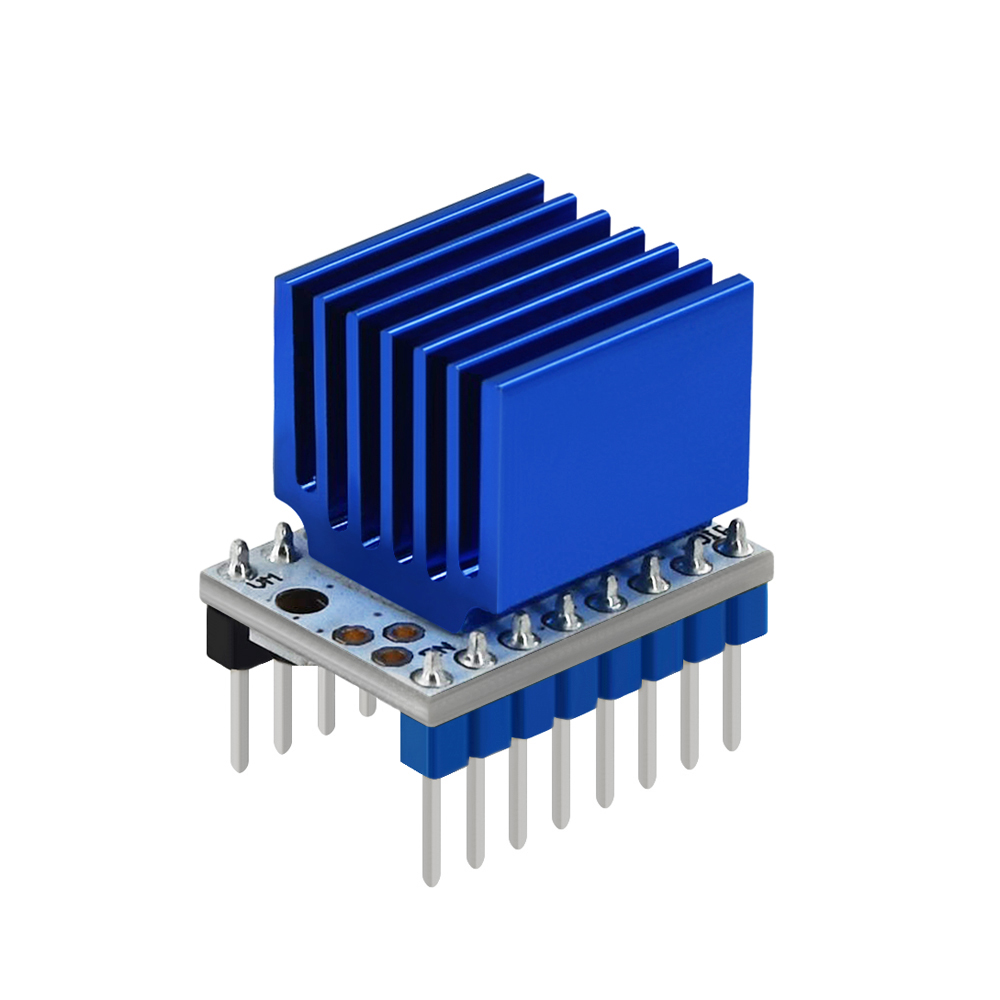

TMC2208 V2.0 Stepper Motor Driver Controller Motor Driver Module Board Stepstick

Buy More Save More

For 3Pcs Kit: Contact Us

For 4Pcs Kit: Contact Us

Description: 
 

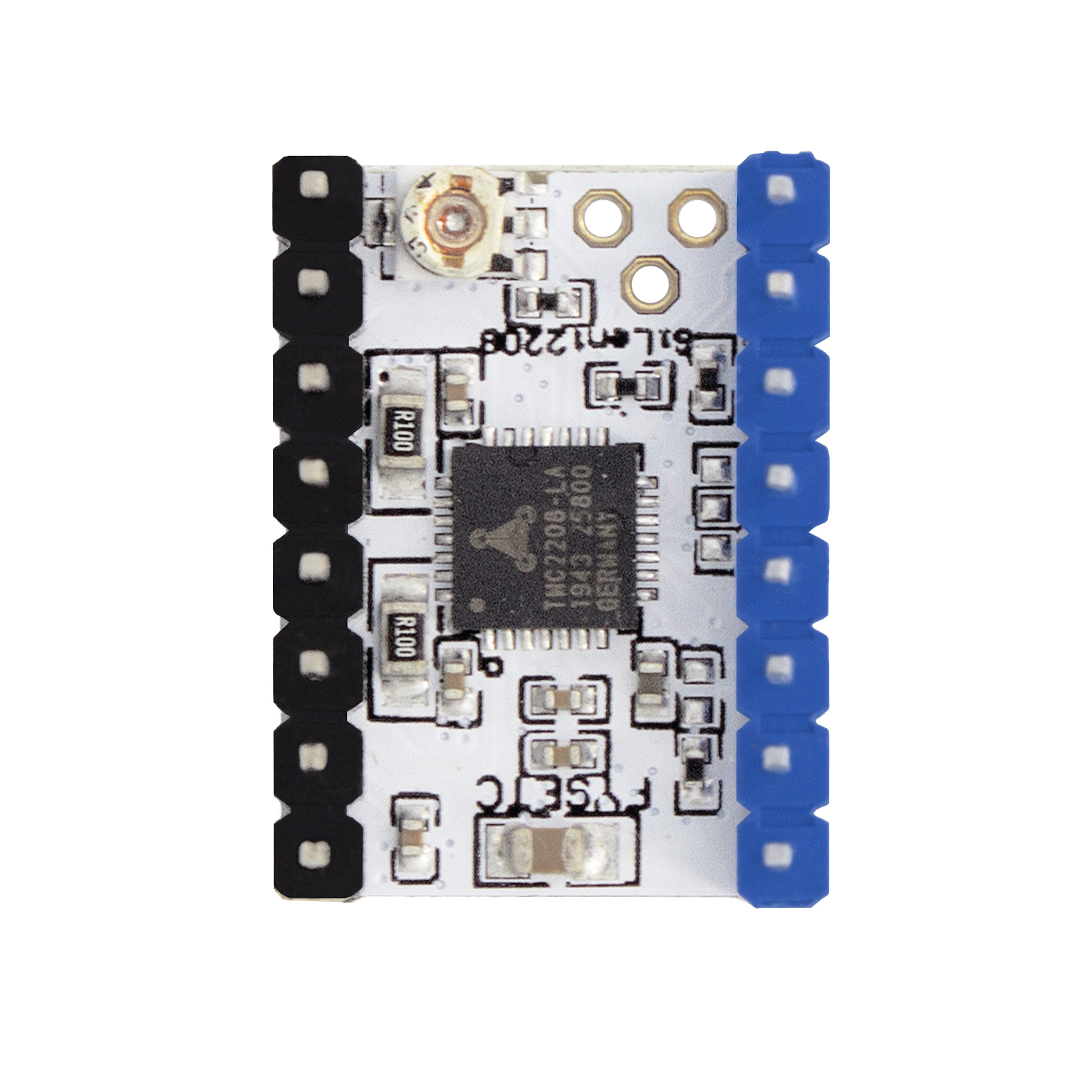

TMC2208 single-axis stepper motor drive chip, power tube built-in drive current 1.4A peak current 2A, voltage range 4.75V-36V, 256 subdivision; with patented technology spreadCycle trade high chopper frequency, dcStep trade, stallGuard2 trade stall detection technology, CoolStep trade current dynamic adjustment technology, can save 70% of the energy, StealthChop mute technology

Flexible microPlyer interpolation unit, the component can provide up to 256 microstep / step resolution, even in the pulse rate is limited system can still be perfect to achieve sinusoidal control; As stealthChop fine music technology is widely used in 3D printing, so These components are also designed to be compatible with existing 3D printer electronics, eliminating the need for costly redesign. Both components have pulse / direction input, can be completely independent operation. The configuration is implemented via digital input.
 
TMC2208 V2.0 optimizes the hardware based on V1.1 and can completely replace TMC2208 V1.1.
 
 Specifications:
 
 Configuration:CFG or UART
 Microsteps: Up to 1/256
 MicroPlyer: 1/256
 Logic Voltage VI0:3-5V
 Motor Voltage: 5.5-36V
 Motor Phase Current: 1.2A RMS,2.0A Peak
 

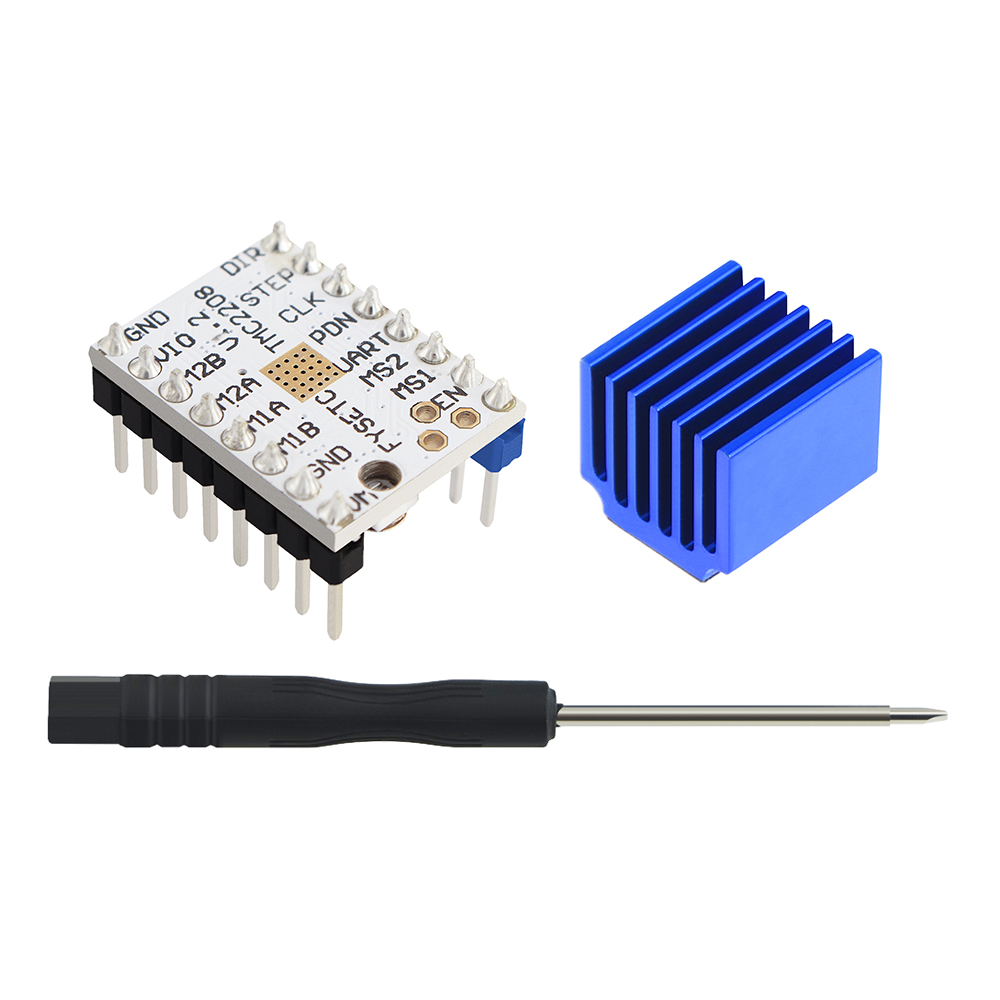

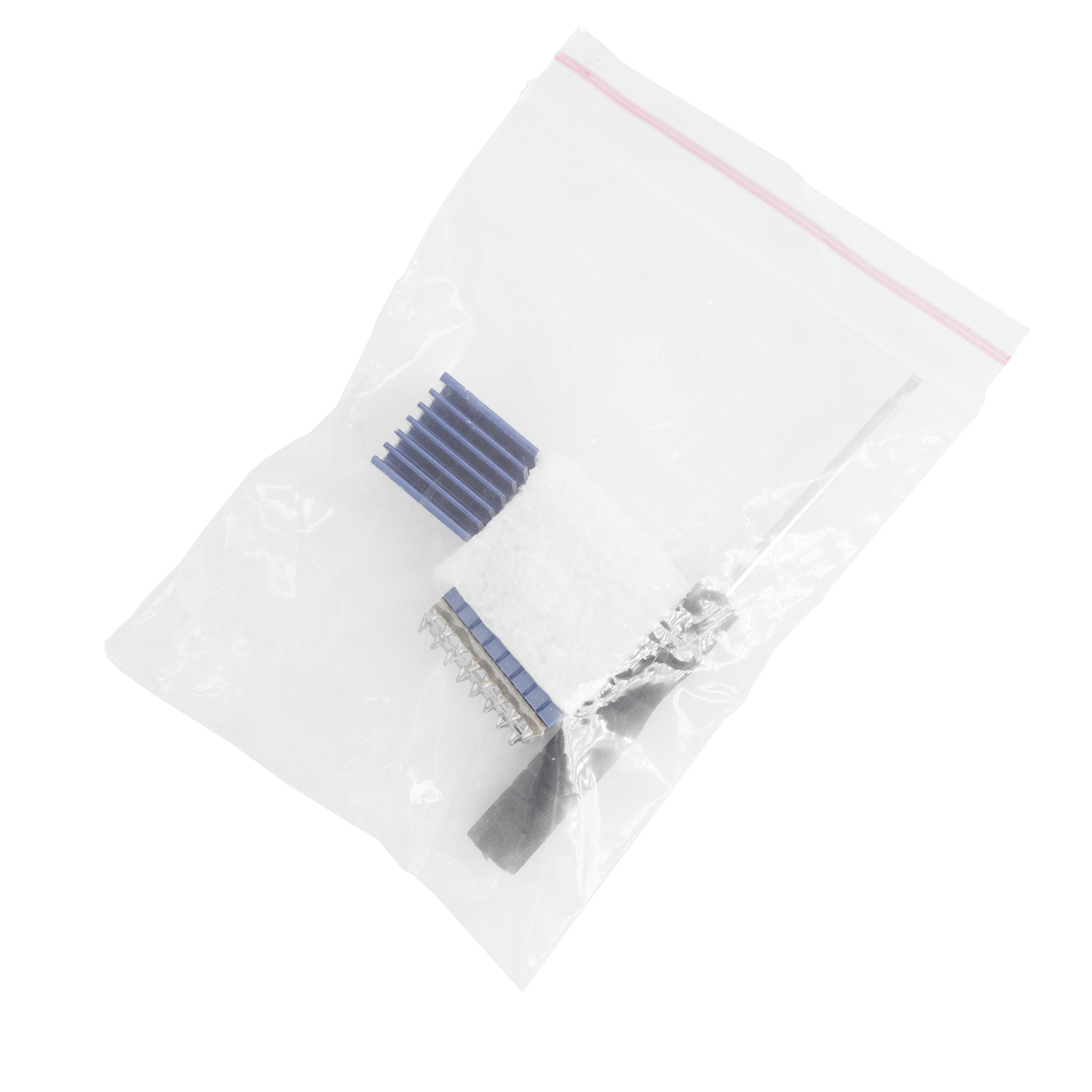

 Package Included:
 
 1Pcs* Tmc2208 V2.0
