- Stock: In Stock
- Model: ST22001029
- SKU: ST22001029
Description:

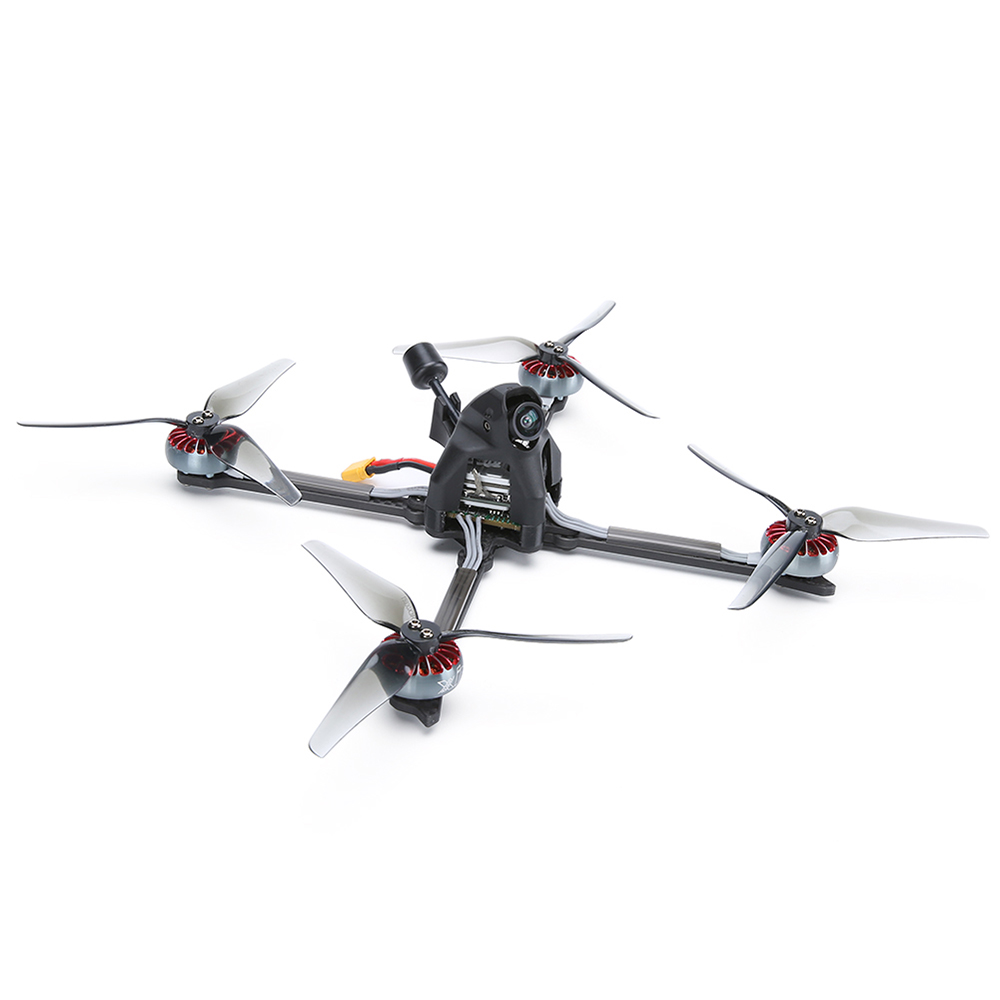

Item Name: 214mm TPX5 HD FPV Racing Drone
Overall frame size: 151 x 151 mm
Base plate thickness: 2 mm
Arm Thickness: 4 mm
Plate thickness: 2.5 mm
Receiver: DJI Receiver/iF8 R81 receiver/ Frsky XM+/ Frsky R-XSR/ Tbs Crossfire nano (Optional)
Voltage: 6S
Weight: 187.6 ± 2 G
Motor: Xing 2005 1900kv
Camera: Nebula nano
Propeller: NAZGUL5030
Graphic transfer system: CADDX VISTA NABULA
PRE-TUNED & PRE-SETUP
Don't worry about tuning, we did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!
To restore lost tunes or updates, please check our linked article on "Firmware/Factory Dumps"
Angle-Mode (self-balancing level mode) is enabled by default to make sure your first flight doesn't end in a mess!
Please check our linked article on "How to disable Angle-Mode, activate Acro-Mode"
GPS Rescue is OFF by default to prevent from unwanted or unexpected drone behavior.
Please check our linked article on "GPS Rescue Mode // Setup"
Features:
Long Endurance,Super Light Weight, Super Power, 10 G ACCELERATION EXPERIENCE
Delicate cowl design, reduce wind resistance,Beast F 745 a Aio, a strong guarantee for flying.
Uses the CADDX Vista Nabula high-definition image transmission, the stable picture transmission, flies simultaneously also does not miss any Beautiful scenery,Fine-tune the parameters to give you a comfortable flight experience
| FRAME: TP X5 HD | Wheelbase: 214mm Main body dimension: 151*151mm Bottom plate thickness: 2mm Middle Plate thickness: 2.5mm FC: 25.5*25.5mm/20*20mm |
| Beast AIO F7 45A FC ESC | FC: MCU: BGA-STM32F745 Gyro: MPU6000 Blackbox: 8Mb Onboard Flash BEC output: 5V 2.5A Barometer: BMP280 Connector: Micro-USB OSD: AT7456E FC Firmware：IFLIGHT_F745_AIO Mounting pattern: 25.5*25.5mm φ3mm Dimensions: 32.5*32.5mm Weight: 8.5g ESC: Uarts: 5 Current Sensor: Yes Input: 2-6S LIPO Current scale: 200 Constant: 45A / Burst: 50A BLHeli: BLHeli-S Telemetry: no ESC Firmware: BlheliS G-H-30 Mounting pattern: 25.5*25.5mm/Φ3mm Dimensions: 32.5*32.5mm |
| Xing 2005 1900kv Motor | KV: 1900KV Quantity: 2CW+2CCW |
Package Included:
Prebuilt and tested Quadcopter
1x TP X5 HD Frame
1x Caddx Nebula Nano Digital HD System Kit
1x Albatross LHCP RP-SMA 5.8g antenna
2sets x Nazgul 5030 inch 3-blades (Set of 4 - Color may vary)
1x 20*200mm Microfiber PU Leather Battery Strap (Color May Vary)
1x 20*250mm Microfiber PU Leather Battery Strap (Color May Vary)
