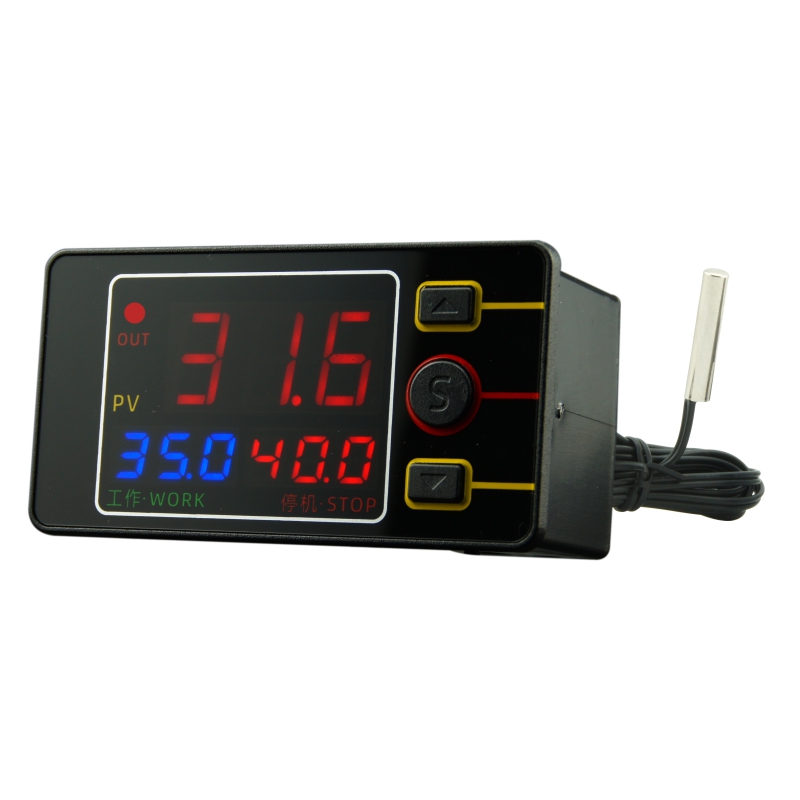

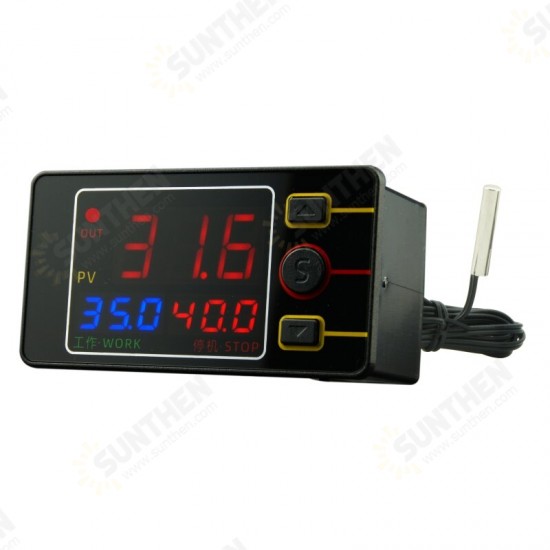

TS4586 Temperature Time Control Controller Flame Retardant Shell Easy Operation Waterproof Probe Large Digital Temperature Display

1. Double-click the "S" key to enter the time setting, the default timing unit is seconds

2. Start the temperature setting: the blue digital tube flashes, click UP or DOWN to adjust the size. Click S to switch to the next item

3. Stop the temperature setting: the red nixie tube flashes, click UP or DOWN to adjust the size, click S to save and exit

4. Automatic operation after power-on, triggering work when the temperature reaches the standard

1. The default is pure temperature control mode. In temperature time control mode, you need to enter the code interface to set the shutdown time

2. Whether it is pure temperature control mode or temperature time control mode, the start temperature and stop temperature must be set

3. Both the pure temperature control mode and the temperature time control mode are temperature-triggered to start, and the temperature-controlled temperature triggers the shutdown. The temperature-time control mode shutdown trigger condition is the priority to meet the conditions to trigger.

1 x TS4586 Temperature
