Camera Module OV2640 2 Megapixel Adapter Support YUV RGB JPEG For T-Camera Plus ESP32-DOWDQ6 8MB SPRAM
- Stock: In Stock
- Model: ST230047593
- SKU: ST230047593
$10.99
Ex Tax: $10.99
Feature:

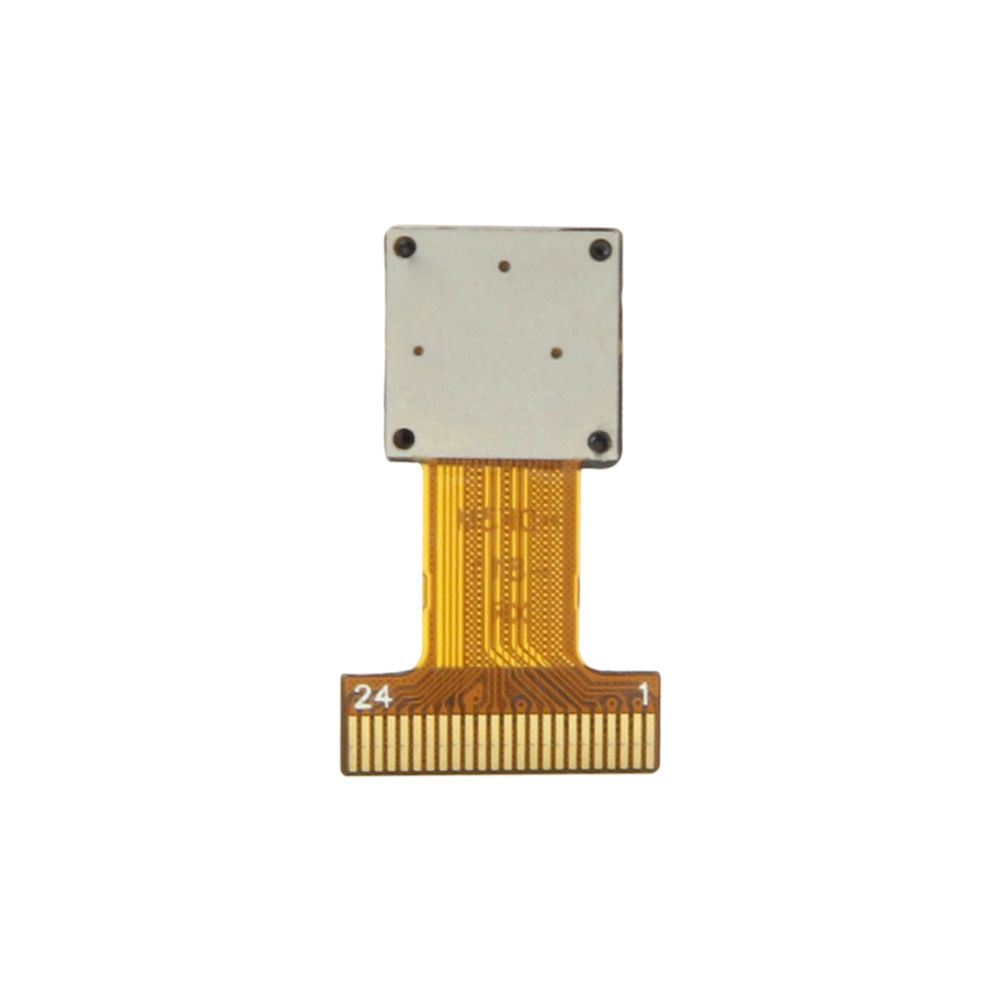

Camera: OV2640
Camera Resolution: 2Megapixel

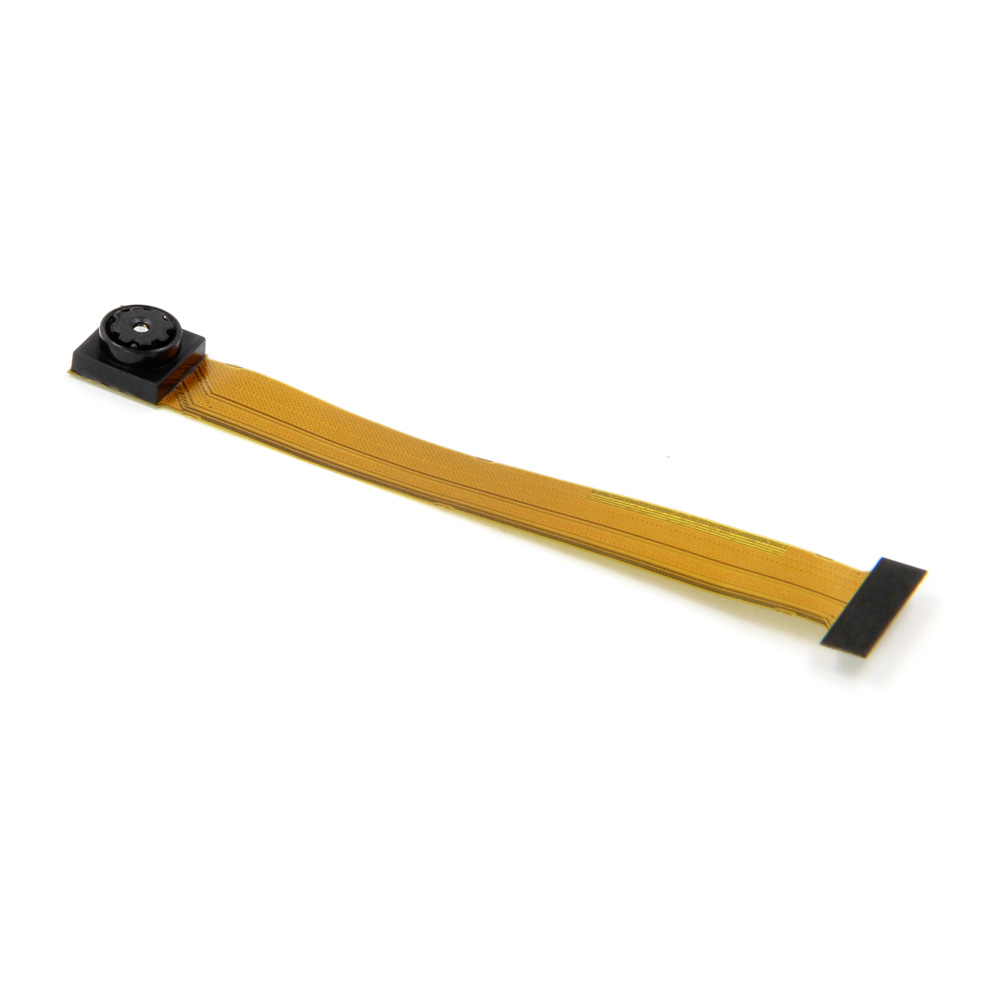

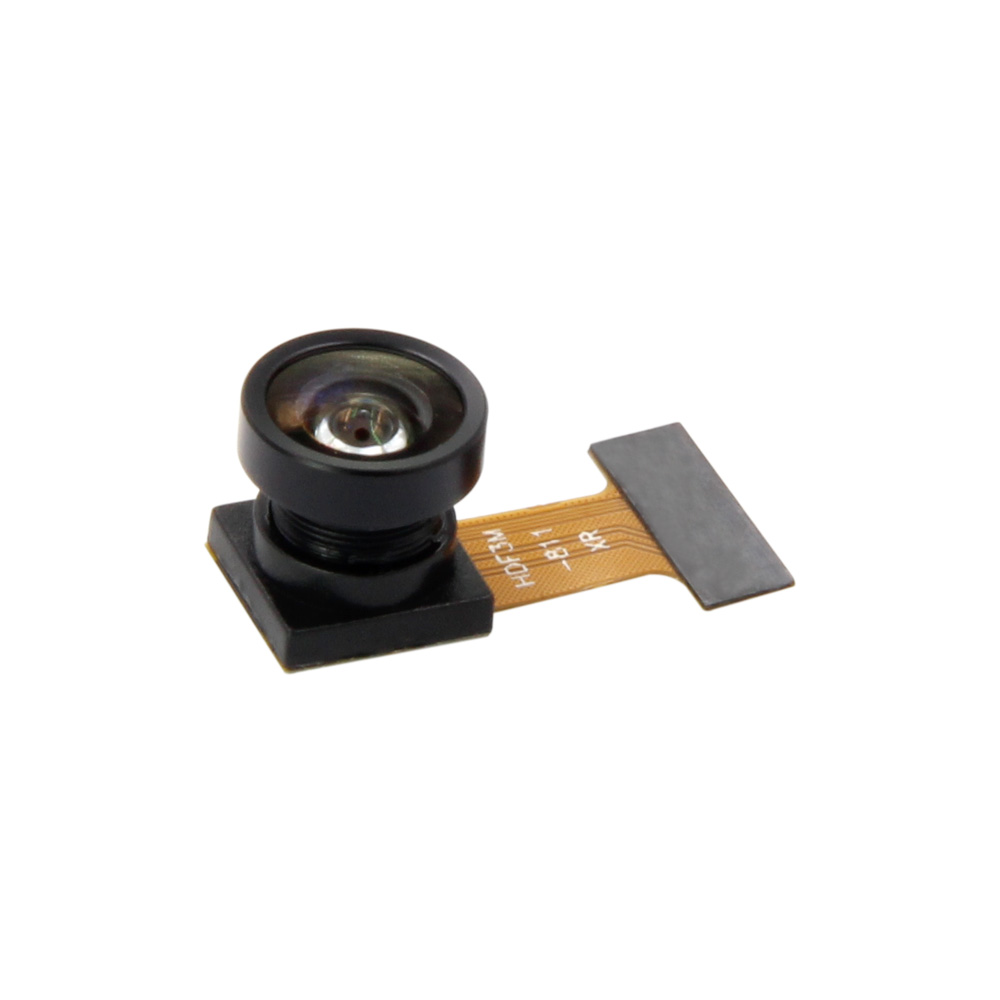

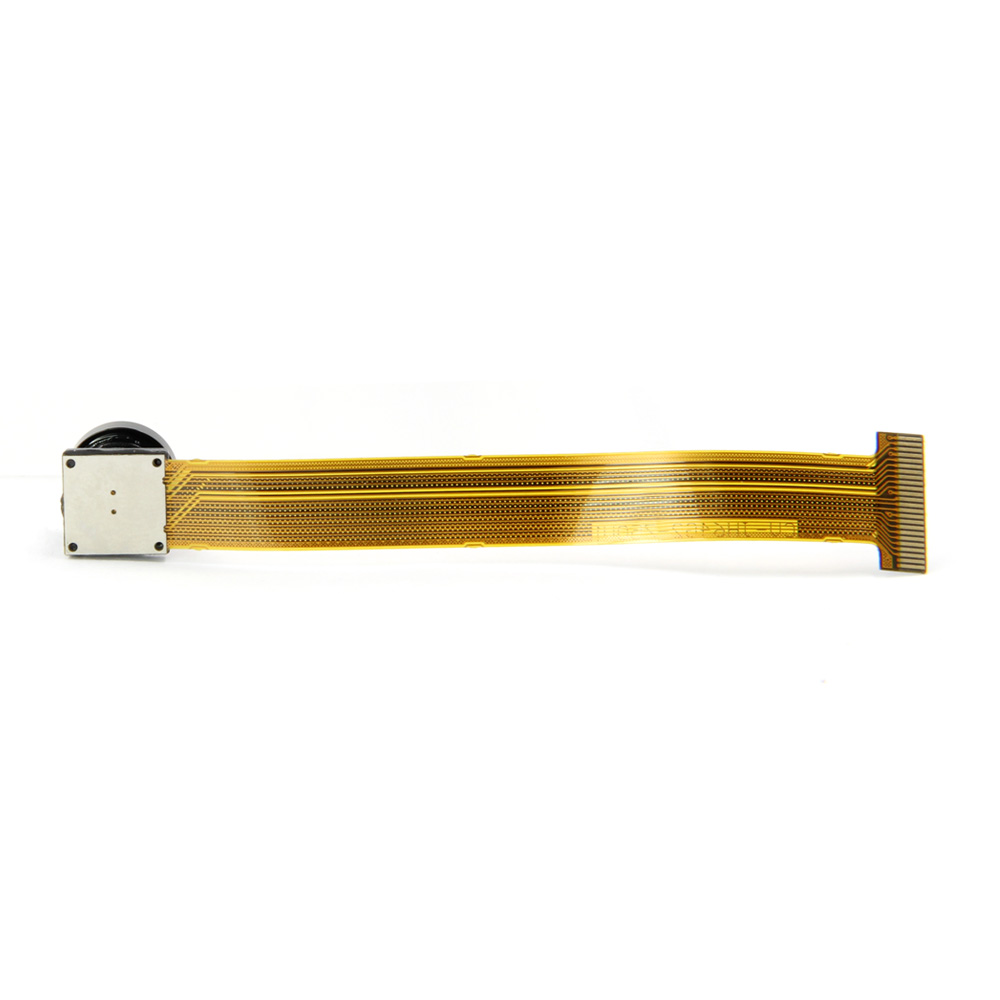

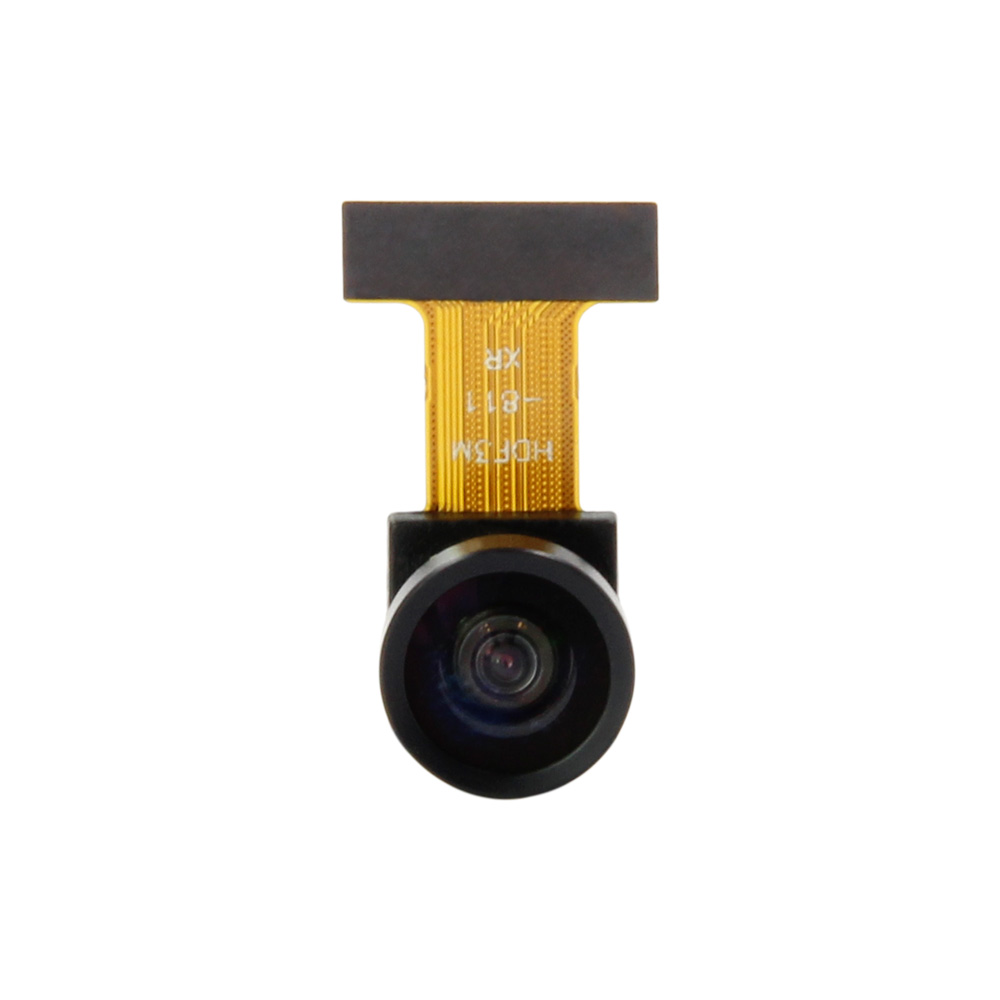

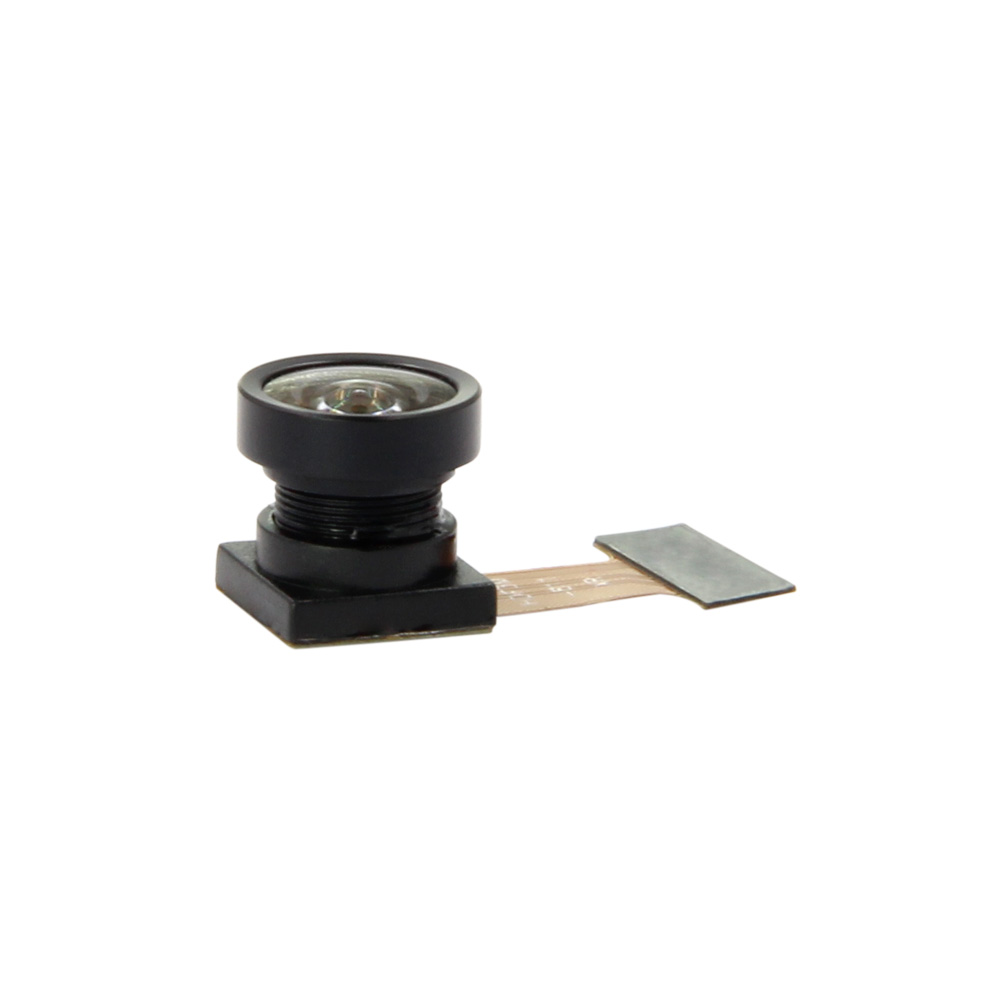

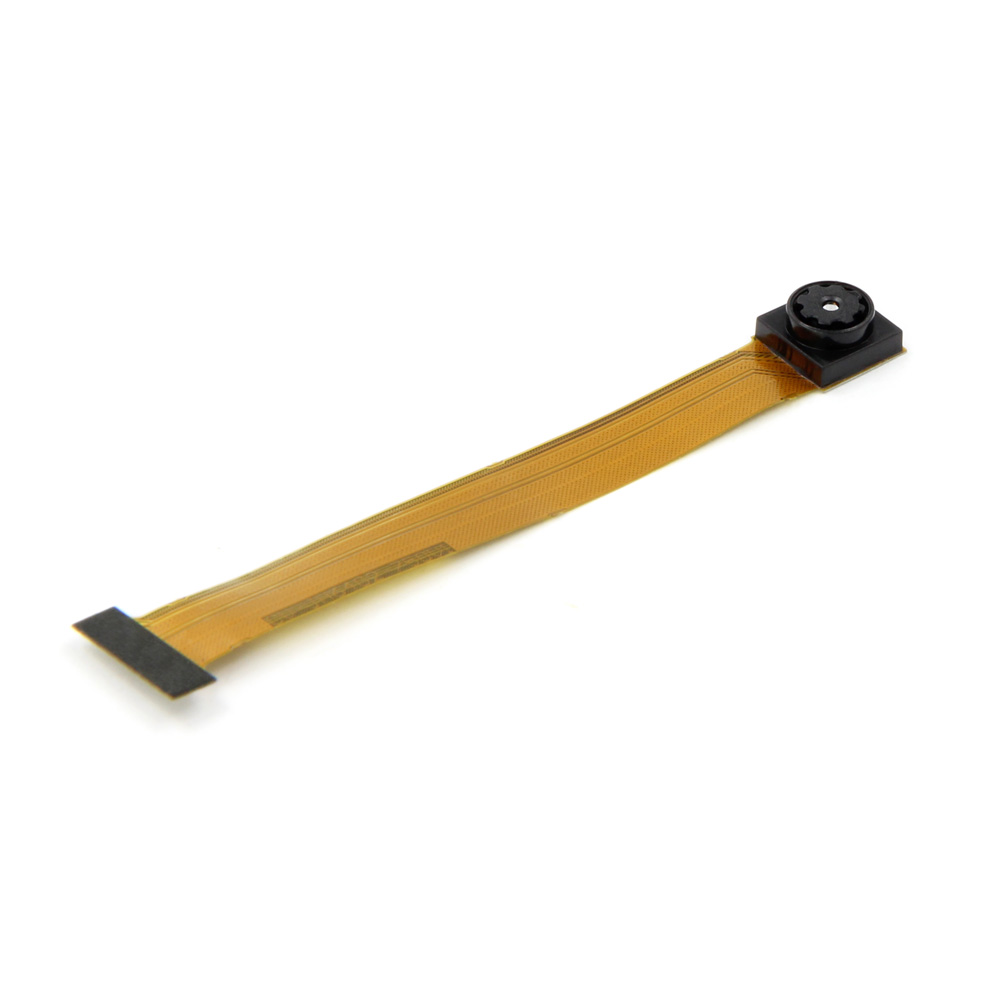

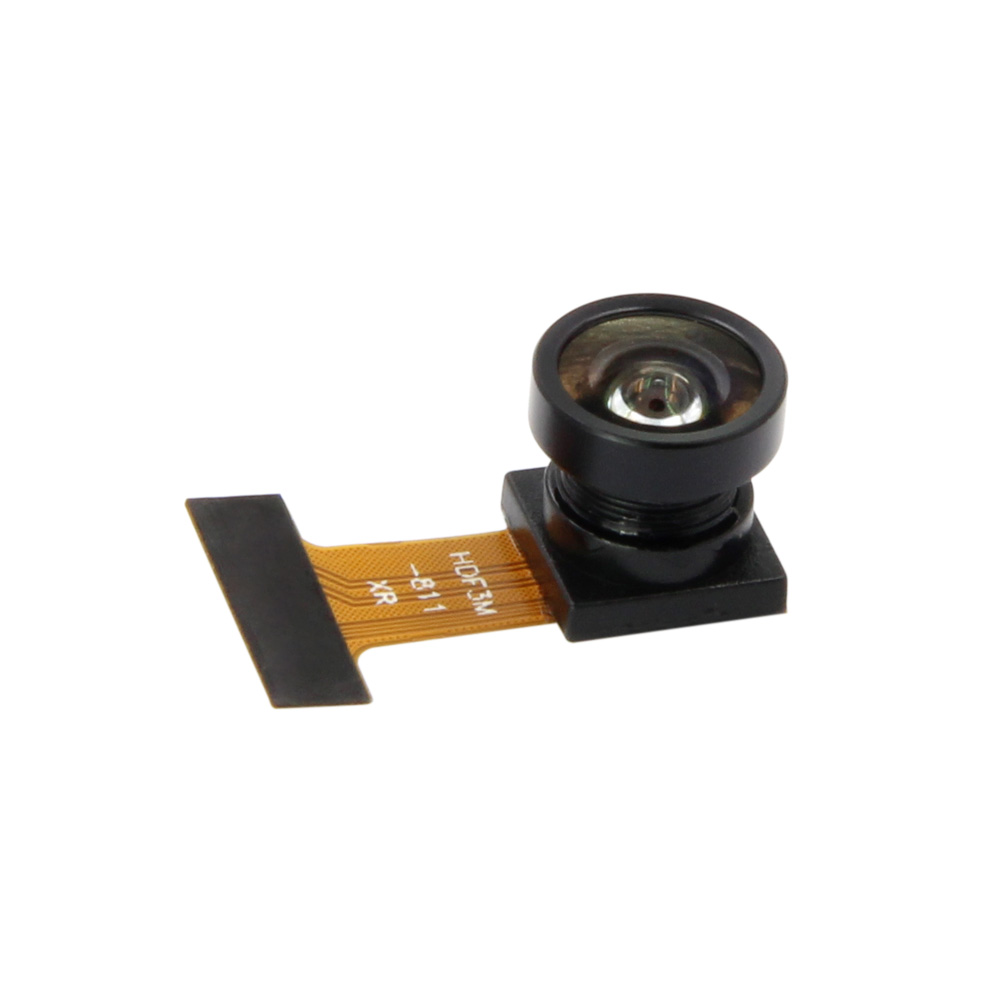

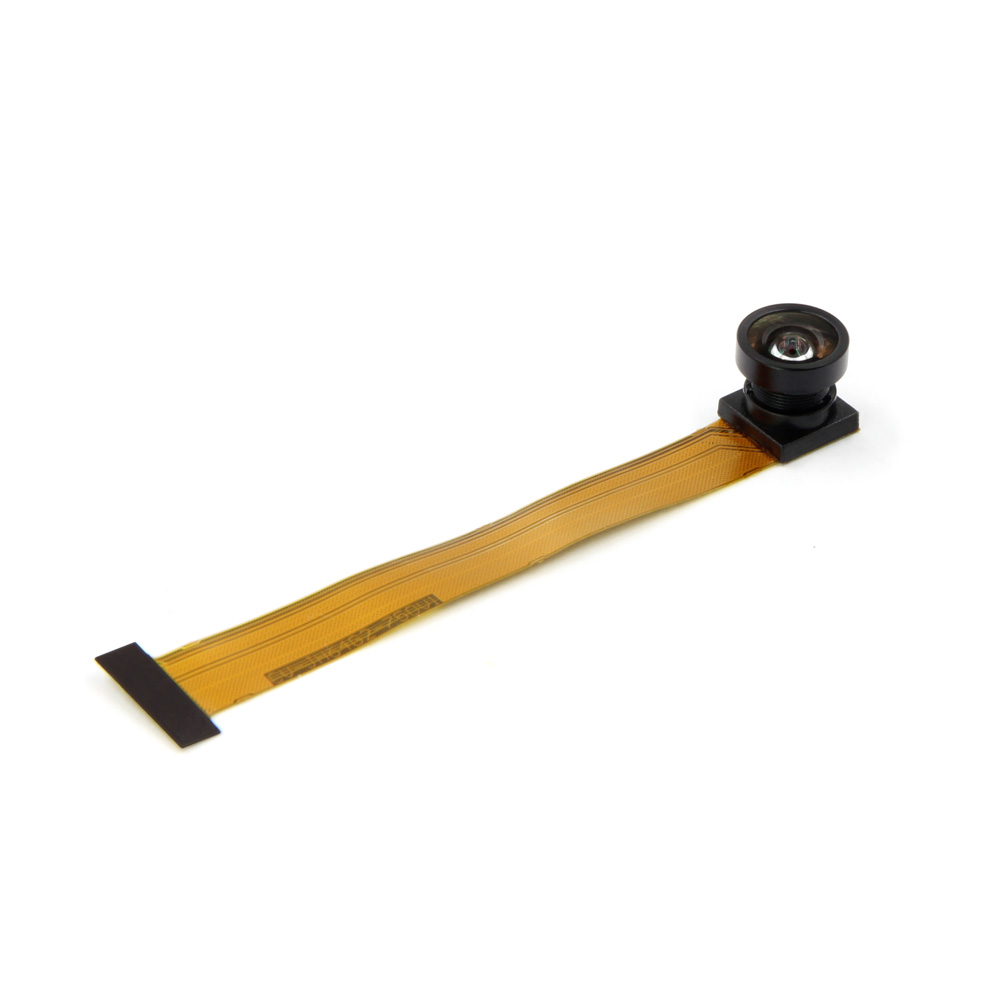

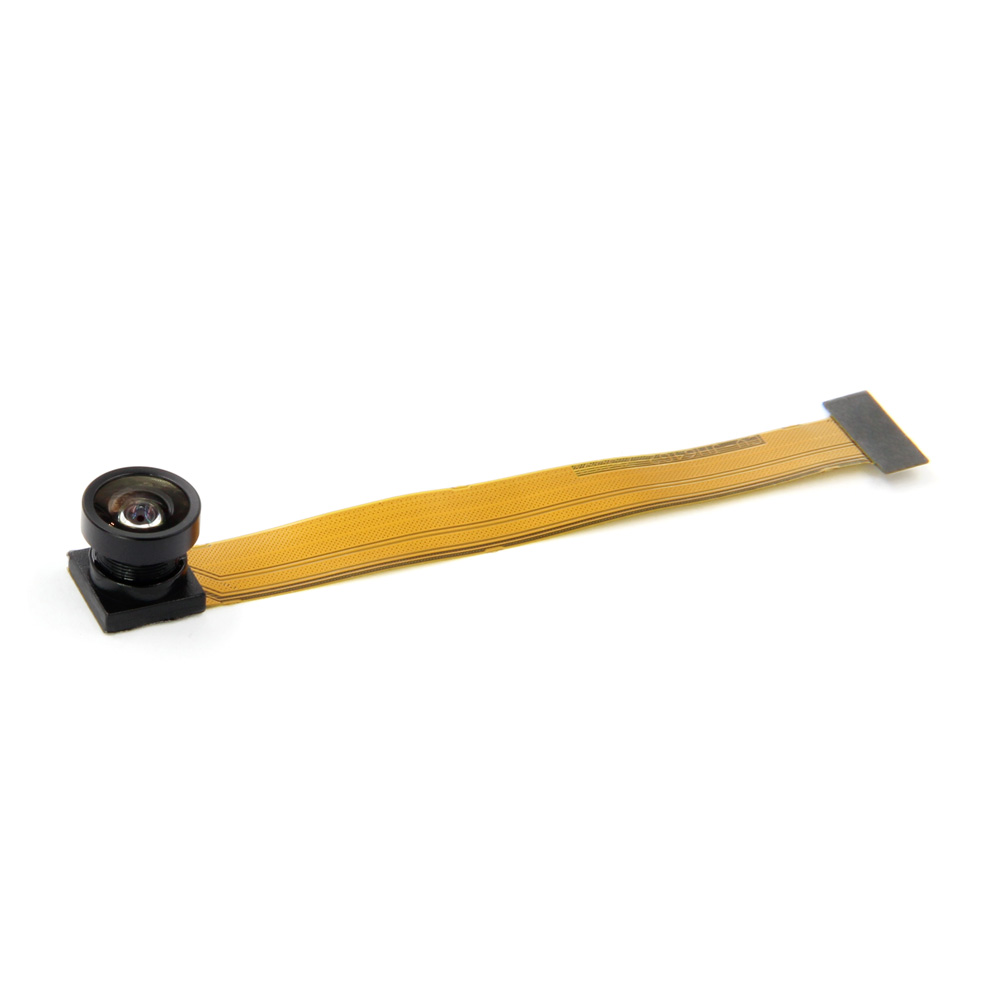

Type: Normal / Lengthened Normal / Fisheye lens / Lengthened fisheye lens (Optional)
Size: 21.77 x 12.61 x 4.28mm / 74.91 x 12.61 x 4.28mm
Camera Seat: 8.54mm 24pin
Package includes:
1 x Camera
Type: Normal / Lengthened Normal / Fisheye lens / Lengthened fisheye lens (Optional)
Size: 21.77 x 12.61 x 4.28mm / 74.91 x 12.61 x 4.28mm
Camera Seat: 8.54mm 24pin
| Array Size | UXGA | 1600 x 1200 |
| Power Supply | Core | 1.2VDC + 5% |
| Analog | 2.5 ~ 3.0VDC | |
| I/O | 1.7V to 3.3V | |
| Power Requirements | Active | 125 mW (for 15 fps, UXGA YUV mode) |
| 140 mW (for 15 fps, UXGA compressed mode) | ||
| Standby | 600 µA | |
| Temperature | Operation | -30°C to 70°C |
| Range | Stable Image | 0°C to 50°C |
| Output Formats (8-bit) | • YUV(422/420)/YCbCr422 | |
| • RGB565/555 | ||
| • 8-bit compressed data | ||
| • 8-/10-bit RGB data | ||
| Lens Size | 1/4" | |
| Chief Ray Angle | 25° non-linear | |
| Maximum | UXGA/SXGA | 15 fps |
| Image | SVGA | 30 fps |
| Transfer Rate | CIF | 60 fps |
| Sensitivity | 0.6 V/Lux-sec | |
| S/N Ratio | 40 dB | |
| Dynamic Range | 50 dB | |
| Scan Mode | Progressive | |
| Maximum Exposure Interval | 1247 x tROW | |
| Gamma Correction | Programmable | |
| Pixel Size | 2.2 µm x 2.2 µm | |
| Dark Current | 15 mV/s at 60°C | |
| Well Capacity | 12 Ke | |
| Fixed Pattern Noise | <1% of VPEAK-TO-PEAK | |
| Image Area | 3590 µm x 2684 µm | |
| Package Dimensions | 5725 µm x 6285 µm | |
Package includes:
1 x Camera
