- Stock: In Stock
- Model: ST22006623
- SKU: ST22006623
Description:

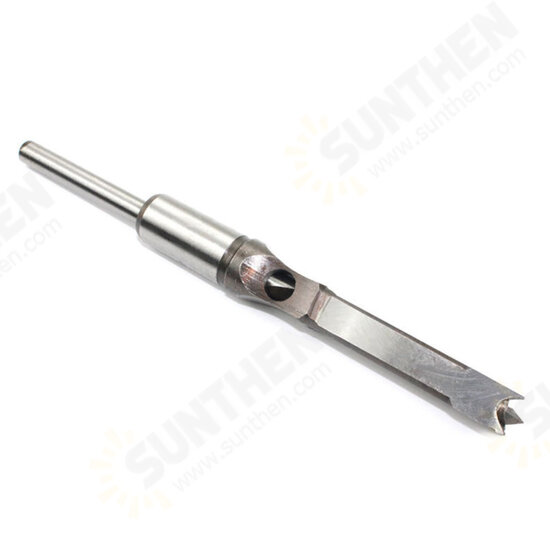

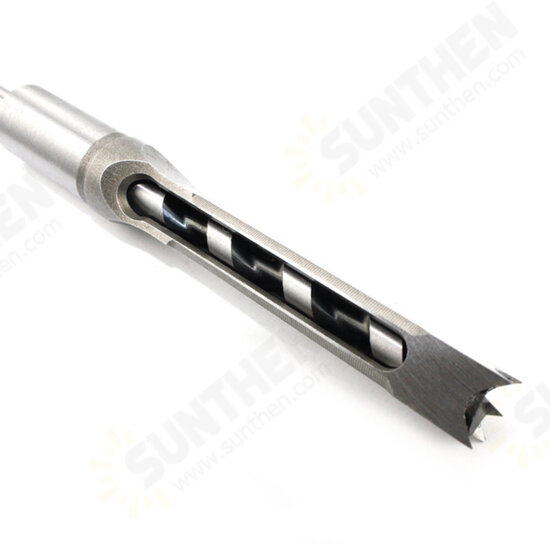

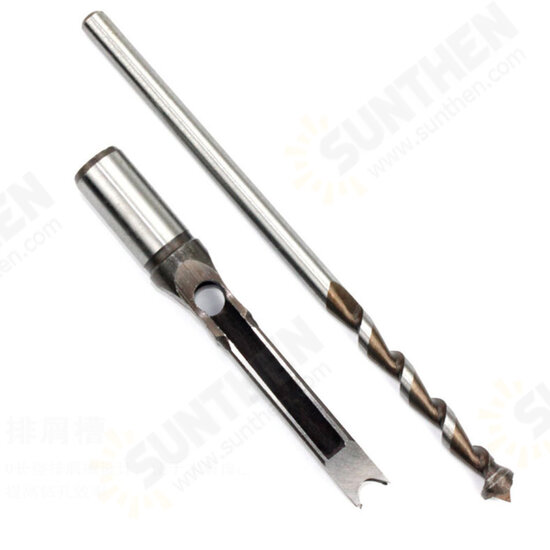

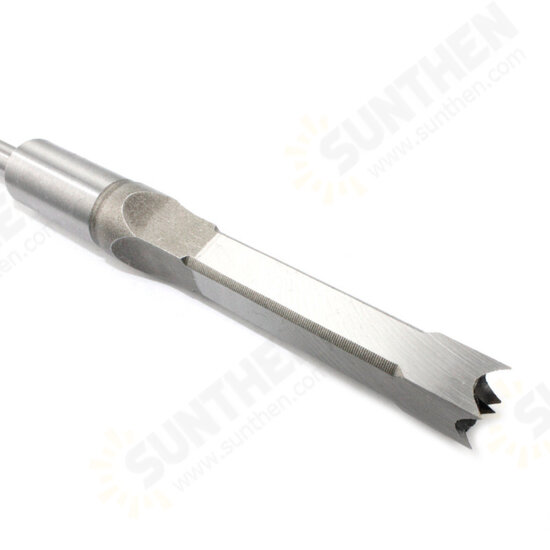

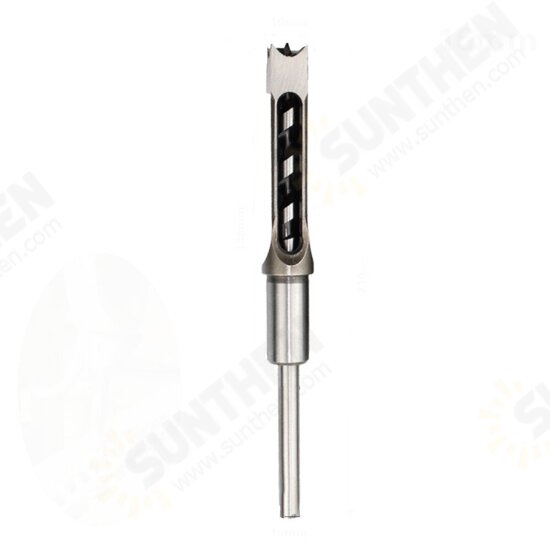

1/4/6Pcs HSS Twist Drill Bits Square Auger Mortising Chisel Drill Set Square Hole Woodworking Drill Tools Kit Set Extended Saw
Specifications:
| Product Name | Chisel Drill Set |
| Material | 45 steel |
| Type | #1: 1/4"(6.4mm) Square hole drill + bit #2: 5/16"(8mm) Square hole drill + bit #3: 3/8"(9.5mm) Square hole drill + bit #4: 1/2"(12.7mm) Square hole drill + bit #5: 9/6"(14mm) Square hole drill + bit #6: 5/8"(16mm) Square hole drill + bit #7: 1/4"(6.4mm) Drill Bit #8: 5/16"(8mm) Drill Bit #9: 3/8"(9.5mm) Drill Bit #10: 1/2"(12.7mm) Drill Bit #11: 9/6"(14mm) Drill Bit #12: 5/8"(16mm) Drill Bit #13: 4Pcs (6.4/8/9.5/12.7mm)Square Hole Drill + bit #14: 6Pcs (6.4/8/9.5/12.7/14/16mm)Square Hole Drill + bit |
| Shank Shape | Round Shank |
| Box Size | 4-piece: 225*140*40mm 6-piece: 230*165*30mm |
| Quantity | 1 Pc × Square Hole Drill Or 1 Pc × Drill Bit Or 4 Pcs × Square Hole Drill Or 6 Pcs × Square Hole Drill |

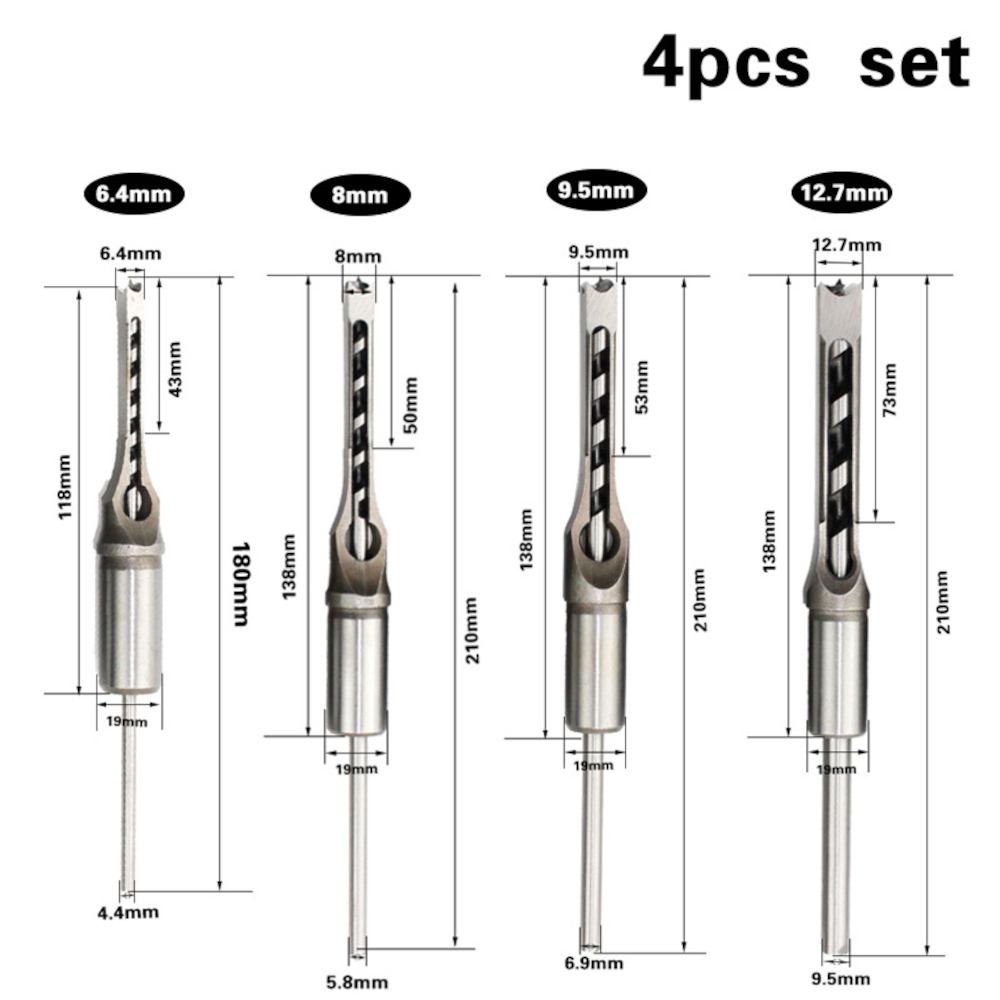

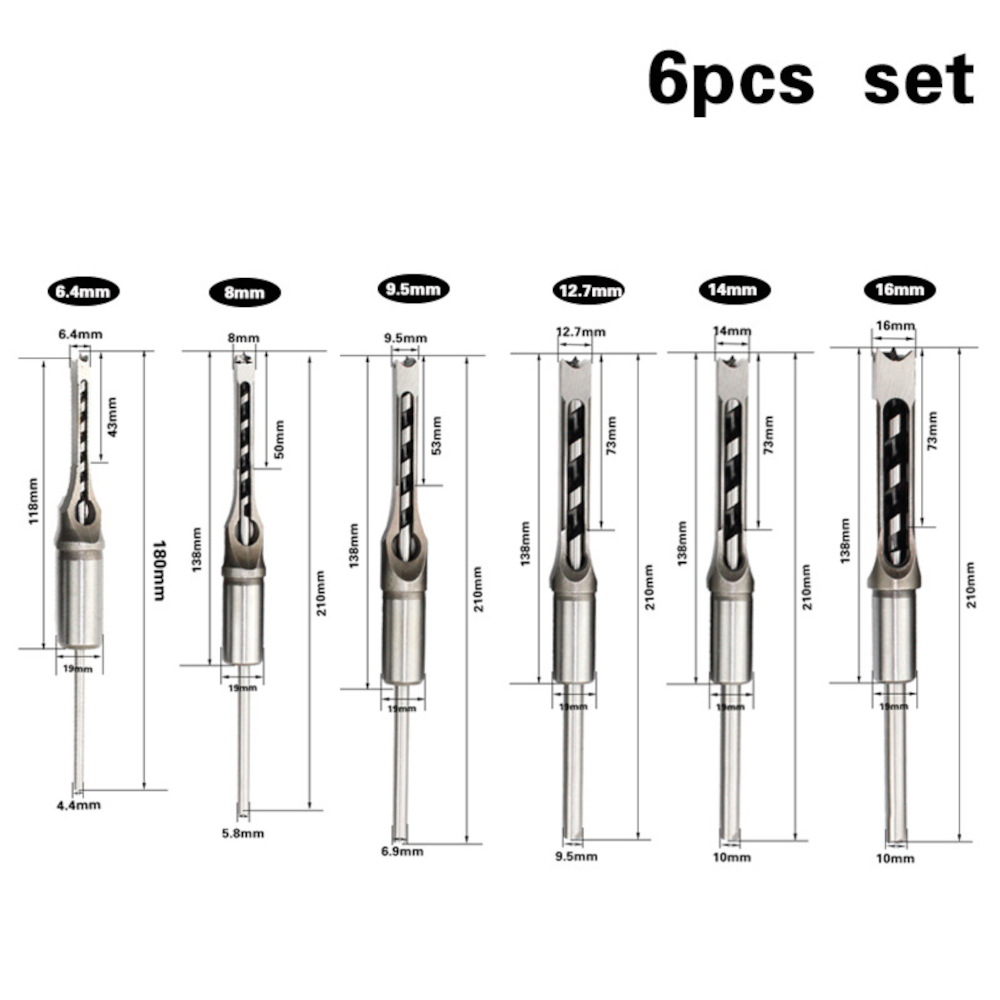

| Size | Square Hole Size | Grooving Depth | Drill Sleeve Length | Clamping Diameter | Shank Diameter | Total Length |

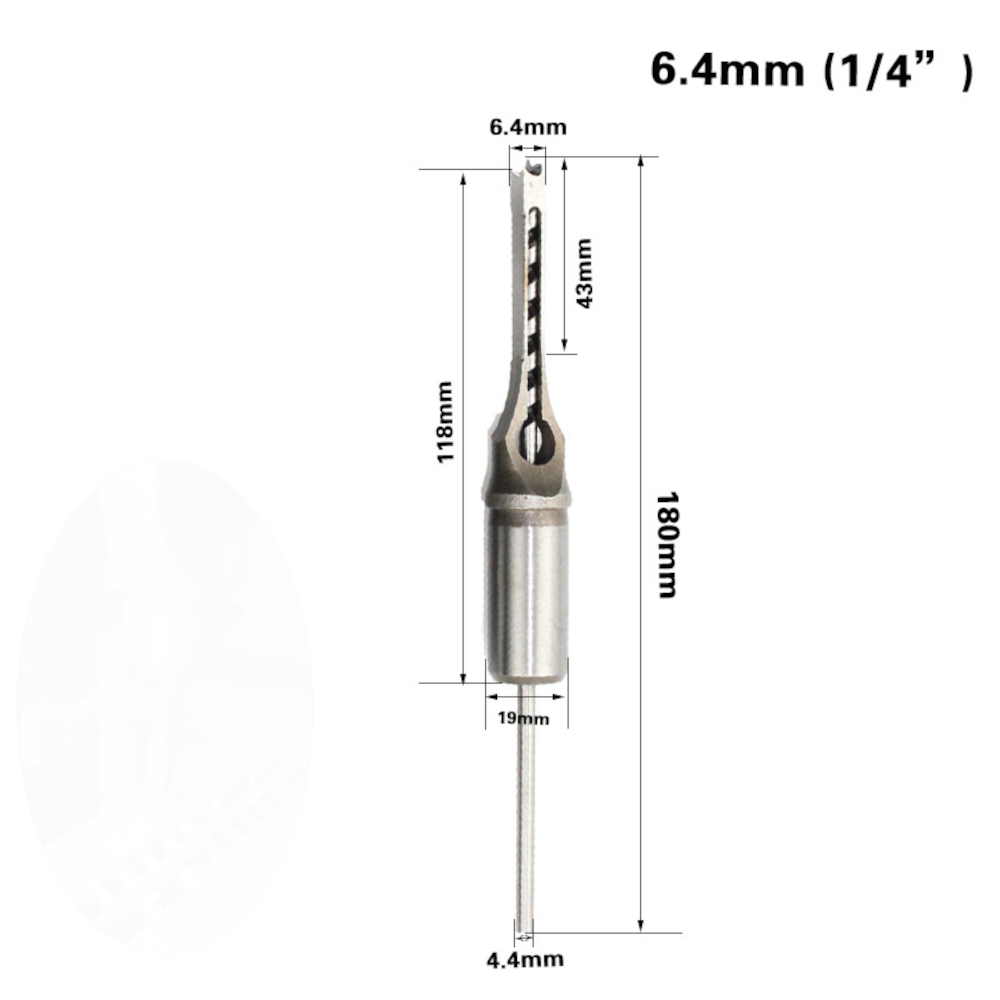

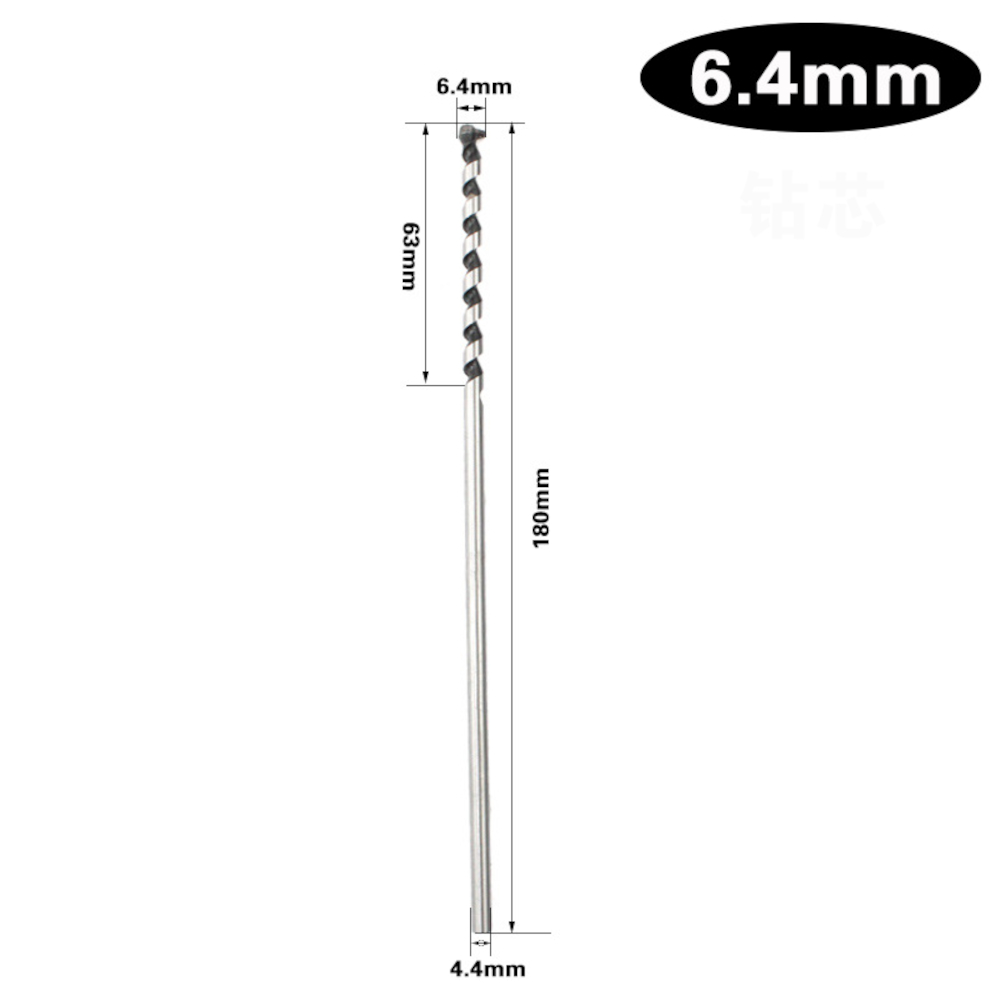

| 1/4"(6.4mm) | 6.4mm | 43mm | 118mm | 19mm | 4.4mm | 180mm |

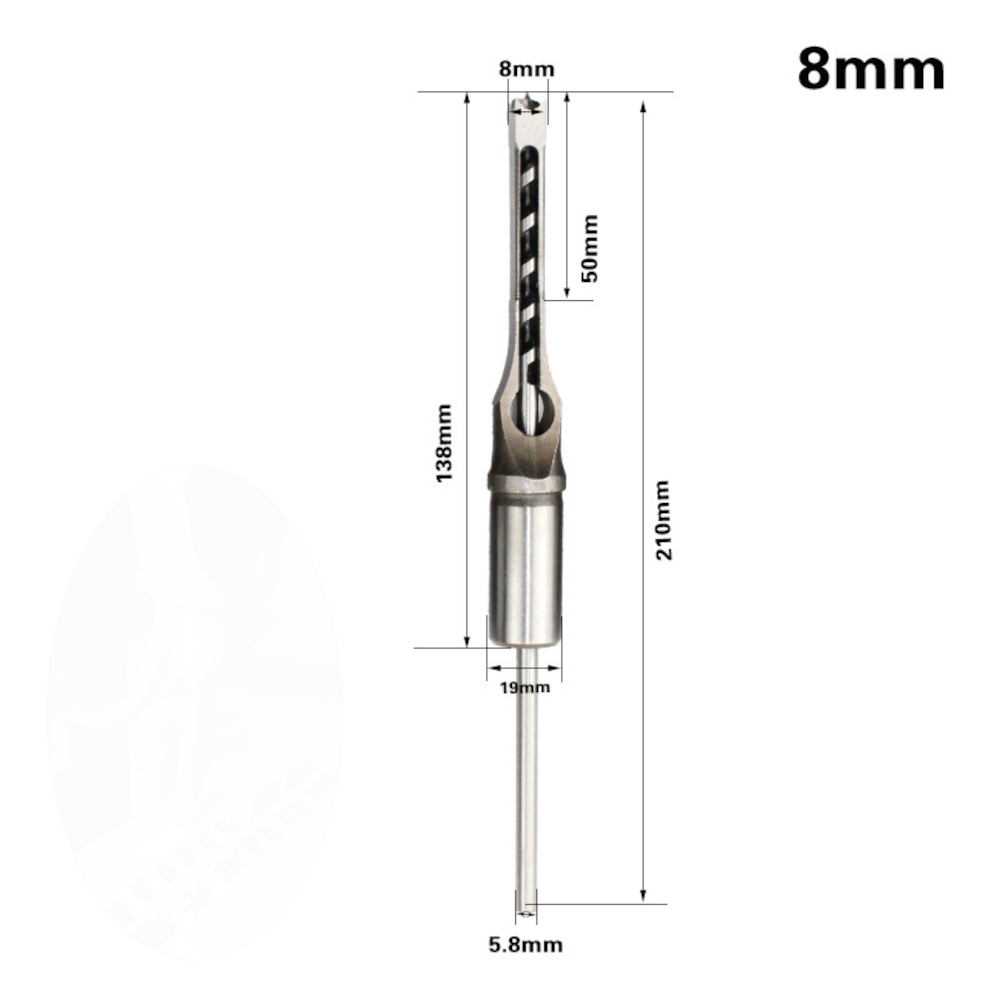

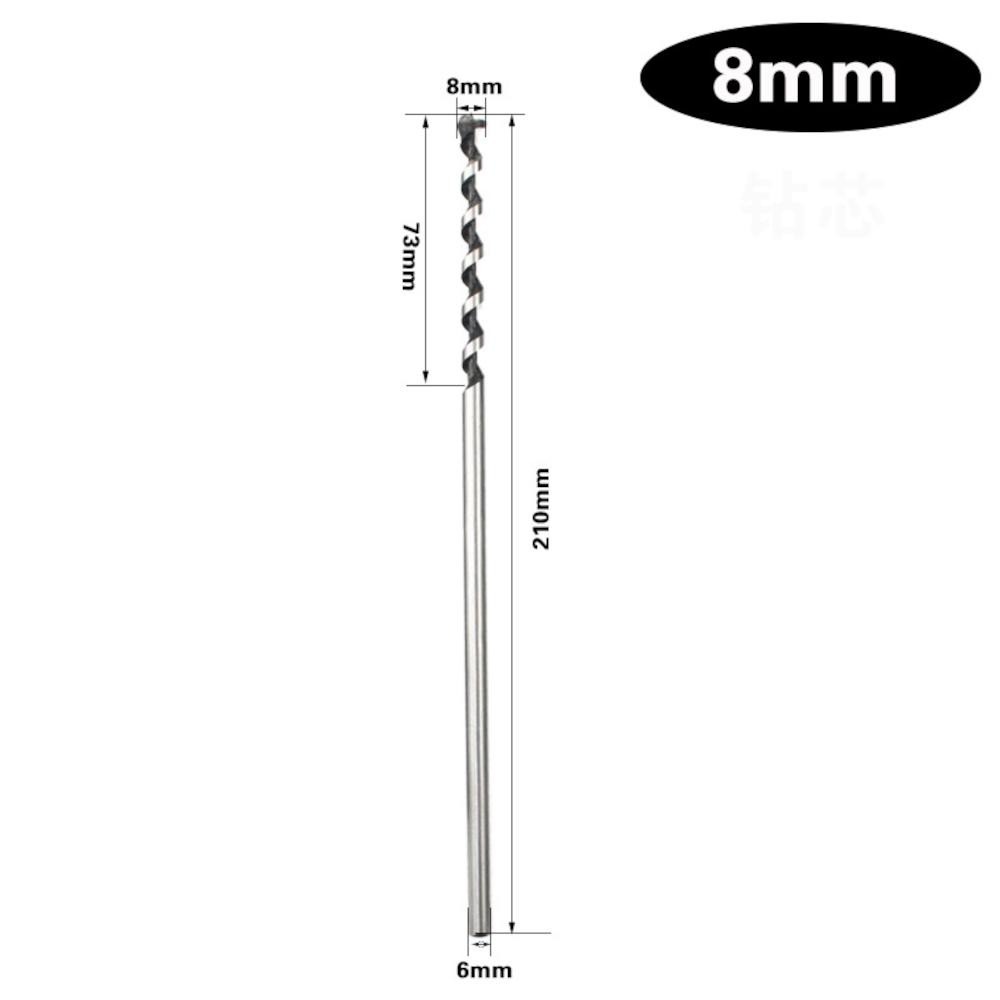

| 5/16"(8mm) | 8mm | 50mm | 138mm | 5.8mm | 210mm | |

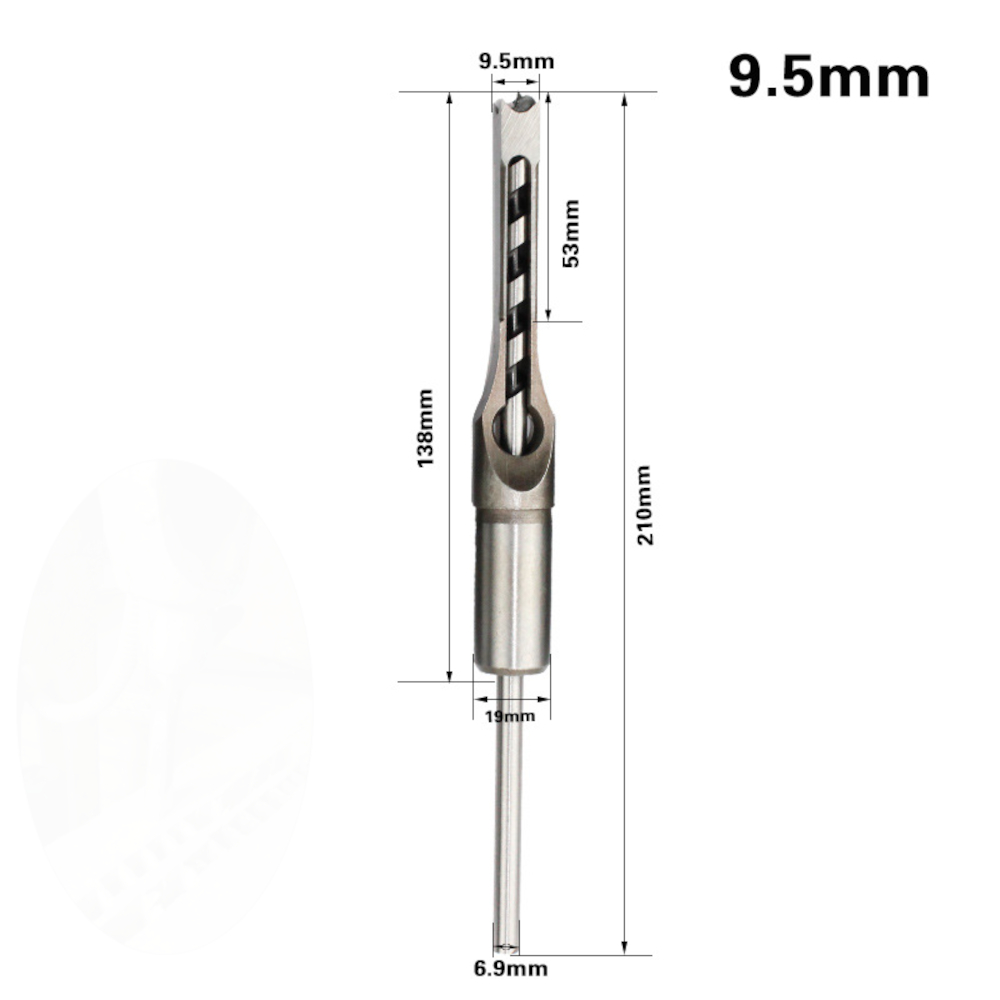

| 3/8"(9.5mm) | 9.5mm | 53mm | 138mm | 6.9mm | 210mm | |

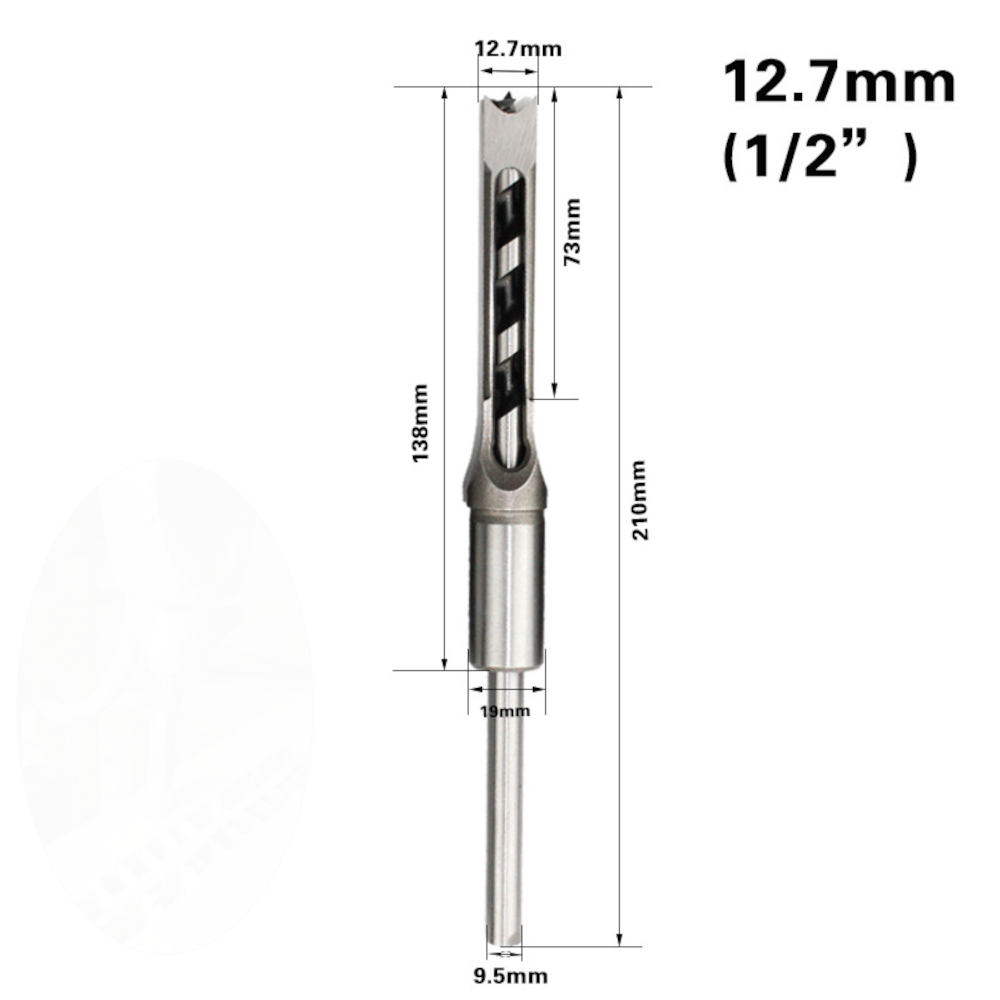

| 1/2"(12.7mm) | 12.7mm | 73mm | 138mm | 9.5mm | 210mm | |

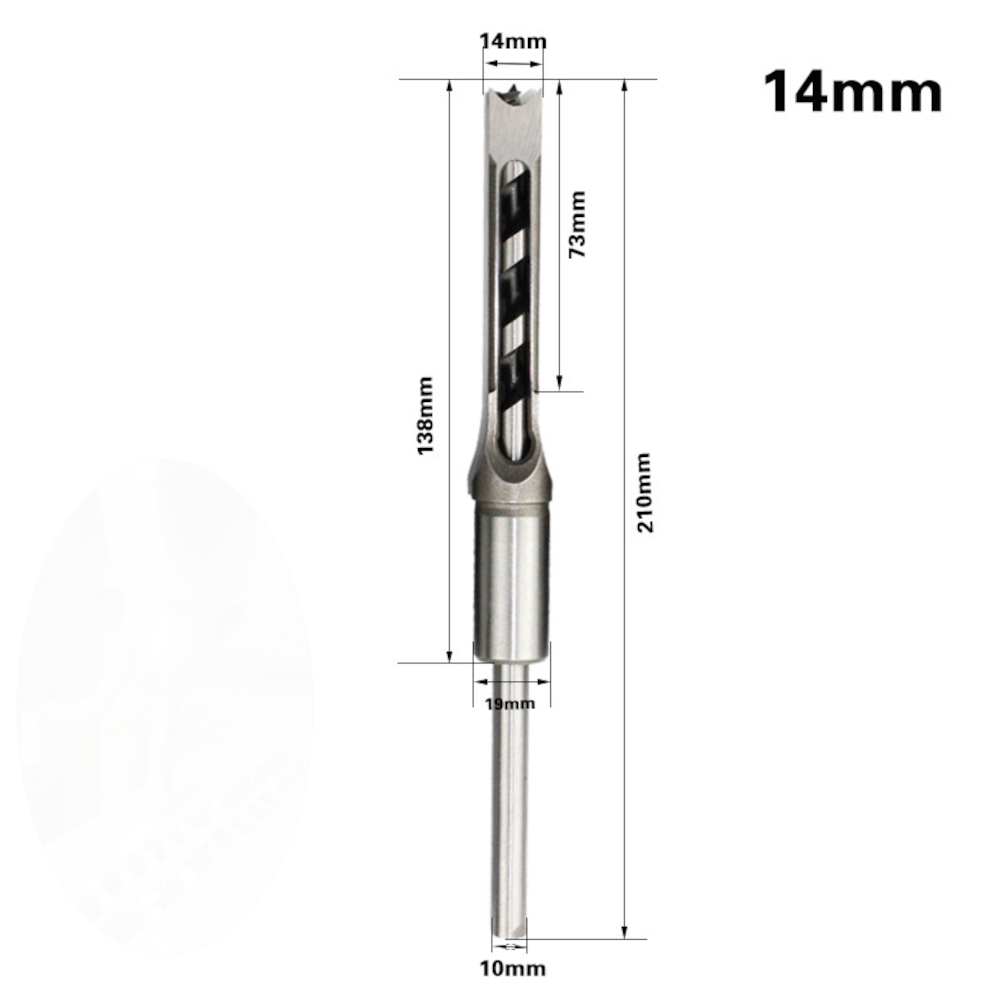

| 9/6"(14mm) | 14mm | 73mm | 138mm | 10mm | 210mm | |

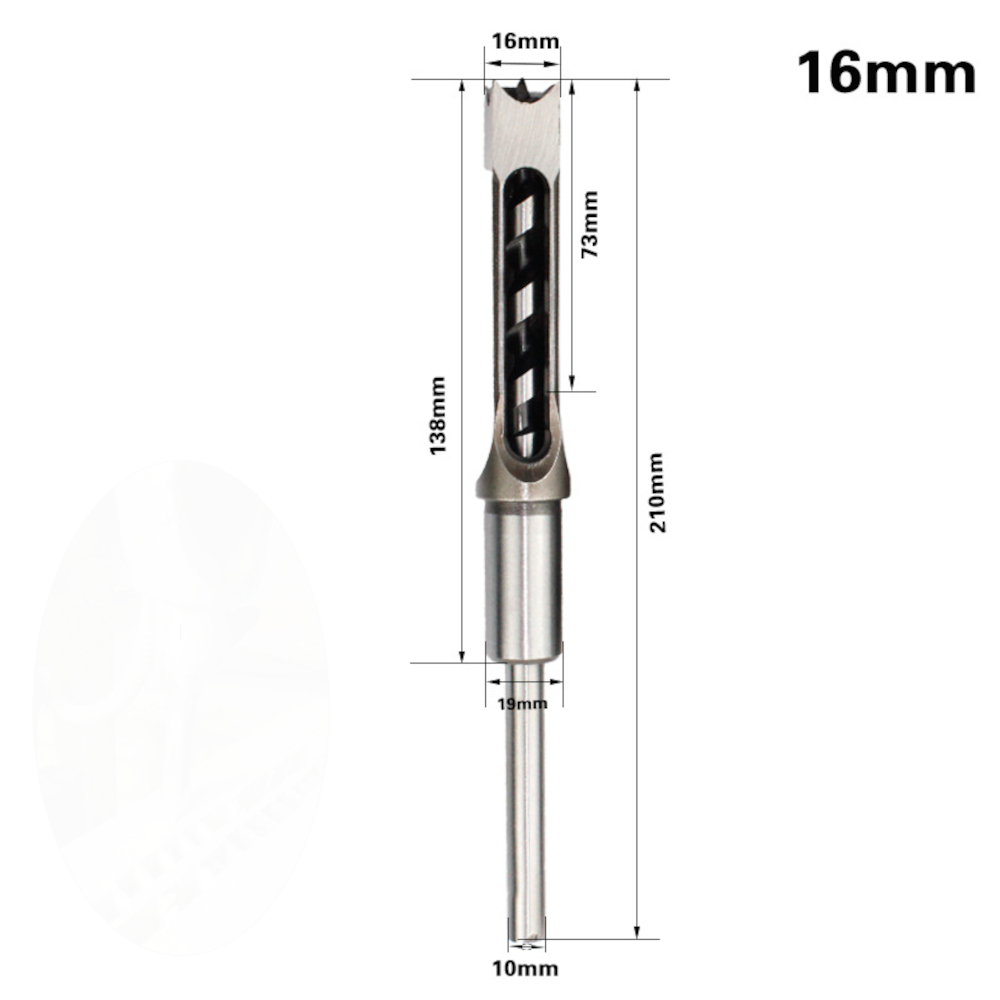

| 5/8"(16mm) | 16mm | 73mm | 138mm | 10mm | 210mm |
Features:
- Suitable for MDF, MDF, particleboard, wood and other wood products; suitable for square hole drills and square tenon machines.
- The drill bit is forged with alloy steel, the overall heat treatment hardness is high, and the service life is long.

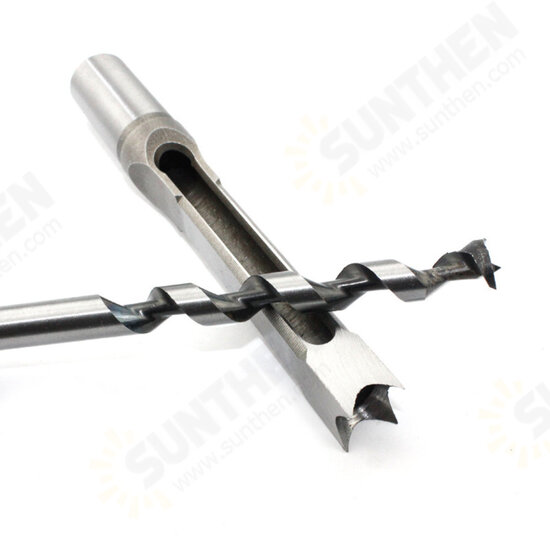

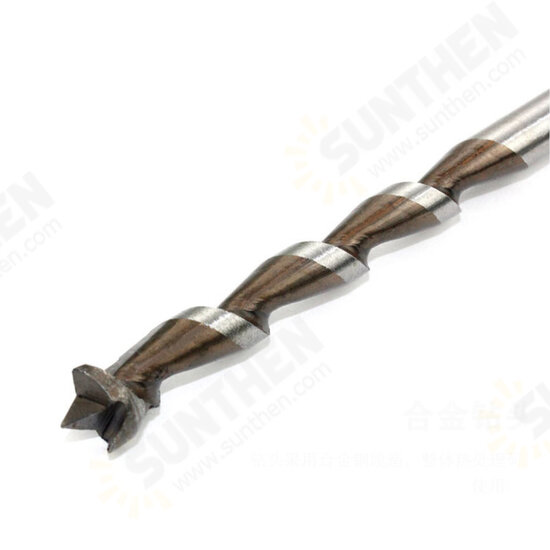

- The U-long chip flute is designed to facilitate the discharge of wood chips and improve the efficiency of drilling.

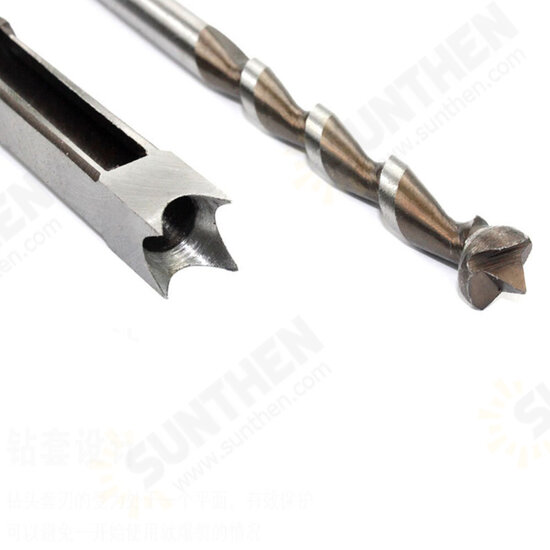

- The force of the cutting edge of the drill bit is on a plane, and the effective protection can avoid the situation of bursting at the beginning.
- The drill tail adopts a circular design to make the clamping more stable. It can be used with square hole drills and square tenon machines.
Package Included:
| Type | Quantity |
| #1 | 1 Pc × 1/4"(6.4mm) Square hole drill + bit |
| #2 | 1 Pc × 5/16"(8mm) Square hole drill + bit |
| #3 | 1 Pc × 3/8"(9.5mm) Square hole drill + bit |
| #4 | 1 Pc × 1/2"(12.7mm) Square hole drill + bit |
| #5 | 1 Pc × 9/6"(14mm) Square hole drill + bit |
| #6 | 1 Pc × 5/8"(16mm) Square hole drill + bit |

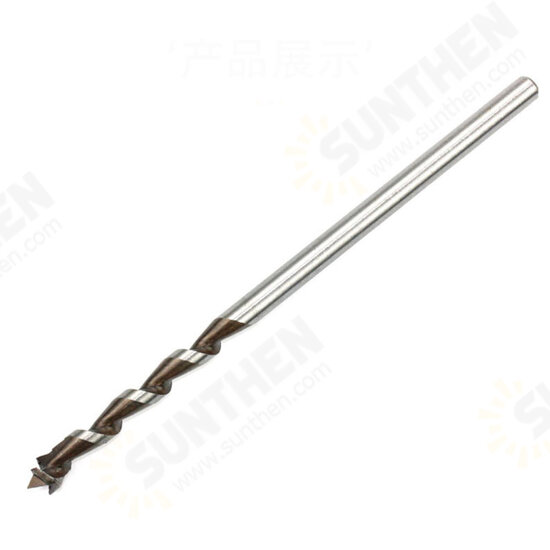

| #7 | 1 Pc × 1/4"(6.4mm) Drill Bit |
| #8 | 1 Pc × 5/16"(8mm) Drill Bit |
| #9 | 1 Pc × 3/8"(9.5mm) Drill Bit |

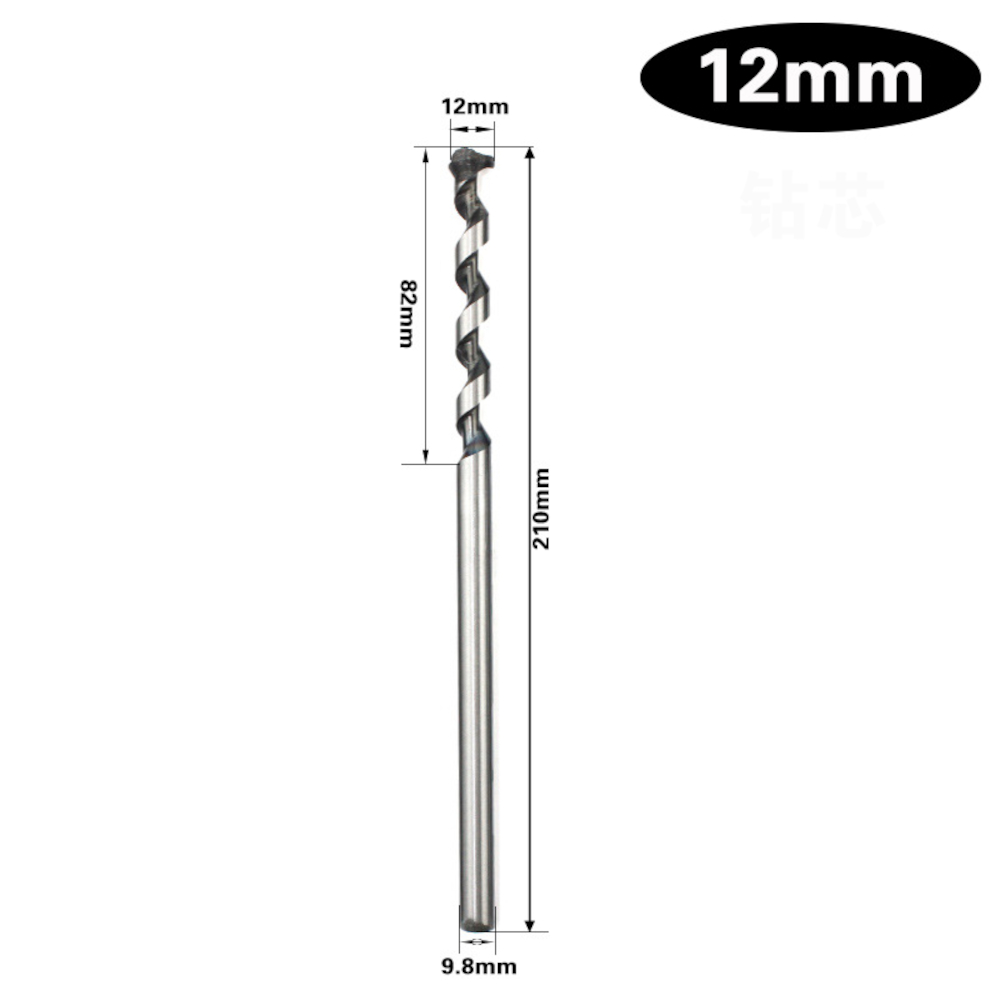

| #10 | 1 Pc × 1/2"(12.7mm) Drill Bit |
| #11 | 1 Pc × 9/6"(14mm) Drill Bit |

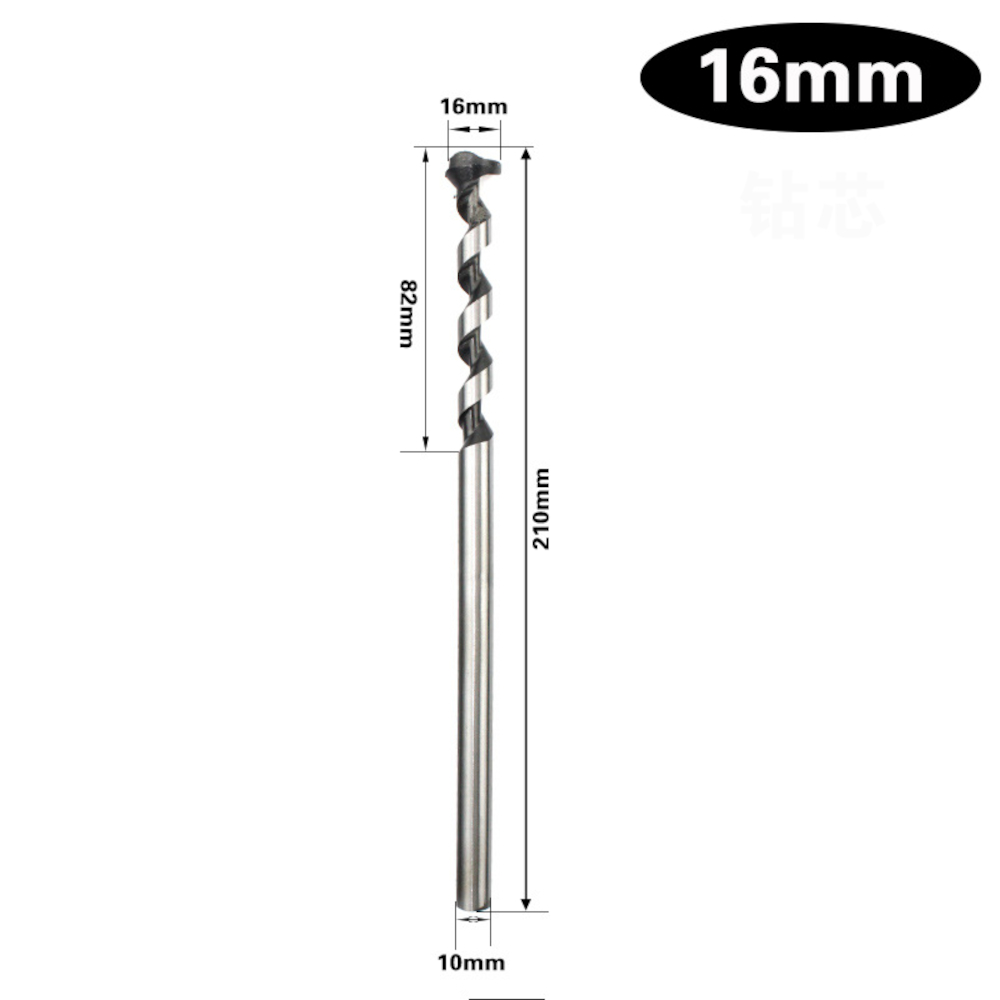

| #12 | 1 Pc × 5/8"(16mm) Drill Bit |
| #13 | 1 Pc × 1/4"(6.4mm) Square hole drill + bit 1 Pc × 5/16"(8mm) Square hole drill + bit 1 Pc × 3/8"(9.5mm) Square hole drill + bit 1 Pc × 1/2"(12.7mm) Square hole drill + bit |
| #14 | 1 Pc × 1/4"(6.4mm) Square hole drill + bit 1 Pc × 5/16"(8mm) Square hole drill + bit 1 Pc × 3/8"(9.5mm) Square hole drill + bit 1 Pc × 1/2"(12.7mm) Square hole drill + bit 1 Pc × 9/6"(14mm) Square hole drill + bit 1 Pc × 5/8"(16mm) Square hole drill + bit |
More Details:
