- Stock: In Stock
- Model: ST22001708
- SKU: ST22001708
Note：
DJI Air Unit will be changed to CADDX AIR UNIT From 2021.06.05
Description:
The Sector5 V3 is a 5" Freestyle quadcopter that comes fully built with everything you need to have an amazing flight experience! It has now gotten even better with the whole new features! Lots of new parts have been upgraded in the V3, including the new arm protectors, new GPS mount, power cable fixing mount. The upgraded carbon fiber, screws and TPU printed parts make the V3 more durable than the V2.
Features:
-Pre-installed LEDs and GPS.
Control the LED lights easily with the press of a button on the Zeus F722 FC. The Sector5 V3 also supports GPS-rescue with one of the most stable GPS - HGLRC M80 installed.
-No Props in view
No more props in view with the V3. Enjoy the clear view of flying!
-Adjustable camera mount angle
Adjust the angle of the camera mount from 25°, 30°, 35° to 40° to suit your needs.
-Capacitor slot to hide the capacitor for a neater look
Cannot find the capacitor in the drone? it is "hidden" somewhere :)
-A complete range of TPU parts
HGLRC Sector5 V3 Freestyle FPV Racing Drone Caddx HD Version 6S
Net Weight:471g(Weight without receiver)
Sector 5 V3 Freestyle Frame 5 inch
Type:5" frame
Wheelbase:218mm
Support for propellers:up to 5.5 inches
Overall size:172.5 * 136.7mm
Weight:177.9g（contain TPU）
F722 Flight Controller
MPU:MPU6000
CPU:STM32F722 RET6
Input Voltage:3-6S Lipo
BEC Output:5V/3A,9V/2A
Weight:7.6g
Zeus 48A BL_S 3-6S 4in1 ESC
Input Voltage:3-6S Lipo
Steady Current:48A
Peak Current:55A (10 Sec)
CADDX AIR UNIT
Operating Frequency:5.725-5.850 GHz
Input Power:7.4-17.6 V
Channels:8

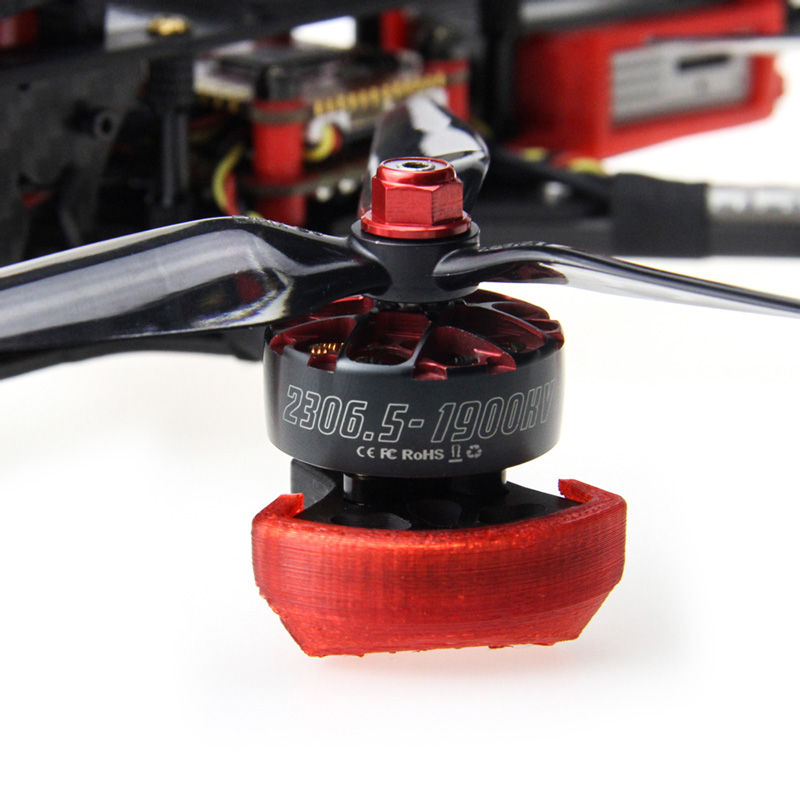

HGLRC 2306.5 Brushless Motor
1900KV(6S)
No.of Cells(Lipo):16.8 V
Recommended Prop(inch):5Inch
M80 GPS
Power Supply:5V
Size:18.5mm x 18.5mm x 7.1mm
Weight:9.4g
W554A LED Light board
Motor Valtage:2-6S
LED Voltage:5V
Overcurrent:50A
Size:34.8x7.9mm
Weight:5.2g（4 pcs）
Recommend Lipo: (Not Ibcluded)
TATTU R-LINE 1050mAh 6S Lipo (Link) / TATTU R-LINE 1550mAh 6S Lipo(Link)
Package Included:
1x F722 Flight Controller
1x Zeus 48A BL_S 3-6S 4in1 ESC
1x Caddx AIR UNIT
4x 2306.5 1900KV Motor
1x M80 GPS
4x W554A LED Light board
8x EthixS5 propeller
1x Pair of original antennas
4x Battery Strap
1x Receiver
