U/V UHF VHF Dual Band Spectrum Analyzer Simple Spectrum Analyzer with w/Tracking Source 136-173MHz / 400-470MHz
- Stock: In Stock
- Model: ST22012085
- SKU: ST22012085
$109.99
Ex Tax: $109.99

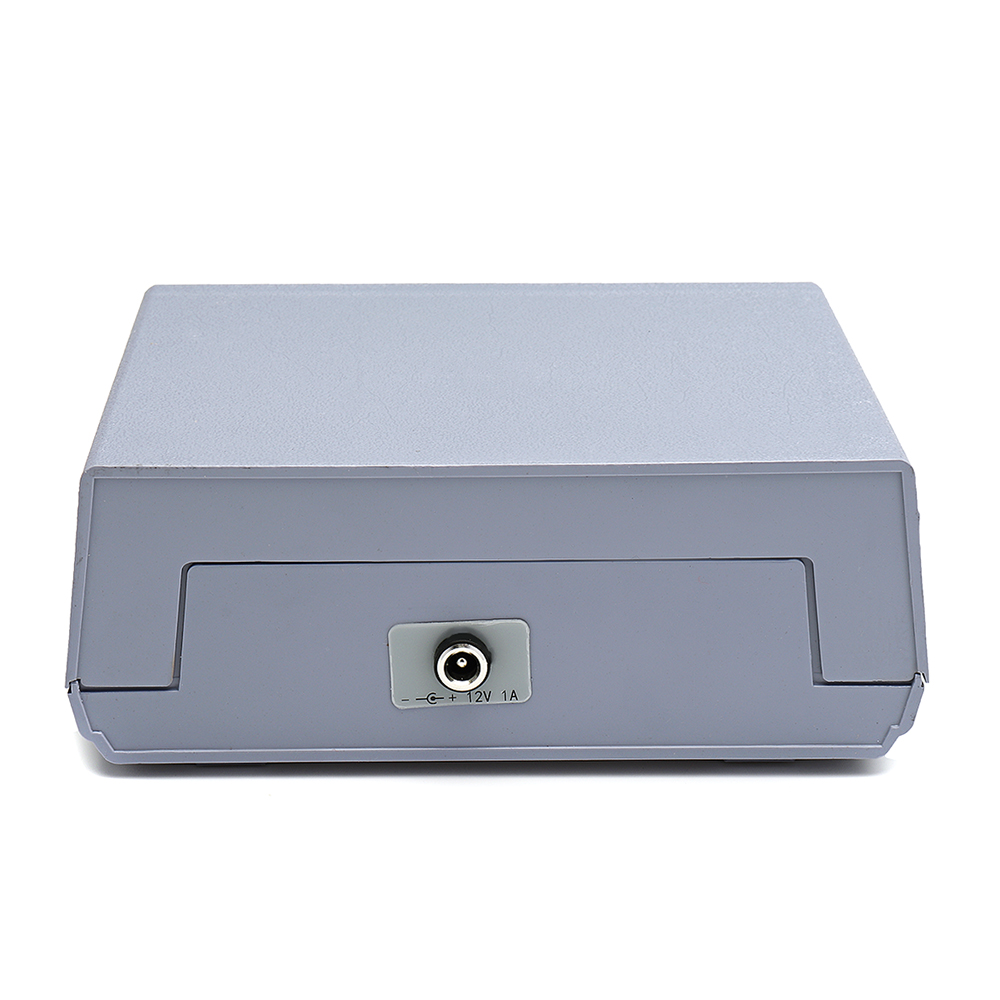

Note: Only use 12V1A power supply (there is buyer feedback, screen burnout, after our test may be caused by using more than 12V power supply. Please be sure to use the power carefully.
Specification:
- Frequency range: 136-173MHz 400-470MHz
- Spectrum dynamic range: -127dBm --- 0dBm
- Resolution: 1dB
- Tracking source output power: ≈ -38 dBm

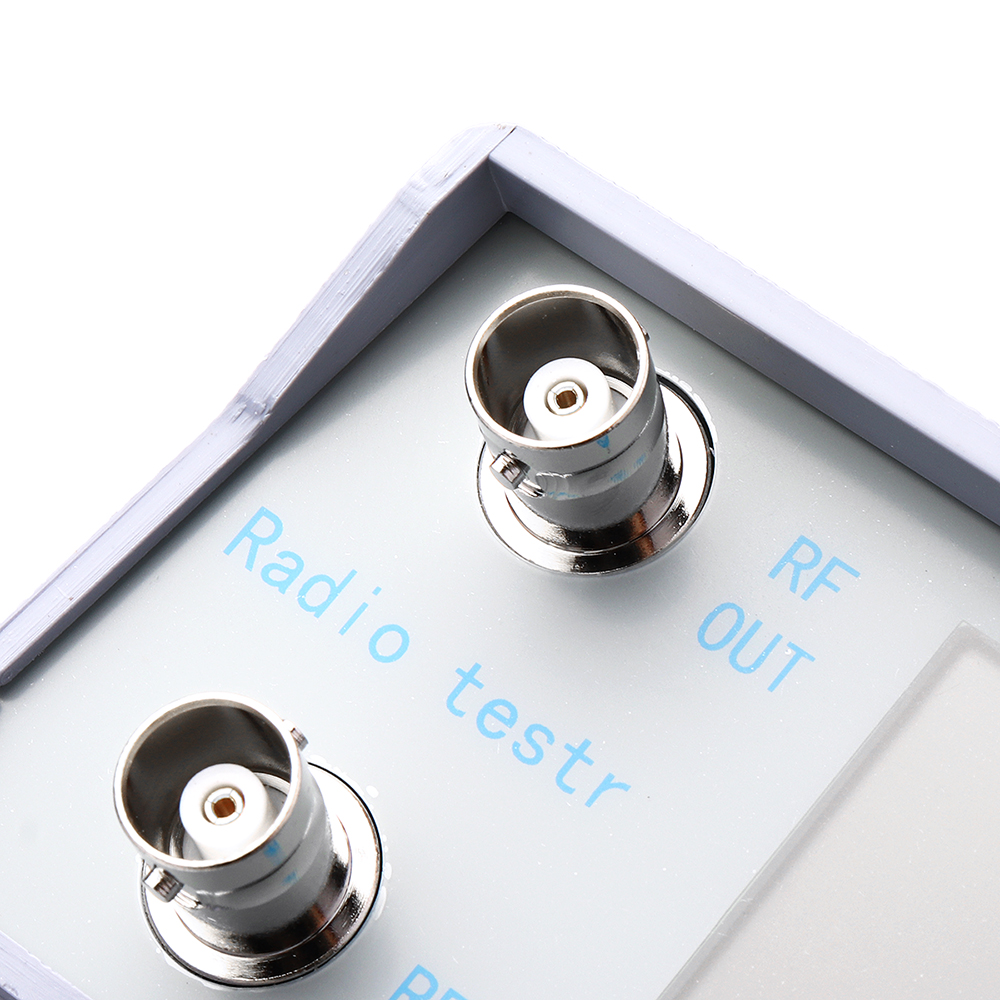

- Interface: BNC-F
- Power: need external DC 8 - 12V

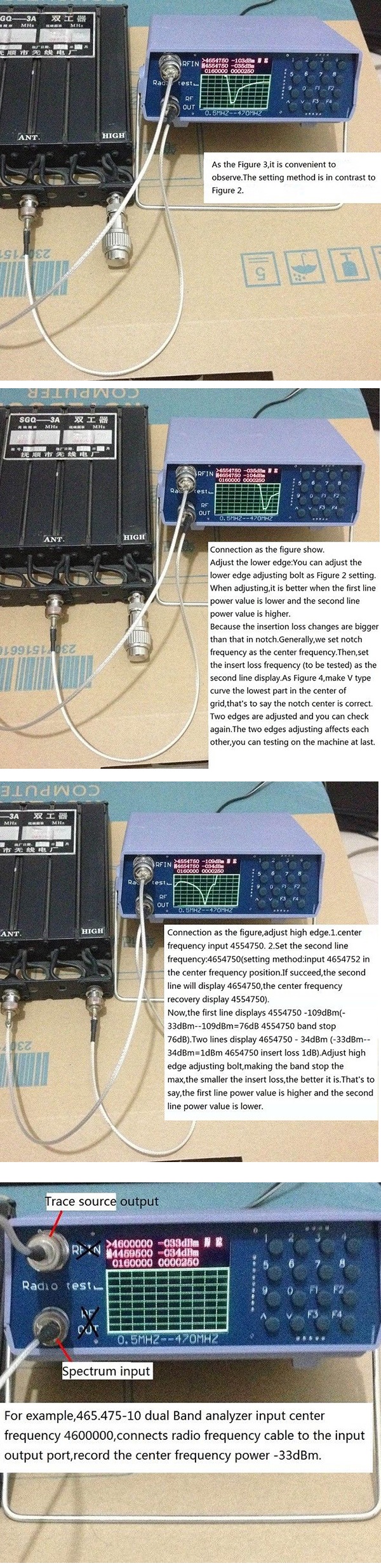

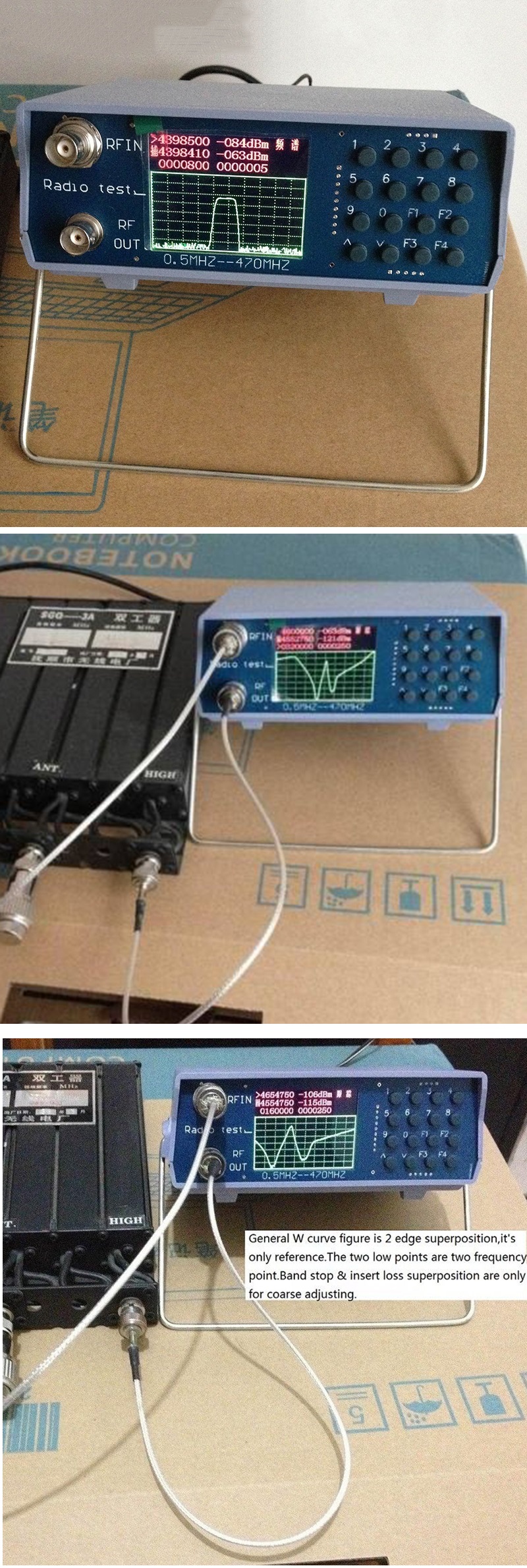

- Adjust the duplexer steps photographed after contact the store to obtain
Description:

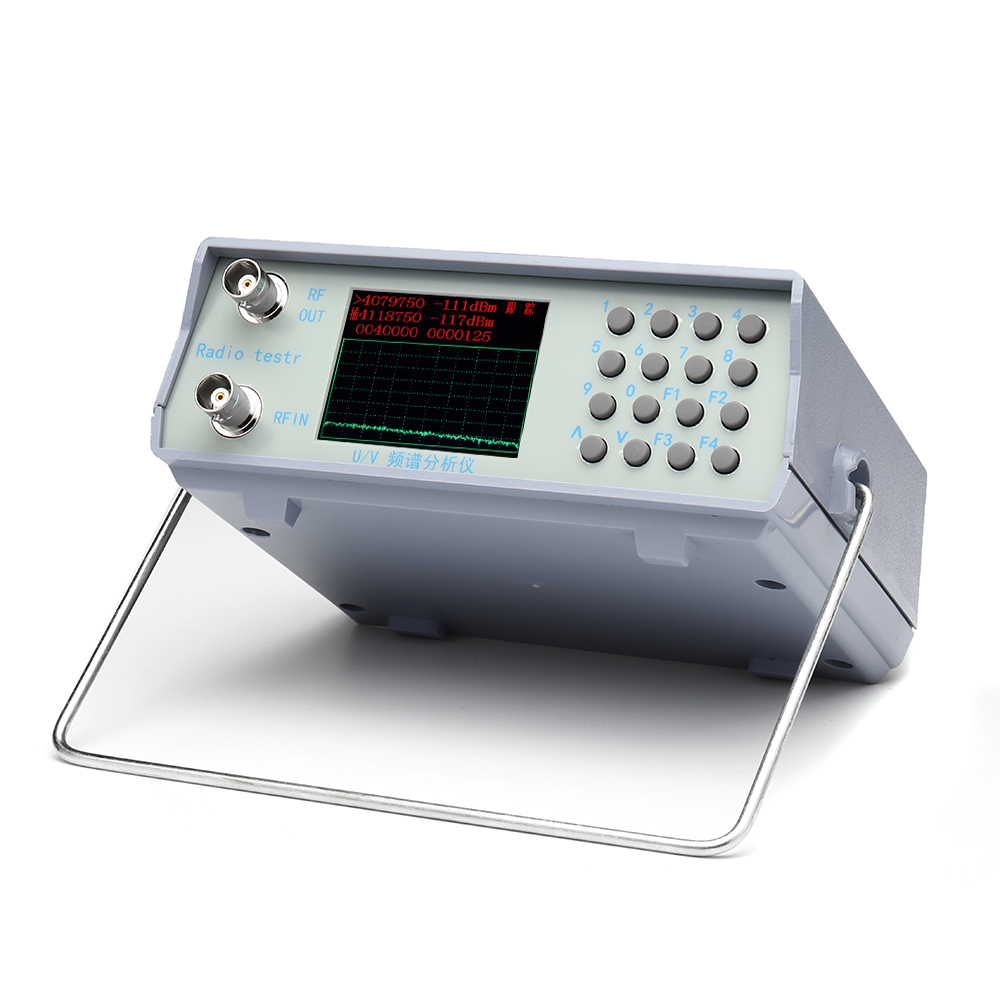

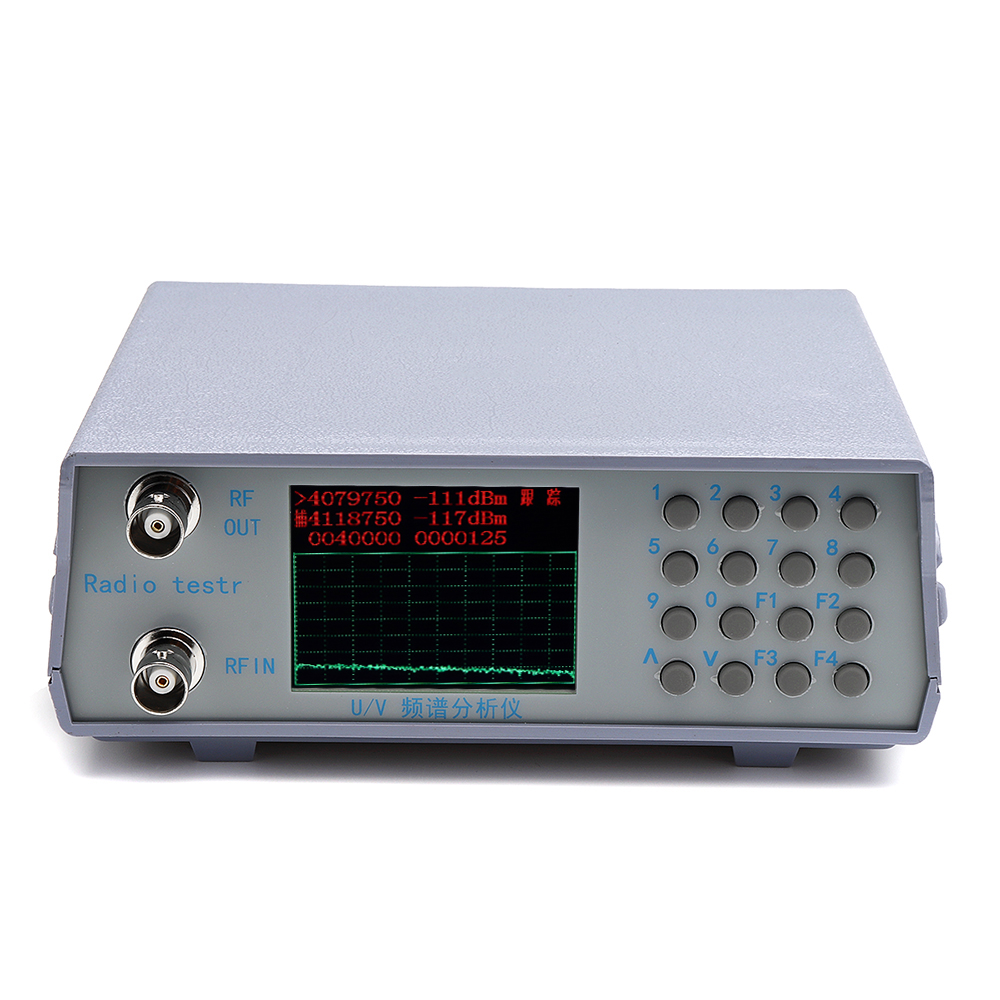

- The upper right corner of the spectrum shows the spectrum mode,the display tracking for the spectrum plus tracking mode
- The first line shows the center frequency center frequency power
- The second line captures the strongest or weakest frequency, or the specified frequency and power (shows the capture of the strongest signal in capture mode, the acquisition of the weakest signal in capture plus capture mode, Adjust the diplexer steps ") frequency and power)
- The third line of the frequency range (center frequency plus or minus) frequency step
F1: cursor movement center frequency, frequency range,step cycle selection (long press to switch between spectrum and tracking mode)
F2: Backspace
The cursor points to the center frequency: Numeric keys direct input or up and down keys to step to adjust the frequency
F3 F4 Adjust the frequency in 1M
The cursor points to the frequency range: the value is centered on the center frequency plus or minus the range,for example: 0128000 as the center plus or minus 12.8 M
That is 25.6M range
Enter the number keys directly up and down keys to increase or decrease the range,
The cursor points to the step: the number keys directly input or the up and down keys to adjust the step change in 5K scan range will be slightly changed to fit the size of the grid
Package Included :
1 x U/V UHF VHF Dual Band Spectrum Analyzer

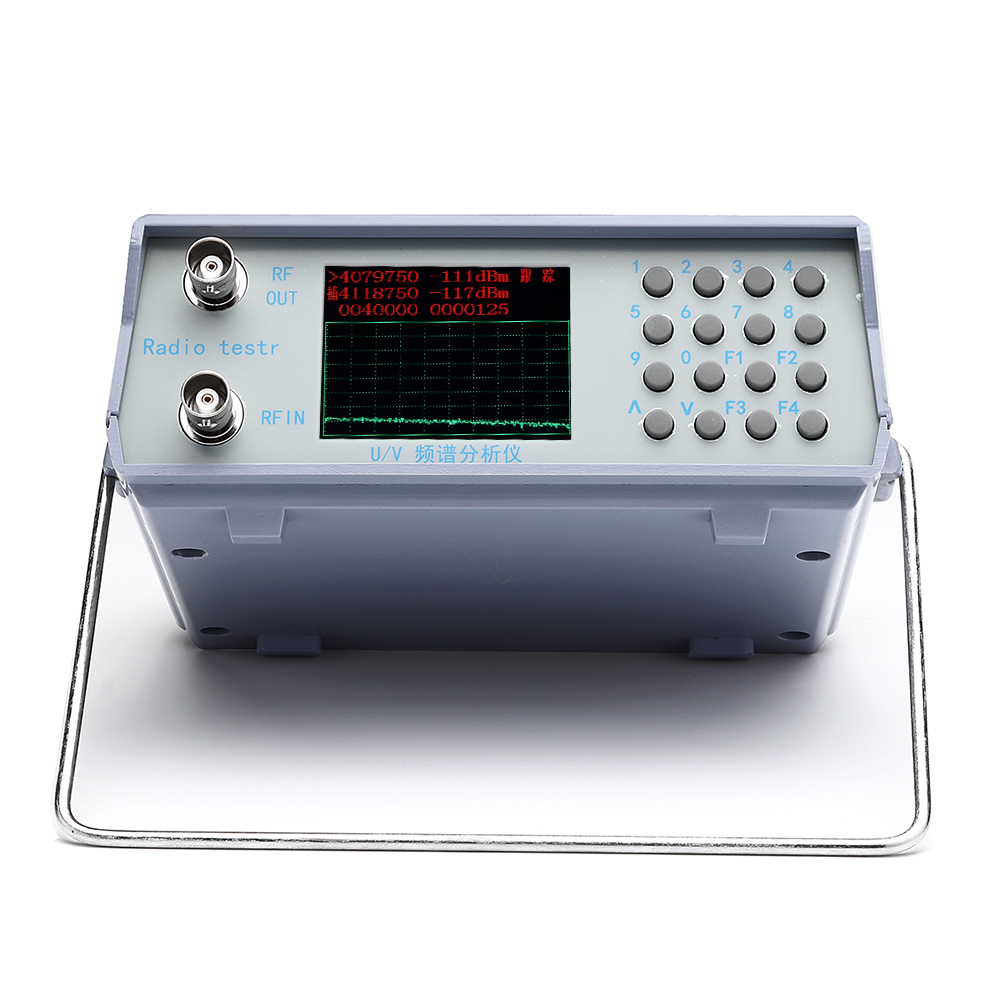

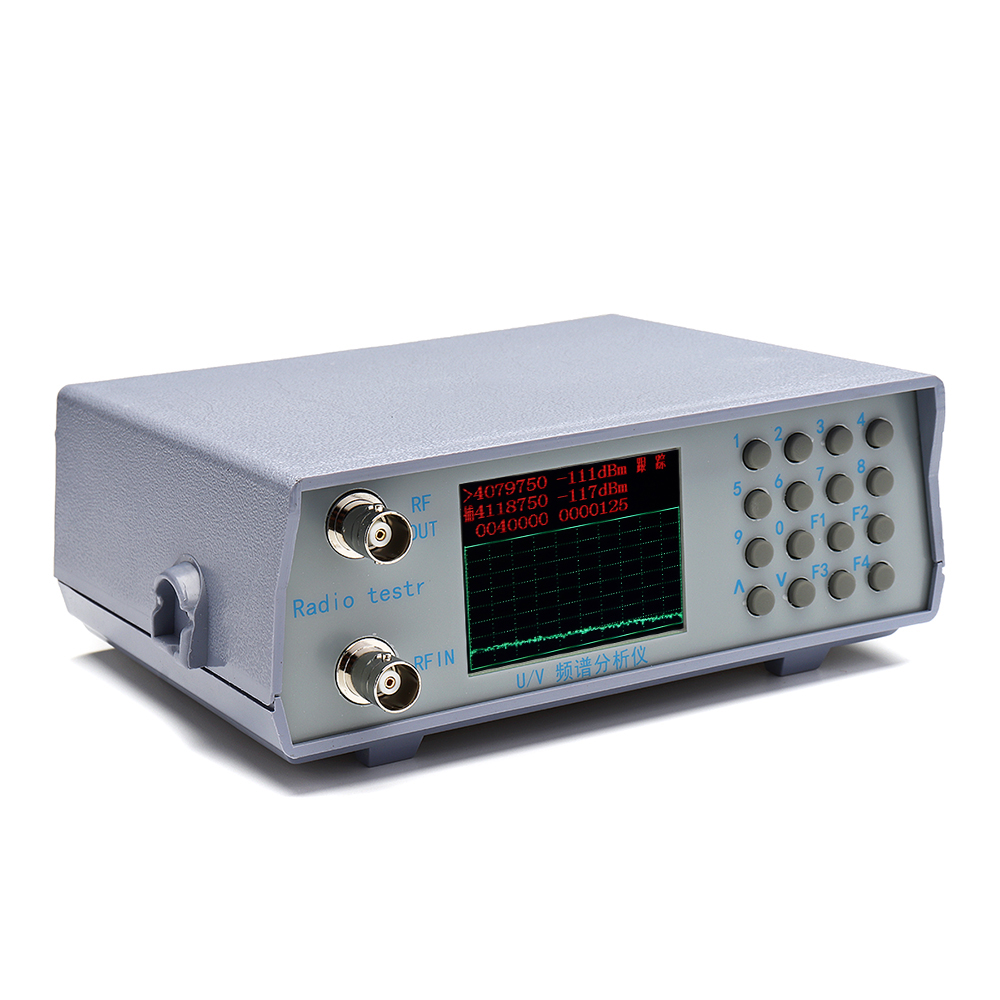

Detail Pictures:
Detail Pictures:
