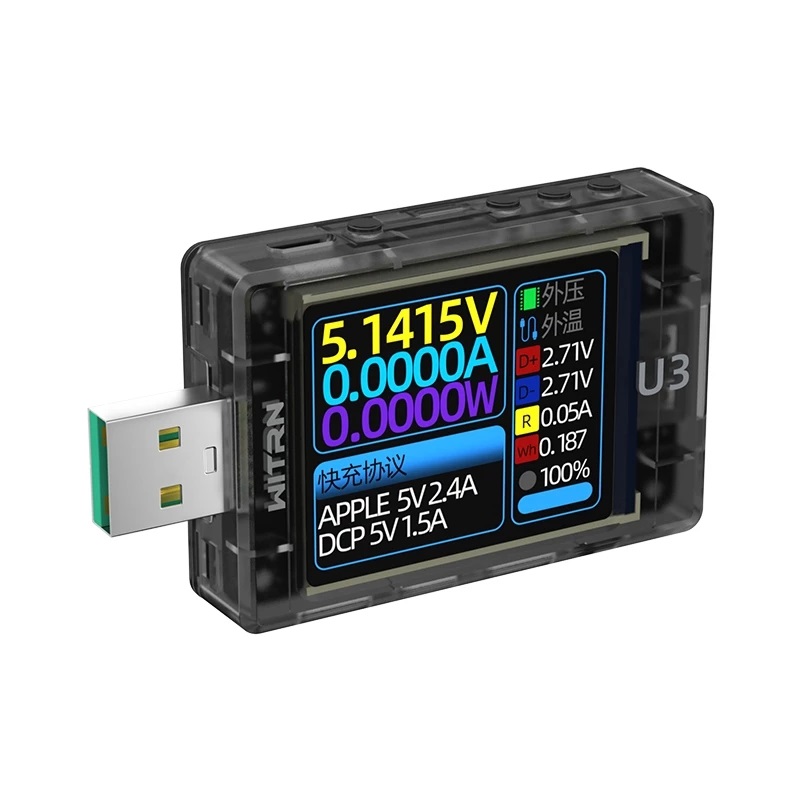

U3 USB Tester DC4~ 24V Current Voltage Meter QC5 PD3.0 2.0 PPS Fast Charging Protocol Capacity PD Trigger Monitor Ripple Spectrum
- Stock: In Stock
- Model: ST22011457
- SKU: ST22011457
$59.99
Ex Tax: $59.99
Description:
U3 is an upgraded version of U2: CPU upgrades to M4, adds high-speed spectrum analysis and 5P male/female sockets, with richer protocols, and U3 detection does not need to plug in HID power supply.
The U3 standard version uses a plastic shell, which may have scratches, burrs, and buttons with burrs, etc., which is not perfect, and perfect users are required to take careful shots.
U3 Tester Features:
1. Private mold products, thicker PC shell
2. Equipped with WITRN WIOS RTOS real-time operating system
3. Equipped with WITRN WIUI multi-window concurrent UI interface
4. Equipped with WITRN NEXT-GEN mobile phone protocol real-time tracking system

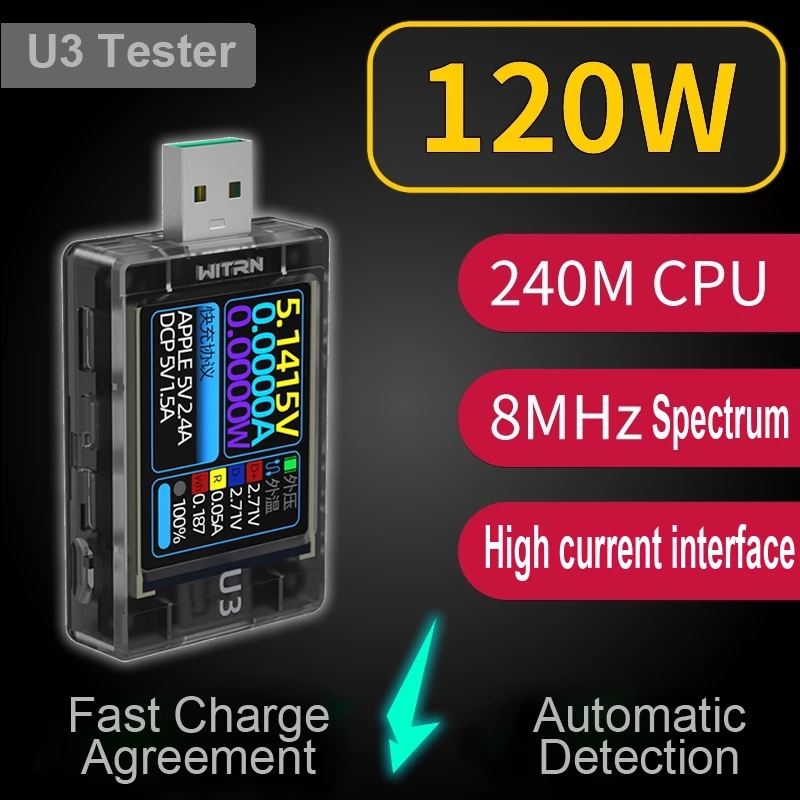

U3 tester adopts hardware:

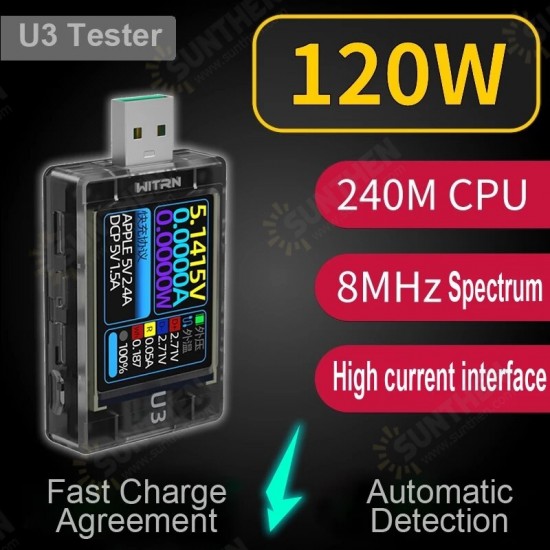

1. 240MHz ARM high-speed M4F core with FPU hardware acceleration unit
2.1.77 inch color LCD screen, standard tempered glass protective film
3. External high-precision 16bits ADC + on-chip 8MHz AD sampling
410 million times long-life Fram ferroelectric memory
5.3 axis gravity sensor + external NTC temperature probe interface
6. Bluetooth BLE backplane expansion interface,optional Bluetooth APP version
7. Native HID driver-free PC USB connection interface driver-free upgrade
8. External crystal oscillator, accurate timing,accurate statistics of charge and discharge capacity
9. Wide voltage synchronous step-down power supply current with HID path management
10. lmported tact switch with excellent hand feeling and long life

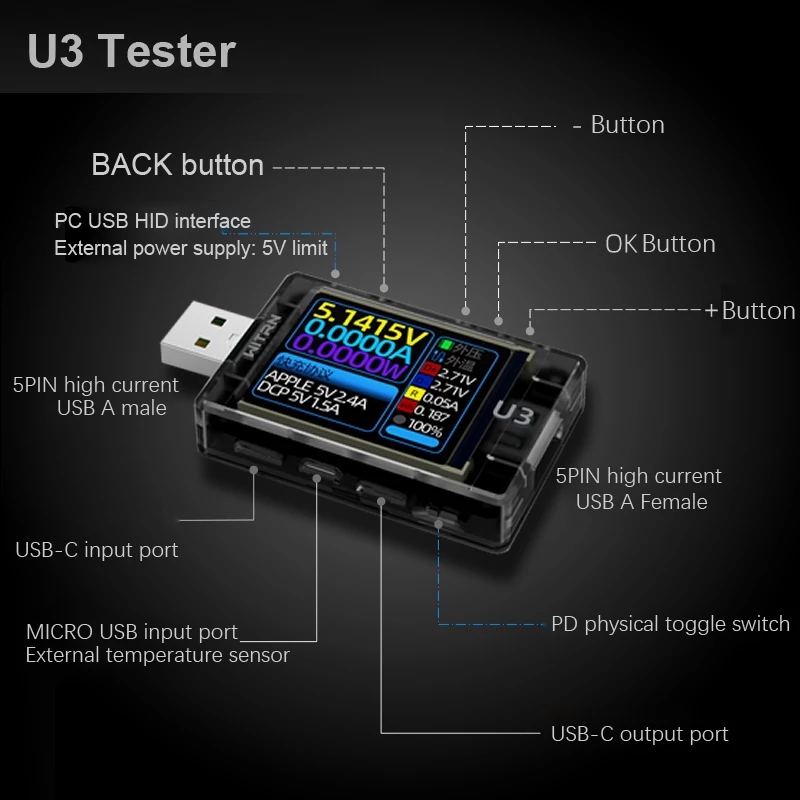

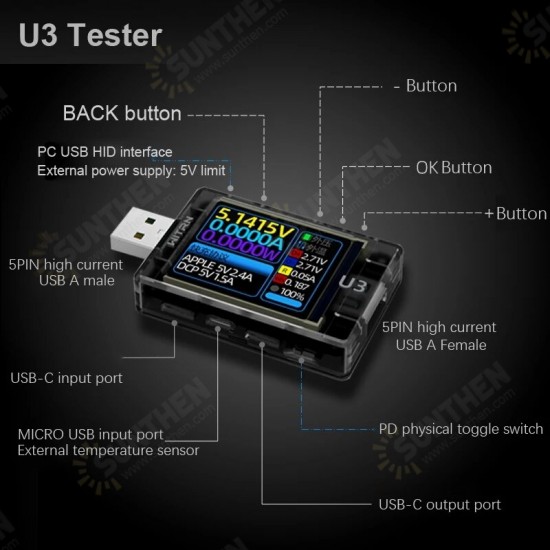

11. Customized 5P high current male and female socket, well-known brand TYPE-C interface
U3 tester parameters:
Working voltage: DC4~ 24V
Current: 0~6A
Voltage resolution: 0.00001V
Current resolution: 0.00001A
High-speed curve sampling: 8MHz Max spectrum analysis: 6 frequency points
Built-in analog switch, A port can be directly upgraded, protocol conversion without interference
The built-in small load can simulate the load to turn on and prevent the power bank from shutting down
Support host computer software HID driver-free upgrade support Bluetooth APP (under development)
Size: about 56 x 39 x 13mm (excluding USB male connector)
Bare metal weight: about 26g
U3 accessories: standard tempered glass (sticker)
Color: Black

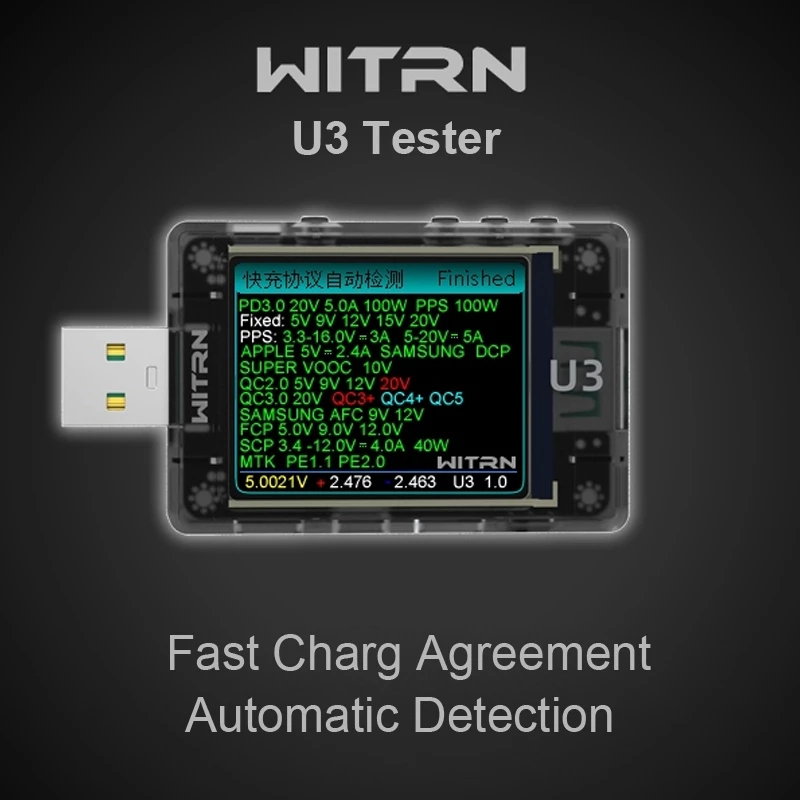

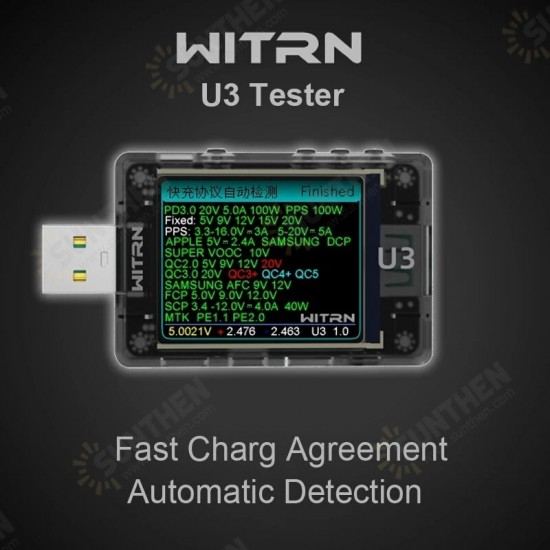

U3 tester protocol:
1. PD 2.0 PD 3.0 PPS
2. QC2.0 QC3.0QC3+ QC4 QC4+ QC5
3. Xiaomi A Magic Change PD, Xiaomi Magic Change PPS
4. Huawei FCP SCP high voltage SCP SSCP
5. VOOC DASH WARP 5V
6. Super VOOC 10V (1.0 2.0)
7. For Samsung AFC 5V
8. Detection of MTK PE1.1 MTK PE2.0
9. Can trigger: MI/PD QC2.0~QC5 AFC FCP S/SCP S/NOOC
10. Detectable: can trigger +MTK+DCP+APPLE 5V+ For SAMSUNG 5V

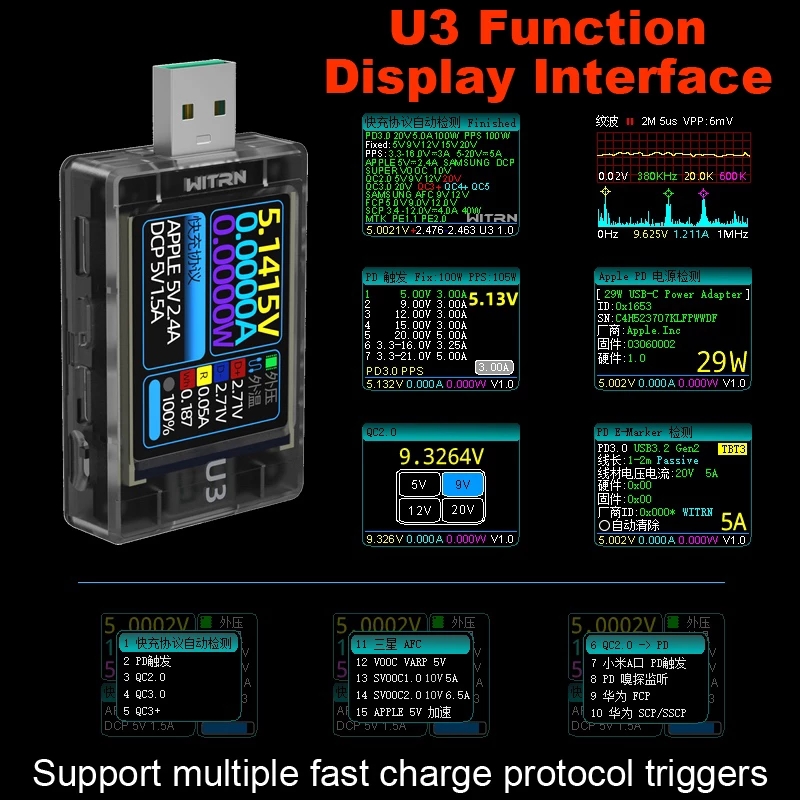

U3 tester function:

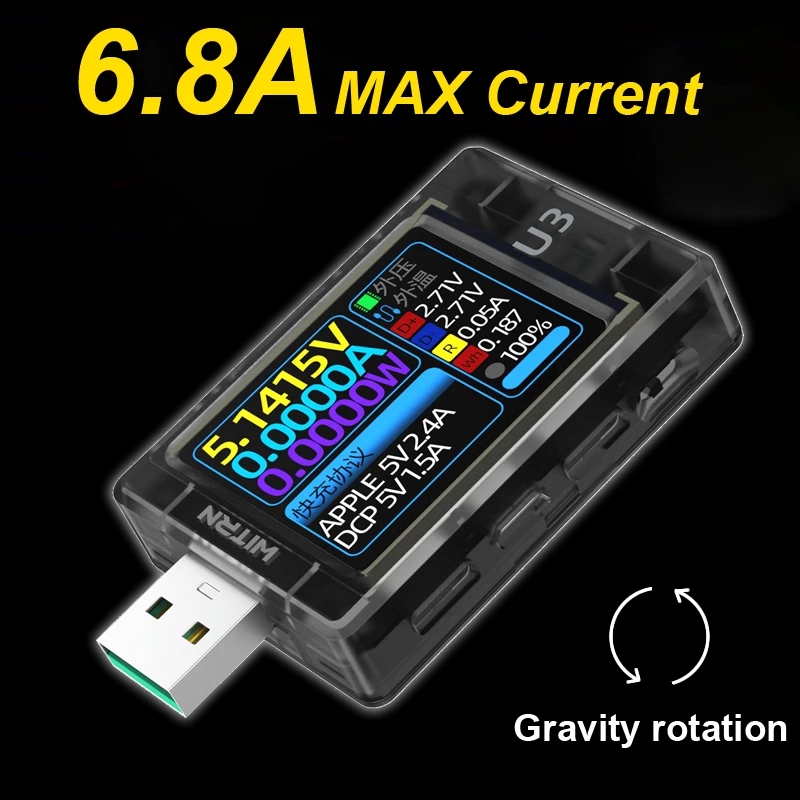

1. English, Traditional Chinese, Chinese, three languages, gravity reversal, RGB menu, boot LOGO
2. Charge and discharge capacity record, capacity efficiency calculation, actual battery capacity conversion
3. Apple PD power serial number test AL data line test
4. E-Marker data line detection OPPO data line detection and simulation
5. Virtual load does not need to be shut down, wire internal resistance detection
6. Support safe startup, support running APP applet
Package included:
1 x U3 USB Tester
