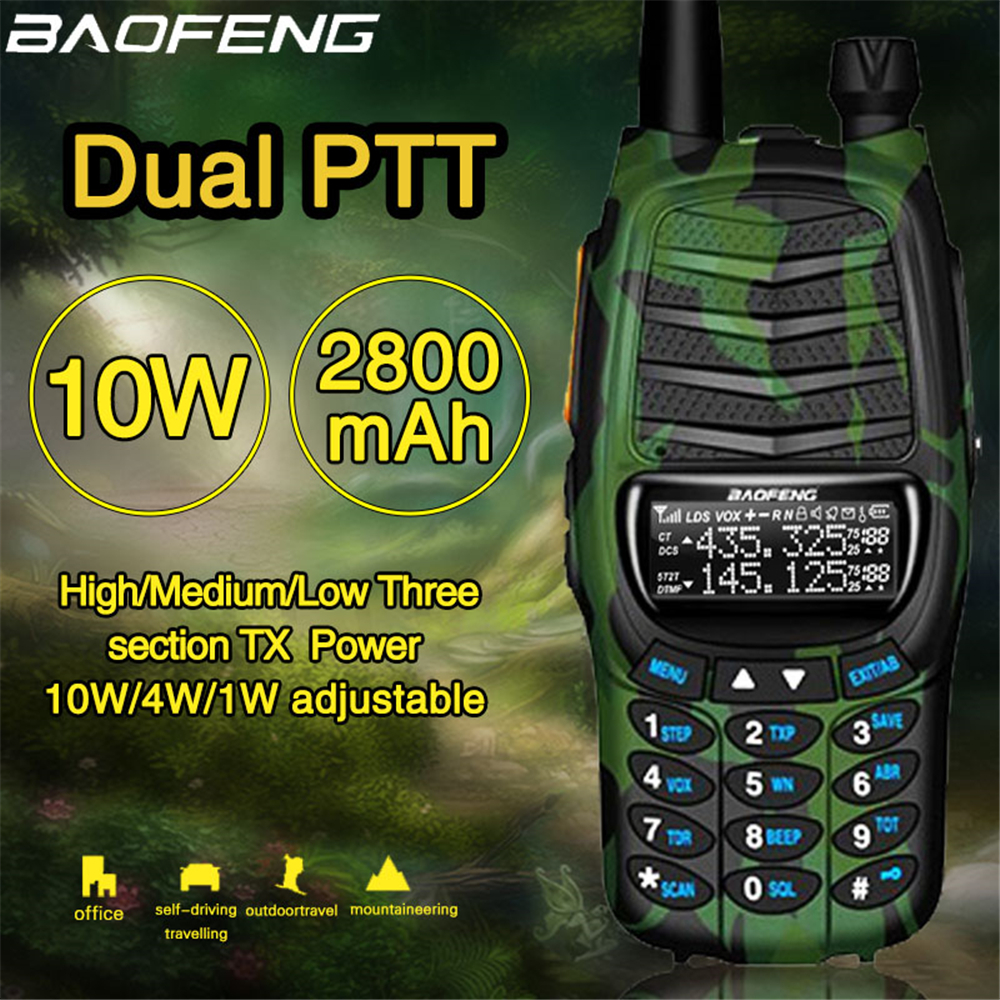

UV-990 Walkie Talkie Triple 10W Dual PTT VHF UHF Dual Band Ham Portable CB Radio Two Way Audio
- Stock: In Stock
- Model: ST22019268
- SKU: ST22019268
$46.99
Ex Tax: $46.99
Features :

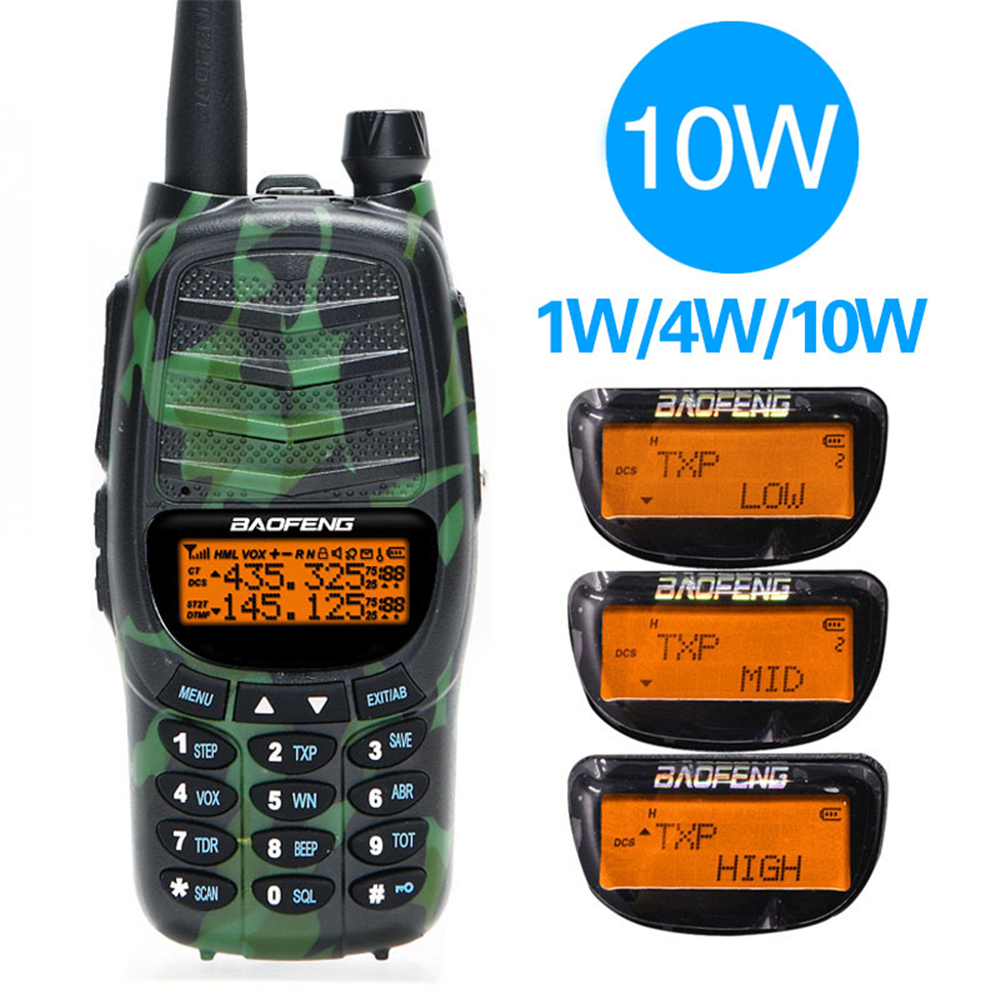

Tri-Power Low / Medium / High Settings (1/4/10 Watts).
Frequency: 65-108MHz (FM Receive only),136-174MHZ and 400-520MHZ (TX/RX).
25KHz/12.5KHz Switchable (Wide /Narrow) Band.

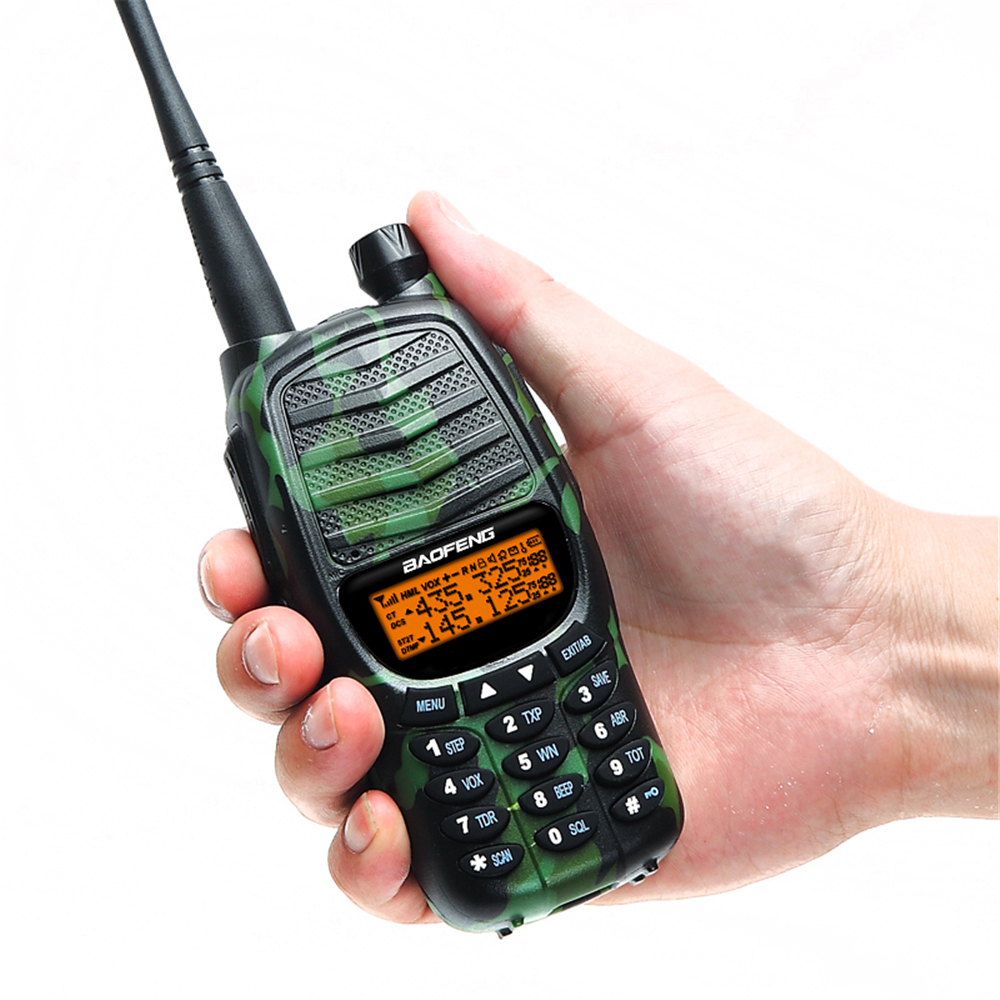

Dual-Band Handheld transceiver with LCD display

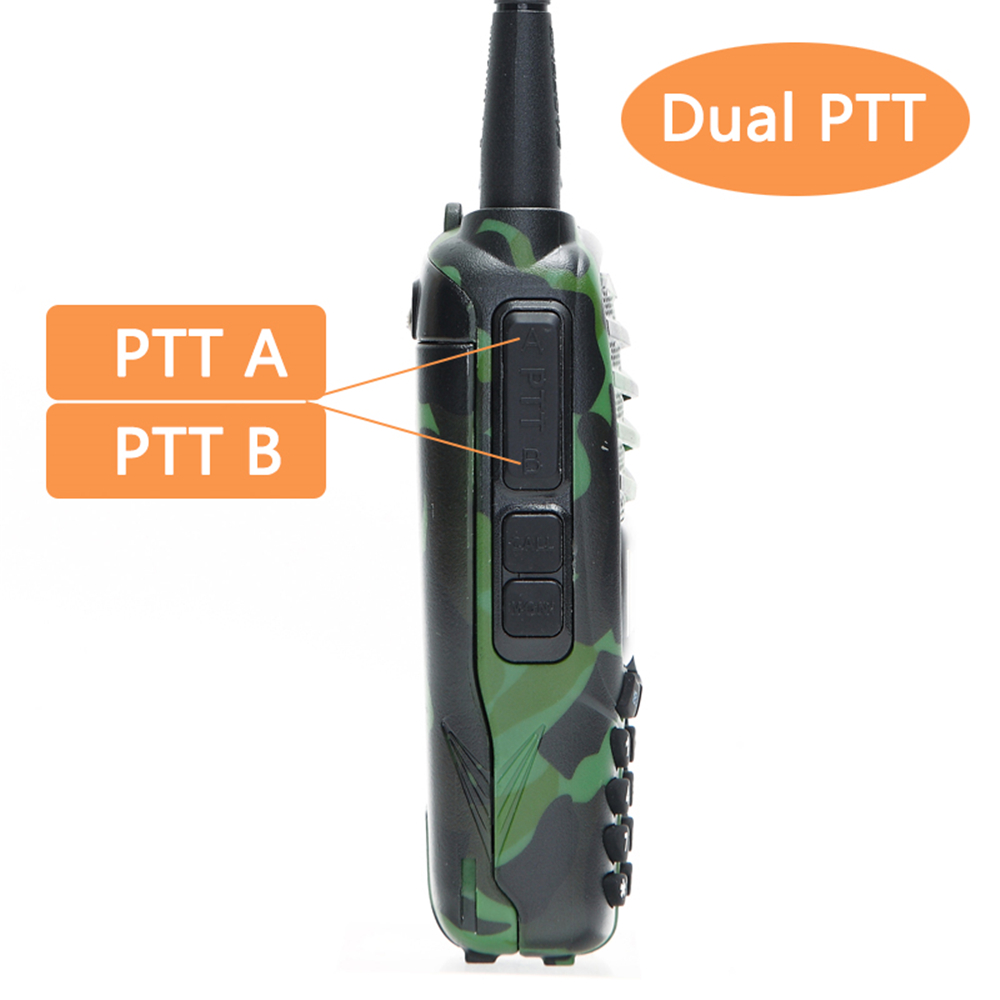

2-PTT Button, use 2-PTT Headset and PTT Speaker Mic
Specification :
| Model | UV-990 10W 2800mAh Walkie Talkie | |
| Dual band /dual display / dual standby | A/B band independent operation(UV UU VV) | |
| 128 groups channels storage | Shortcut menu operation mode | |
| Memory channels scan | Time/ Carrier / Search Operation | |
| Emergency Alarm | Indicator and flashlight Flashing Together | |
| Time-out Timer (TOT) | 15-600/Stepping 15 | |
| Squelch Level(SQL) | 0-9 Grade | |
| PTT & ANIID | ON OFF/0-9;A-F | |
| Voice companding | 50 CTCSS/105 DCS | |
| High/Low TX power selectable | Busy channel lock-out(BCLO) | |
| DTMF ST function | DT+ANI/ANI-ST/DT-ST/OFF | |
| Dual PTT | Yes | |
| Wide/Narrow Band(25kHz/12.5kHz) | Yes | |
| V OX function | Yes | OFF/1-10 |
| 1750HZ Tone | Yes | |
| Busy lockout function | Yes | |
| Scanning function | Yes | |
| Monitor function | Yes | |
| Time-out Timer (TOT) function | Yes | |
| LCD display | Yes | |
| Dual display | Yes | |
| Dual Standby | Yes | |
| Battery voltage display function | Yes | |
| Channel name display and editing functions | Yes | |
| Signal strength indicator | Yes | |
| Keypad lock function | Yes | |

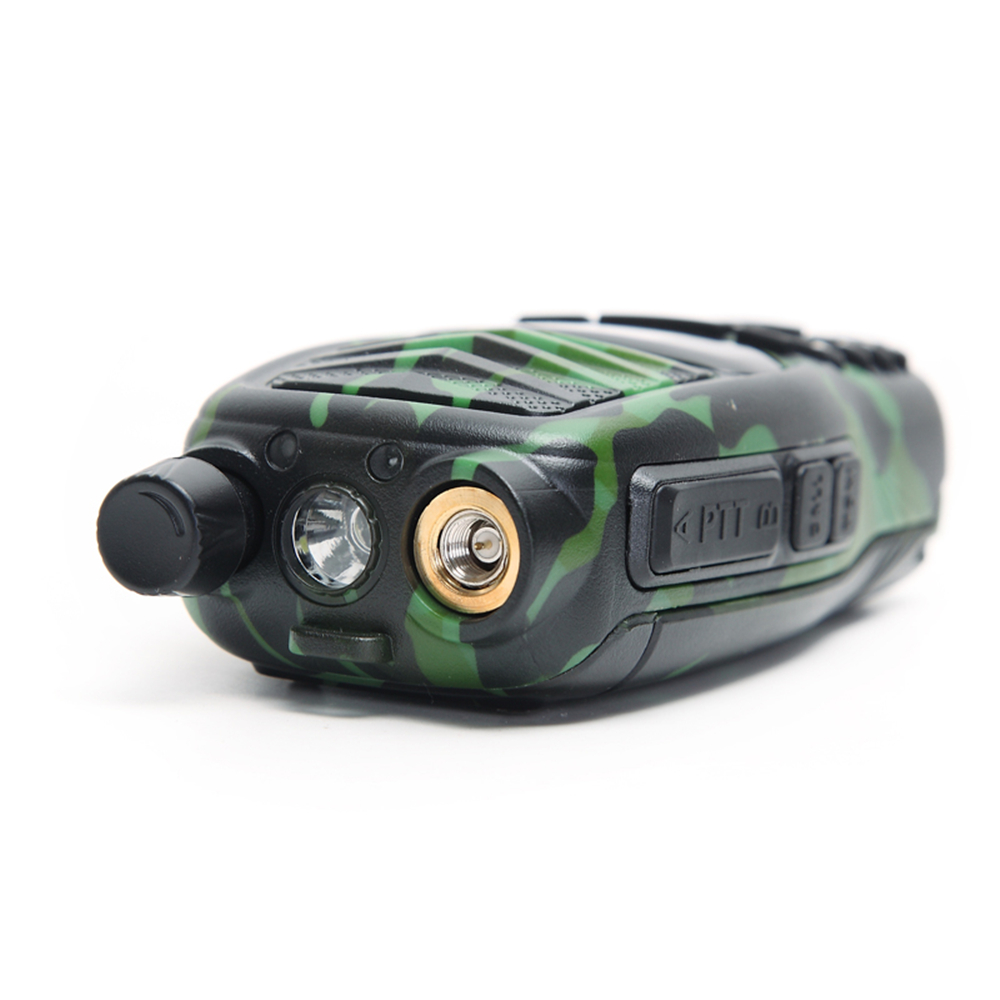

| Built-in Led torch | Yes | |
| FM radio | Yes | 65-108MHZ(Reception) |
| Emergency alarm function | Yes | |
| Low battery alarm | Yes | |
| Power saving function | Yes | |
| High/Low TX power selectable | Yes | 10W/4W/1W |
| ROGER SET | Yes | FULL/MGS |
| Chinese and English voice prompt | Yes | |
| Wire clone function | Yes | |
| PC software programmable | Yes | |
| General Specifications | ||
| Frequency stability | ±2.5ppm | |
| Frequency Step | 2.5/5/6.25/10/12.5/20/25KHz | |
| Antenna Impedance | 50ohm | |
| Working temperature | -20~+50°C | |
| Rated Voltage | 7.4V DC±10% | |
| Output power | ≤ 8W | |

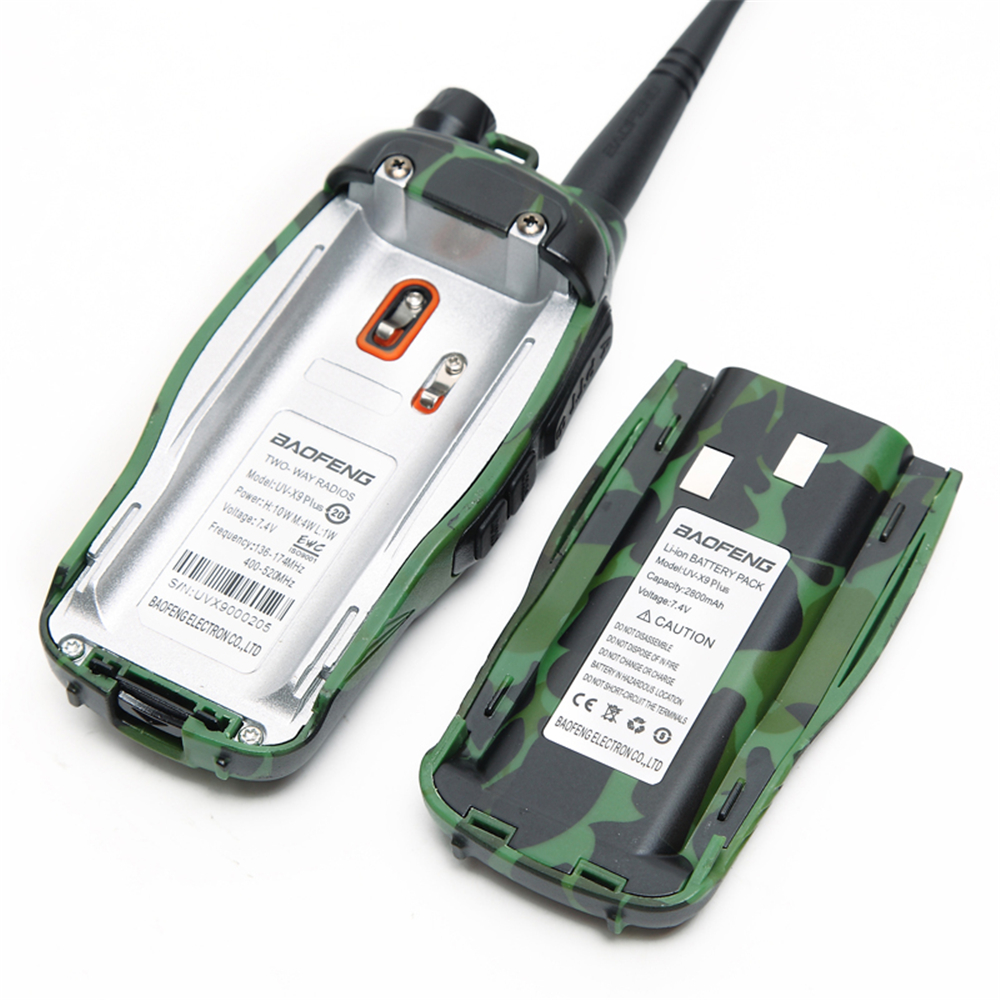

| Battery type | Li-ion battery | |
| Battery capacity | 2800mAh | |
| Headphone jack type | 2 Pin Plug | |
| Antenna Type | SMA-F(Female) | |
| Mode Of Operation | Simplex Or Semi-duplex | |
| Weight | 588g | |
| Dimension(LXWXH) | 286mmX52mmX30mm(Include Antenna) | |
| Transmitter | ||
| Type Of Modulation | 16køF3E / 11køF3E | |
| Max frequency deviation | < 5kHz(Wide)/< 2.5kHz(Narrow) | |
| Emissioncurrent | ≤ 1.5A(5W) | |
| CTCSS / DCS | 0.7±0.1kHz(Wide)/0.4±0.1kHz(Narrow) | |
| Reception | ||
| Sensitivity | -122dBm(12dB SINAD) | |
| Audio Power | 1W | |
| Intermediation Distortion | <10% | |
| Inter modulation | >=65Db/>=60dB | |
| Spurious response | 65dB | |
| Adjacent channel selectivity( wide/narrow) | < -65dB(Wide) < -60dB(Narrow) | |
| Receiving Current | ≤380mA | |

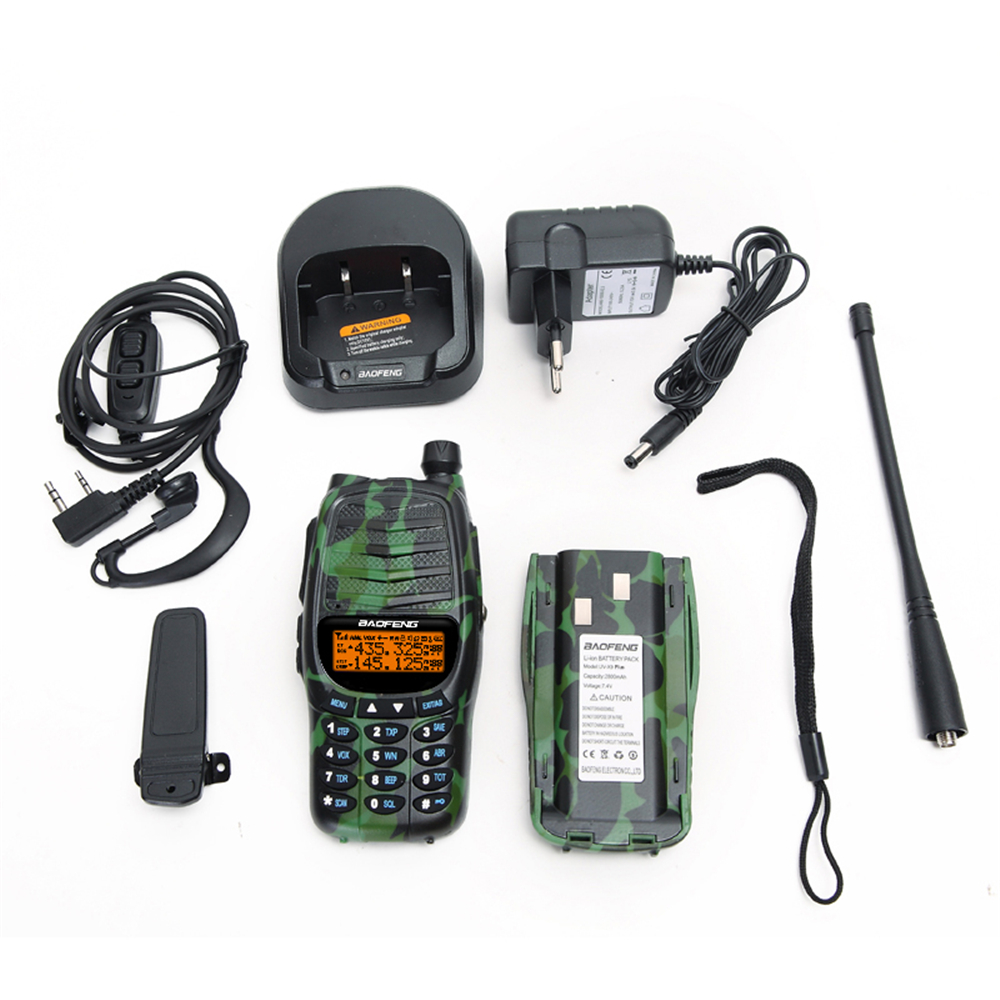

Package includeds :
1 x Baofeng UV-990 two way radio (Camouflage)
1 x Antenna
1 x Li-ion battery
1 x Adapter
1 x LI-ion charger(EU/US/UK/AU optional)
1 x Belt clip
1 x The Sling
1 x User's manual
1 x Headset
