UV Combiner UV Splitter LC Filter Antenna Combiner Board Passive Module
- Stock: In Stock
- Model: ST230046017
- SKU: ST230046017
$7.55
Ex Tax: $7.55
Feature:
This passive module is used to synthesize two frequency radio frequency signals of U and V segments into one channel, or separate the U and V common channel signals into two independent channels, so as to share a transmission cable, or two channels of signals share one UV dual-band antenna. Suitable for UV differential conversion link or repeater station, etc. The components adopt high-quality high-power high-voltage radio frequency dedicated capacitors, which have the characteristics of low loss and large power capacity.
Technical index:
1. Working frequency:
-V segment DC-185MHZ
-U section 350-560MHZ
2. Insertion loss:
-V segment: <0.2dB
-U section: <0.3dB
3. Standing wave ratio: <1.5
4. UV isolation: >45dB
5. Power capacity: 200W (using imported power capacitors)
6. Dimensions: 50*50mm (excluding connectors)
7. Connector form: SMA-K (standard female, outer screw and inner hole)

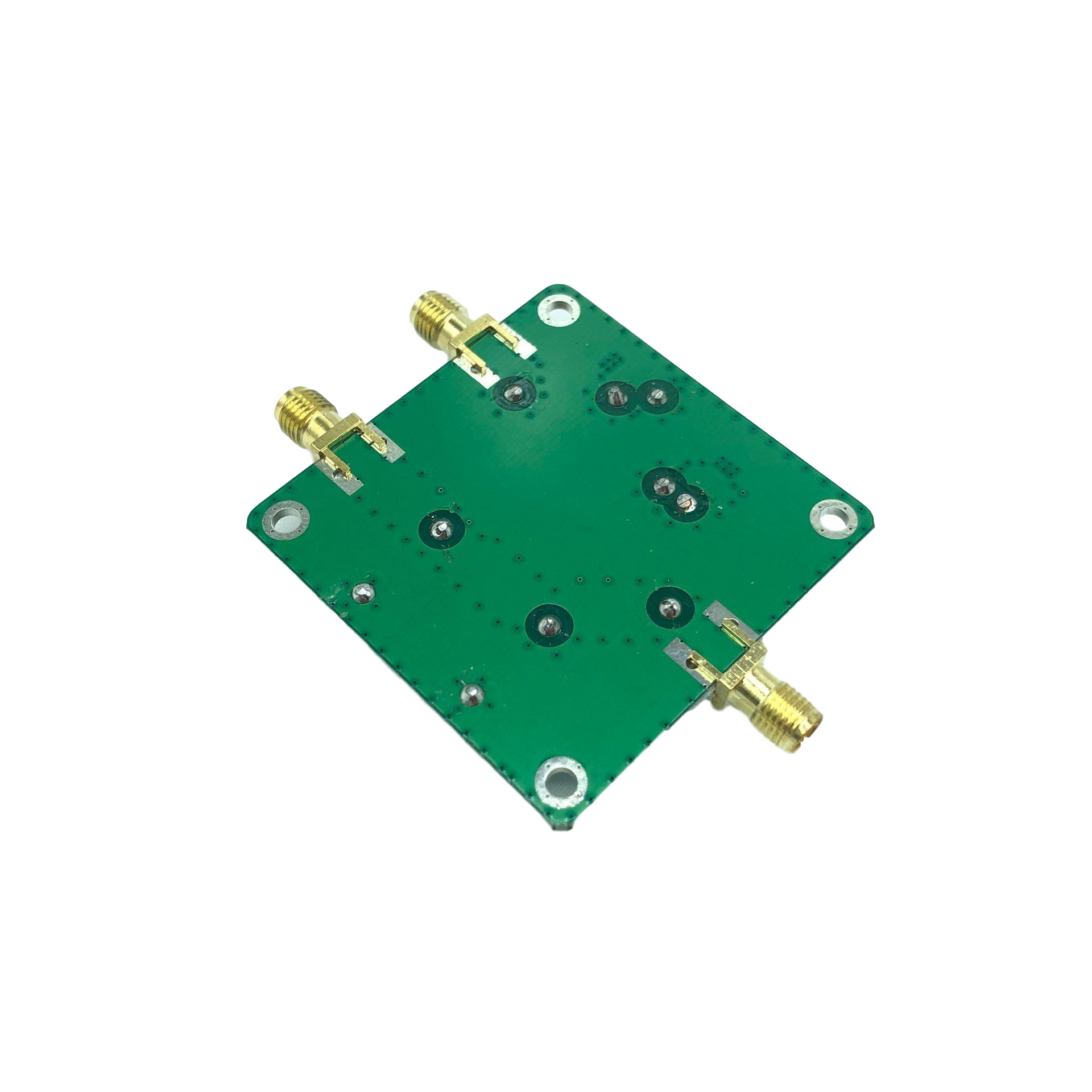

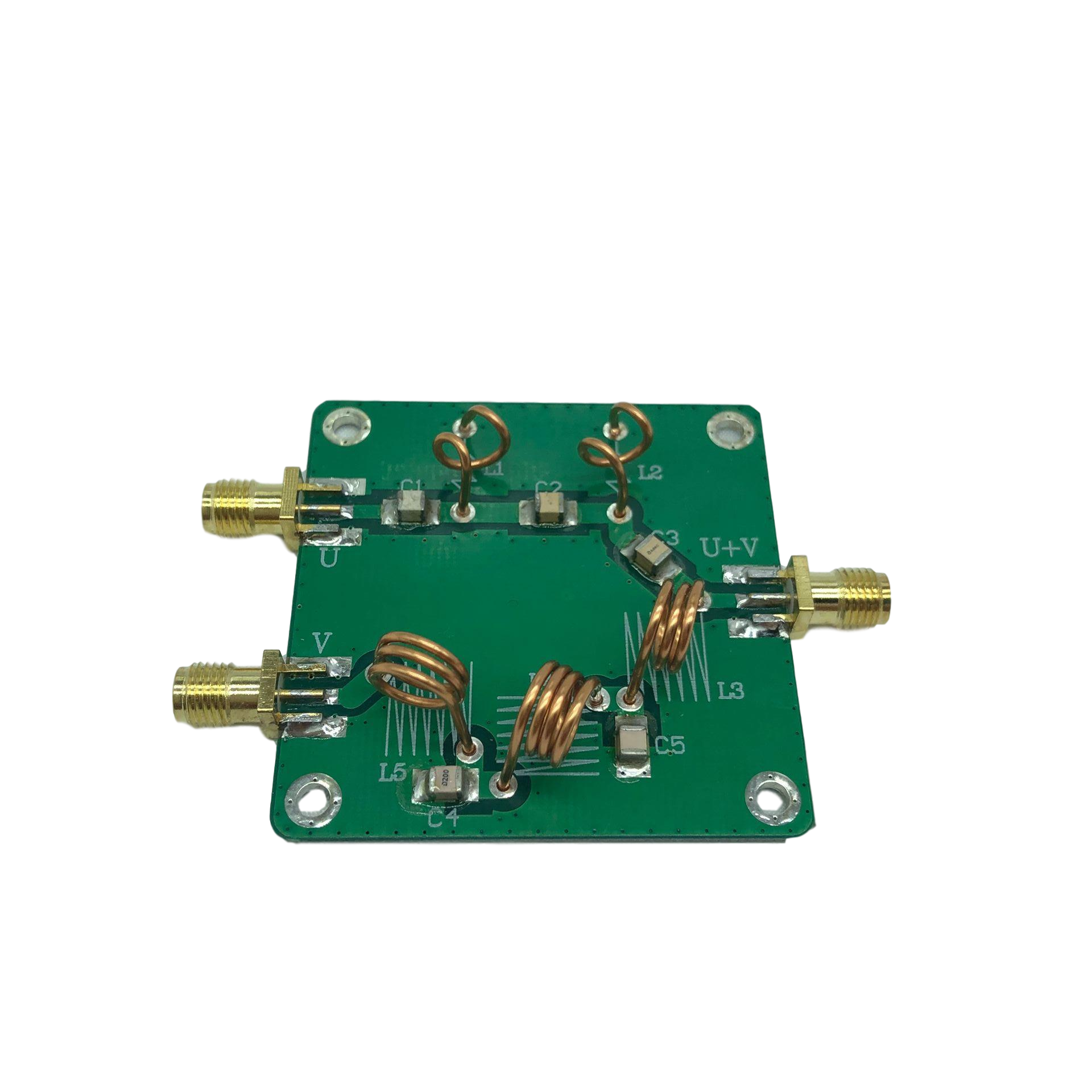

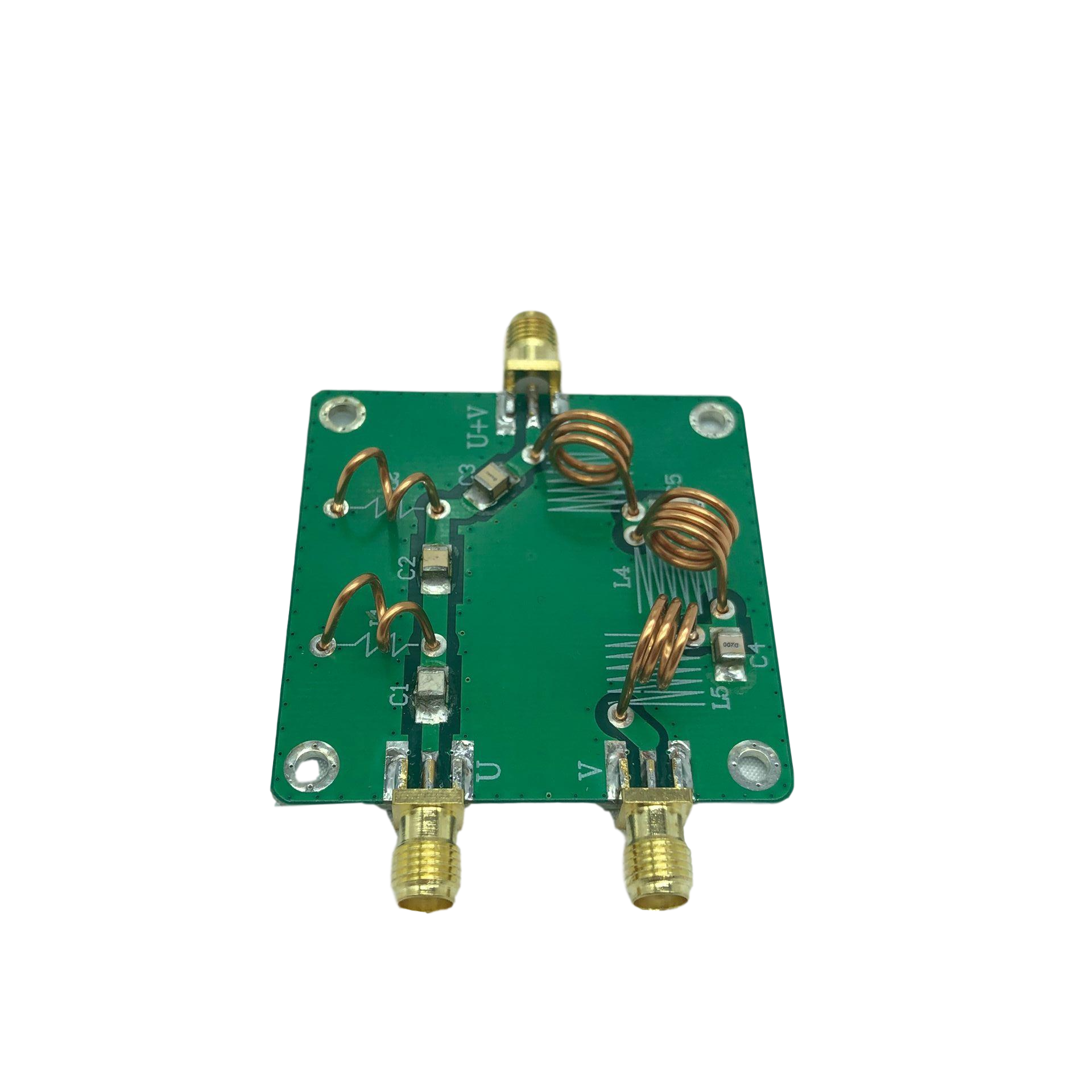

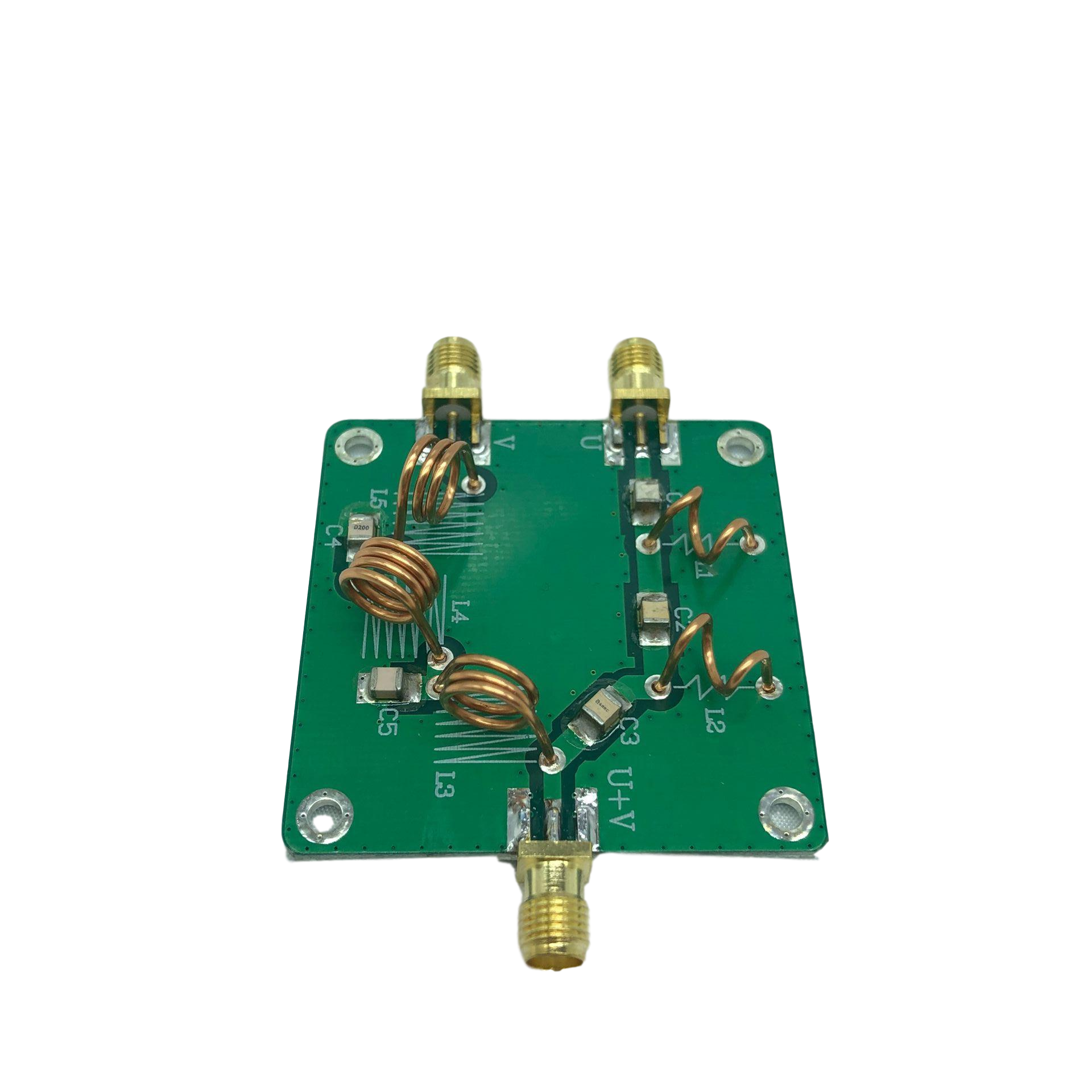

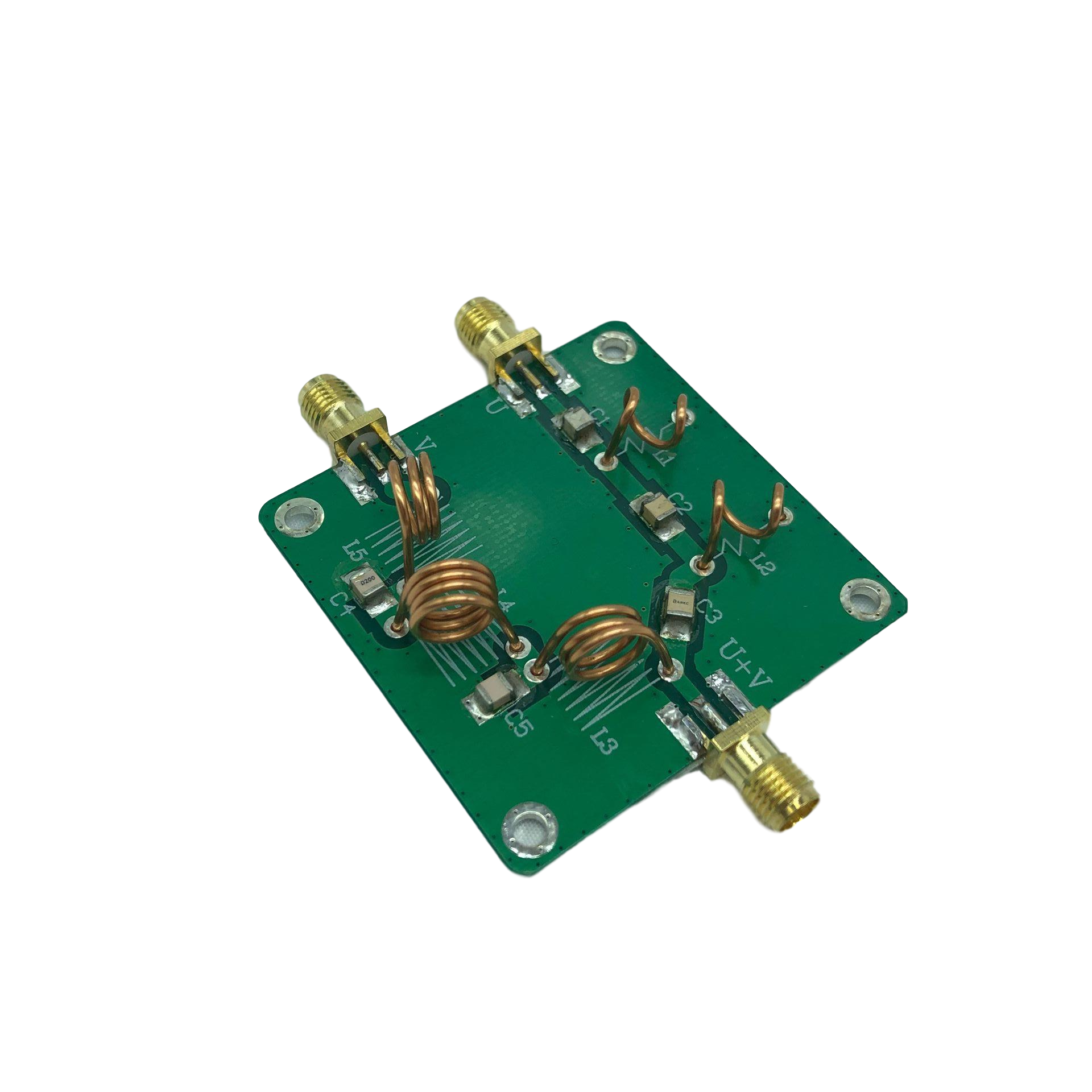

8. Connection method:
-U: Connect U segment signal
-V: Connect V segment individual signal
-U+V: Connect U-segment and V-segment collinear signals
Weight: 18 grams
Package includes:
1 x UV Splitter
