Upgraded 3018 Pro CNC Engraver DIY 3Axis GRBL Woodworking Engraving Machine Wood Router Cutter

Upgraded 3018 Pro CNC Engraver DIY 3Axis GRBL Woodworking Engraving Machine Wood Router Cutter
Upgraded 3018 Pro CNC Engraver DIY 3Axis GRBL Woodworking Engraving Machine Wood Router Cutter
Upgraded 3018 Pro CNC Engraver DIY 3Axis GRBL Woodworking Engraving Machine Wood Router Cutter
Upgraded 3018 Pro CNC Engraver DIY 3Axis GRBL Woodworking Engraving Machine Wood Router Cutter
Upgraded 3018 Pro CNC Engraver DIY 3Axis GRBL Woodworking Engraving Machine Wood Router Cutter
Upgraded 3018 Pro CNC Engraver DIY 3Axis GRBL Woodworking Engraving Machine Wood Router Cutter
Upgraded 3018 Pro CNC Engraver DIY 3Axis GRBL Woodworking Engraving Machine Wood Router Cutter
Upgraded 3018 Pro CNC Engraver DIY 3Axis GRBL Woodworking Engraving Machine Wood Router Cutter
Upgraded 3018 Pro CNC Engraver DIY 3Axis GRBL Woodworking Engraving Machine Wood Router Cutter
Upgraded 3018 Pro CNC Engraver DIY 3Axis GRBL Woodworking Engraving Machine Wood Router Cutter
Upgraded 3018 Pro CNC Engraver DIY 3Axis GRBL Woodworking Engraving Machine Wood Router Cutter
  • Stock: In Stock
  • Model: ST220013377
  • SKU: ST220013377
$299.99
Ex Tax: $299.99

Feature:

1. Designed for CNC: A great tool for entrance CNC. Able to carve text on daily materials easily. Great for those who are interested in CNC, helping you engrave the model efficiently.
2. GRBL Control: Latest control system different from other old conroller system which were no longer upgraded. No need for extra accessories. Just turn your computer into a CNC machine.
3. Compatible with different laser modules of 2500mW, 5500mW, 7000mW, 10000mW(lasers not included), More than just engraving machine but a laser engraver as well.
(Now we recommend the laser module (2500mW Blue Laser Module) produced by the original manufacturer

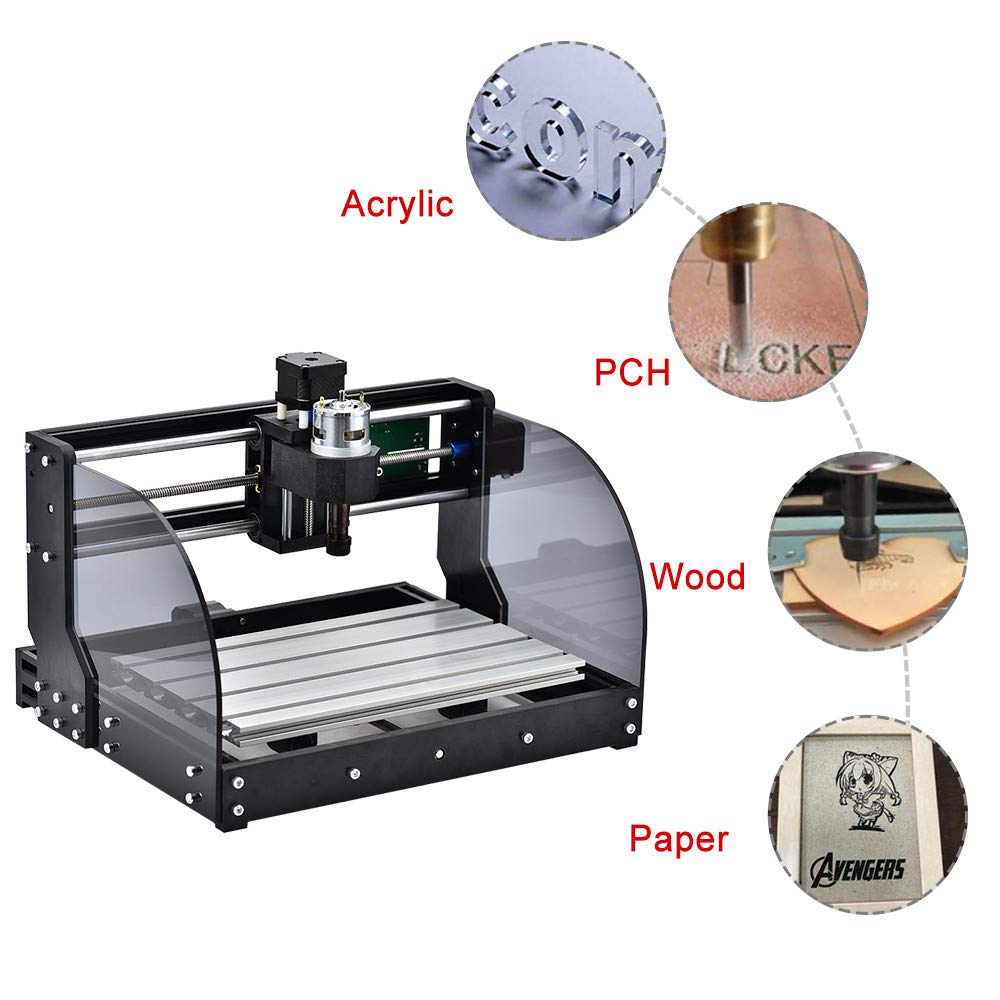

4. Wide Application: With manuals and software suitable for carve wood, plastic, acrylic, PCB CCL, soft metal like copper and aluminum and other materials, a great tool for CNC lover.
5. Supported OS: Windows XP, Windows 7 32/64 bits, Windows 8, Windows 10
6. Drill Bits: Tip 0.2 mm, 20 degrees, Diameter 3.175 mm


Feature:
1. Support GRBL and benbox firmware. Support CNC 3-axis laser engraving machine.
2. The stroke length isn't limited to 30x18 and 24x18, it can be setting other length. Please set the stroke in the command.
For example
3018, please set the stroke in the command, 30cm length and 18cm width;
2418, please set the XY stroke in the command, length 24cm, width 18cm.

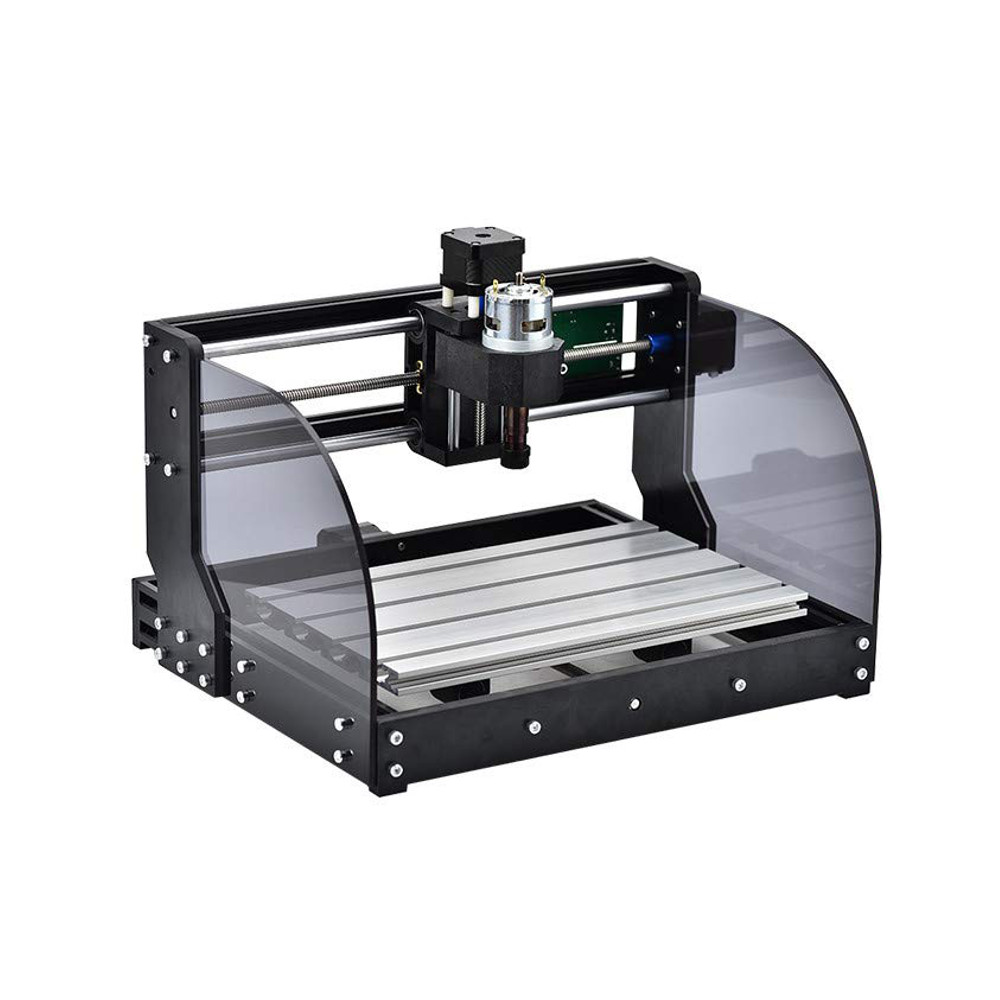

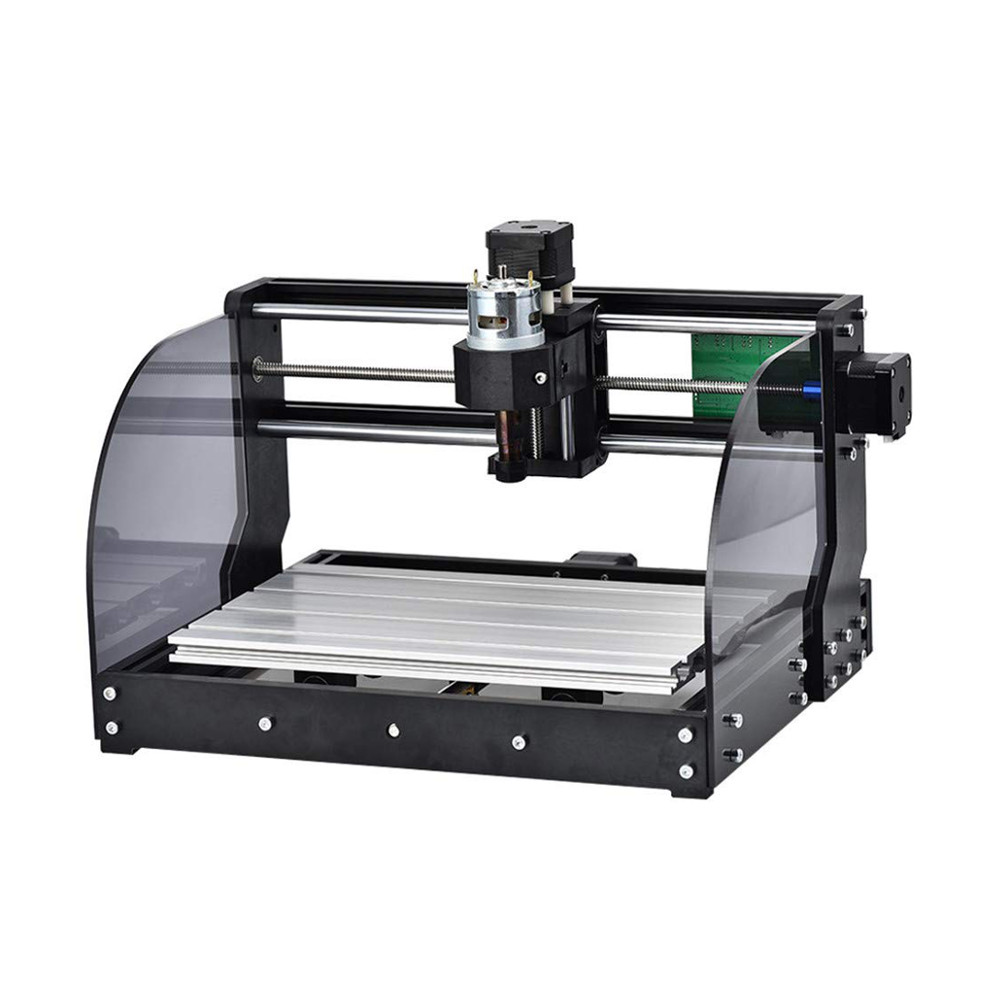

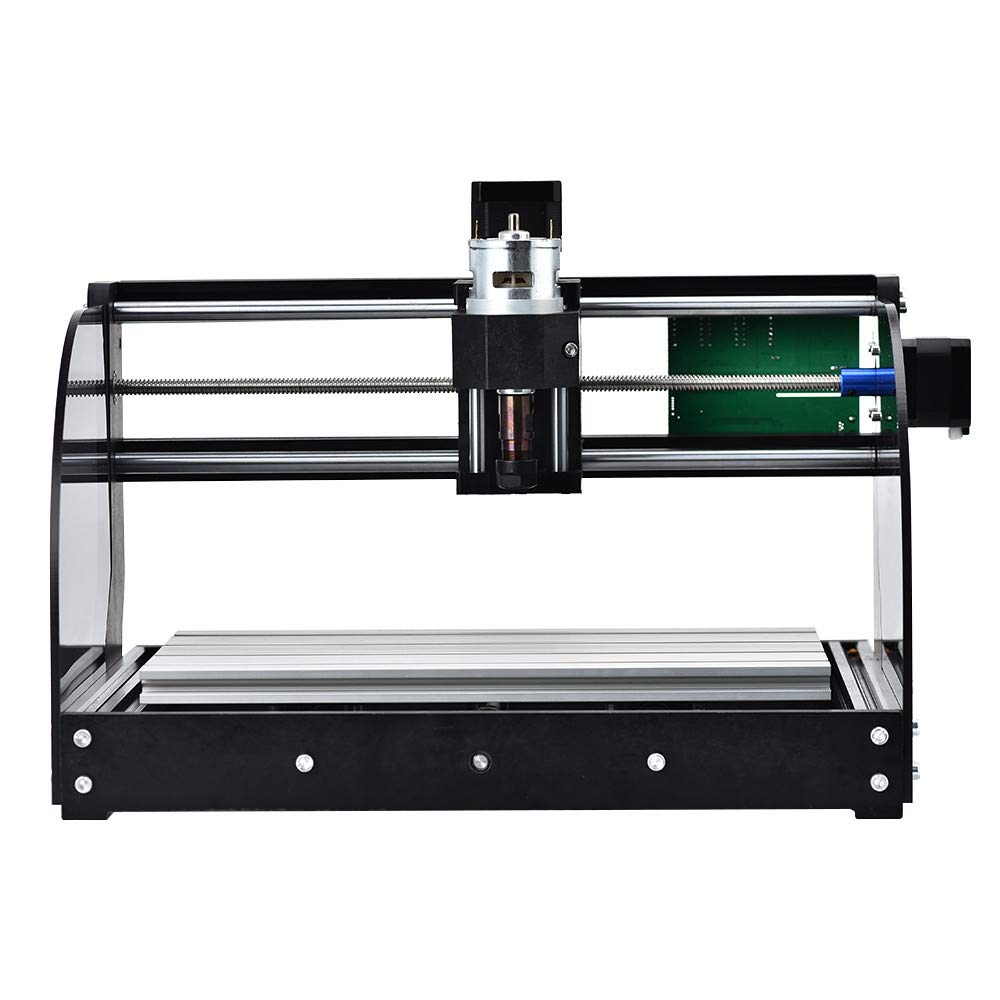

Machine Specification:

Style3018 PRO
Product Dimensions10.9 x 16.7 x 10.9 cm

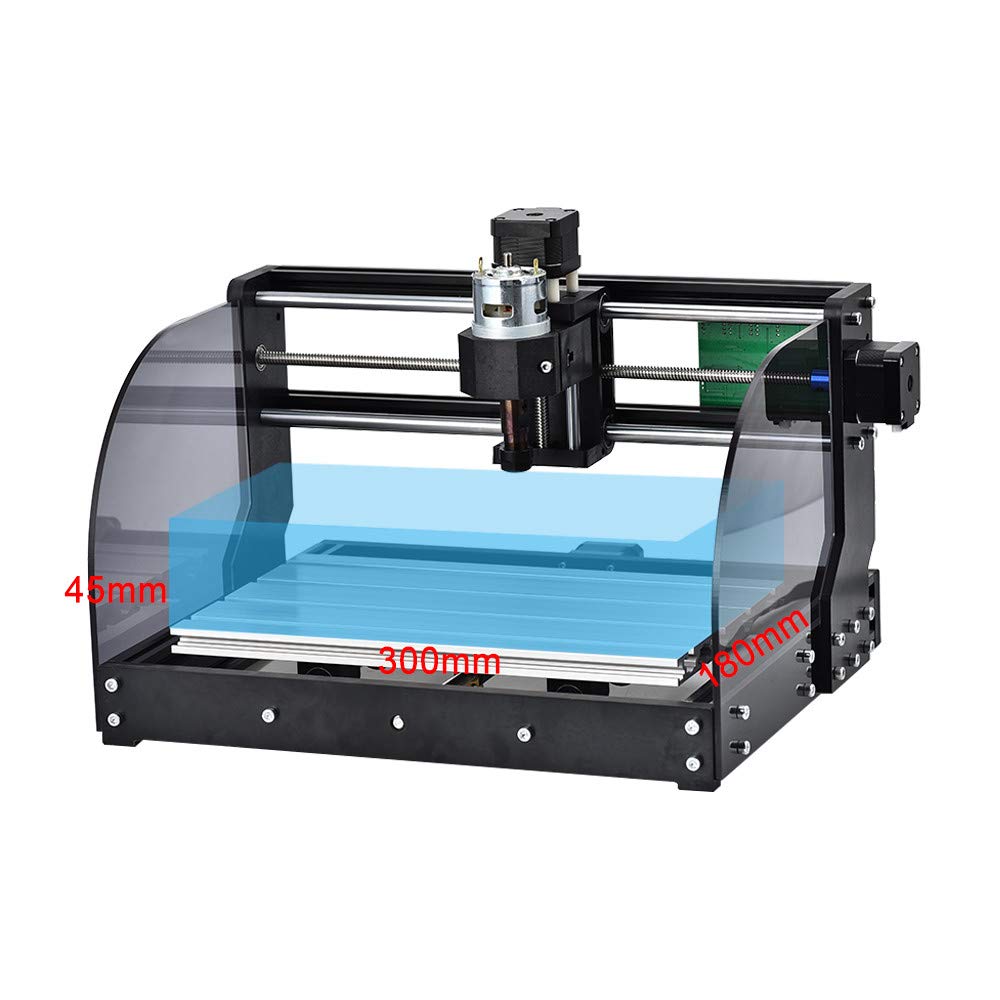

Effective Engraving Area300 x 180 x 45mm(11.8 x 7.1 x 1.8”)
Item Weight6 kg
MaterialMetal
Step Motor1.3 A, 12V, 0.25 Nm torque (2.2 in-lb)
Rated power60W
Maximum power120W
SoftwearGRBL control systems/ Lasergrbl control systems


Controller Specification:

USB Cable Length
20cm
Firmware
GRBL 08, 09, 1.1 and so on
Input Voltage
DC 7V- 36V
Applicable CNC Router
3 Axis CNC router 1610; 2418; 3018


Instruction:

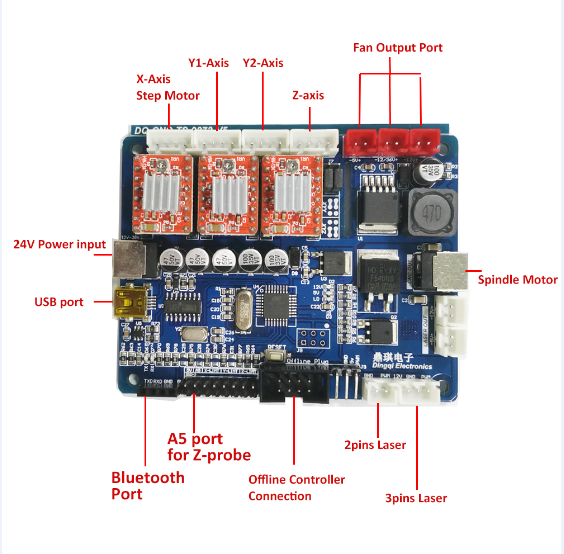

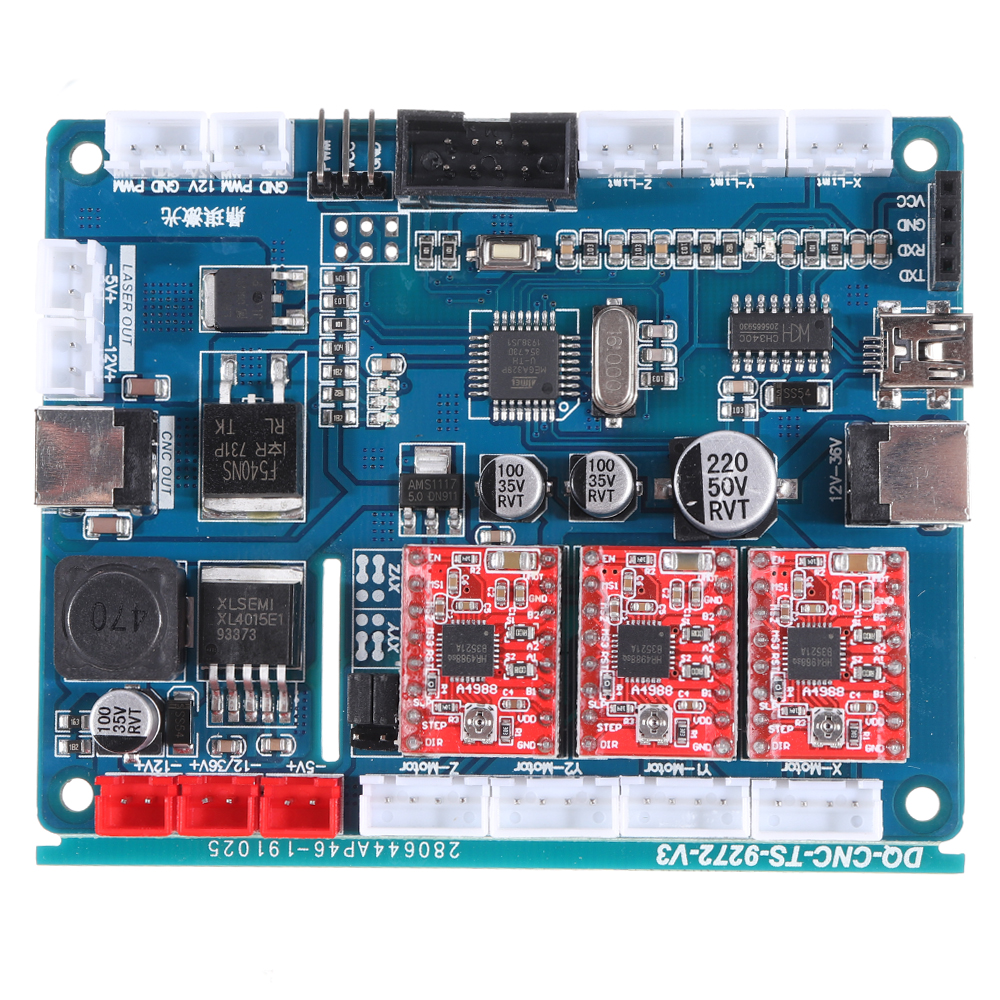

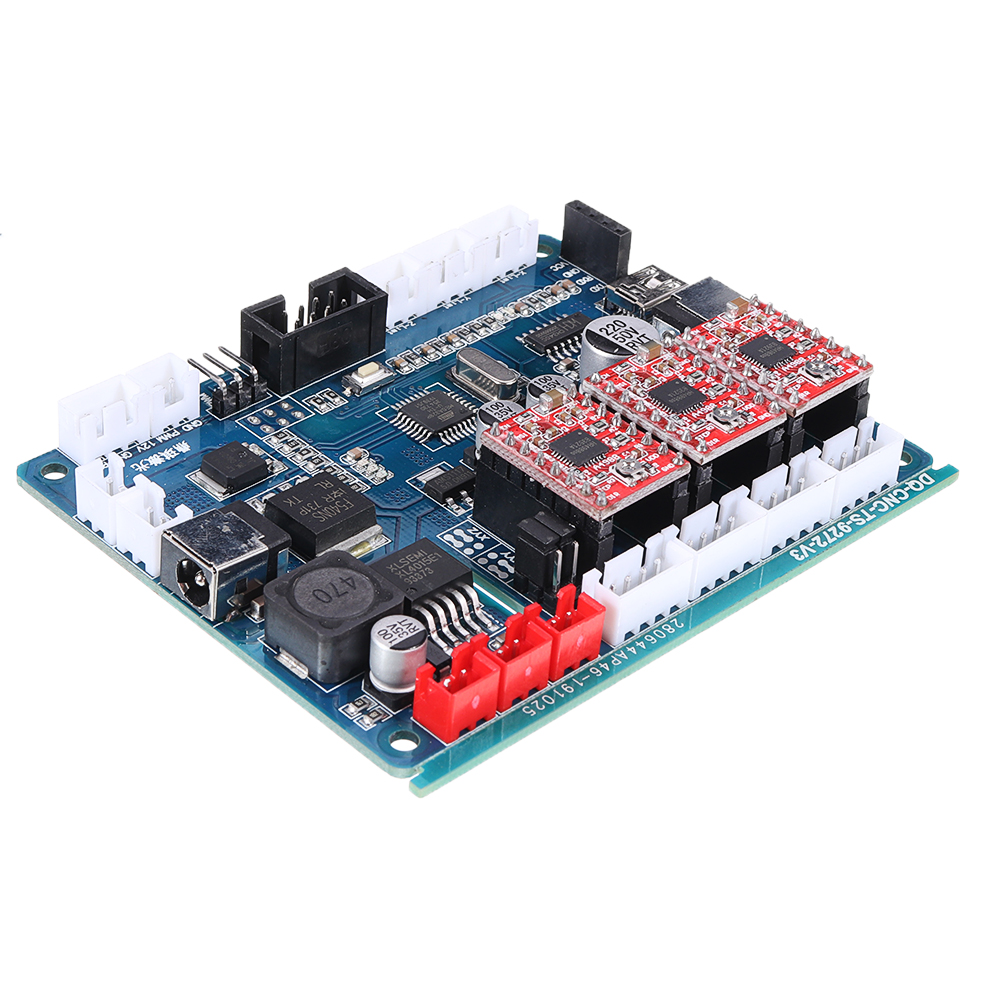

3-Axis GRBL Control Board
Output signal:
1: Fan: Used for shaft motor cooling
2: Shaft: Connect motor shaft, keep the same with power supply voltage, 5A electricity, if the motor power of the spindle is high, can connect external relays such as the switch. G code M3 open, M5 closed, with version 0.9 of the firmware can adjust PWM, achieve the speed of the axis governing and tunable laser
3: X axis motor signal output, A4988 max 1.5A electric current
4: Y-axis motor signal output, A4988 max 1.5A electric current
5: Z-axis motor signal output, A4988 max 1.5A electric current
Input Signal:
1: X-axis minimum limit X-
2: Y-axis minimum limit Y-
3: Z-axis minimum limit Z-
4: Reset button: press the button, system will restart, can be used for urgent stoping of machine


Packgae Included:
1 x Wood Engraving Machine Full Set (Unassembled Delivery)
1 x GRBL 3-Axis Control Board
1 x USB Cable
1 x Cable for Spindle Connection


(Spindle Motor, Control Board, Z A xis Set, Stepper Motors, and other Assemble Parts are all included.)

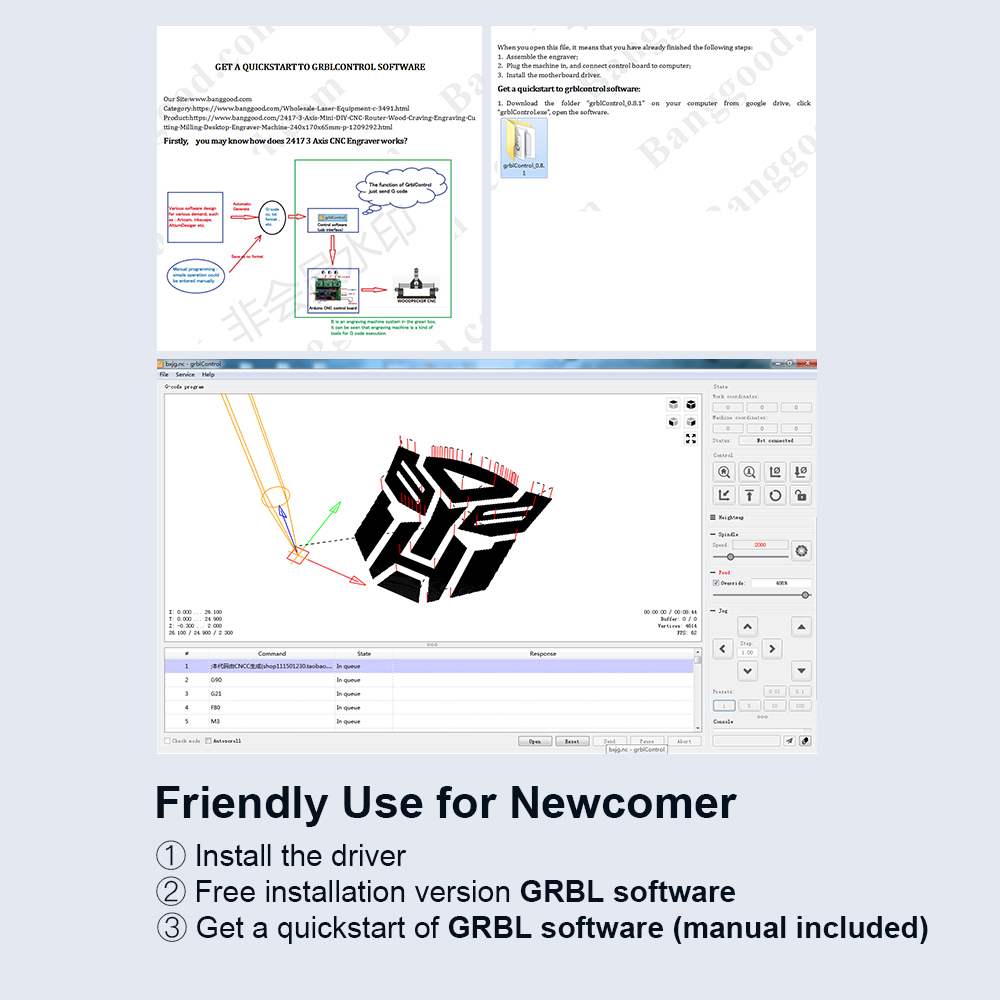

Instructions & Software: Assembly instructions, control software and further information
