Upgraded QHV5160 TMC5160 QHVSilent Stepper Motor Driver Voltage 60v High Subdivision 256 8MO for 3D Printer Accessories

Change Description.

1. HV5160 renamed QHV5160.

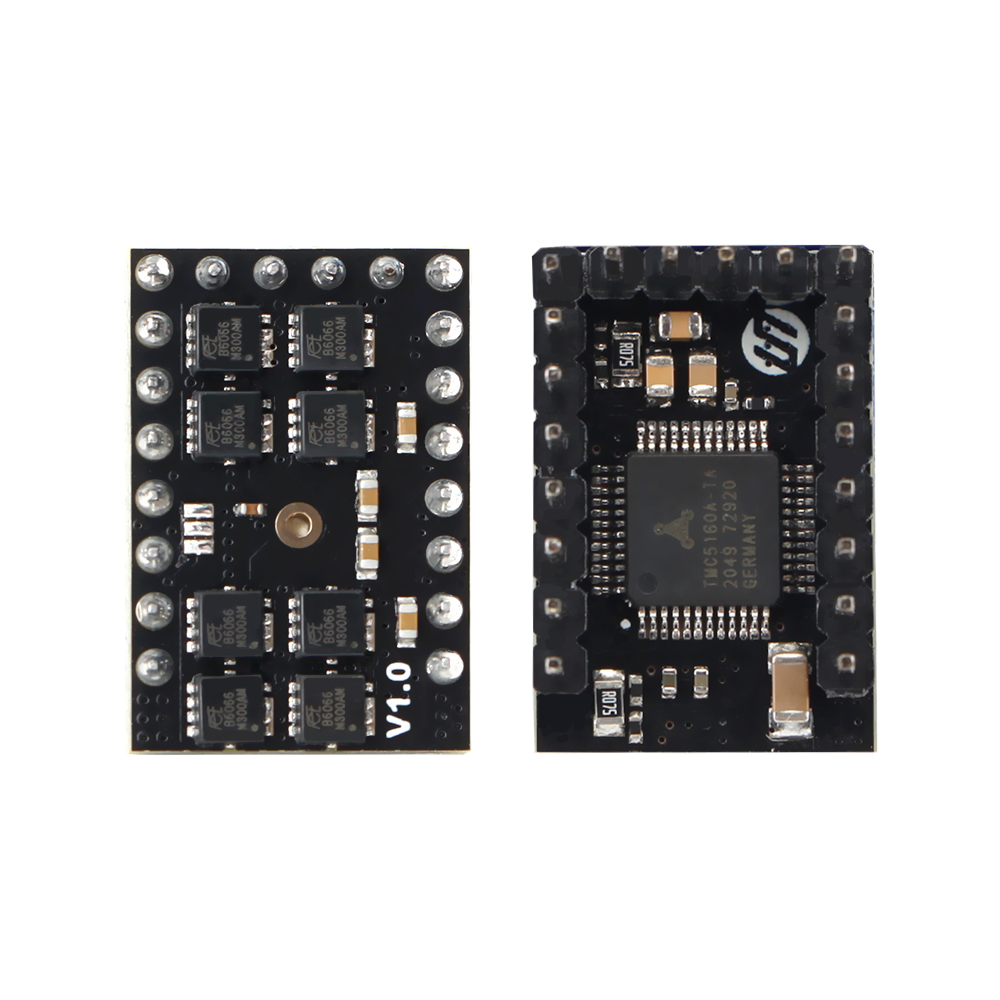

2. change the original 4 MOSFETs to 8

Shipping list.

QHV5160*1
Heat sink*1

Paramteres:

Input voltage: 8-60V

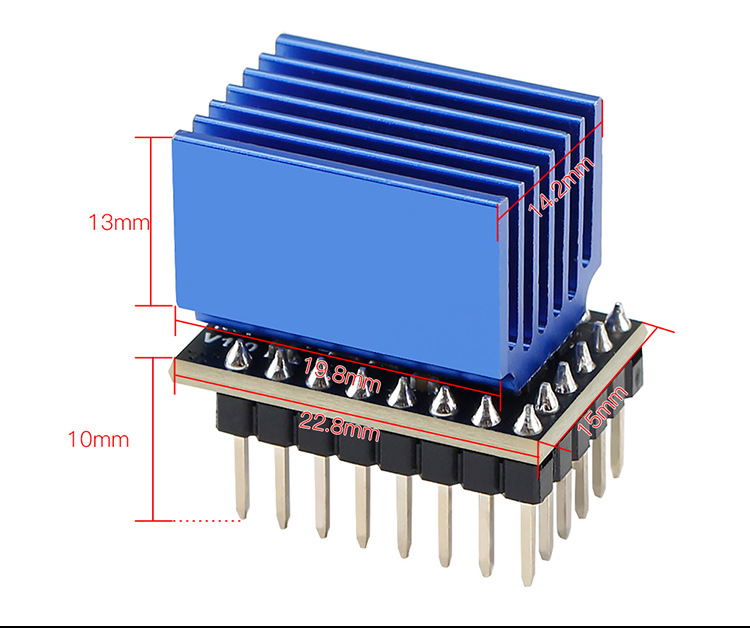

Size: 1000x600mil/25.4x15.24mm
Outgoing MOS:mos*8
Output current:3.0A(rms)
Rs:0.075Ω
Default mode:SPI Mode, S/D mode selectable via solder option
Number of PCB layers: 6layer, TG155

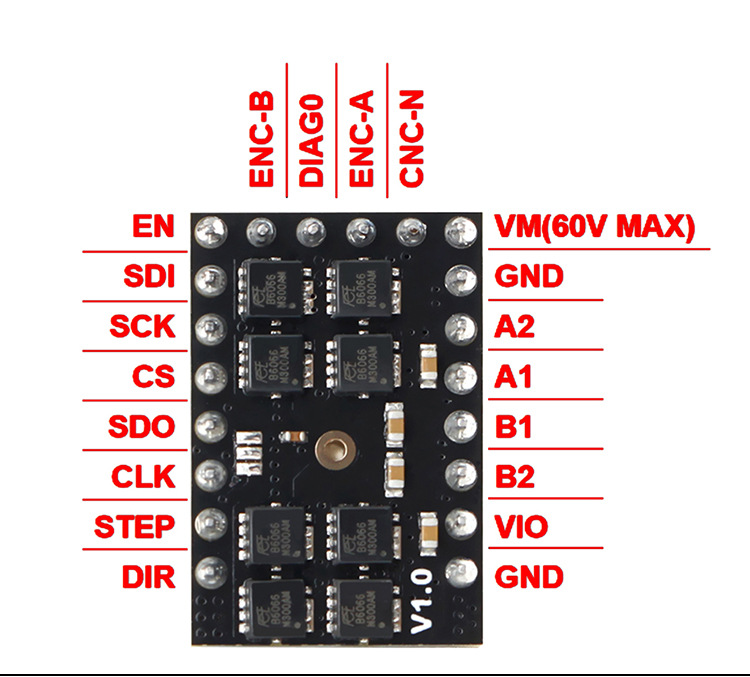

Other: DIAG0 & Encoder Interface elicit
