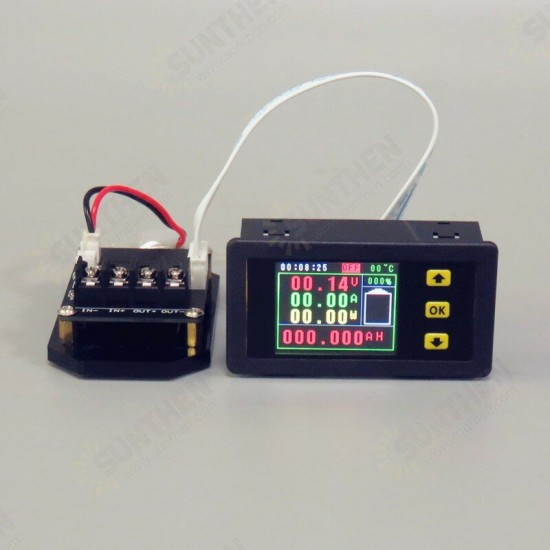

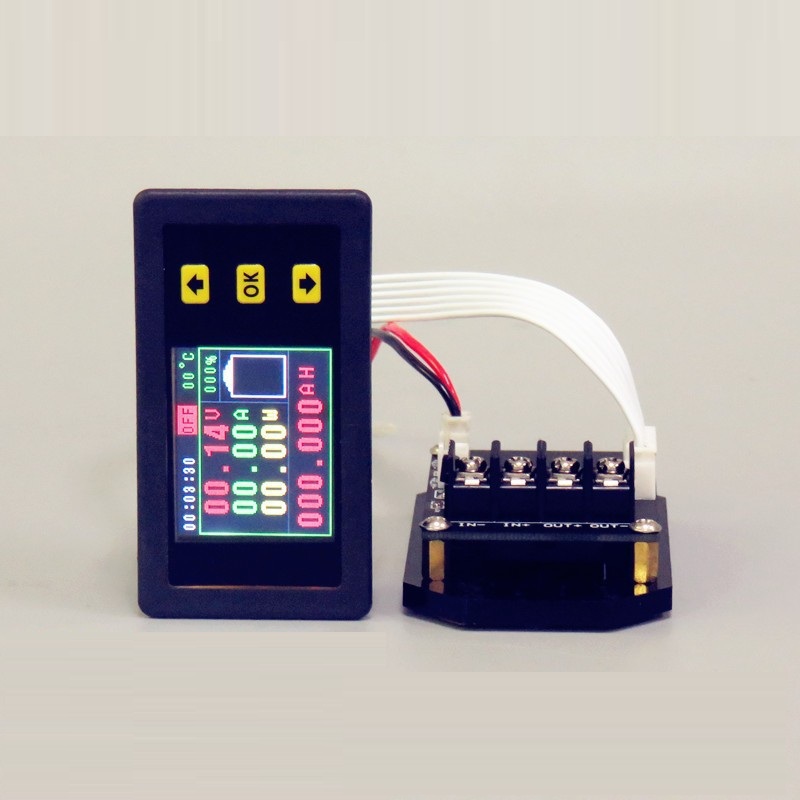

VA45010S VA45030S 1.8-Inch Color Screen High-Precision Voltage and Current Meter Temperature/Coulomb/Capacity/Power Measurement
- Stock: In Stock
- Model: ST22011386
- Dimensions: 87.00mm x 49.00mm x 24.00mm
- SKU: ST22011386
$20.99
Ex Tax: $20.99
Available Options
Description:
This multi-function instrument can display various physical parameters such as voltage, current, power, capacity, energy, temperature, and running time in real time, and can realize overvoltage, undervoltage, overcurrent, and overtemperature protection through the reserved relay interface. Moreover, it adopts 1.8-inch color LCD as the display, the display data is more comprehensive, clear and easy to observe. It is very suitable for applications that need to monitor the output voltage and current, and charge and discharge the battery.
Features:
1. Two-way current detection, no need to change the wiring direction.
2. Power-off memory function, after power-off, the AH and WH numbers before power-off can be memorized, which is convenient for observation and measurement.
3. The time and AH number reset function does not affect the next measurement.
4. Voltage, current, charging capacity AH number, WH number, time, power are displayed at the same time, the display information is comprehensive and clear.
6. With the output shutdown function key, the output can be turned on or off flexibly.
7. It has protection functions such as overvoltage, overcurrent, and overtemperature.
8. Support online calibration to facilitate timely correction of errors.
9. When necessary, the LCD display can be turned off to reduce the power consumption of the product.
Specifications:
Model | VA75010S | VA75030S | |
Input voltage | Measuring range when self-powered | 6V~75V | |
Measurement range when external power supply | 0~120V | ||
Input current measurement range | 0~5A | 0~30A | |
External power supply voltage | 6~60V | ||
Display mode | 1.8 inch color LCD display | ||
Measuring range | Voltage | 0.01V~120V | |
Current | 0.01A~5A | 0.01A~30A | |
Capacity | 0.001AH~65000.00AH | ||
Energy | 0.00KWH~99999.9WH | ||
Time | 0~100 hours | ||
Power | 99KW | ||
Temperature | 1~100℃ | ||
Accuracy | Voltage | ±1%+2 words | |
Current | ±2%+5 words | ||
Temperature | ±1℃ | ||
Measurement rate | 5 times/sec | ||
Display board size | 78*42*26 (mm) | ||

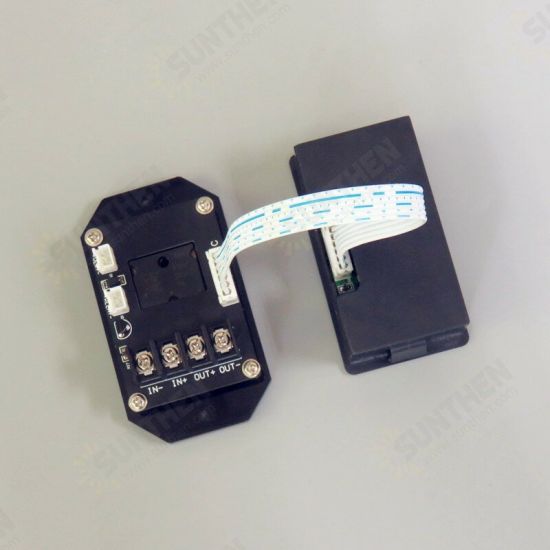

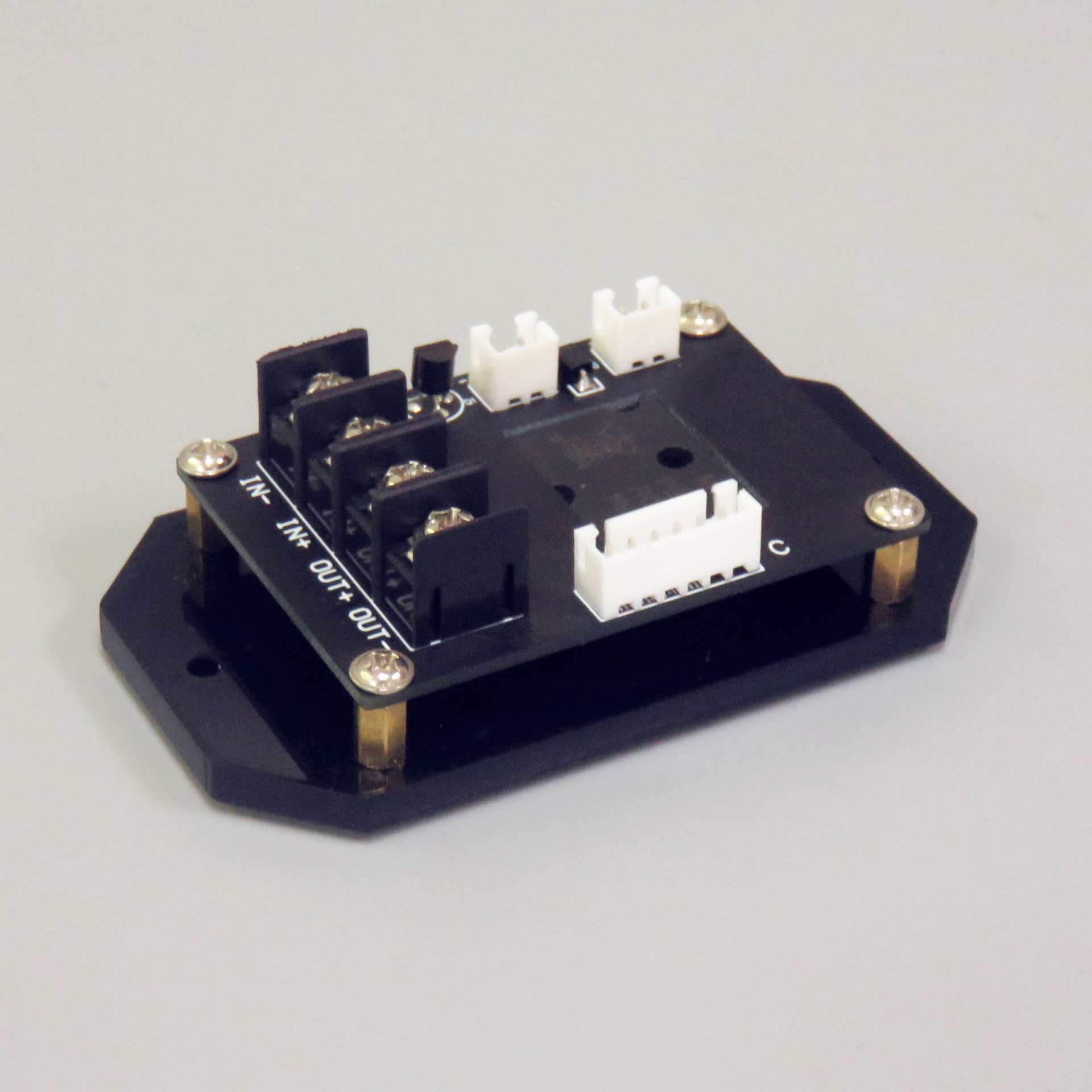

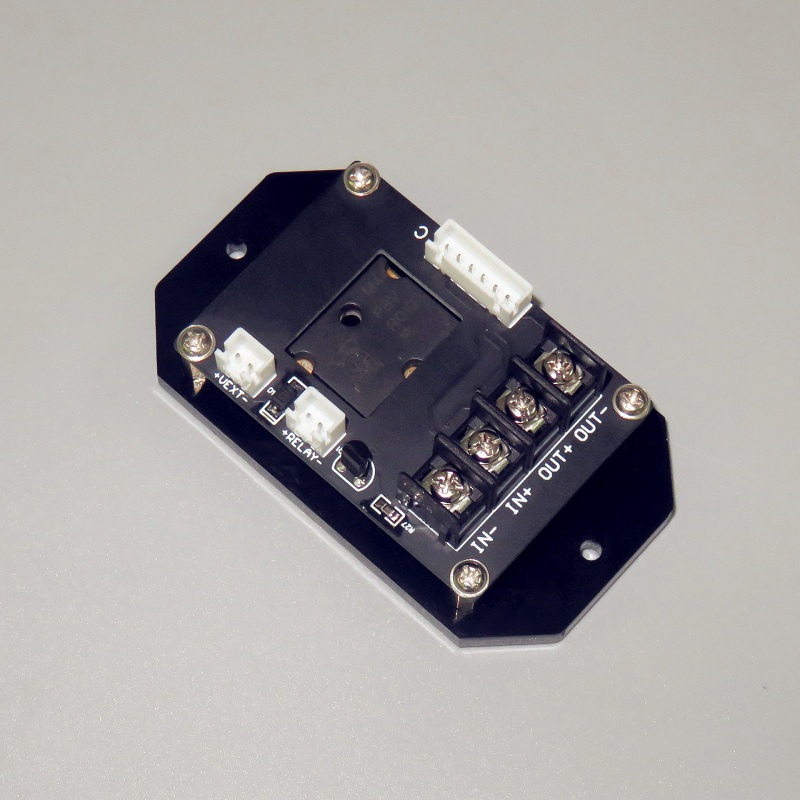

Measuring board size | 87*49*24 (mm) |
Package Included:
1 x Voltage and Current Meter (VA75010S/VA75030S)
