100A Digital LED Panel Power Monitor Power Energy Voltmeter Ammeter Meter Tester
- Stock: In Stock
- Model: ST22012254
- SKU: ST22012254
$20.99
Ex Tax: $20.99
Key-button Instruction:
● Short press button to switch the backlight on and off.
● Press and hold for 3 seconds to enter the overload power setting.
-- Enter the overload power setting, default value is 4.4KW.
-- The highest bit flash, Short press the key corresponding to the value plus 1, Long press 2 seconds is the displacement,the maximum can be set to 99.9KW .
-- Without any key operation, after 5 seconds to exit and save the data.
● Press and hold for 5 seconds, the system reset, the accumulated power is cleared, and "the overload power setting" to return to the default value.
Kindly remind:

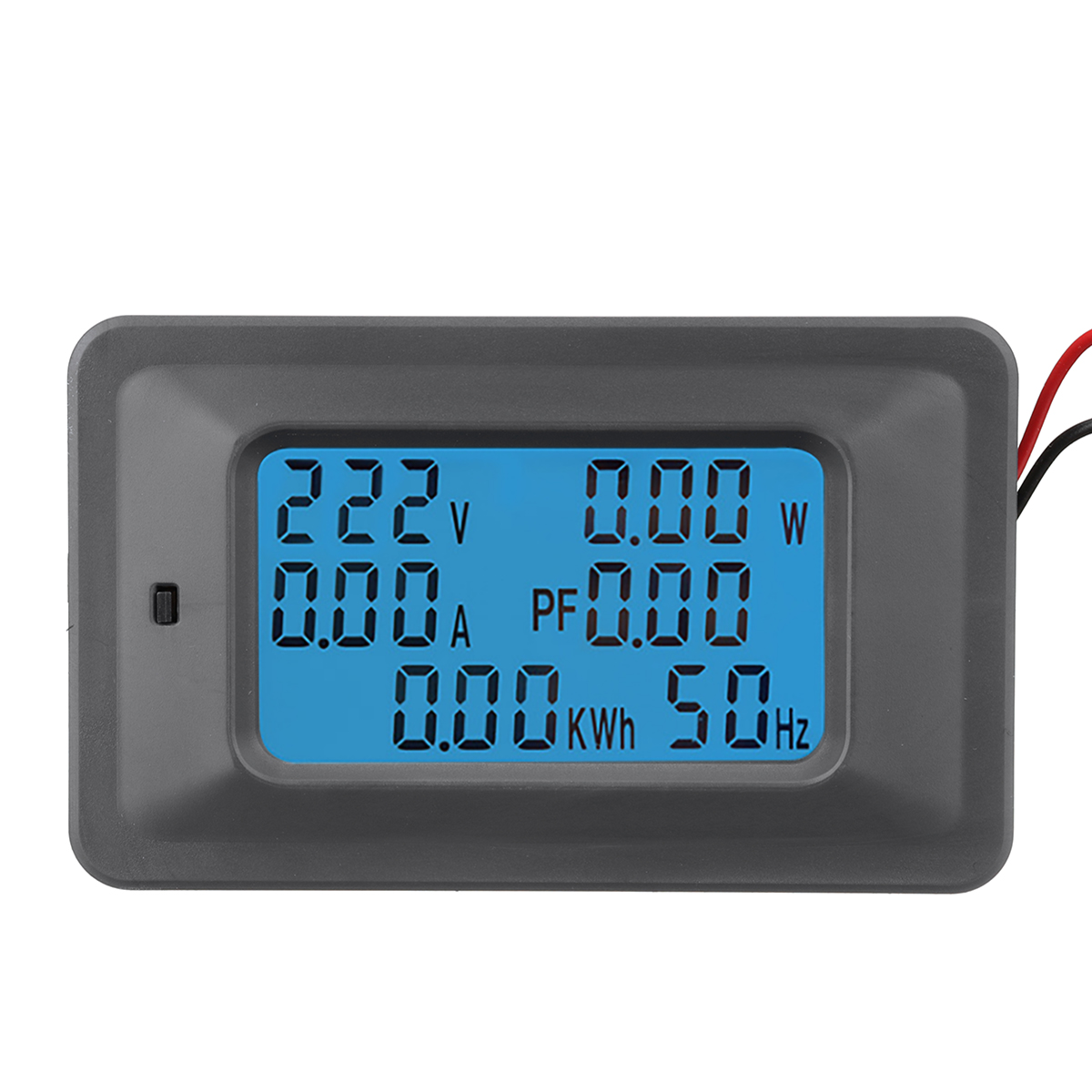

● 6 functions are displayed on the full screen, overload alarm backlight and power flash, when the current power is less than the overload power, the overload alarm is released.

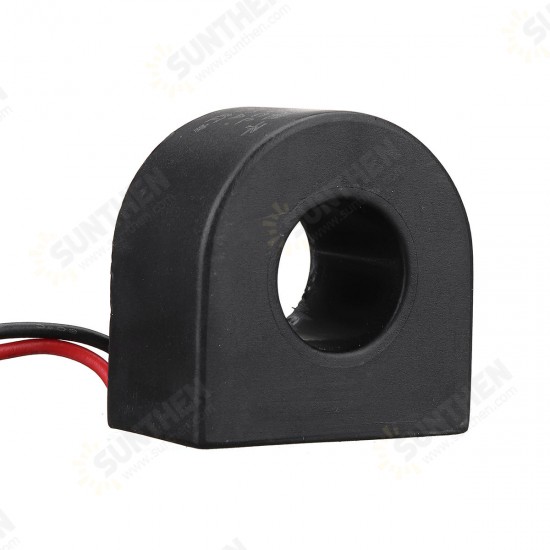

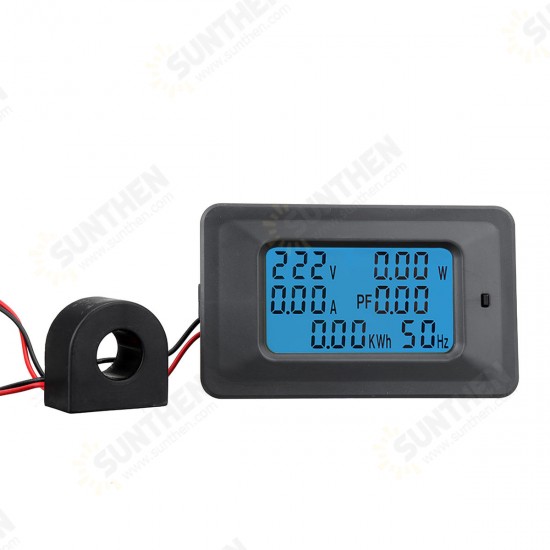

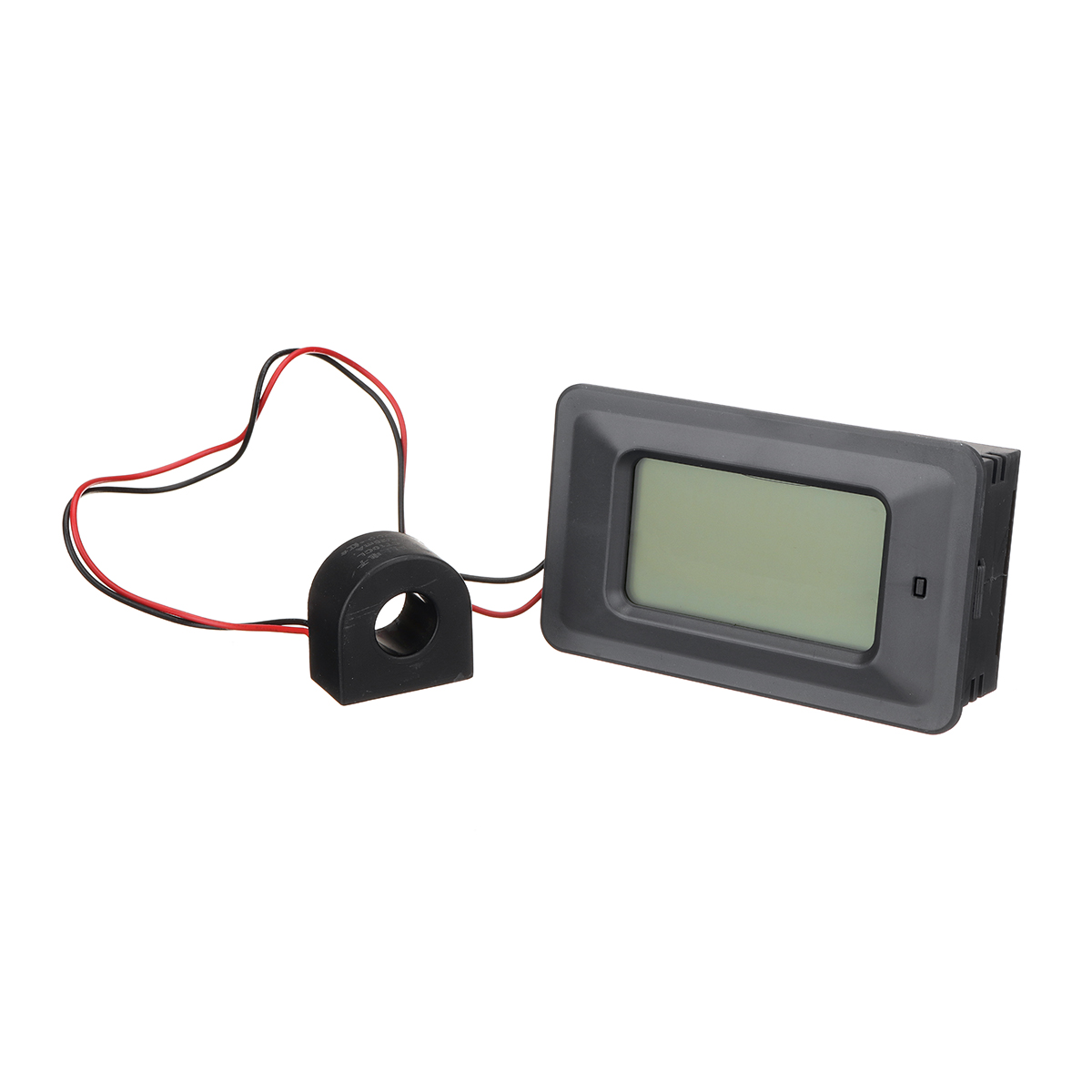

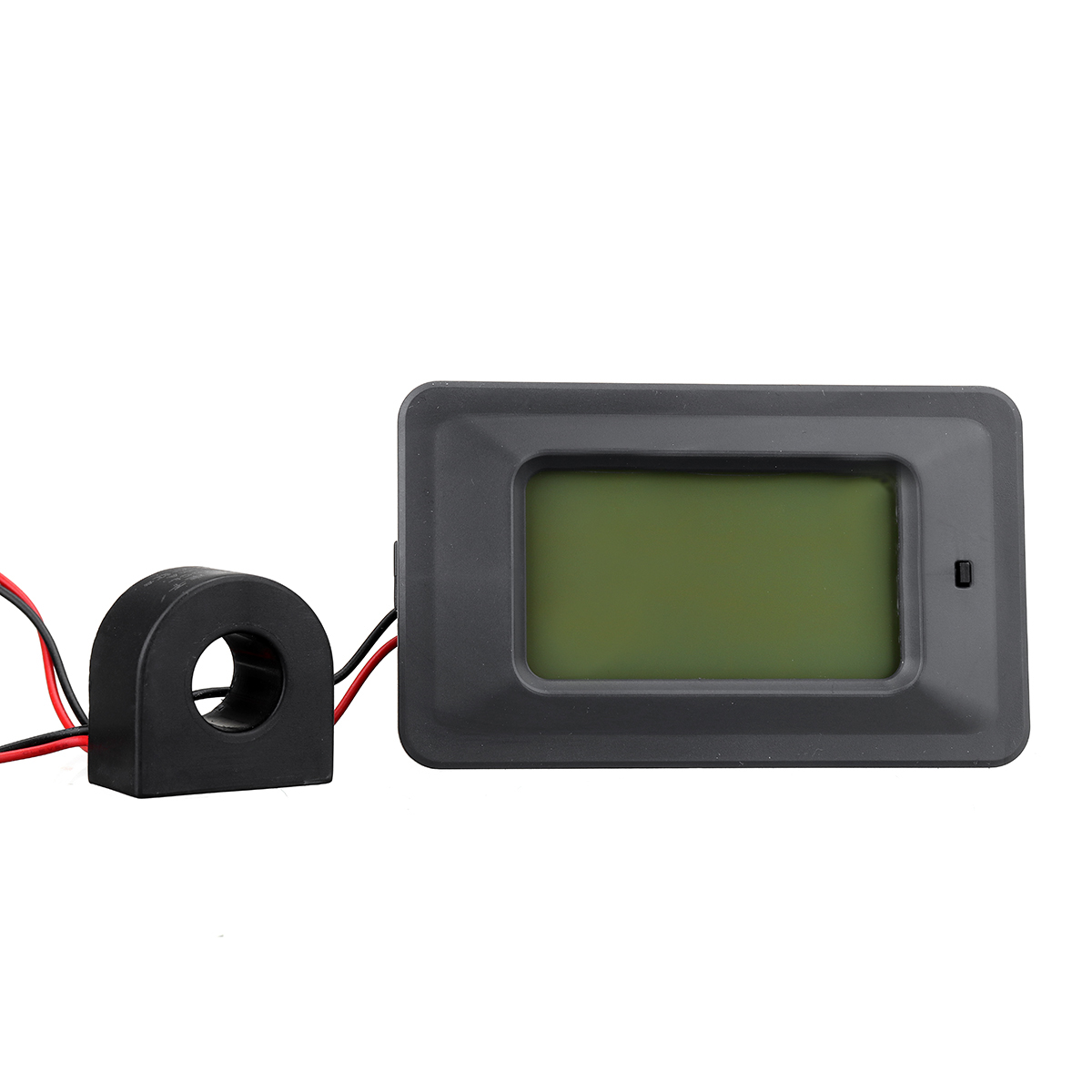

● The meter of 100A must be connected to the CT, Threading direction and direction of the transformer arrow must be consistent.
Compatibility:
Suitable for most household appliances.
Specification:
Maximum Power: 22000W
Maximum Current: 100A
Operating voltage: AC 110V-250V
Voltage accuracy: ±1%
Current accuracy: ±2%
Power accuracy: ±2%

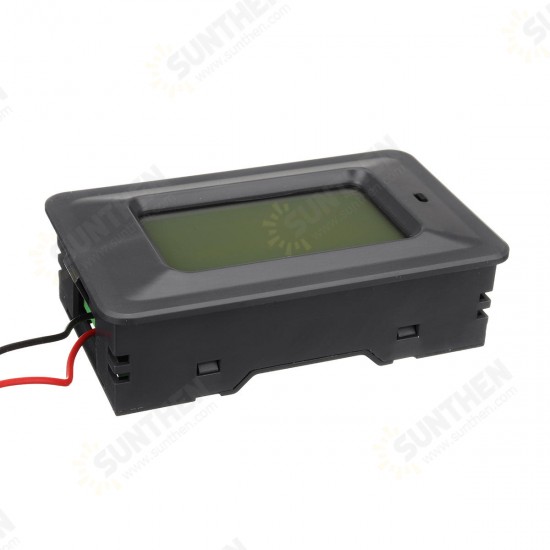

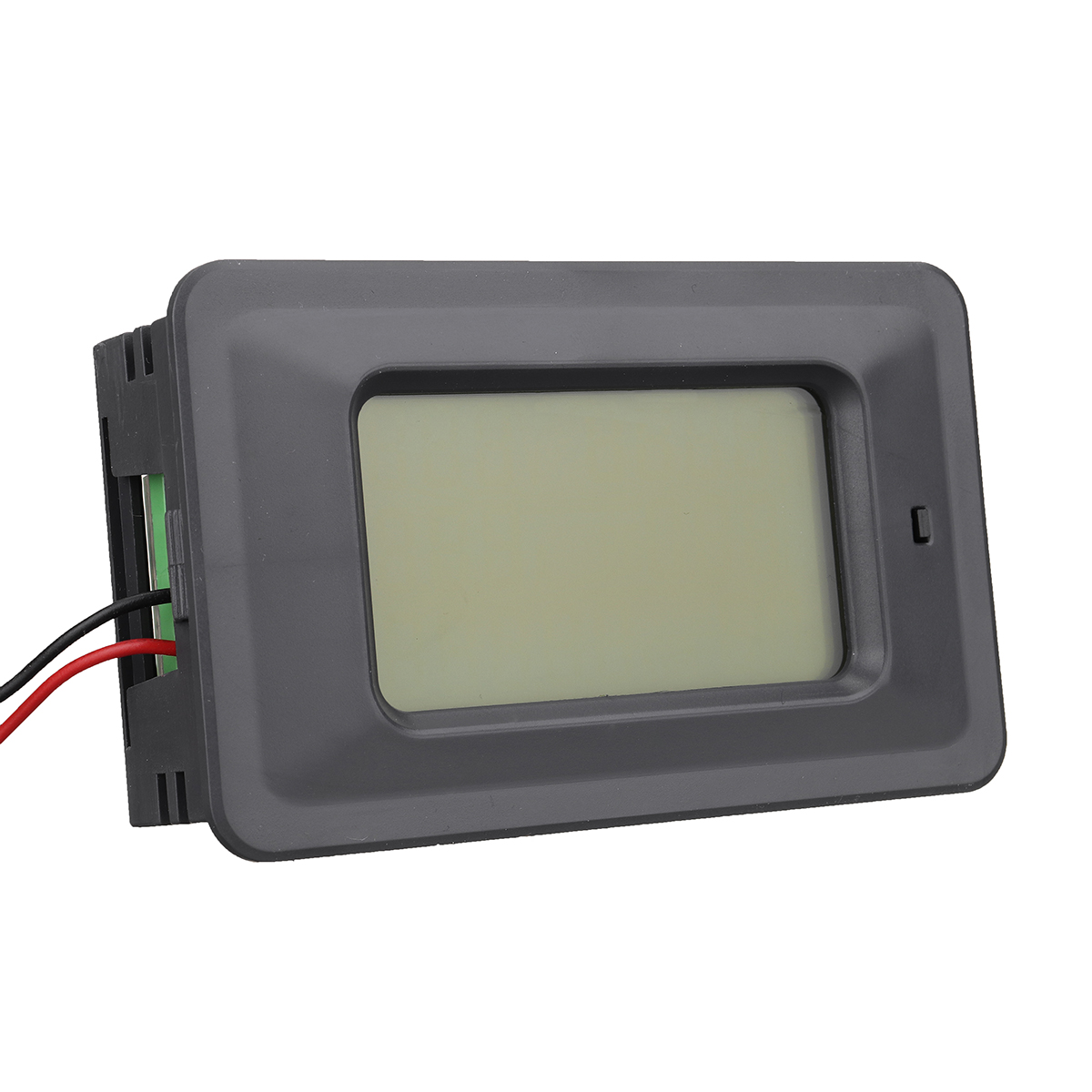

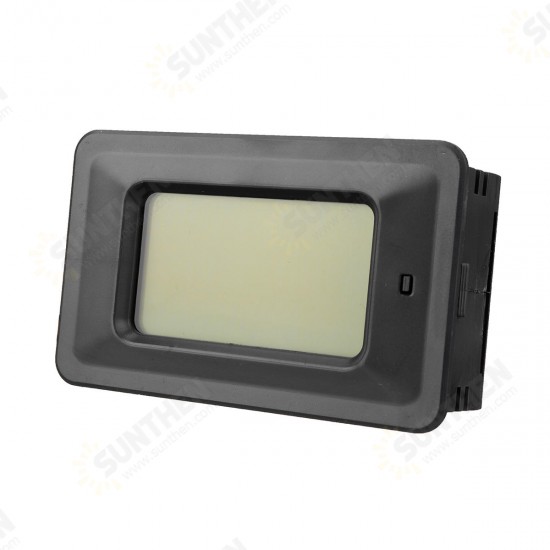

Panel Size: 90 x 54.5MM

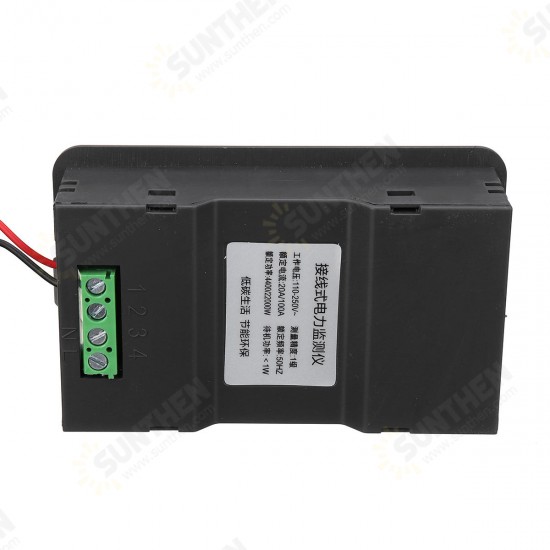

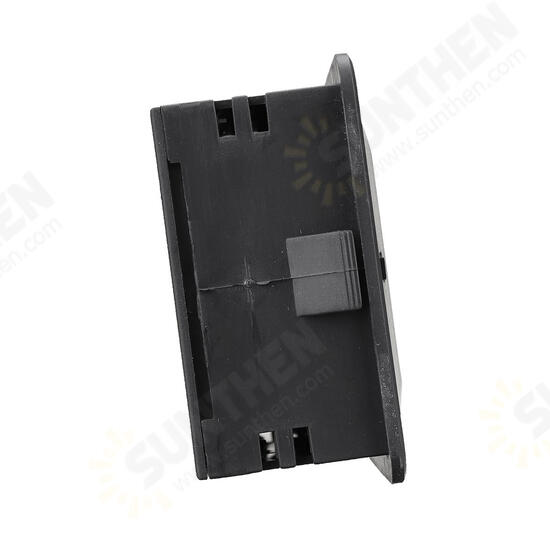

Back Size: 85 x 47 x 28 MM(L X W X H)
Color: Black
Package includes:
1 x 100A Power Monitor
Details pictures:
,
,
,
