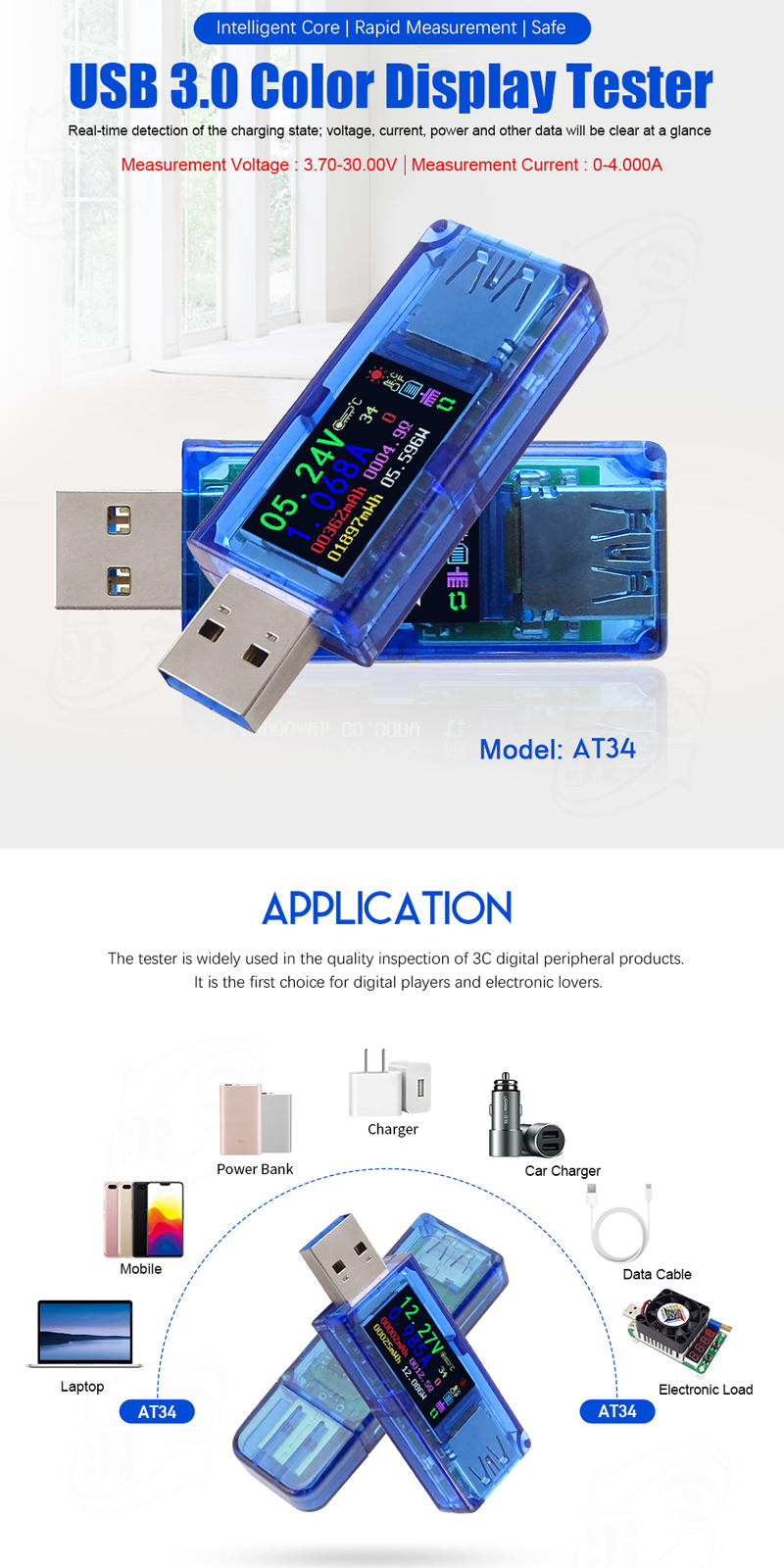

AT34 USB3.0 IPS HD Color Screen USB Tester Voltage Current Capacity Energy Power Tester
- Stock: In Stock
- Model: ST22011443
- SKU: ST22011443
$15.99
Ex Tax: $15.99

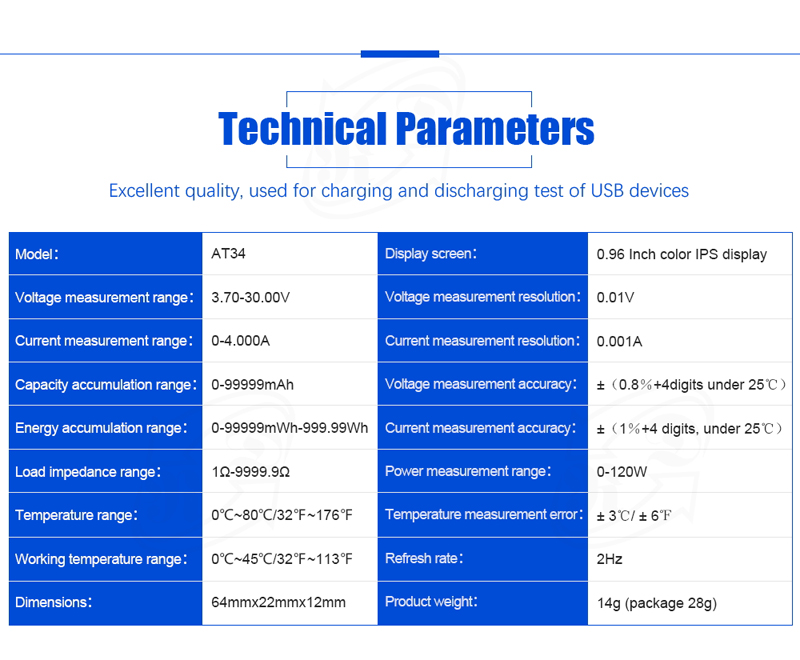

Specification:
1 x RUIDENG AT34 USB3.0 IPS HD Color Screen USB Tester
1 x English User Manual

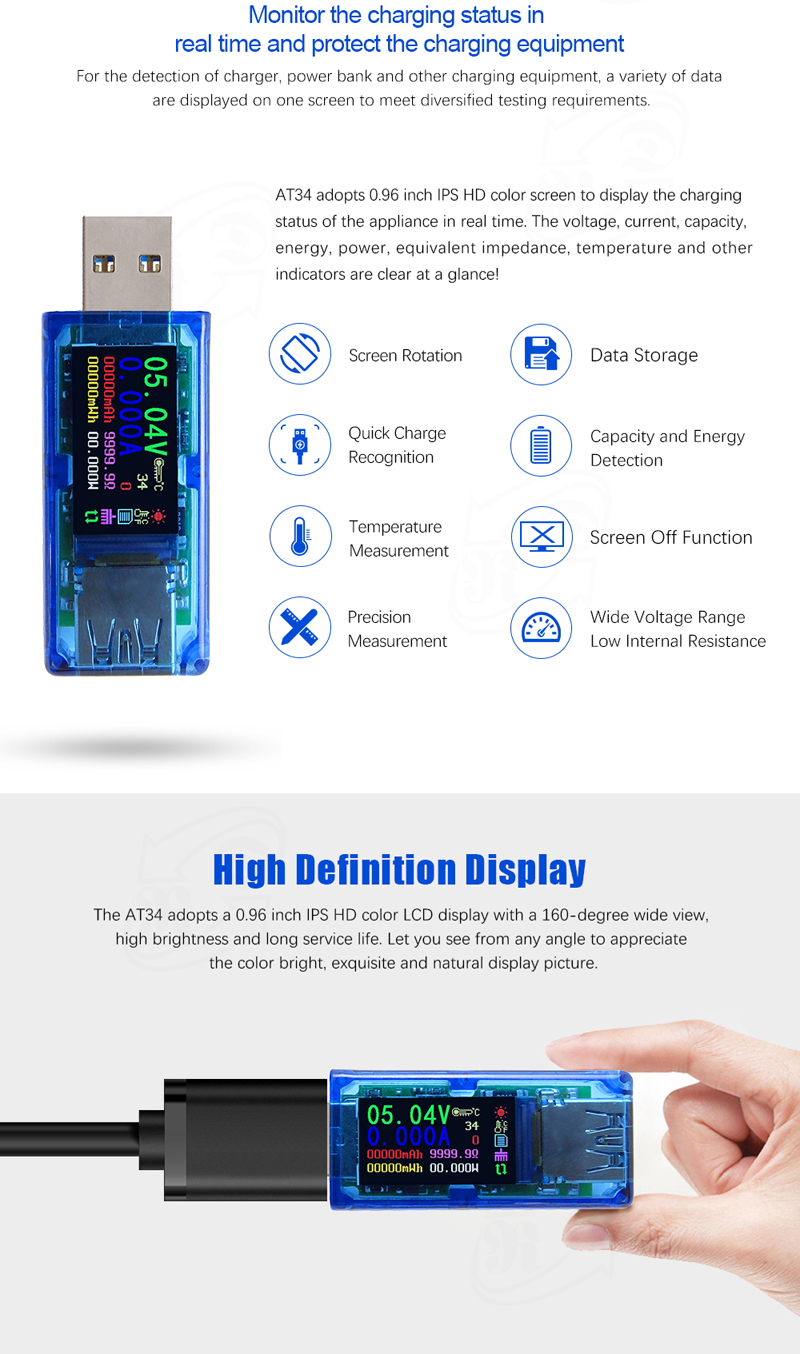

Detail Pictures:
Model: AT34

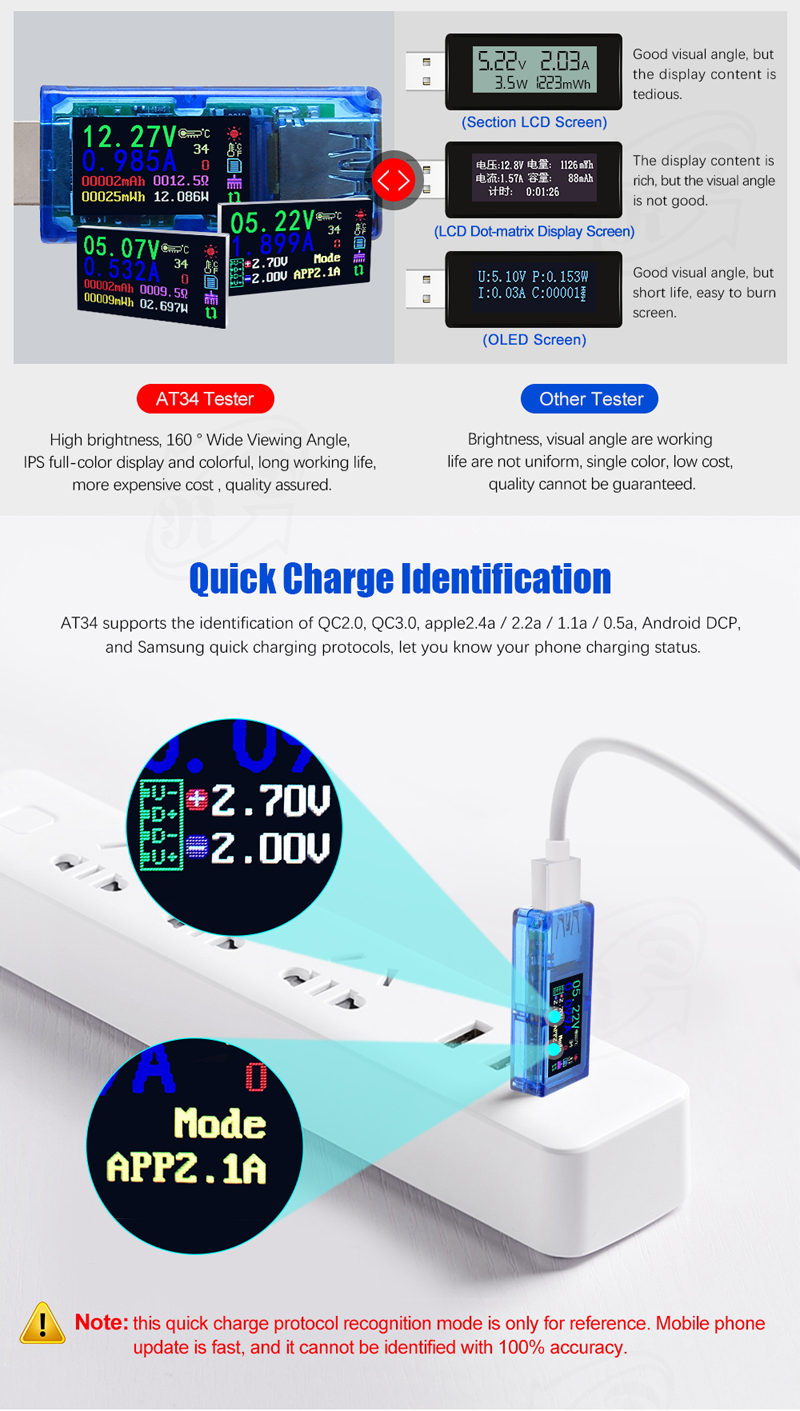

Display Screen: 096inch color IPS display
Voltage Measurement Range: 3.70V-30.00V
Voltage Measurement Resolution: 0.01V

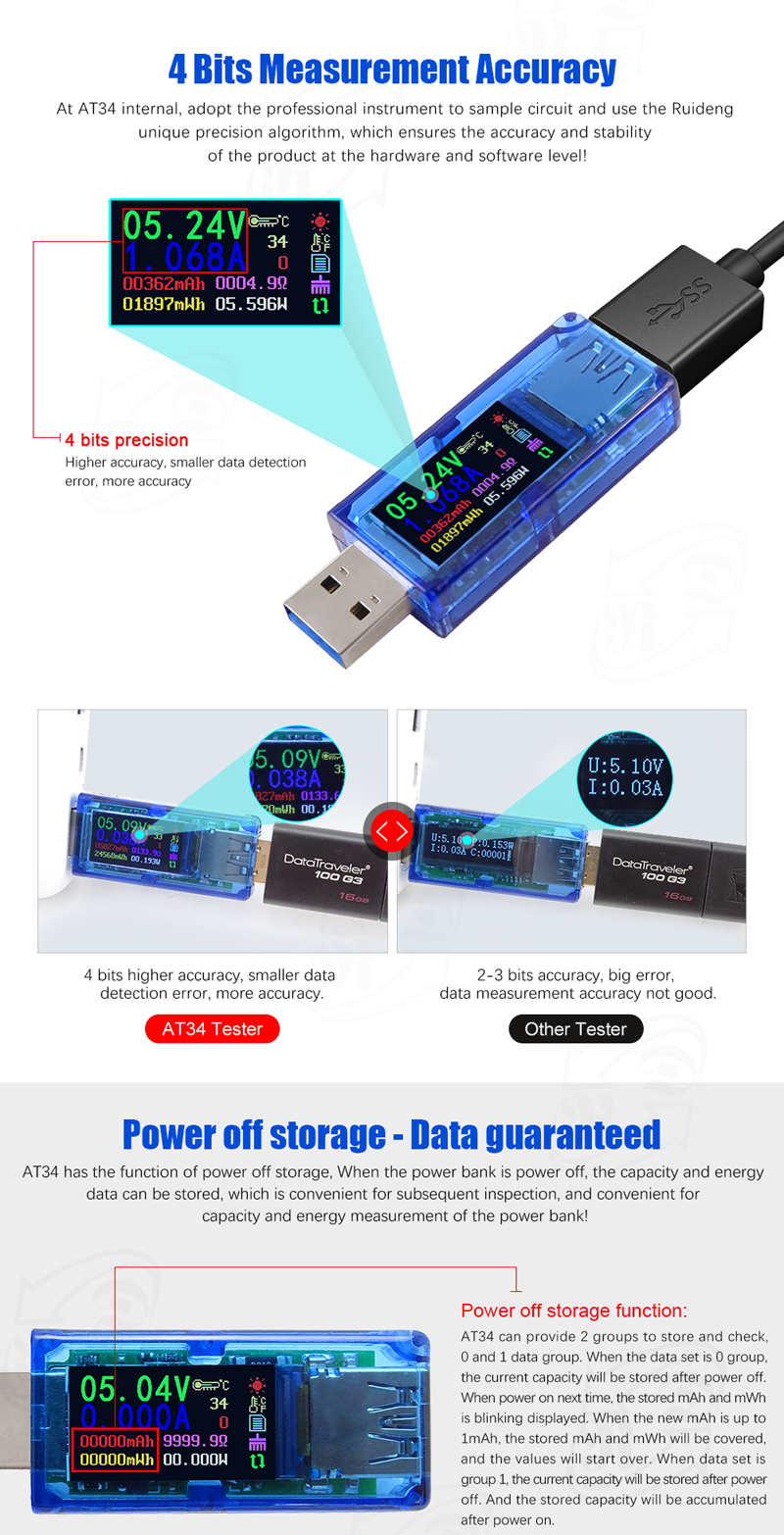

Voltage Measurement Accuracy: ±(0.8%+4digits under 25℃)
Current Meaurement Range: 0-4.0000A
Current Measurement Resolution: 0.001A
Current Measurement Accuracy: ±(1%+4digits under 25℃)

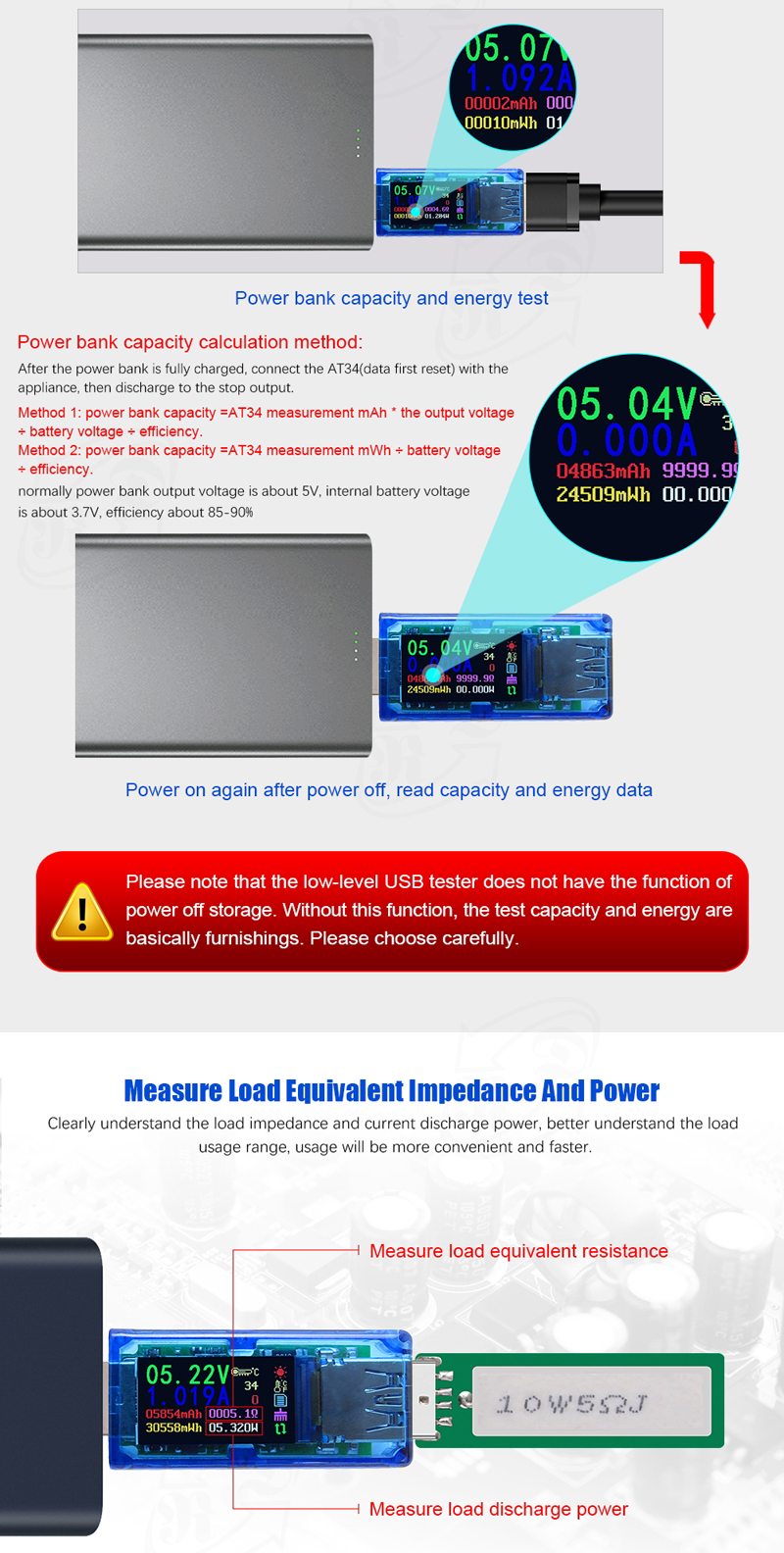

Capacity Accumulation Range: 0-99999mAh
Energy Accumulation Range: 0-99999mWh-999.99Wh
Load Impedance Range: 1Ω-9999.9Ω
Power Measurement Range: 0-120W

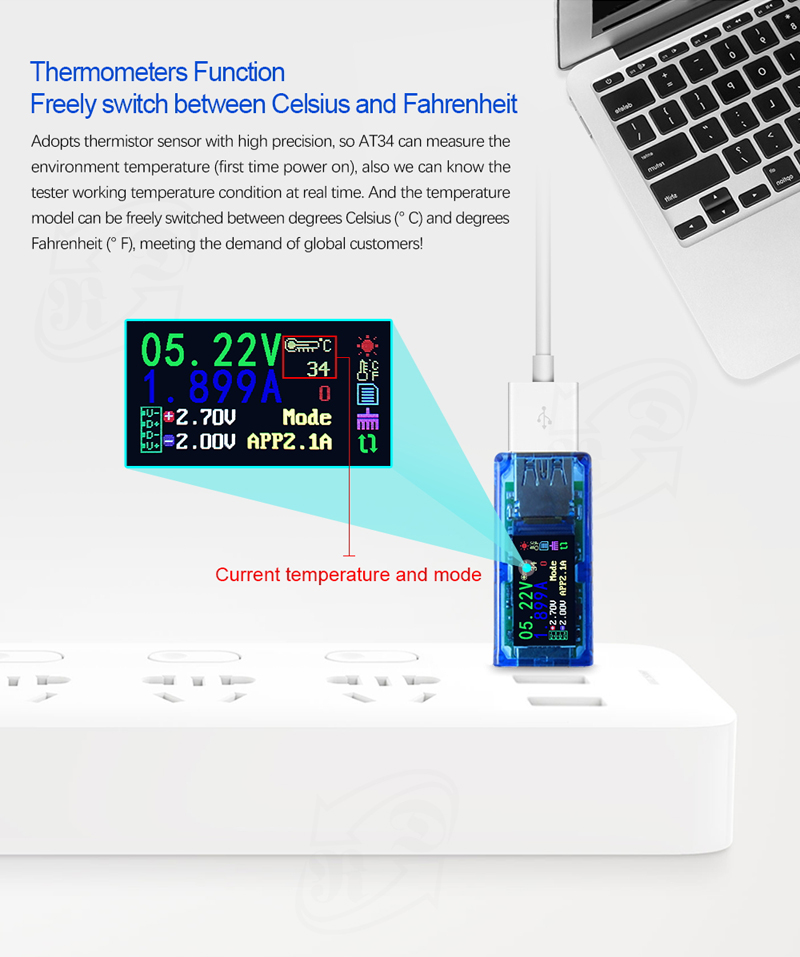

Temperature Range: 0-80℃/32-176℉
Temperature Measurement Error: ±3℃/±6℉
Refresh Rate: 2Hz
Working Temperature Range: 0-45℃/32-113℉

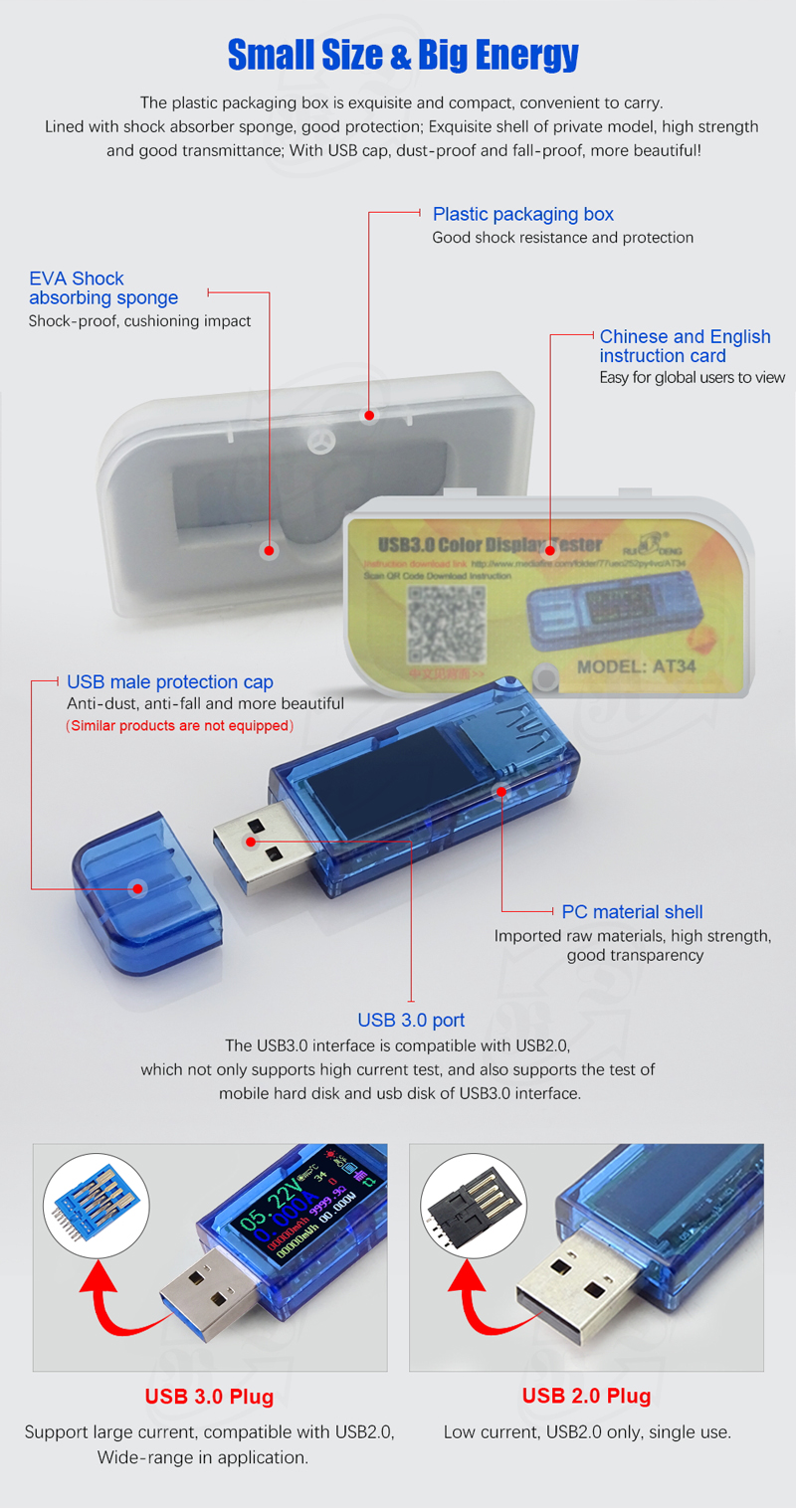

Dimensions: 64 x 22 x 12mm
Product Weight: 14g
Package Included:
1 x RUIDENG AT34 USB3.0 IPS HD Color Screen USB Tester
1 x English User Manual
Detail Pictures:
