WiFi bluetooth Handle DIY Remote Control Smart Car Module Kit For Motor Servo Drive Arm for Arduino - products that work with official Arduino boards
- Stock: In Stock
- Model: ST230045373
- SKU: ST230045373
$21.99
Ex Tax: $21.99
Type selection: (please choose the one you need)
Only control board Type
WiFi Type
bluetooth Type
Handle Type
Features:
Only control board Type
WiFi Type
bluetooth Type
Handle Type
Features:

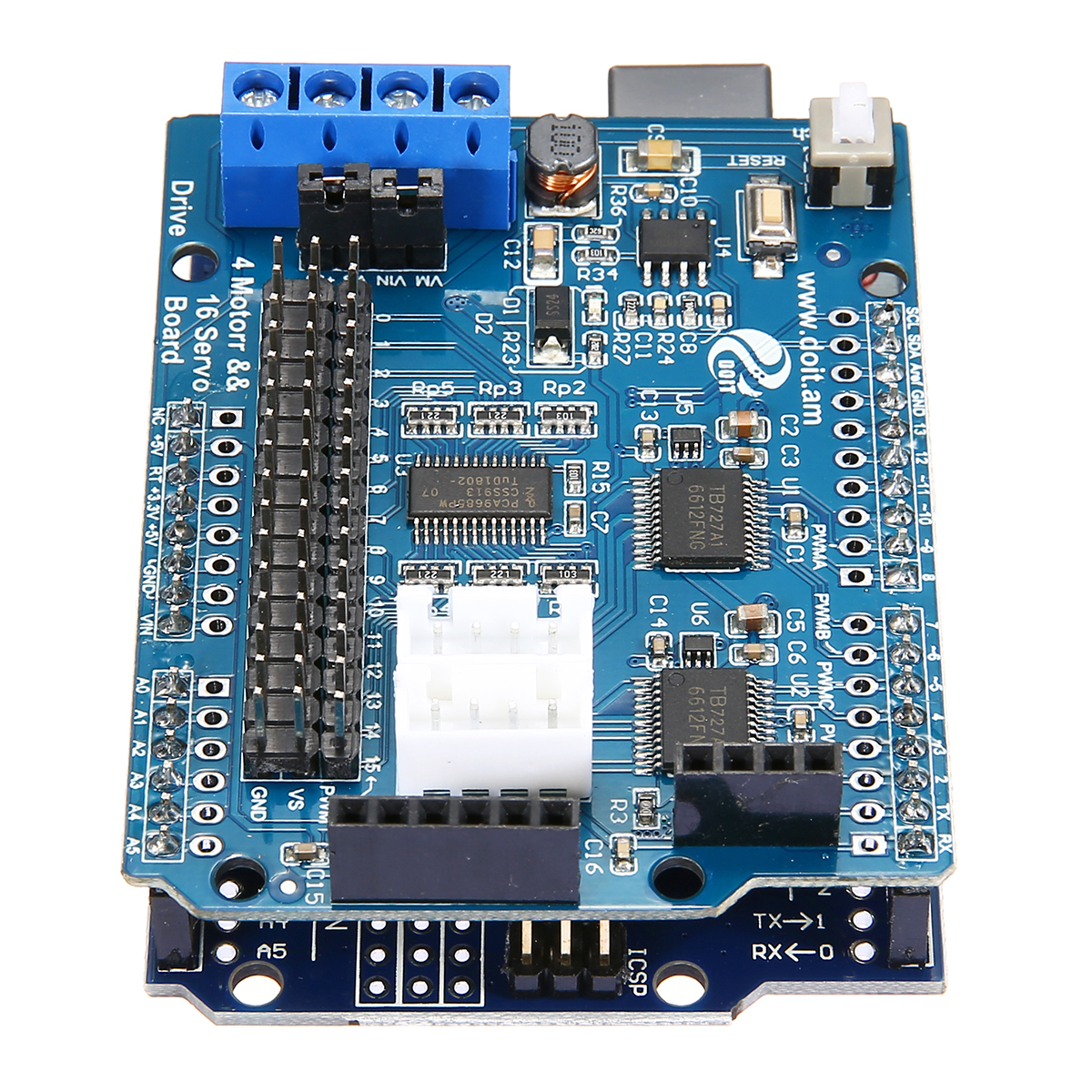

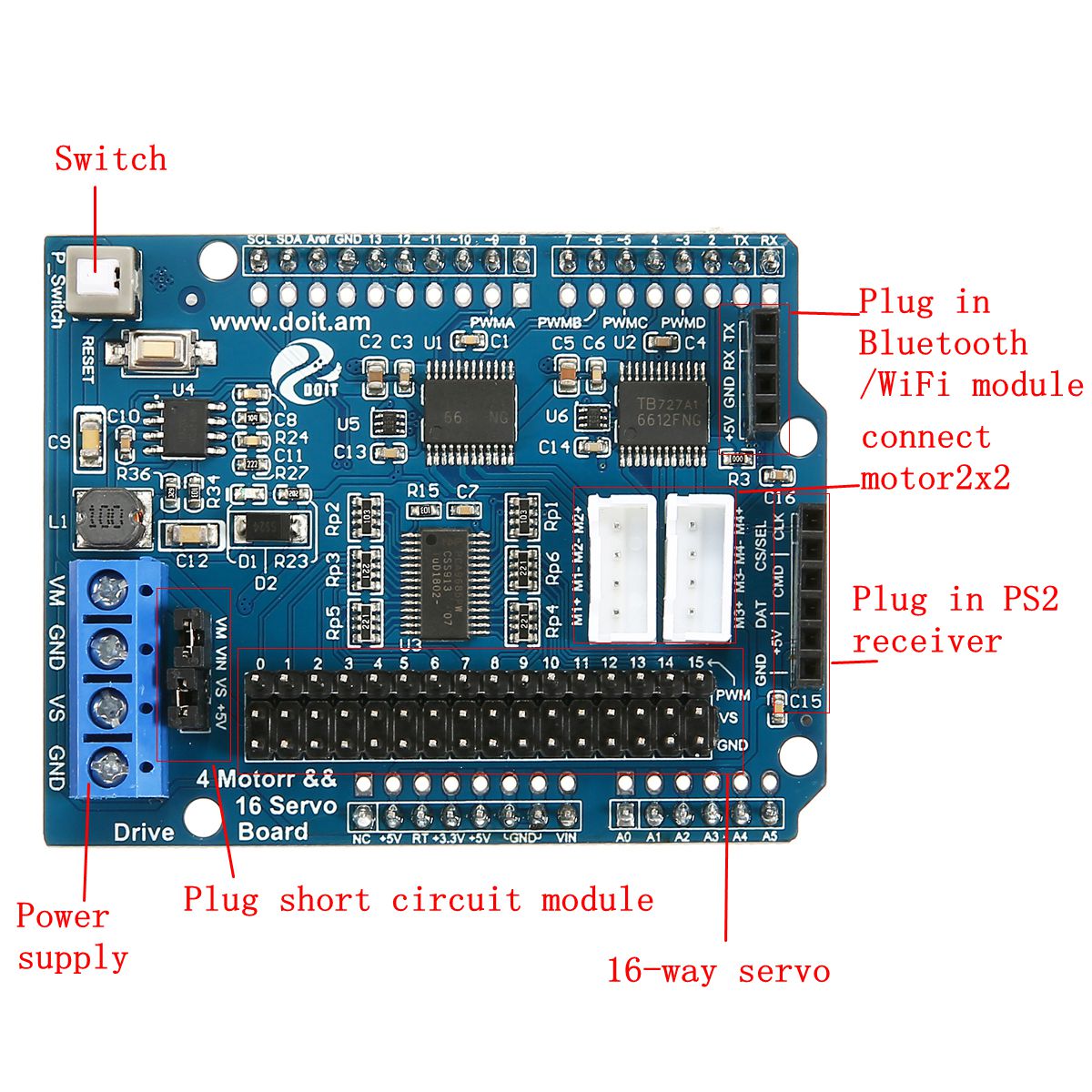

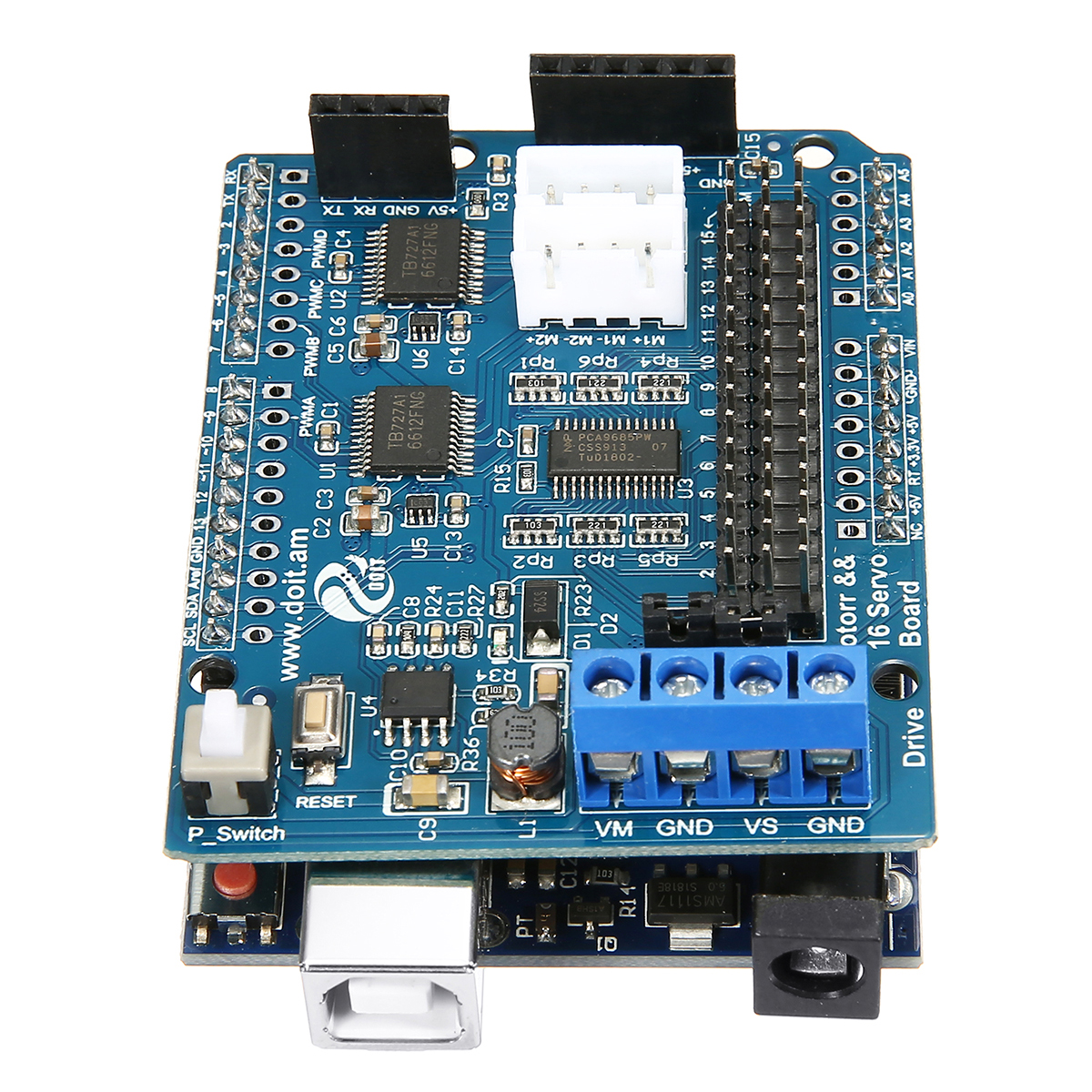

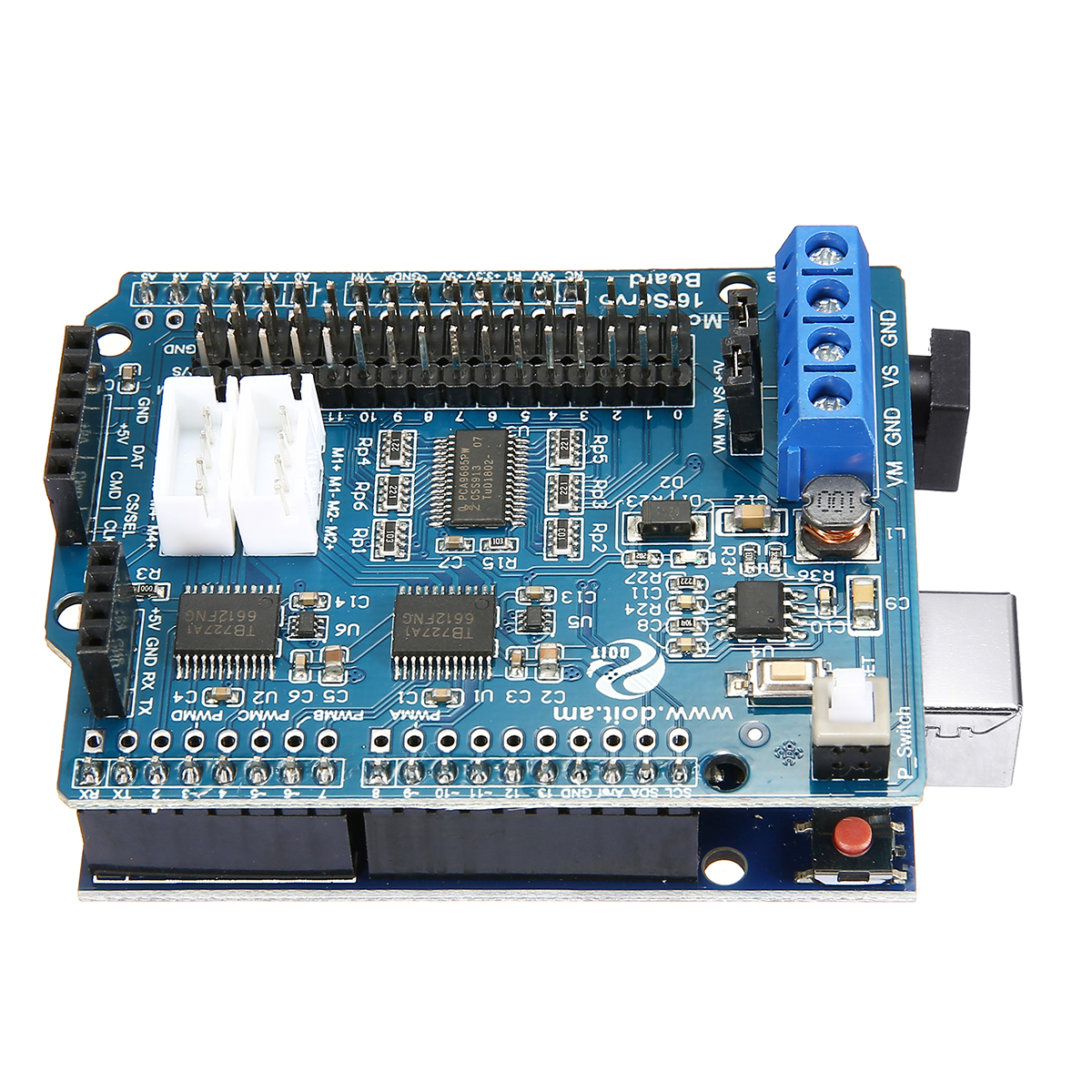

16-way servo and four-way motor drive board, using TB6612 four-way drive, PCA9685 for 16-way servo control
Lead UNO I/O pins
Maximum power supply input voltage 15V/DC
Reserve bluetooth & WIFI module socket
Reserved PS2 handle socket
Four-way DC motor drive, single-channel maximum drive current 1.2A average / 3.2A peak
16-way servo drive pin, power supply can be switched by external/internal power supply of jumper cap
Specification:
VM and VIN (separate control motor, 6-36V)
Power input:
Motor power supply (VM): 4.5V ~ 36V, which can be supplied separately
The power supply of steering gear (VIN): 5 ~ 18V, which can be supplied separately
Method of using single power supply:
VM and VIN (separate control motor, 6-36V)
Open-circuit VS and VIN control the steering gear separately (6-18V)
Short circuit VM and VIN, short circuit VS and 5V at the same time. Simultaneous control of motor (6-18V) and 16-way 5V steering gear
Package included:

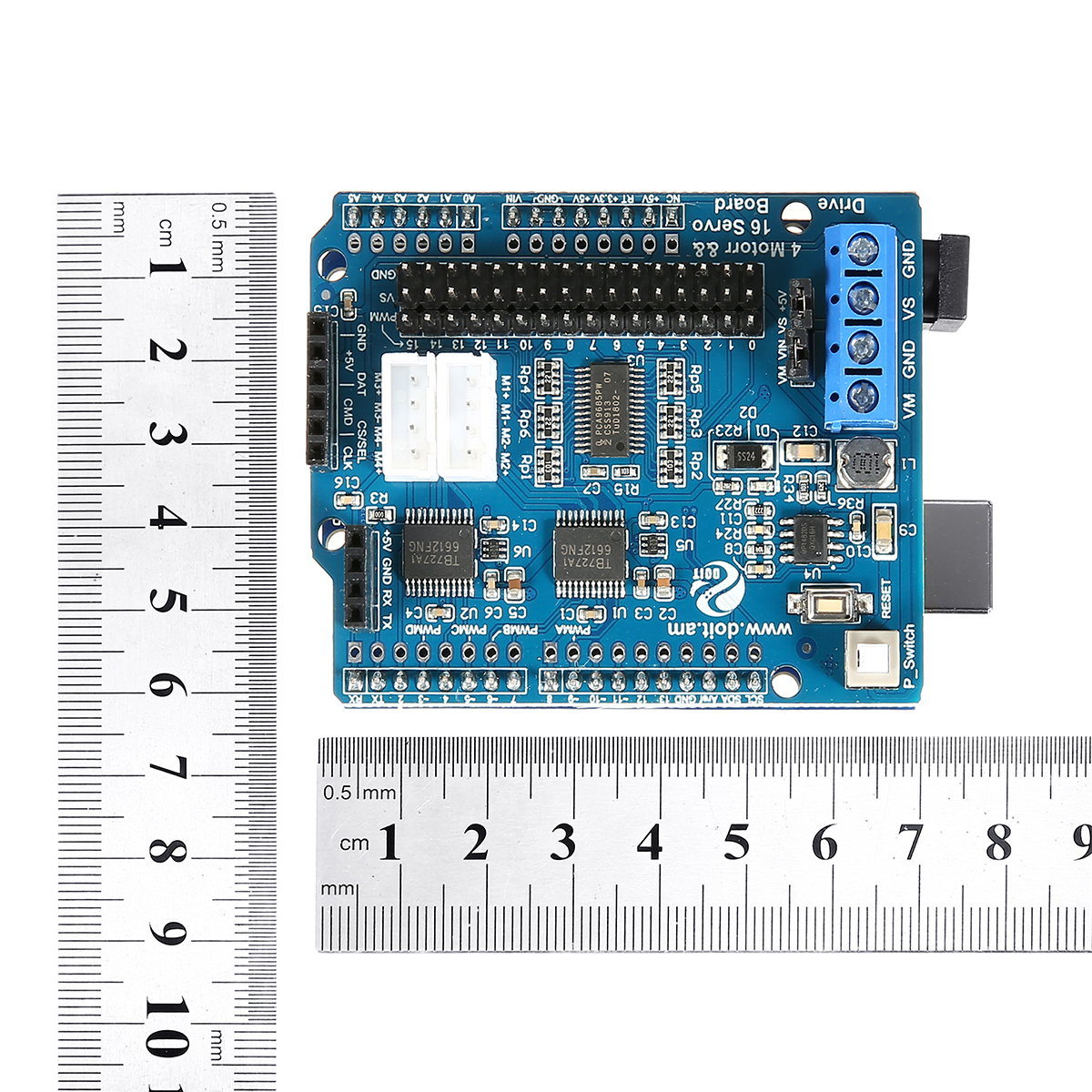

1 x 2/4 Motor Drive Board

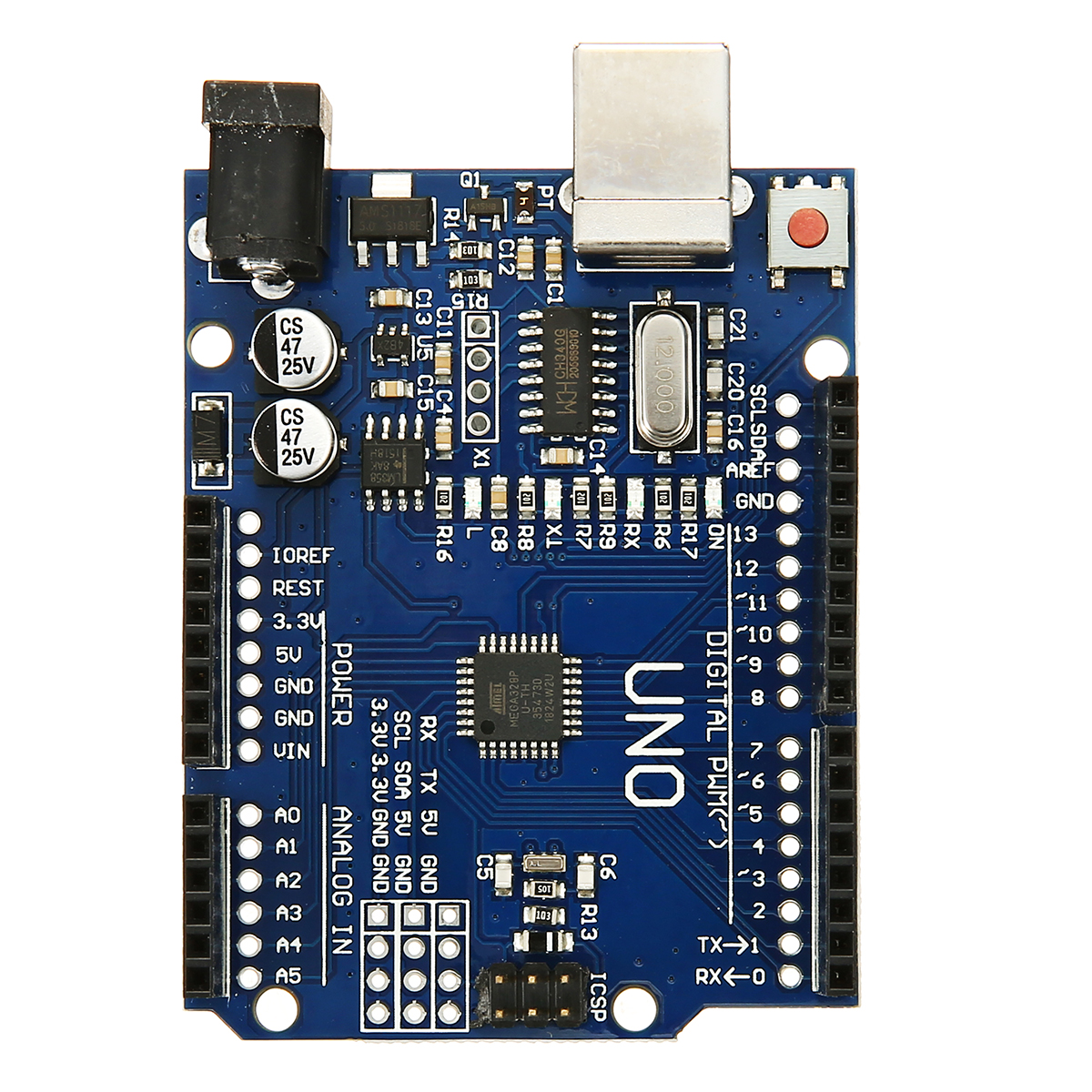

1 x UNO Development Board
1 x USB Cable
2 x Motor Wire

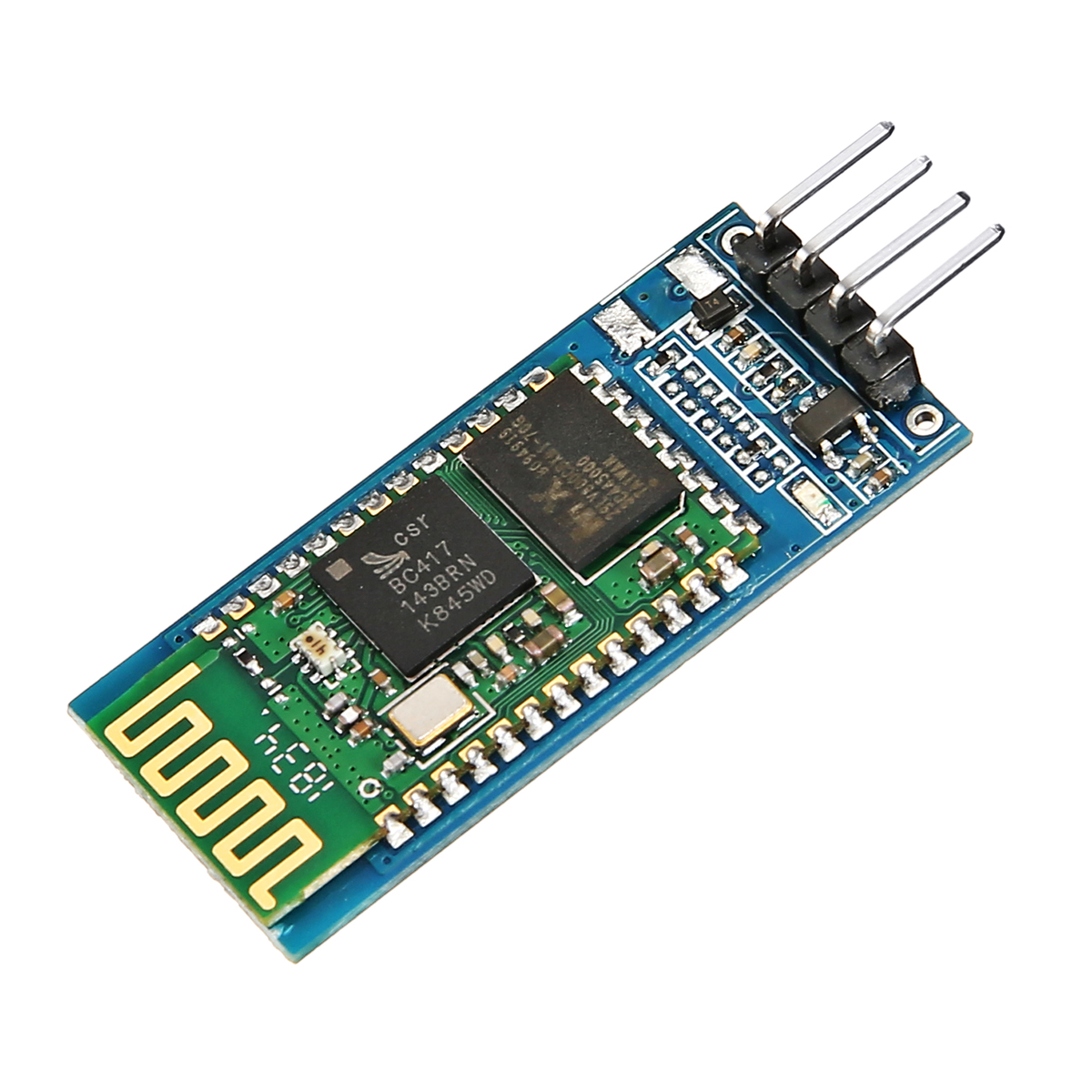

1 x bluetooth Module (optional)

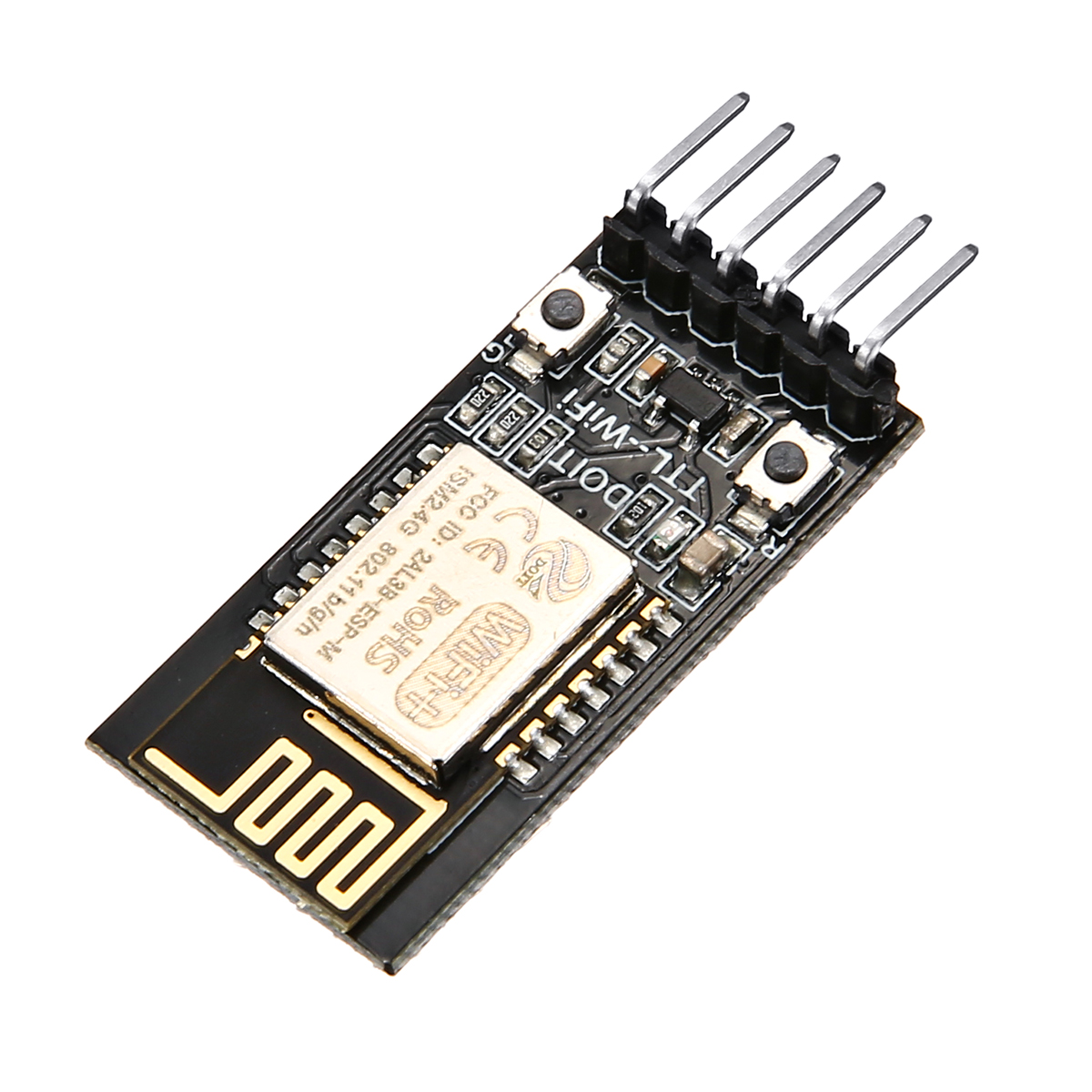

1 x WiFi Module (optional)
1 x Handle Kit (optional)
