  • Stock: In Stock
  • Model: ST22001782
  • SKU: ST22001782
$302.49
Ex Tax: $302.49

Available Options

Dear customers,
Attention please.
The flexible glue anti-vibration motor pad may cause the motor to slip, please check and tighten the screws before flying.
Best regards,
SunThen
Description:

Item Specification
Eachine Wizard X220S
Wheelbase: 220mm

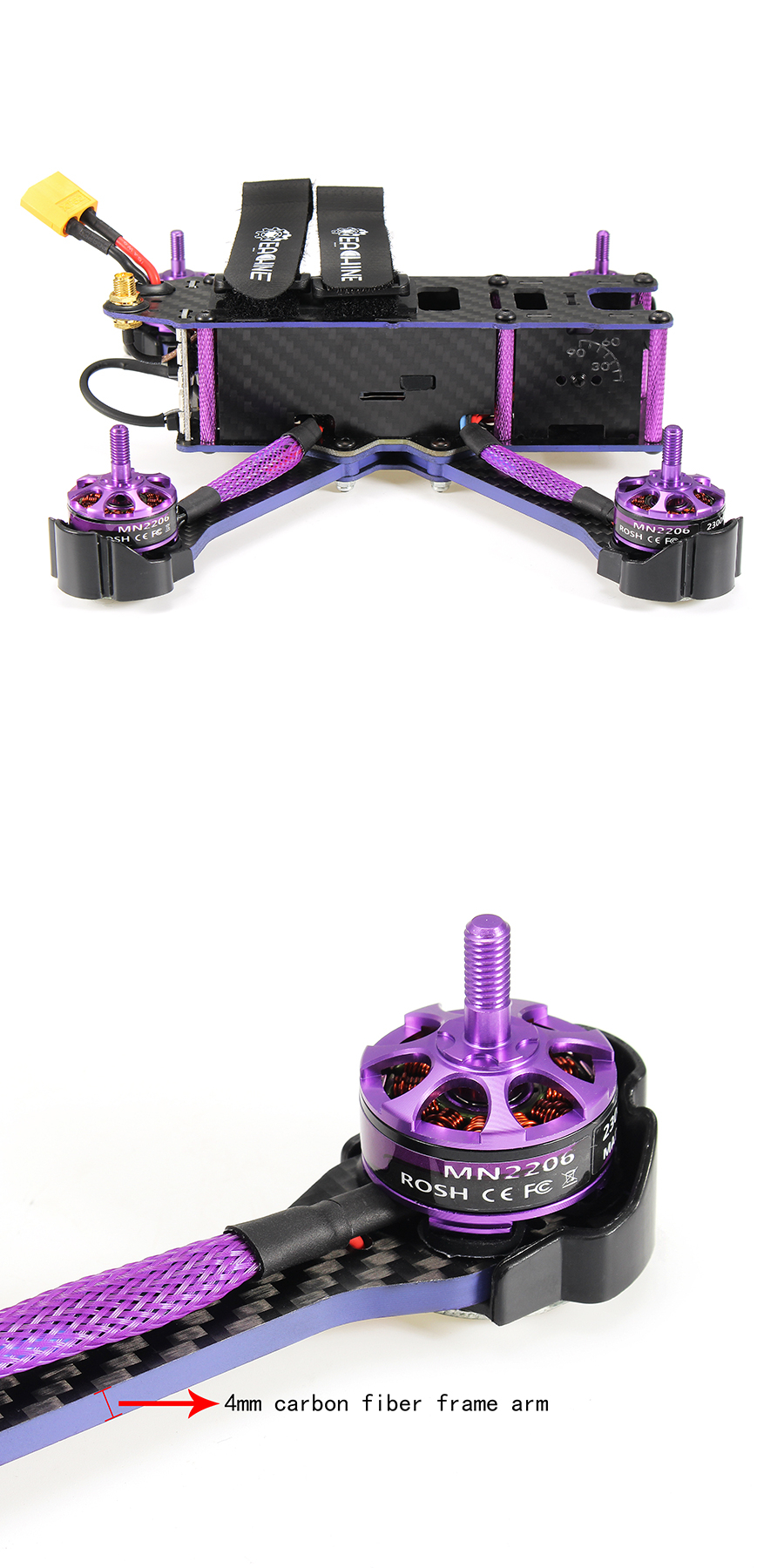

Frame arm: 4mm carbon fiber

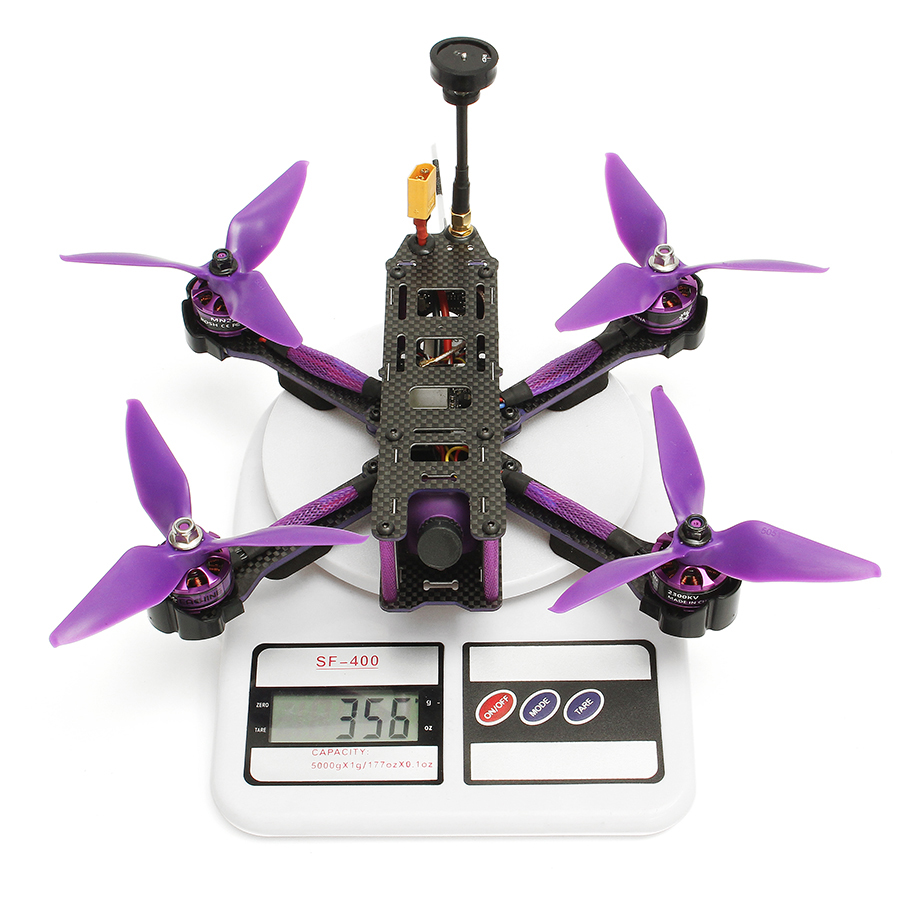

Weigh: 356g (without battery and camera mount)
Take off weigh: 561g

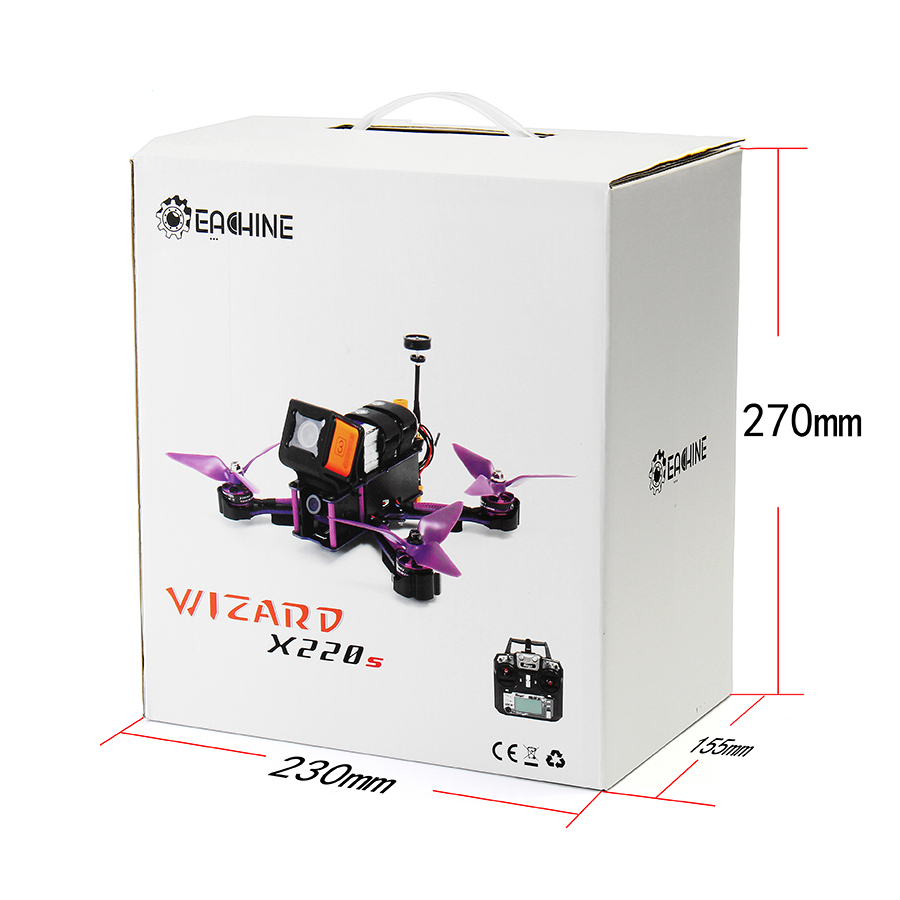

Package weigh: 1728g

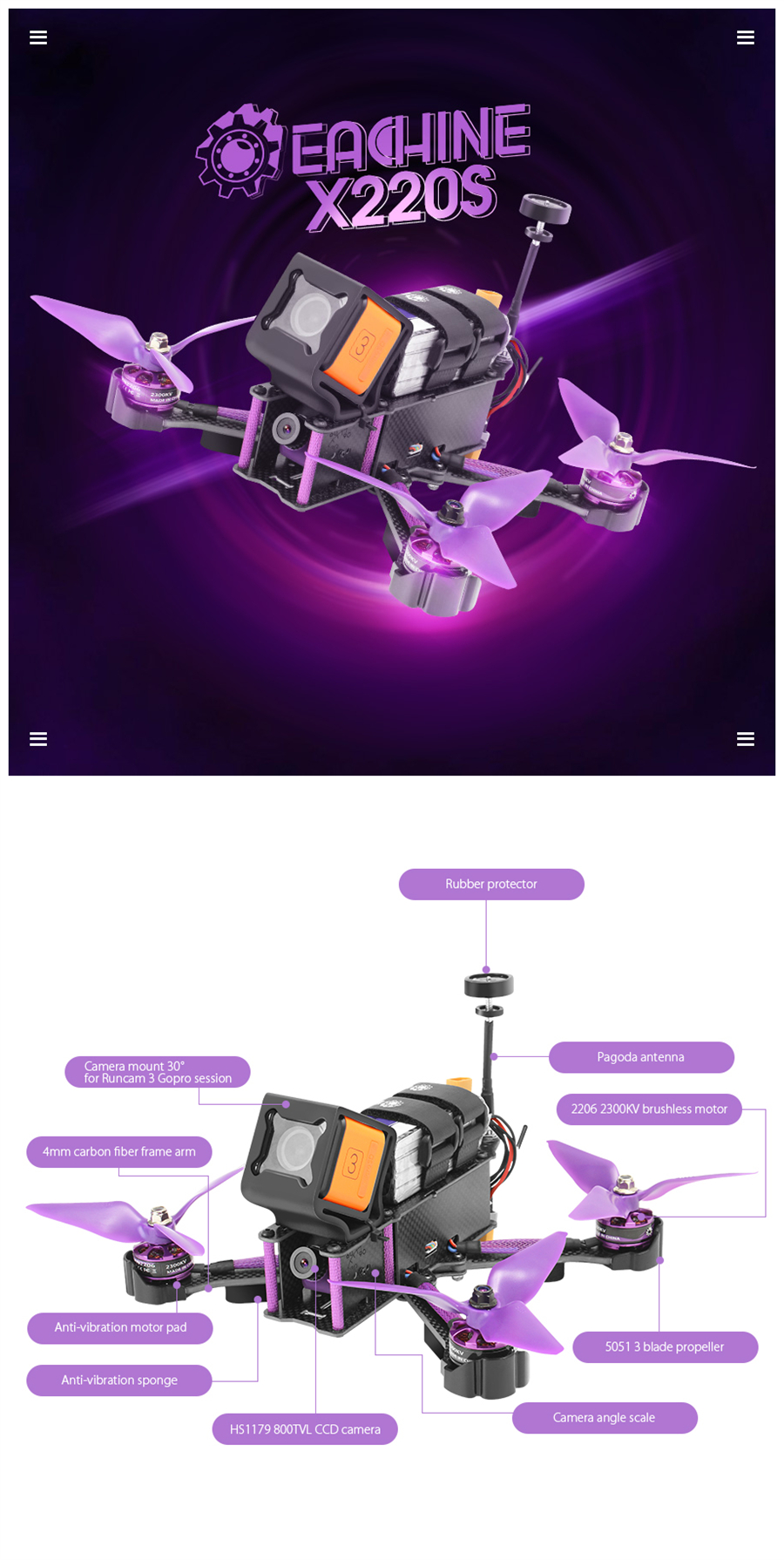

3K carbon fiber frame kit, 4mm thickness and 15mm width frame arms, the width is 10mm less than Eachine Wizard X220.
Frame kit with camera angle scale and 30° camera mount for Runcam 3 Gopro session.
Anti-vibration sponges to protect the racer frome crashing.

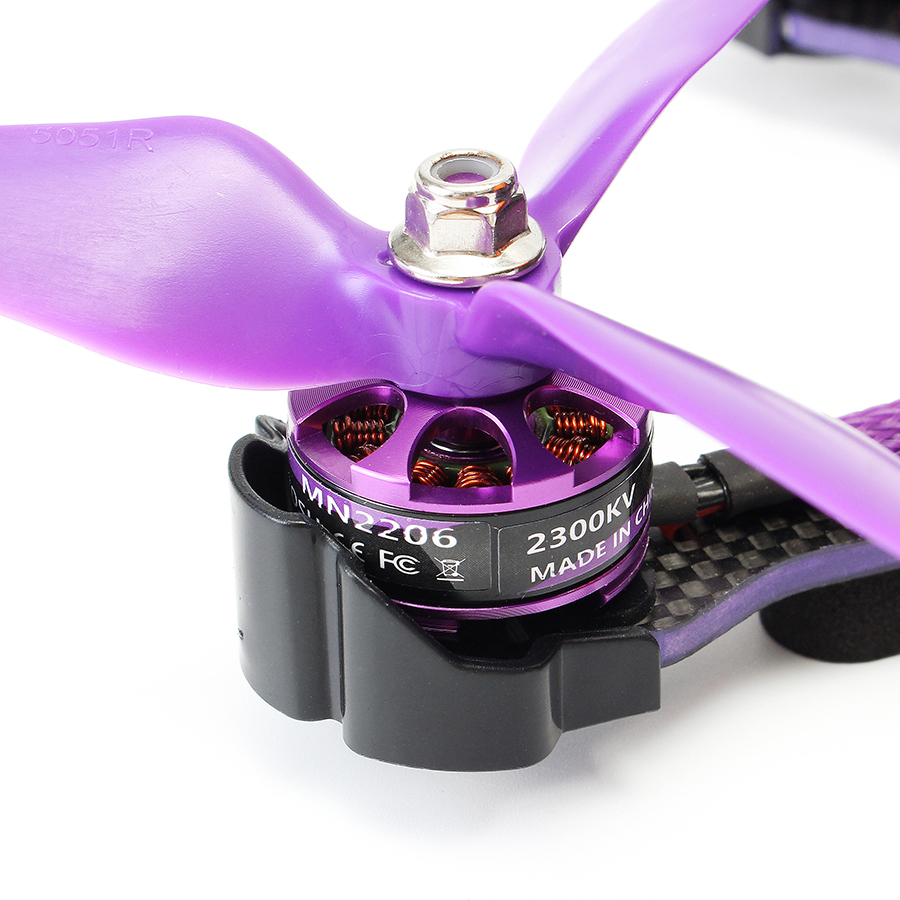

Eachine MN2206 2300KV motor

KV: 2300
Max thrust: 1100G
Length: 35MM
NO.OF cell: 3-5S
Diameter: 28MM
Framework: 12N14P
Shaft: 5mm
Propeller: 5 inch
Weight: 28g
Eachine 30A BLHELI_S 4 in 1 ESC
Con. current: 30A
Peak current (10S): 35A
Input voltage: 2-5S
BEC: 5V output
Programming: YES
Firmware: blheli_s
Weight: 28g
Size: 36*36MM
Eachine 1179 800TVL CCD camera
Color: purple
Sensor: CCD
Resolution(horizontal center): 800TVL
Shell size: 25mm*25mm
Weight: 11g
Resolution: PAL: 1980H×1080 (2MP)
Format: PAL
Video output: 1.0Vp-p/75Ω
Automatic gain control: 0.25/0.50/0.75/1.00 adjustable, up to 55dB.
AWB: ON/OFF
Exposure mode: electron exposure
Electronic shutter: 1/50(1/60) - 1/100000 S
Gamma correction: 0.45/1.0
Synchronization method: internal synchronization
Lens: standard 2.8mm lens
Working voltage: DC12V (Wide Voltage, measured that can be work in 5-13V)
Workig current: 70mA (low power consumption)
Workig temperature: -20℃--60℃
Humidity: 0%~98%
Strong backlighting effect
5.8G 40CH 25MW 200mw 600MW
switchable transmitter

Video Format : NTSC/PAL
Channel: 40CH
Operating Temperature : -10~85℃
Connector: RP-SMA Female
Antenna connector: RP-SMA Male
Omnibus F4 V3 flight controller
Size: 36x36mm
Mount holes: 30.5x30.5mm
STM32 F405 MCU, Runs Betaflight 3.0.1 firmware, could run faster loop time.
Using F4 MCU controls OSD over SPI bus in DMA mode.
OSD Configation has been included in Betaflight GUI.
SBUS/PPM input (Pinheaders)
6PWM output (1-4Pinheaders and Sh1.0 Plug, 5-6 as Pinheaders)
With barometer
SPI Sensor MPU6000
Included 128Mbit Flash, please always use BEC for the FC.
Supported by BETAFLIGHT and dRonin
Flysky FS-i6X 2.4GHz 10CH remote control

Channel: 6-10 (Default 6)
Model Type: Fixed-Wing/Glider/Helicopter
RF Range: 2.408-2.475GHz
RF Power: < 20dBm
RF Channel: 135
Bandwidth: 500KHz
2.4GHz System: AFHDS 2A / AFDHS
Modulation Type: GFSK
Stick Resolution 4096
Low Voltage Warning: < 4.2V
DSC port: PS/2 Port PPM
Chargeable: No
Antenna Length: 26mm (Dual Antenna)
Weight: 392g
Power: 6V DC 1.5AA*4
Display: STNTransflective Display, LCD 128x64 Lattice, VA 73x39mm, LCD with white backlight
Size: 174x89x190mm
On-line Update: Yes
Color: Black
Certificate: CE0678, FCC ID: N4ZFLYSKYI6X
Flysky FS-A8S receiver

Channels: PPM 8CH
Model type: Multi-rotor
Frequency range: 2.408-2.475GHz
Band width: 500KHz
Band number: 135
RX Sensitivity: -92 dBm
2.4GHz system: AFHDS 2A
Modulation type: GFSK
DSC port: PPM
Transfer method: FHSS
Data output: 1.5mm*3 Pin PPM
Antenna length: 26mm (Not including brass contacts)
Input power supply: 4.0-8.4V
Display method: LED
No ground interference ( Transmitting and receiving 1 m from the ground): >300m
Working current: 40mA
Each channel data: depend on the transmitter
Channel delay: <15mS
Size: 20*14*5.3mm
Weight: 1.2g
Certificate: CE0678, FCCID: N45ZA8S00
1500mAH 4S 14.8V 75C battery

Capacity(mAh) : 1500
Cells (s): 4
Weight (g): 177
Length(mm): 80
Width(mm): 30
Height(mm): 33
Connector: XT60
Eachine 5051 3-blade propeller
Color: purple
Quantity: 10 Pairs
Mounting Hole: 5mm

Eachine wizard X220S FPV drone english manual

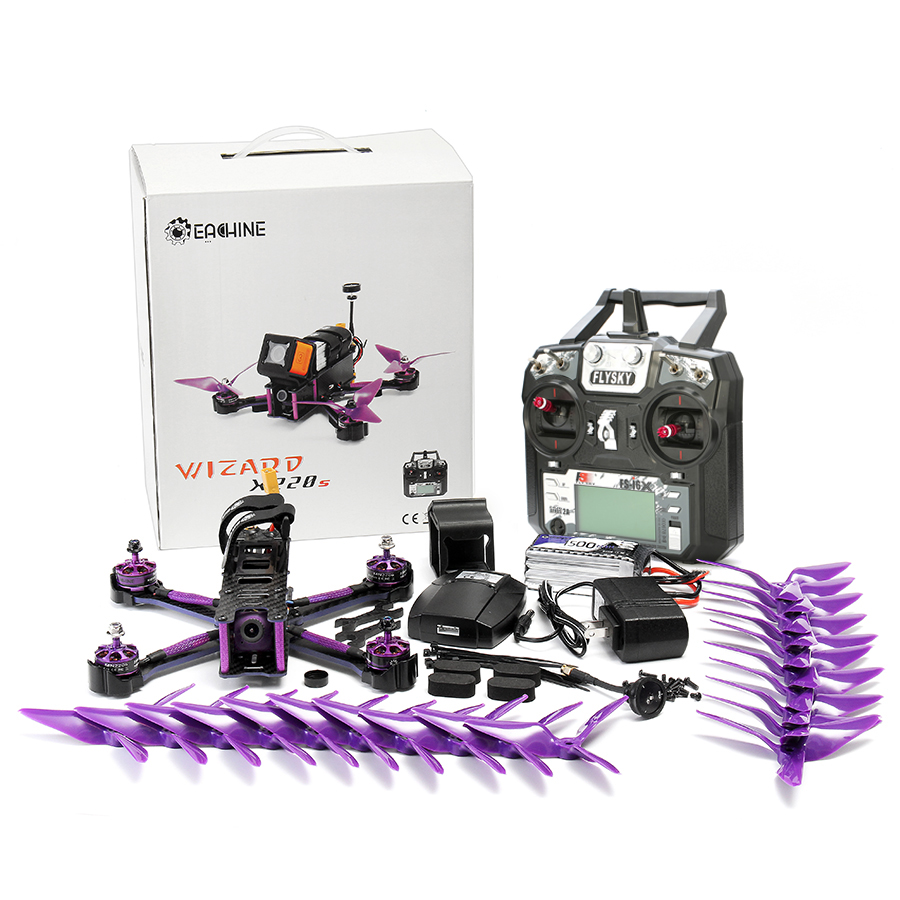

Package included:
1 x Eachine Wizard X220S frame kit
1 x Flysky FS-i6X remote control
1 x Flysky FS-A8S receiver
2 x 2206 2300KV motor CW
2 x 2206 2300KV motor CCW
1 x Eachine 30A BLHELI_S 4 in 1 ESC
1 x Omnibus F4 V3 flight controller
1 x 800TVL camera
1 x 5.8G 40CH 25MW 200mw 600MW switchable VTX
10 x Eachine 5051 3-blade propeller purple CW
10 x Eachine 5051 3-blade propeller purple CCW
1 x 1500mAH 4S 14.8V 75C battery
1 x 30° Camera Mount(For Runcam3/Gopro session)
1 x Charger
1 x Pagoda antenna
2 x Battery strap
2 x Wrench

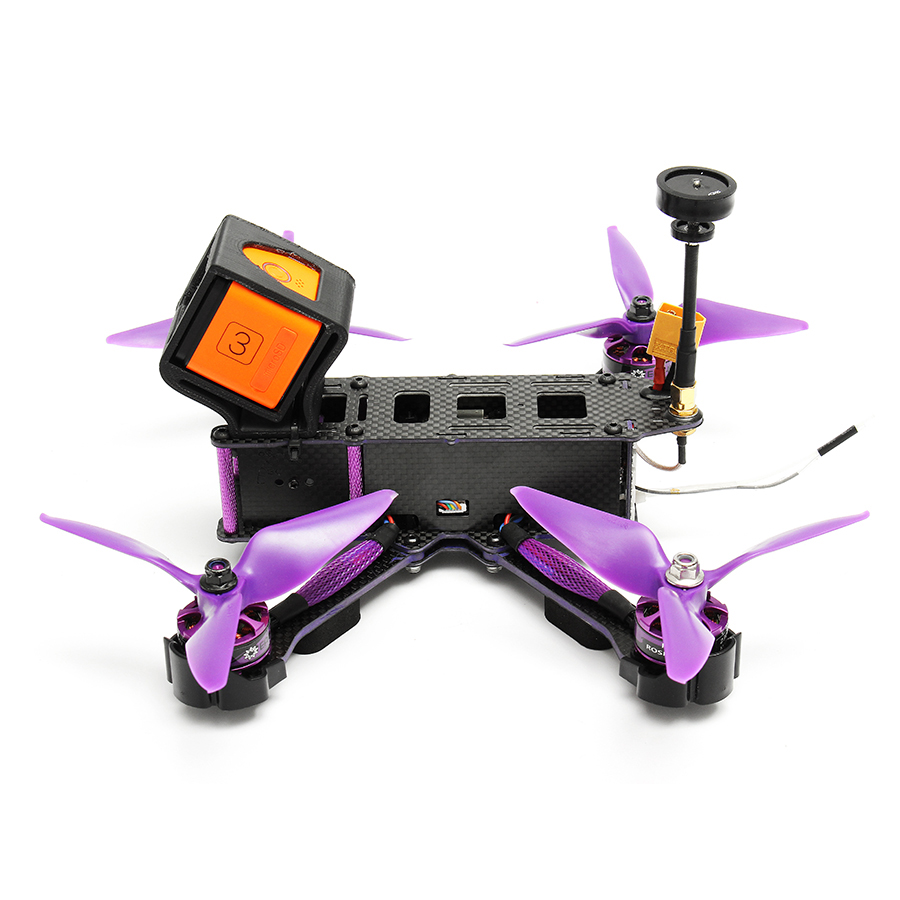

(Package doesn't include Runcam 3, the Runcam 3 on the pictures for reference only.)
