  • Stock: In Stock
  • Model: ST22000917
  • SKU: ST22000917
$302.50
Ex Tax: $302.50
Feature:
New design and minimal assembly time (~15 minutes)
Carbon Fiber frame with fiber-reinforced nylon connectors providing easy & straightforward installation

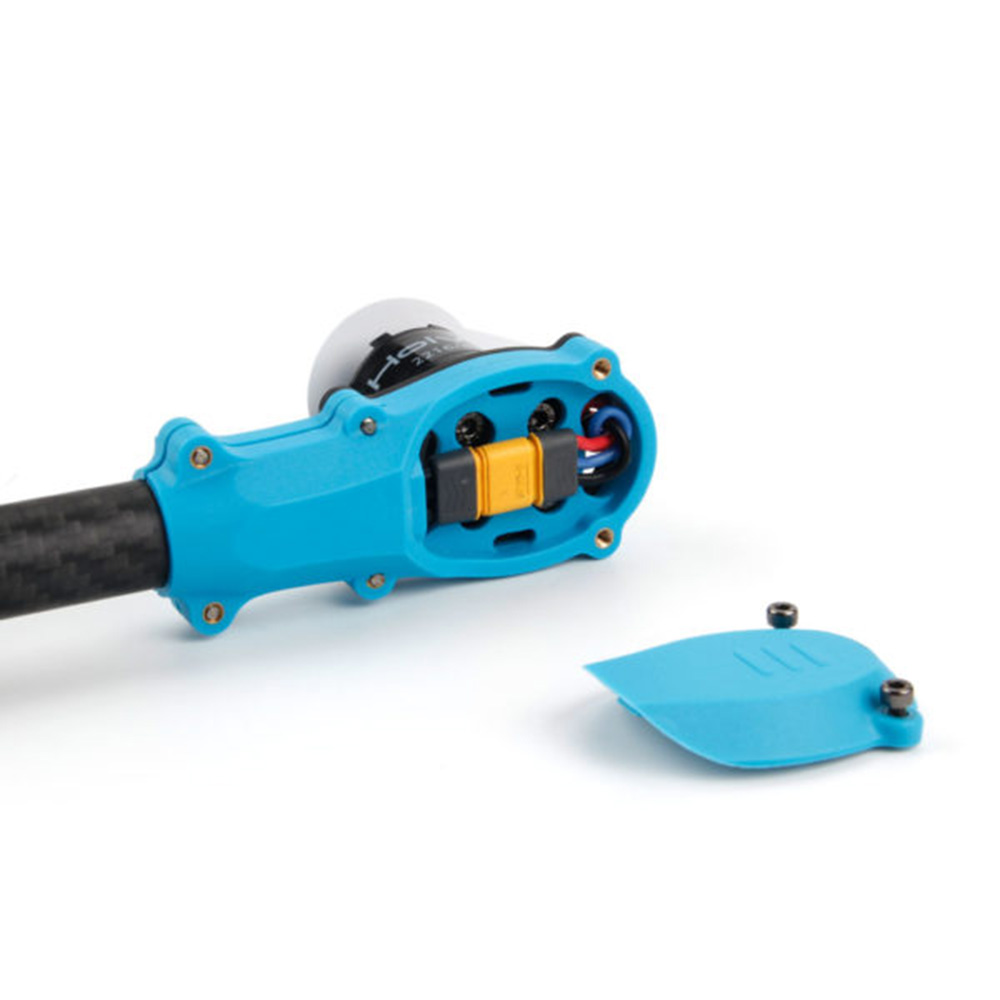

Pre-installed motors & ESCs with simple XT30 power plugs for PDB

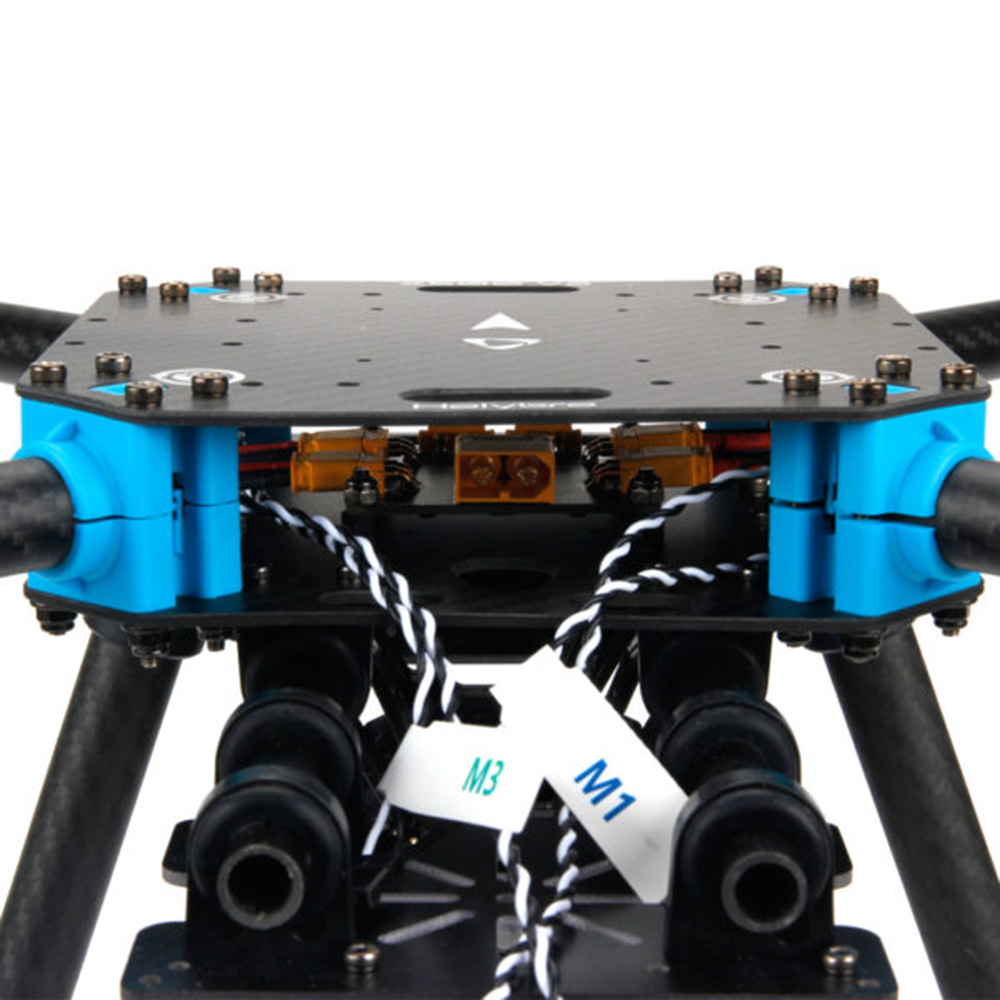

Power distribution board (PDB) with XT60 & XT30 plugs – no soldering needed
Mount for companion computer such as Raspberry Pi & Nvidia Jetson Nano
Optional depth camera mount for Intel RealSense & Structure Core

Description:

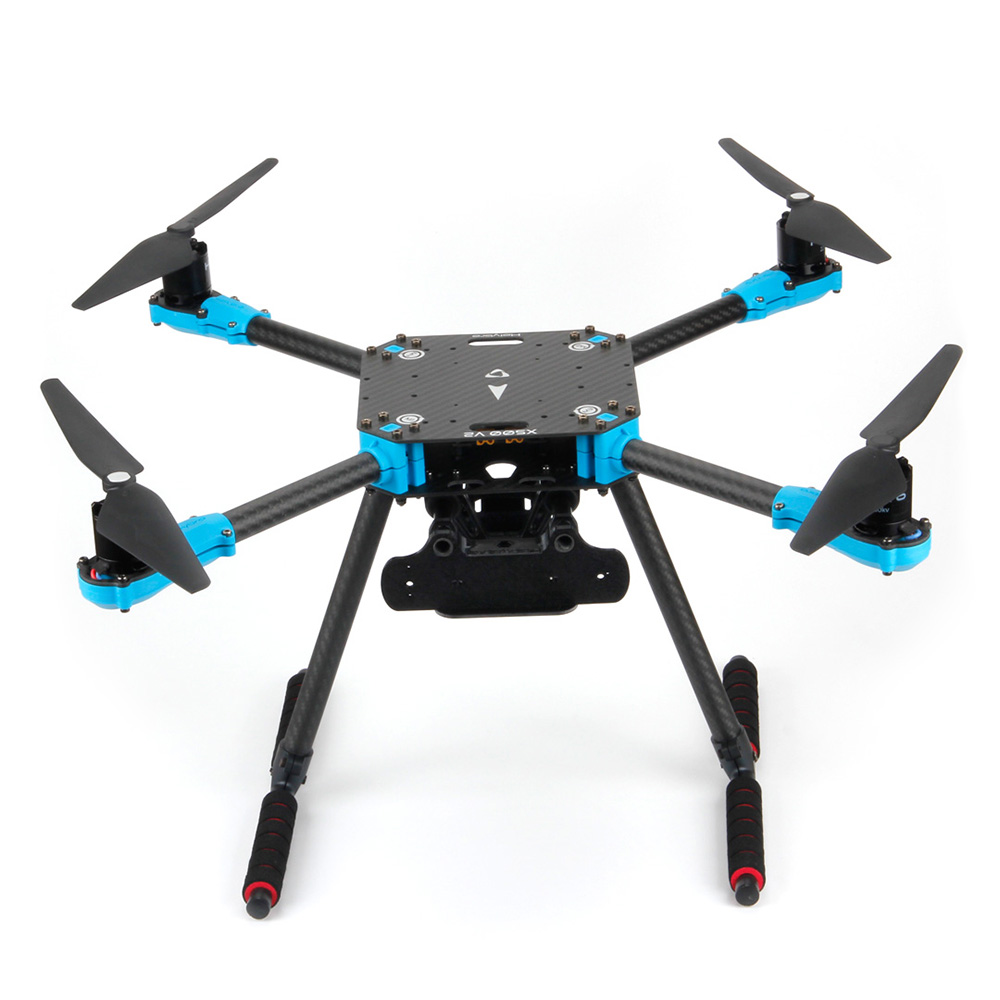

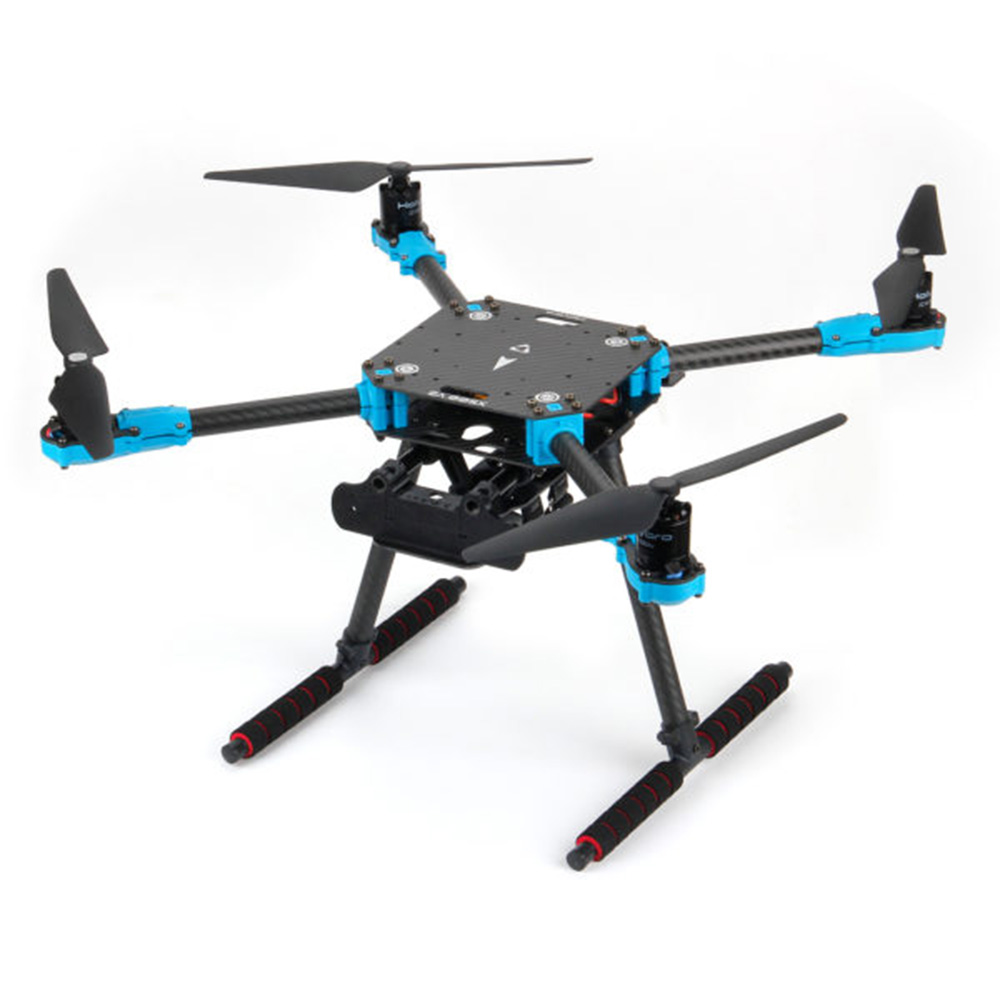

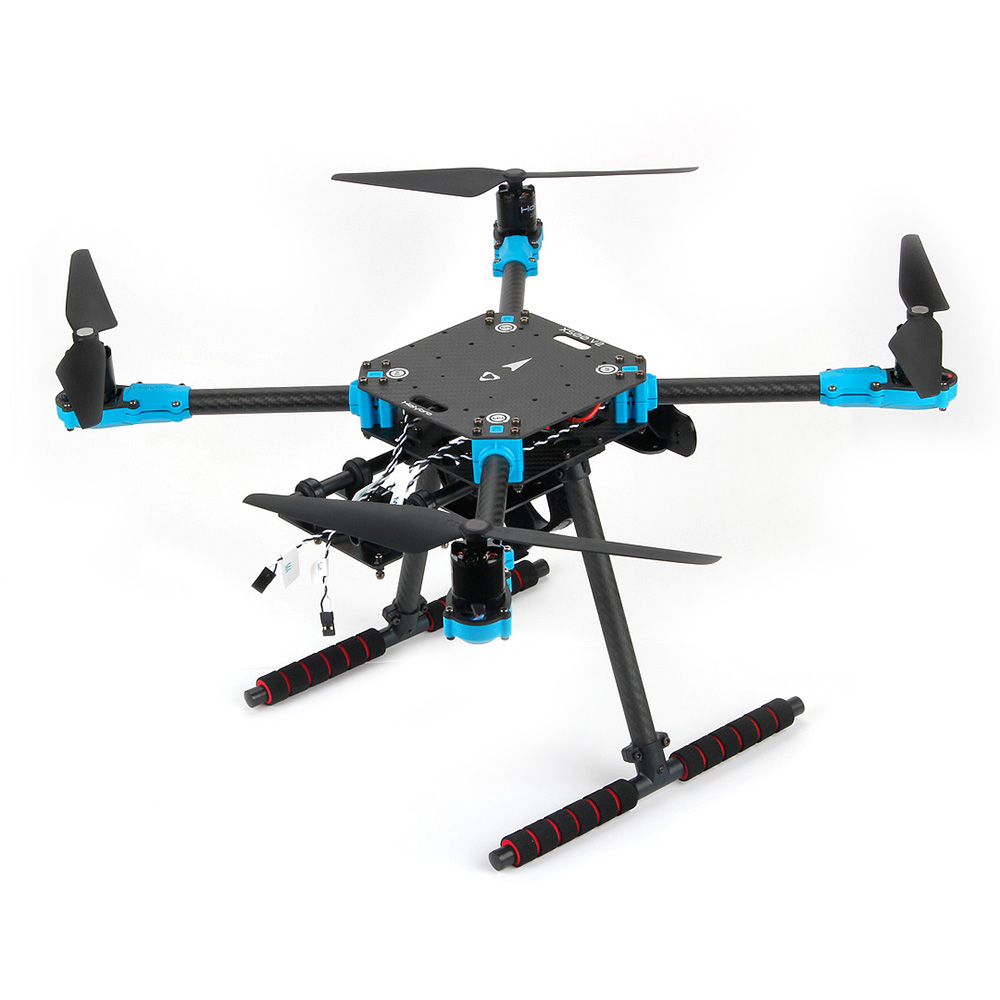

The X500 V2 ARF (Almost Ready-to-Fly) Kit is an affordable, lightweight, and robust carbon fiber professional drone kit that is easy to assemble (less than 15 minutes). It comes with the X500 V2 Frame Kit and motors, ESCs, power distribution boards and propellers preinstalled. It is perfectly compatible with various flight controllers such as the SUNTHEN Pixhawk series, Durandal, Pix32 V5, etc. There are numerous improvements compared the previous model.
The X500 V2 Frame Kit is made with full carbon fiber twill, with carbon fiber tube arms supported by the newly designed fiber reinforced nylon connectors with convenient notches on both motor and body sides, providing a much easier & more straightforward installation. The landing gear consists of 16mm & 10mm diameter carbon fiber tubes with connectors that has been thickened and strengthened.
The spacing between top and bottom carbon fiber plates has been increased to provide an easier access. The platform board now has mounting holes for GPS & popular companion computers such as the Raspberry Pi 4 & Jetson Nano. The adjustable battery mounting board has been enlarged to support bigger batteries for longer flight time. The rail mounting system is ready to take a whole host of camera mounts and gimbals for various applications. There is an optional mount for various depth cameras such as the Intel RealSense series & Structure Core Depth Cameras (purchase separately). All tools for installation provided in box.

Specification:

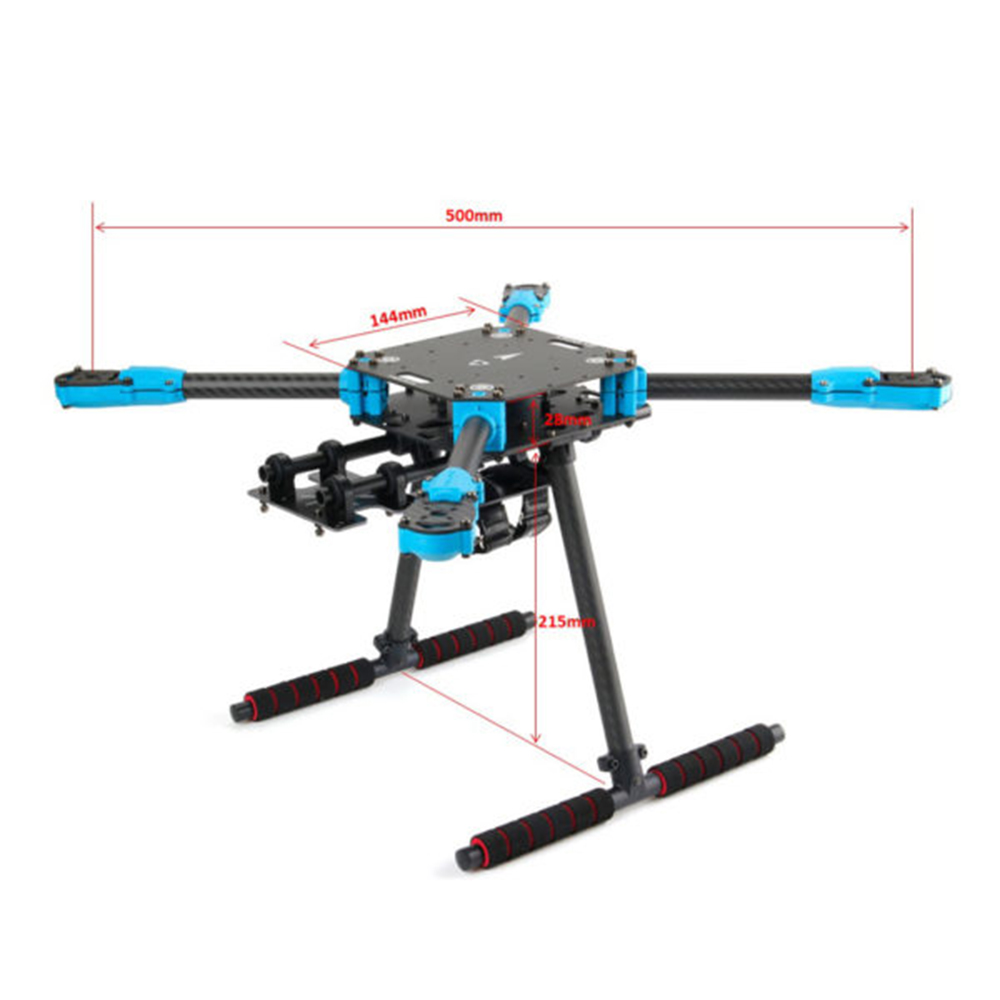

Item Name: X500 V2 ARF Kit Combo
Wheelbase: 500mm
Motor mount pattern: 16x16mm
Frame Body: 144x144mm, 2mm thick
Landing gear height: 215mm
Space between top and bottom plates: 28mm
Weight: 610g

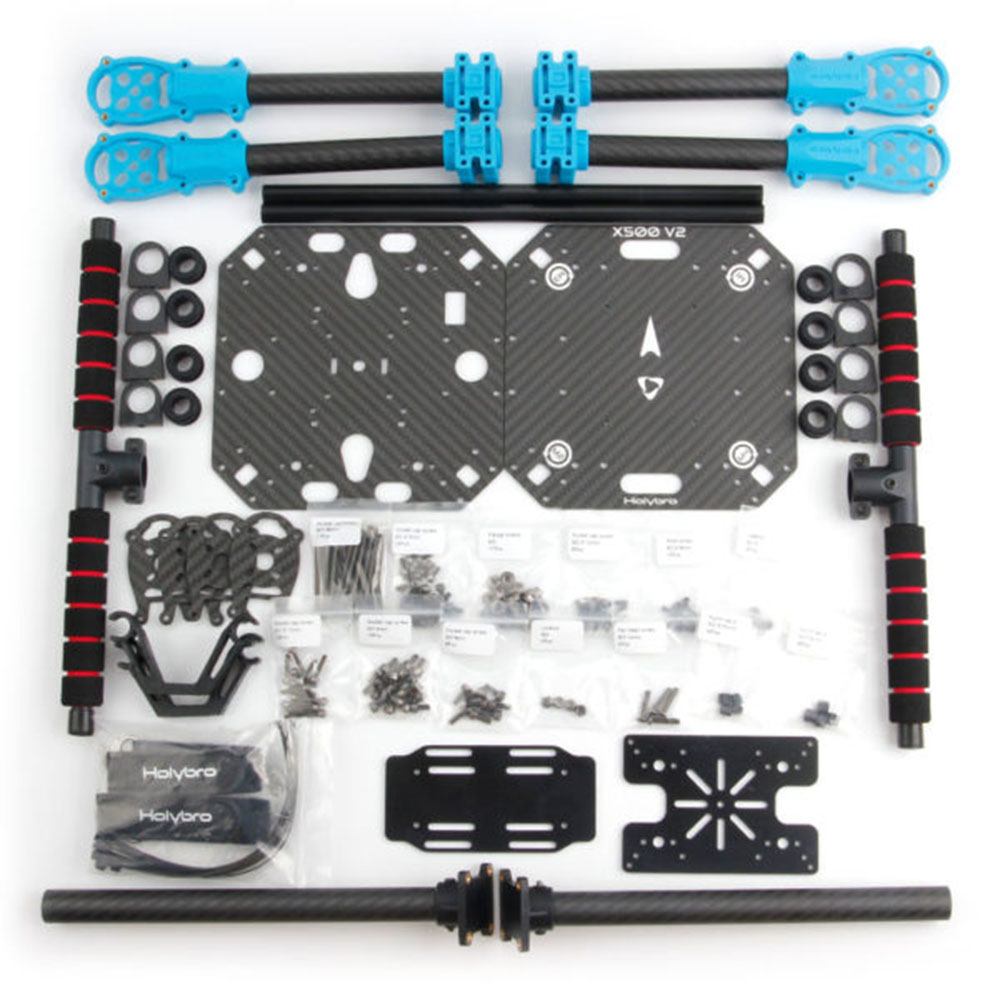

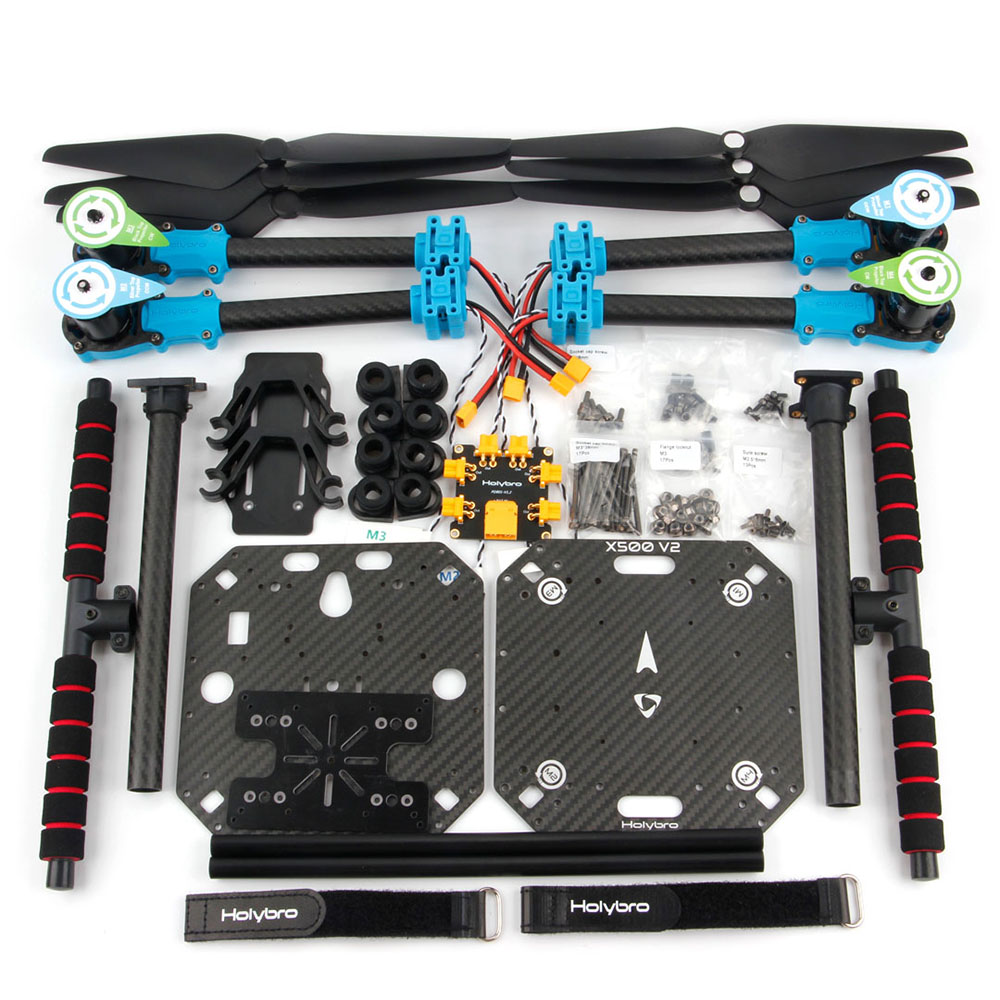

X500 V2 Frame Kit:
Body – Full Carbon Fiber Top & Bottom plate (144 x 144mm, 2mm thick)
Arm – High strength & ultra-lightweight 16mm carbon fiber tubes with newly designed fiber reinforced nylon connectors
Landing gear – 16mm & 10mm diameter carbon fiber tubes with strengthened & improved plastic tee connectors.
Platform board – With mounting holes for GPS & popular companion computer such as the Raspberry Pi 4 & Jetson Nano
Dual 10mm Ø rod x 250 mm long rail mounting system
Battery mount with two Battery Straps
Hand tools for installation

1045 Propeller

Item Name: 1045 10 Inch 2-Blade Prop

Quantity: 3 CW & 3 CCW

X500 V2 Frame Kit

Item Name: 500mm Wheelbase Frame

X500 V2 Frame Kit Assembly Guide

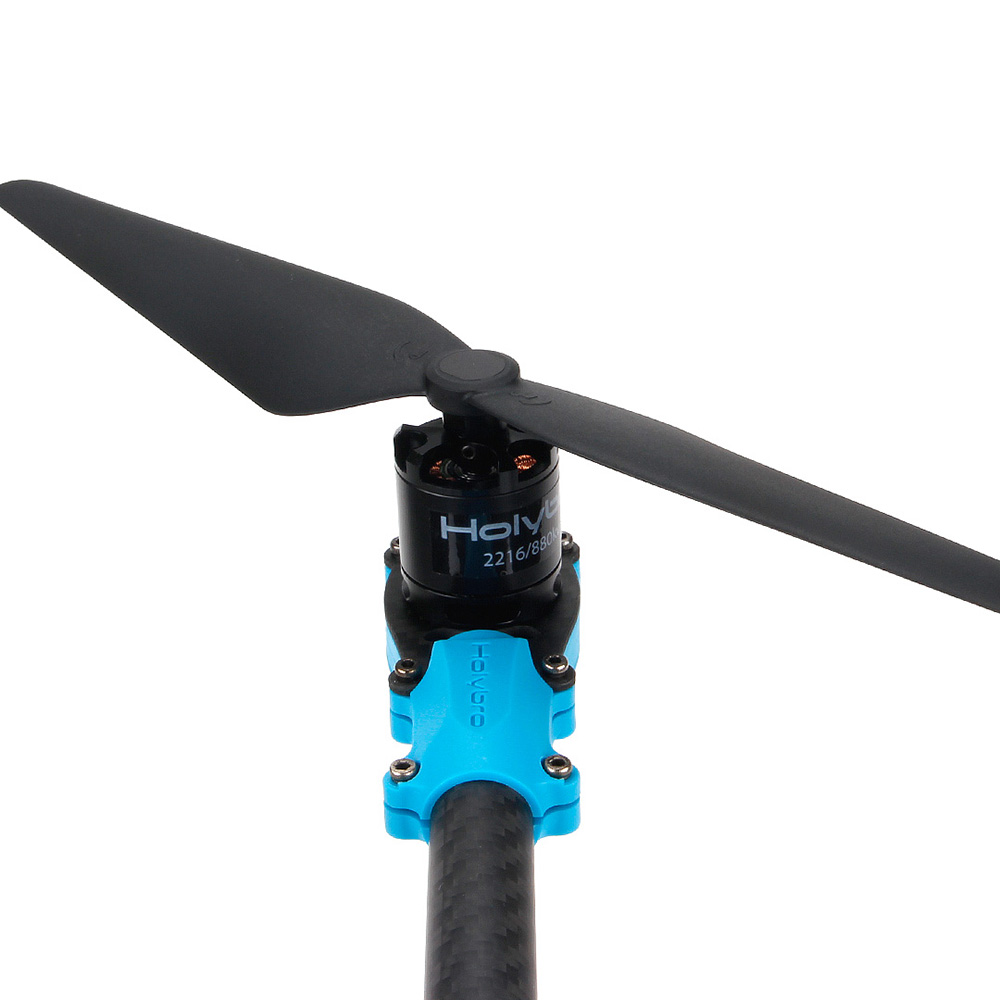

2216 880KV Motor

Item Name: 2216 880KV Motor

Quantity: 2 CW & 2 CCW

Test Table

20A BLHeli_S ESC

Item Name: 20A BLheli_S ESC
Con. Current:20A
Burst Current(10S): 30A
BEC: NO
LiPo cells: 2-4S

Quantity: 4 PCS
BLHeli-S is using the A-H-30 BLHeli-S firmware



Recommendation(Not Included):
Flight Controller: Pixhawk 5x, Pixhawk 4, Pixhawk 4 Mini, Durandal, Pix32 v5
Power Module: PM02D, PM02 V3
GPS: SUNTHEN M8N/M9N GPS, H-RTK M8P/F9P Rover Lite & Helical
Battery: 4S 2000-5000mAh Lipo

Package Included:
1x SUNTHEN X500 V2 ARF Kit Combo
