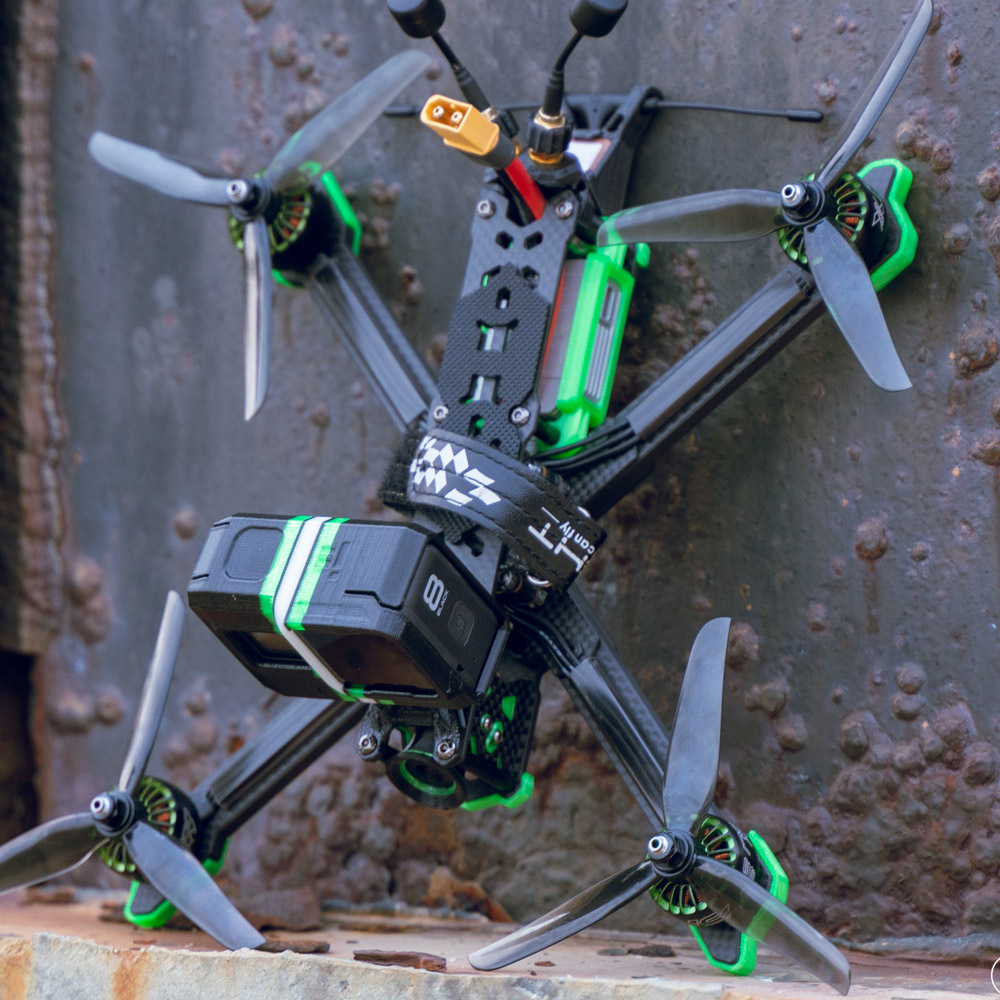

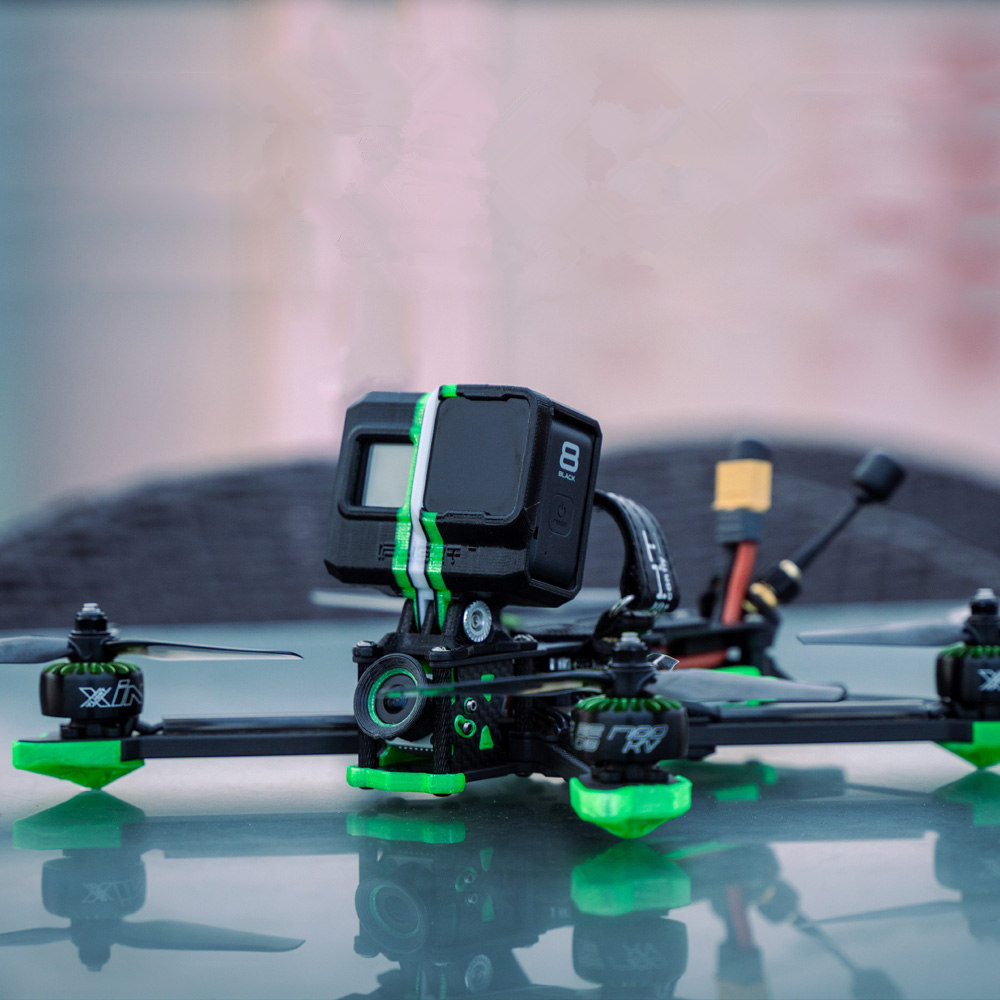

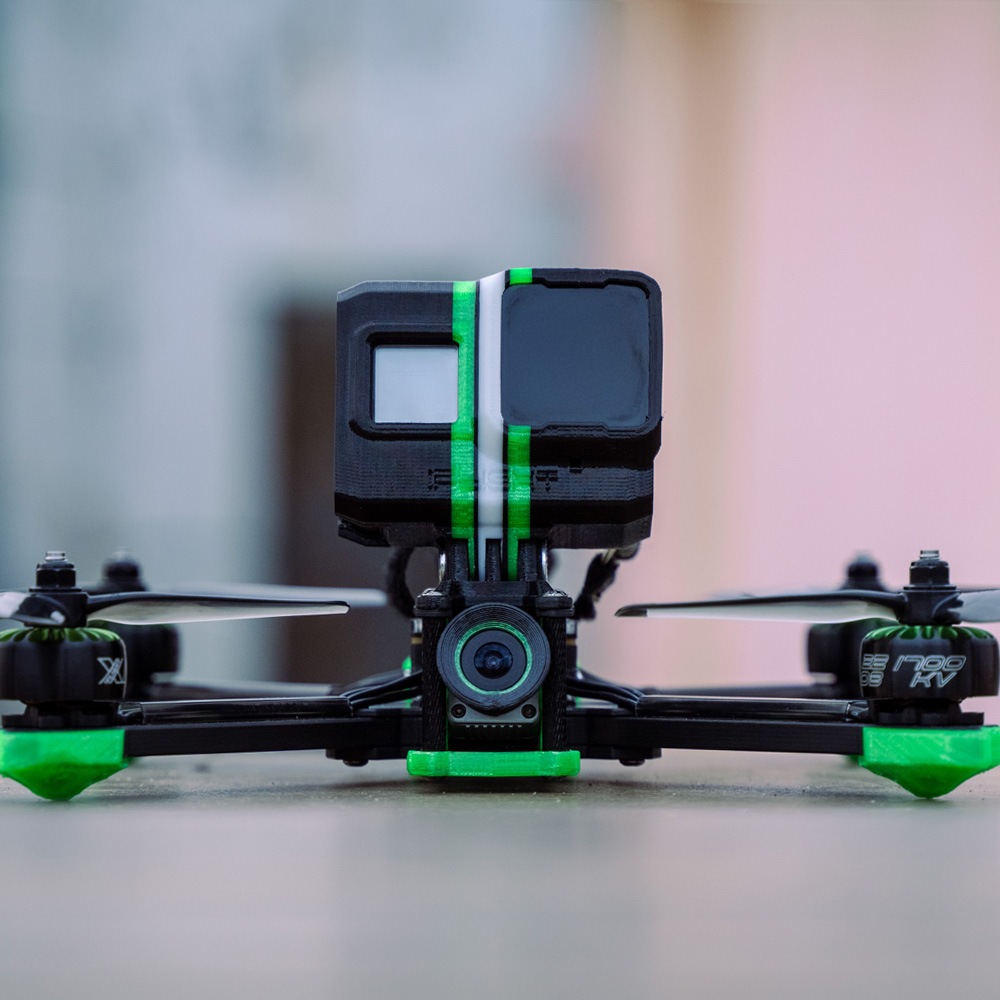

XL5 HD 250mm F7 50A ESC 4S 5 Inch FPV Racing Drone BNF with Caddx Nebula Nnao Digital System & GPS
- Stock: In Stock
- Model: ST22000954
- SKU: ST22000954
$545.59
Ex Tax: $545.59
Notice: The Camera Mount for Gopro is NOT Included in the pacakge
Specification:
Model: TITAN XL5 HD
Item Name: 250mm F7 4S FPV Racing Drone BNF
Wheelbase: 250mm
Optional Receiver: BNF-Vista ( Built-in Vista RX); Frsky XM+ Receiver ( Built-in Vista RX & Frsky XM+ RX)
Frsky R-XSR Receiver ( Built-in Vista RX & Frsky R-XSR RX)
TBS CRSF Nano Receiver ( Built-in Vista RX & TBS CRSF Nano RX)
Recommend Battery: 4S 1550mAh 120C Lipo Battery ( NOT Included)
| TITAN XL5 250mm Frame |
Wheelbase: 250mm
Main body dimension: 185*133mm
Bottom to top distance: 30mm
Arm thickness: 6mm
Bottom plate thickness: 2mm
Top plate thickness: 2mm
Camera plate thickness: 2mm (2.5mm included TPU inserts) Weight : 145g |
|
SucceX-D F7 Stack F7 V2.1 TwinG Flight Controller (HD Version) |
MCU: 216MHz STM32F722
Gyroscope: 2x ICM20689
Baro: YES
Blackbox: 32MB
Betaflight OSD: YES
BEC: 5V 2.5A / 9V 2.5A
Current sensor scale: 100
Inverter for SBUS input (UART2-RX)
Smartaudio & Tramp VTX protocol supported
Beeper pad : Yes
RSSI input pad: No
UARTs: 5
Motor outputs: 8
BLHeli32 Telemetry: RX5
Firmware: IFLIGHT_F722_TWING
Mounting pattern: 30.5*30.5mm φ4mm with Grommets φ3mm
Dimensions: 36*36mm
Weight: 7.5g
USB type-C |
|
SucceX-D F7 Stack 50A 2-6S BLheli_32 4in1 ESC |
Dimension: 43*39mm
Mounting Holes: 30.5*30.5mm/Φ3mm
Weight:14.4g
Volts input: 2-6S
STM32F051 MCU, 48Mhz Runs BLHELI 32.X Firmware
Current sensor: Yes
Telemetry: Supported
BEC: No
Supports: DShot DShot150/300/600/1200/MultiShot/ OneShot42/Oneshot125 etc.
Target: iFlight-BL32-4IN1 |
| XING 2208 2450KV 4S Motor |
Item name: XING X2208 Brushless Motor
KV: 2450KV
Stator Diamter: 22mm
Stator Length: 8mm
Shaft Diameter: 5mm
No.of Cells(Lipo): 3-4S
Weight: 37g |
| Nazgul 5140 3-Blade Propeller |
Item Name: 5140 5 Inch Durable 3-Blades Propeller
Model: Nazgul 5140
Material: polycarbonate
Mounting: 5mm center hole
Weight of Single Prop: 4g
Quantity: 2 CW & 2 CCW |
Features:
- 6mm arm design for more durability
- XING 2208 motors for more power
- GPS pre-installed for more safety at distance
- Variable GoPro TPU mount (supports ND-Filter inserts)
- 360° TPU protection and Antenna mounts
Package Included:
Package Included:
- 1x TITAN XL5 HD Frame
- 1x Caddx Nebula Nano Camera
- 1x Caddx Vista Digital System
- 2x TPU camera side plate soft mount
- 1x TPU lens cover
- 1x Lipo Strap
- 2x Nazgul 5140 Propeller (Set of 4 - Color May Vary)
- 4x XING 2208 2450KV Motor Unibell
- 1x SucceX-D F7 Flight Controller
- 1x SucceX BLHeli_32 50A 4in1 ESC
- 2x MMCX to RP-SMA Female Adapter Cable
- 1x GPS Module
- 1x Optional Receiver
- 1x Optional Receiver
