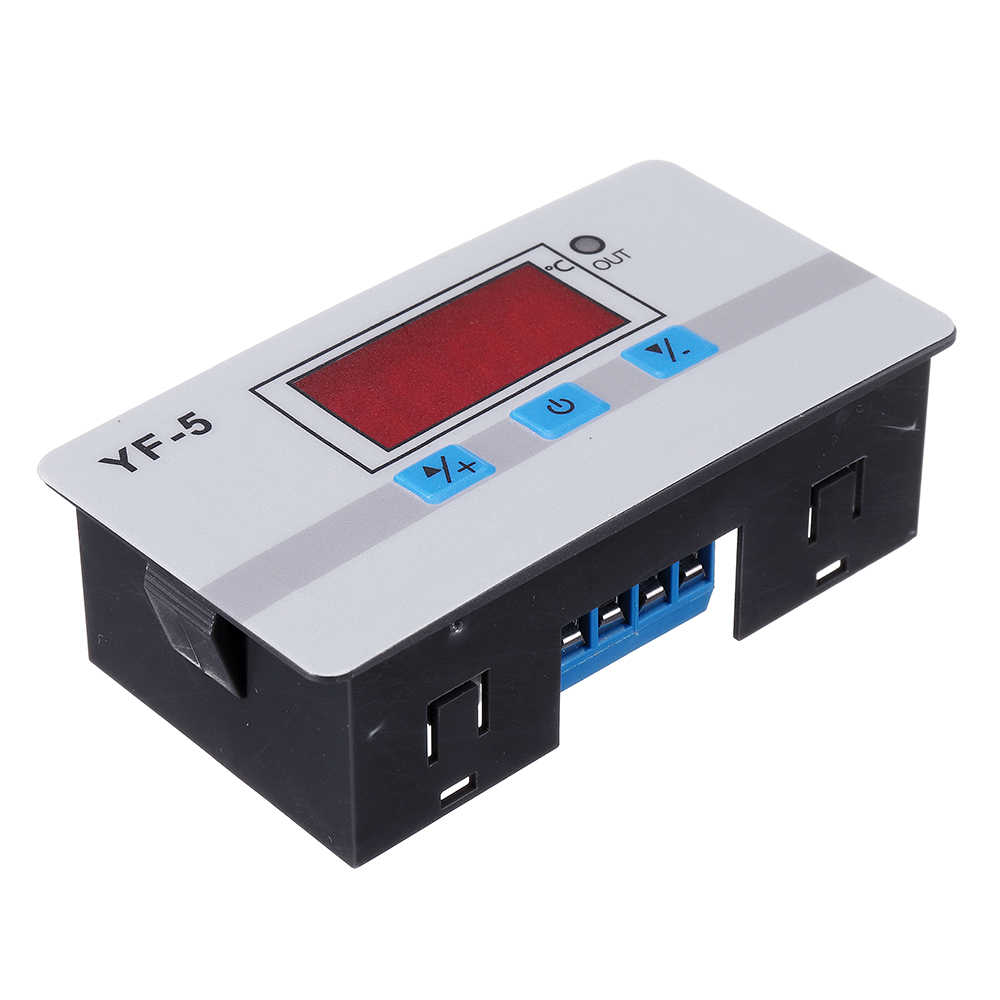

YF-5 Automatic Constant Temperature Detection Controller Temperature Control Switch Module with Digital Display
- Stock: In Stock
- Model: ST230046148
- SKU: ST230046148
$5.99
Ex Tax: $5.99
Specifications:
Model: YF-5
Working voltage: 7-24V DC / 110-220V AC (Optional)
Temperature measurement and setting range: -50.0 ~ 110.0 ℃
Measurement accuracy: 0.1 ℃
Output power: DC: 10A (MOS tube control) AC: 3A (triac control)
Probe length: 1 meter
Function Mode:
Three modes: heating mode, cooling mode, manual mode:
(Heating mode, cooling mode; automatic intelligent judgment mode, no need to consider)
Heating mode:
Start temperature
Cooling mode:
Start temperature> Stop temperature: For example: above 30 degrees, the output works; below 20 degrees, the output stops;
Manual mode:
Long press the middle button for 2 seconds; exit / enter the temperature mode;
Press the output to work; press the output again to stop; can not be controlled by temperature
Package Included:
1 x YF-5 Automatic Constant Temperature Detection Controller
