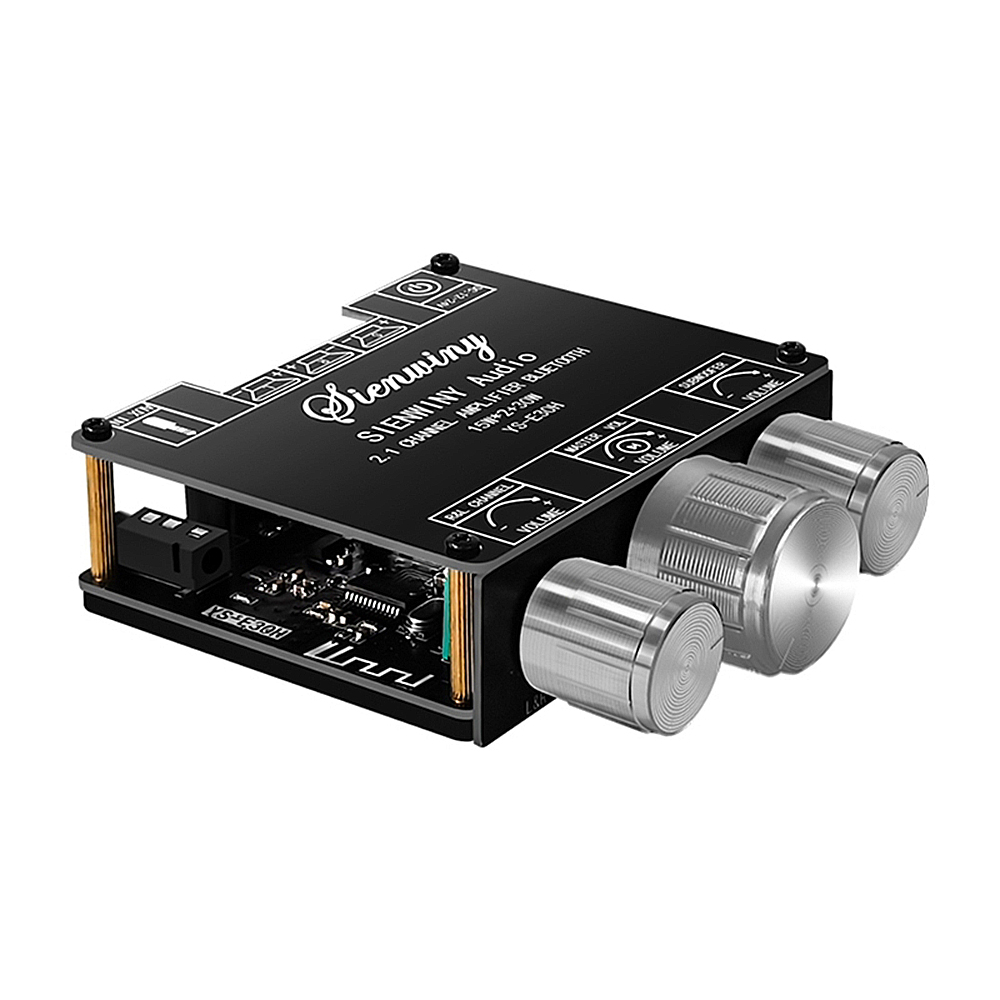

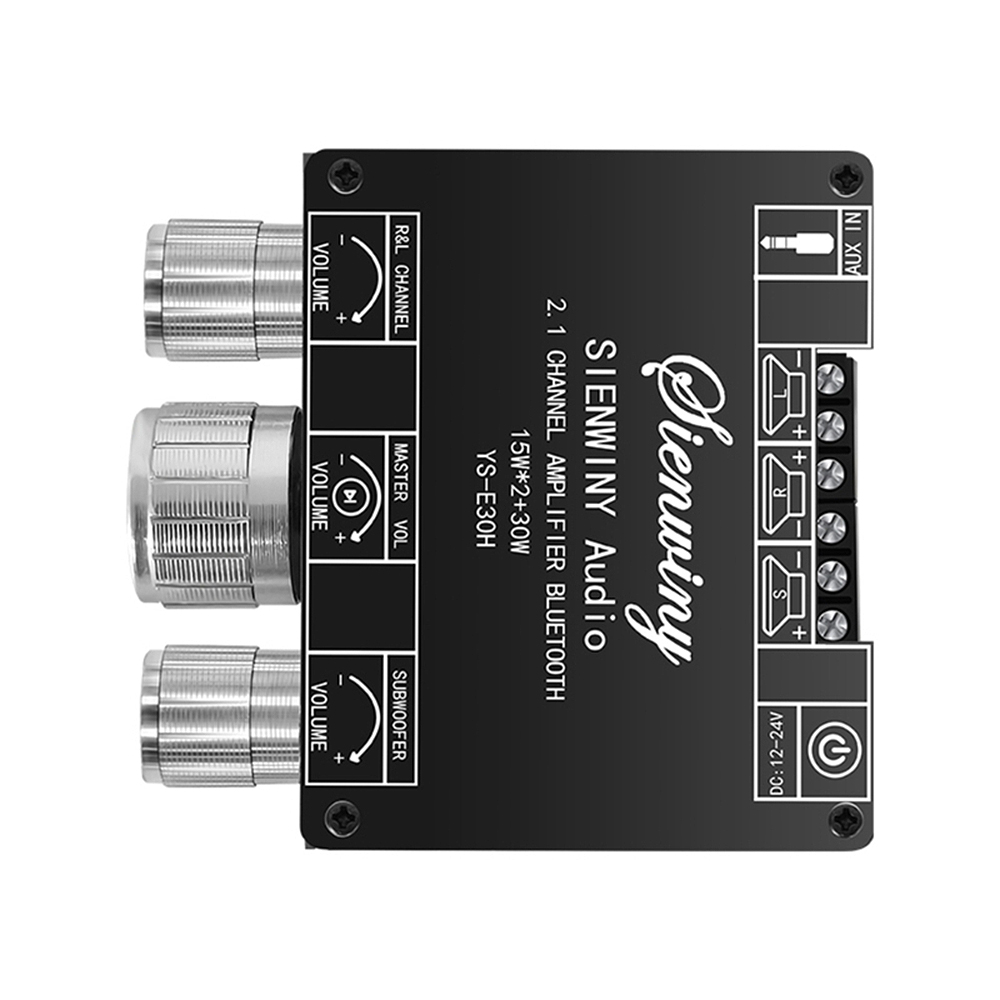

YS-E30H 2.1 Channel bluetooth 5.1 Audio Amplifier Board 15*2+30W High Low Tone Subwoofer Amplifier Board
- Stock: In Stock
- Model: ST230048130
- SKU: ST230048130
$14.99
Ex Tax: $14.99
Specification:
Product name: 2.1 channel bluetooth audio amplifier module
Product model: YS-E30H
Bluetooth version: 5.1
Audio channel: 2.1 channel
Input method: Bluetooth+AUX
Power supply: DC9-24V/3A or above

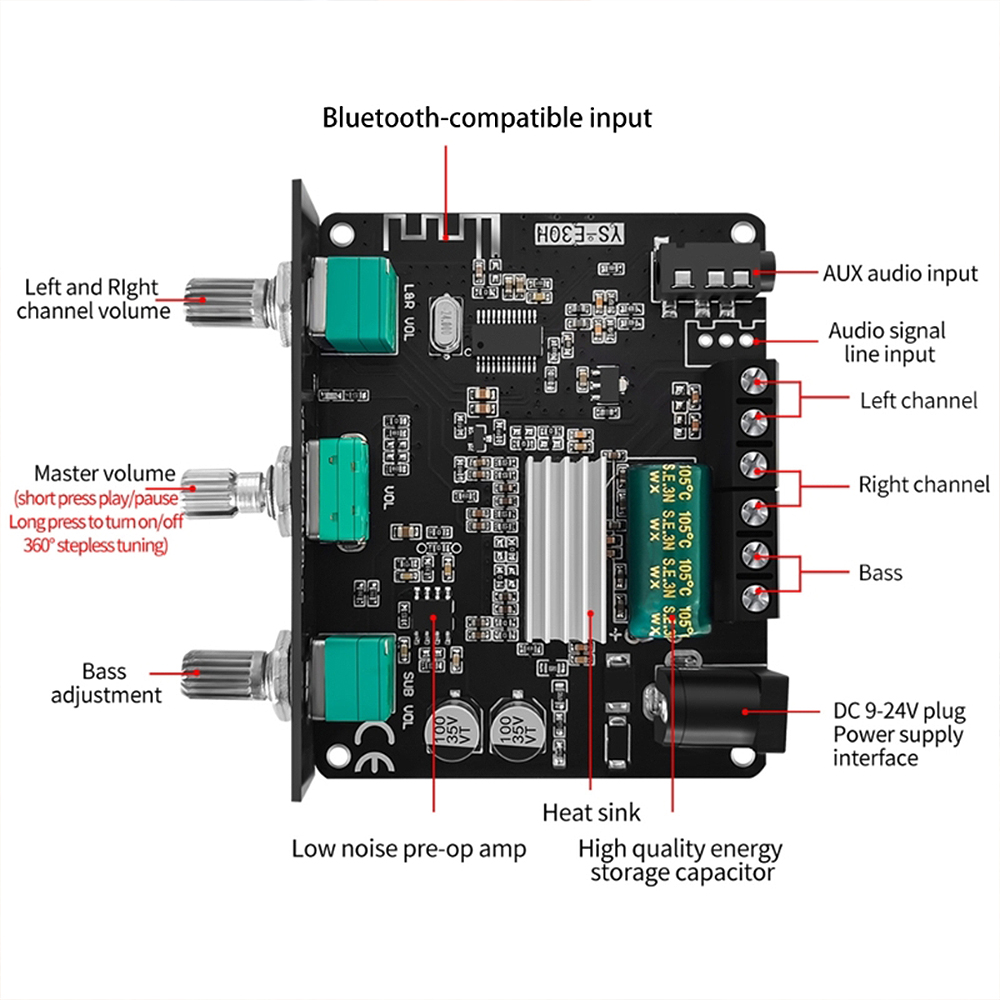

Audio output: left and right channels + subwoofer
Volume adjustment: high encoder knob adjustment, smooth feel
Frequency range: 20Hz-30KHz
Signal-to-noise ratio: 92dB
Output power: 15W*2(left and right channels)+30W(subwoofer)
Satellte box (left and right channel) suitable speaker: 5W-30W/40-162
Subwoofer (subwoofer) suitable speaker: 5W-50W/42-82
Protection mechanism: electrostatic protection, overcurrent protection, short circuit protection, overheating protection
Unique function: support YS Audio-APP control

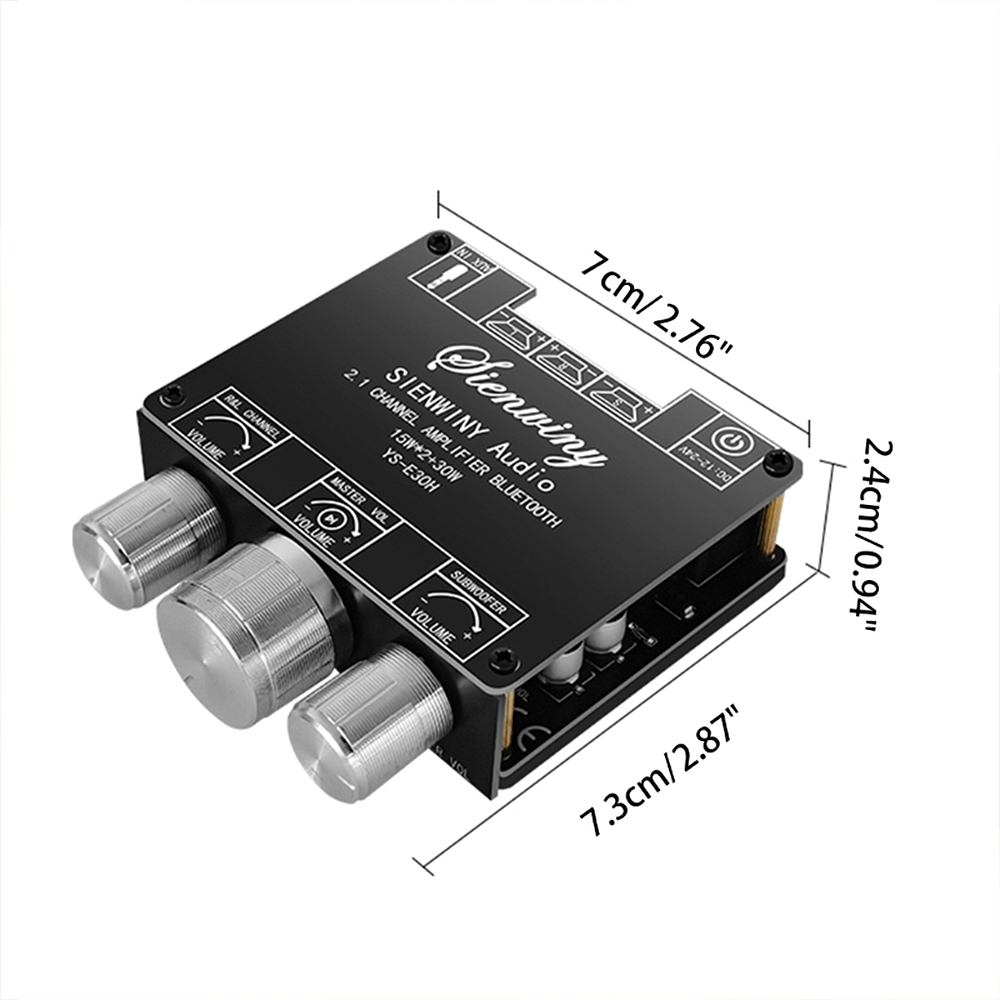

Product size: 73x70x24(mm)
Product weight: 98g
Features:
1. YS-E30H Bluetooth-compatible 5.1 power amplifier module, 2.1 channel stereo output, output power 15Wx 2 (left and right channel) + 30W (subwoofer).
2. Pure HiFi sound quality, treble is pure and transparent, the mid-range is gentle and delicate.
3. Adopts rotary knob to realize 360 degree stepless tuning with smooth feel, and the operation is simple and convenient.
4. Support mobile app control, newly upgraded YS Audio-App control, for ios Android system, support to modify Bluetooth-compatible name, set connection secret-code, volume, for PLAY paue, etc.
5. Great for protection mechanism, with electrostatic for protection, overcurrent for protection, short circuit for protection and overheating for protection.

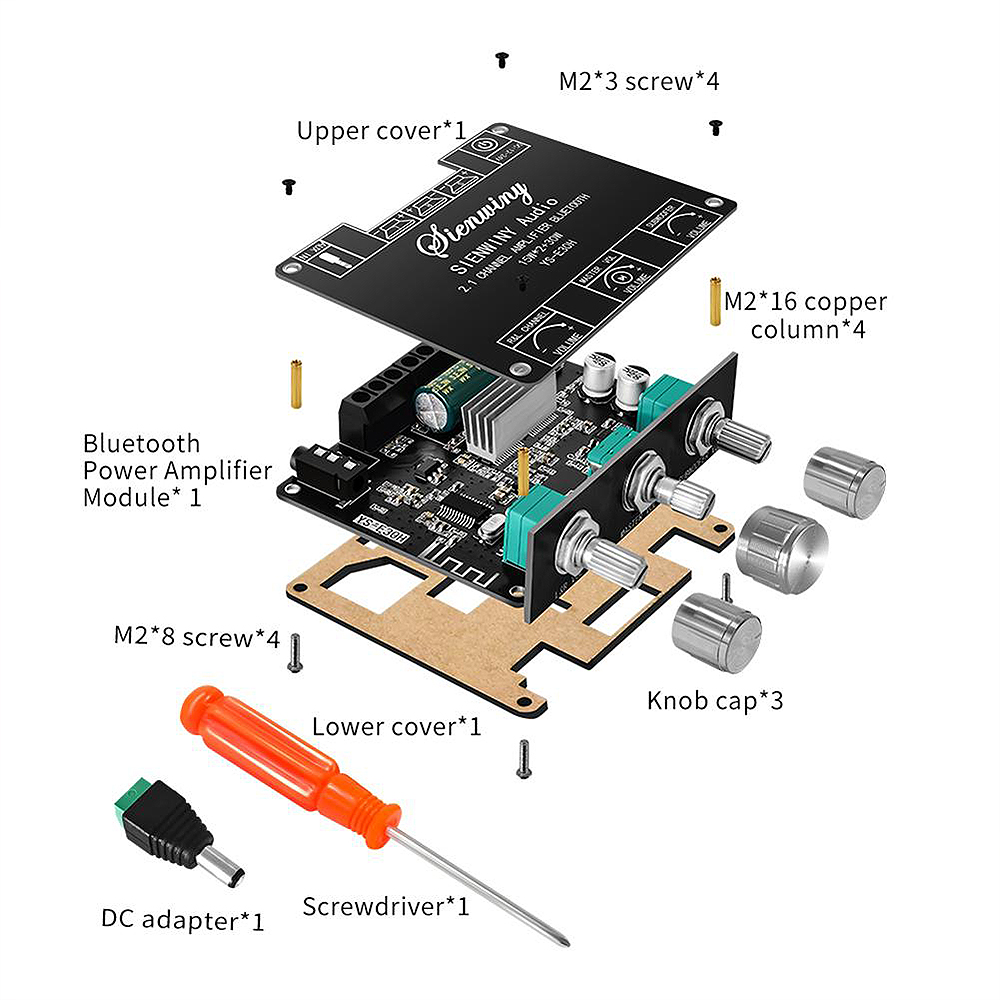

Package Include:
1x Audio Amplifier Board
1x Screwdriver
1x for Dc Adapter
