ZFX-W1308A 12V 24V 220V Thermostat Digital Temperature Controller Adjustable Temperature Control Switch
- Stock: In Stock
- Model: ST230047064
- SKU: ST230047064
$6.99
Ex Tax: $6.99
Specification:
Product name: Microcomputer digital thermostat
Product model: ZFX-W1308A
Temperature measurement range: -50~110℃
Temperature control range: -50~110℃
Temperature measurement accuracy: 0.1℃
Measuring probe: 10K/3435
Output type: relay output
Output current: maximum 10A

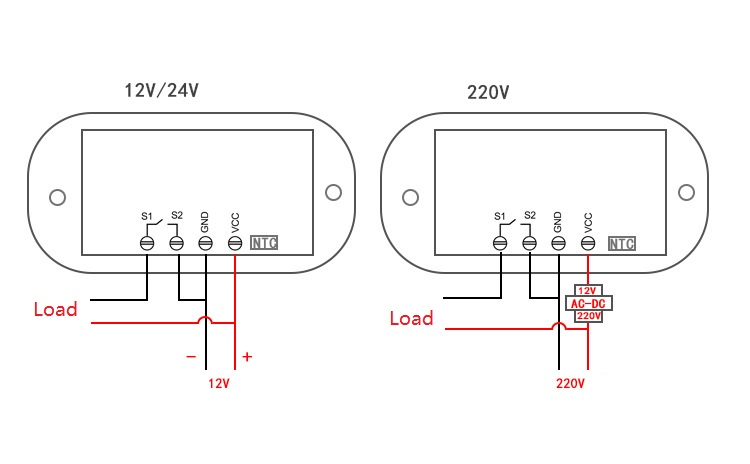

Input power: 12V , 24V, 110-220V
Output power: 120W, 240W, 1500W
Screen color: red, blue, green (optional)

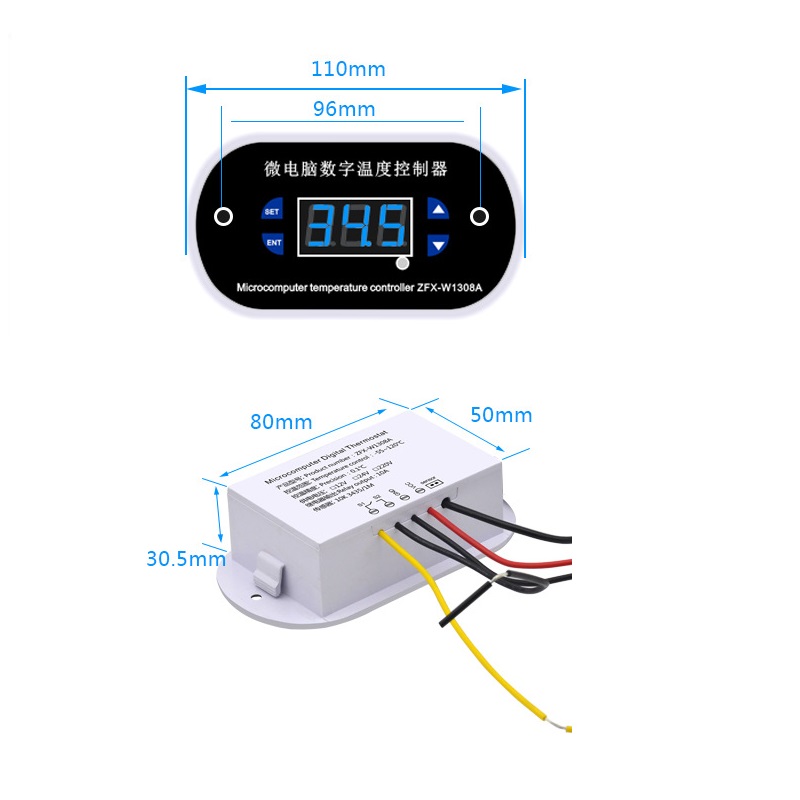

Embedded opening: 50*80mm
Installation hole distance: 96mm
Appearance size: 110*60*30.5mm
Code | Description | Predetermined area | Factory design |
P0 | Operating mode | H/C | C |
P1 | Return difference setting | 0.1-30 | 2.0 |
P2 | invalid | 120℃ | 120 |
P3 | invalid | -55 | -55 |
P4 | Temperature correction | +10.0℃~-10. 0℃ | 0 |
P5 | Delay start | 0-10 minute | 0 |
P6 | High temperature alarm | -55℃-120℃ | OFF |
P7 | Data lock | 0N /OFF | 0FF |
P8 | Reset | 0N /OFF | 0FF |
Heating mode:
For example, control the heating of the radiator to 60°C to stop, and 50 degrees after stopping
How should I start again?
According to demand, it should be heating mode, and the temperature difference is 10 °C
Should be set as follows
1. Long press SET to display P0 and set the working mode to H
2. Set P1 return difference to 10
3. When the temperature is displayed normally, press the SET temperature flashing once to directly set the stop temperature value to 60.
Cooling mode:
For example, how to control the refrigeration to stop at -5°C, and then how to set the refrigeration again after stopping?
It should be in cooling mode according to needs, and the temperature difference is 5 °C
It should be set as follows:
1. Long press SET to display P0 and set the working mode to C
2. Set the P1 return difference to 5
3. When the temperature is displayed normally, press the SET temperature flashing once to directly set the stop temperature value to -5°C.
Package included:
1 x Digital Temperature Controller
