- Stock: In Stock
- Model: ST22007942
- SKU: ST22007942
Features:
1. Small, Portable and Lightweight
Adopting advanced single-tube IGBT inverter technology, it is compact and easy to carry;

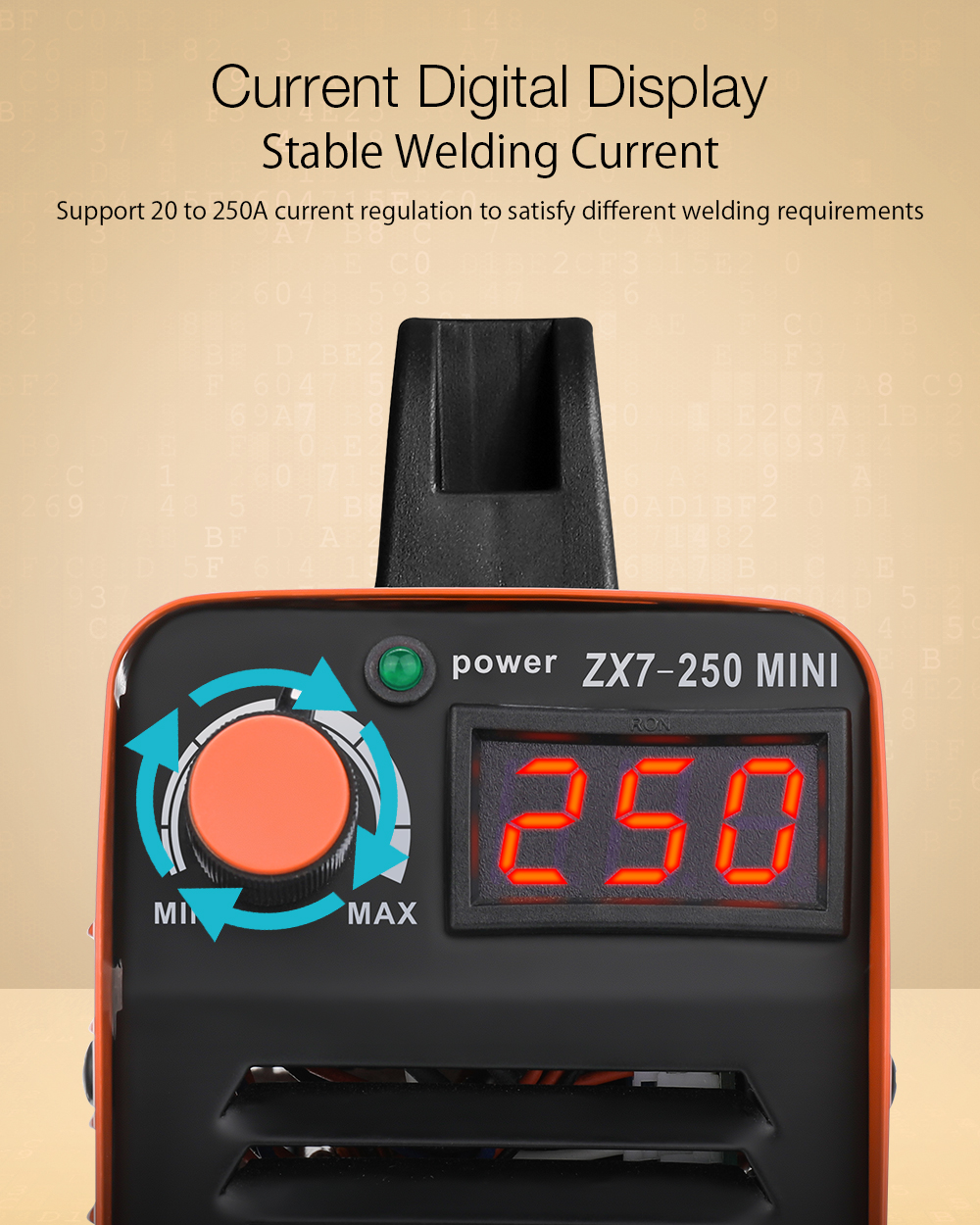

2. Current Digital Display
Support 20 to 250A current regulation to satisfy different welding requirements.

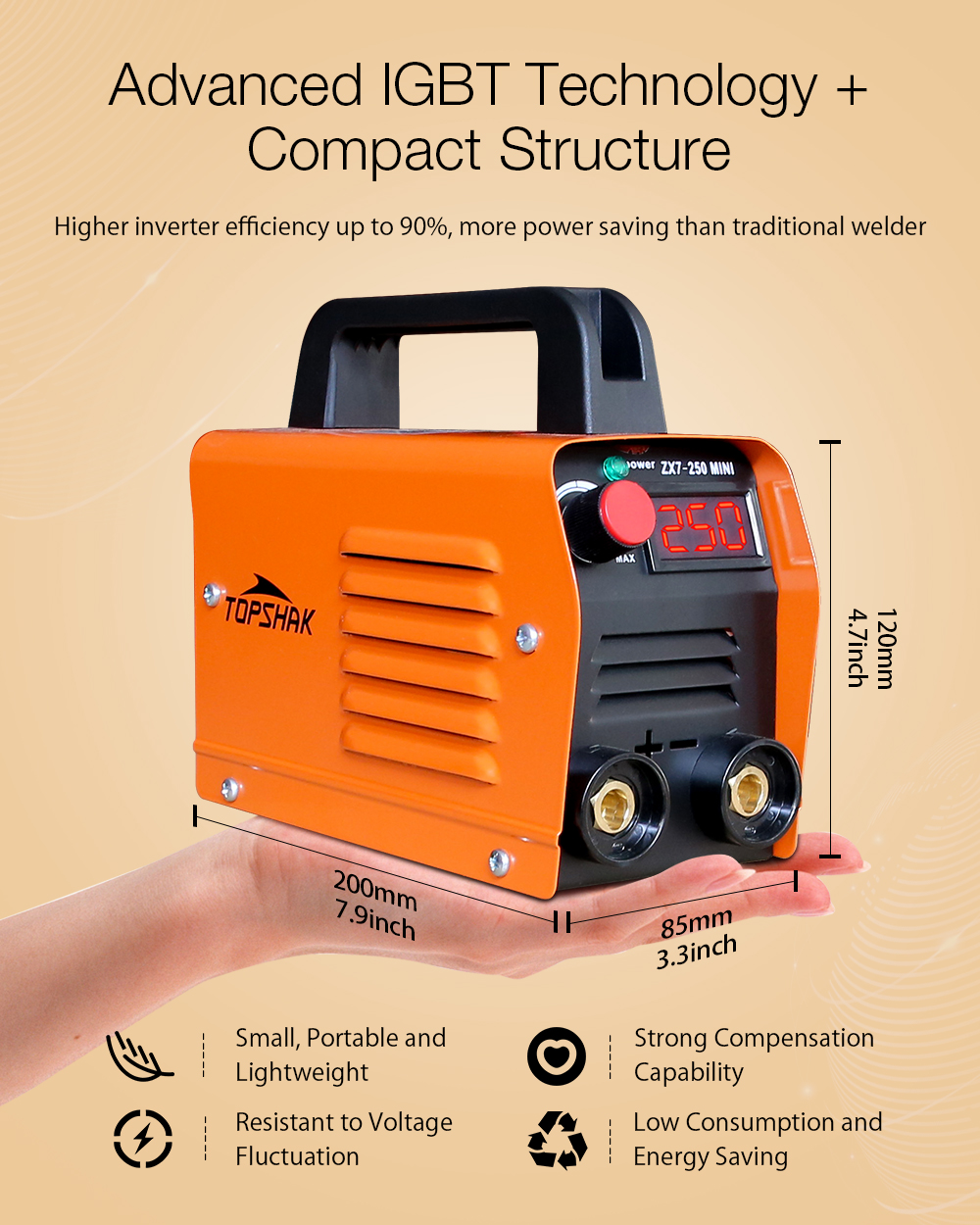

3. Advanced IGBT Technology and Compact Structure
Higher inverter efficiency up to 90%, more power saving than traditional welder.

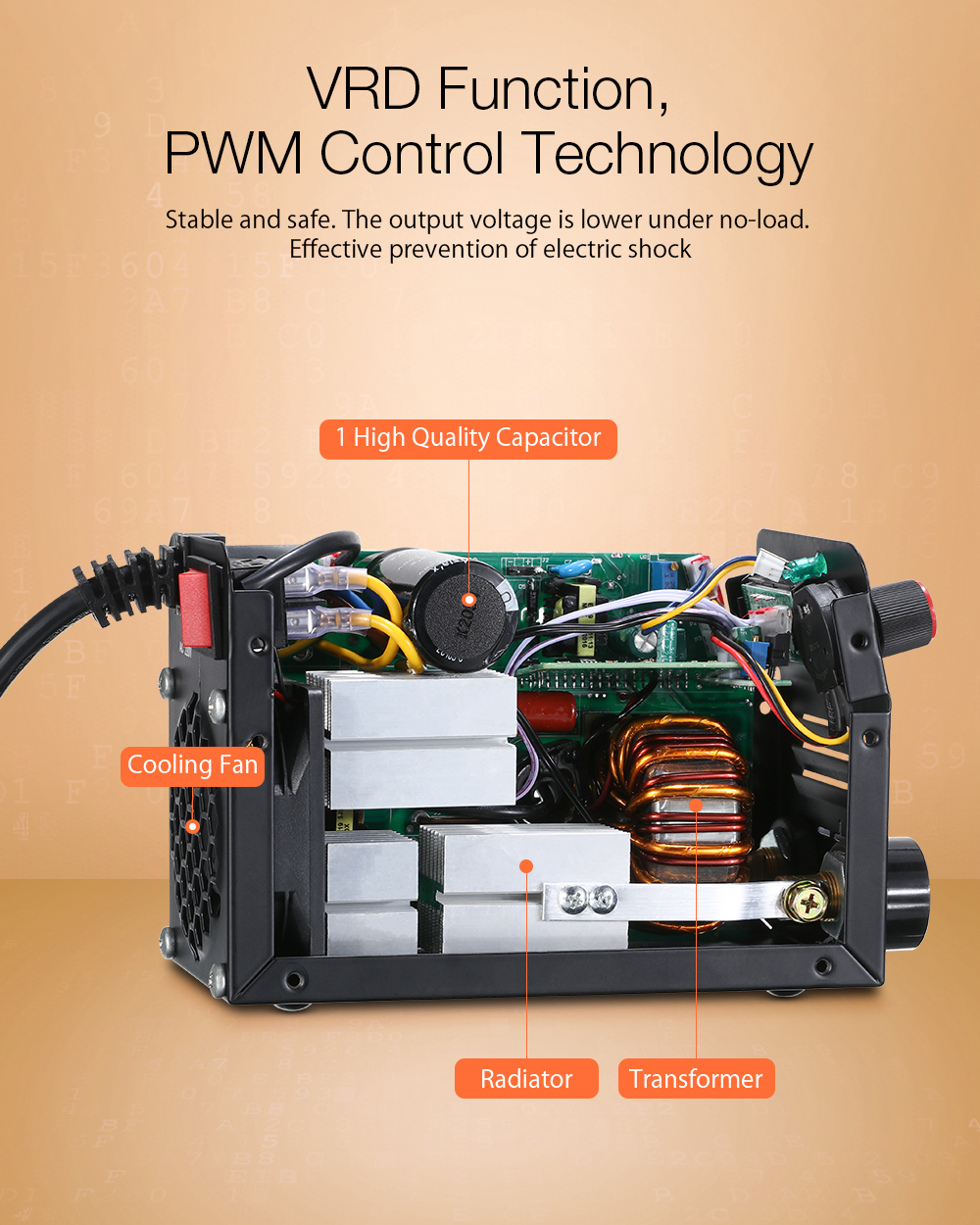

4. VRD Function and PWM Control Technology
Stable and safe, the output voltage is lower under no-load, to prevent electric shock.

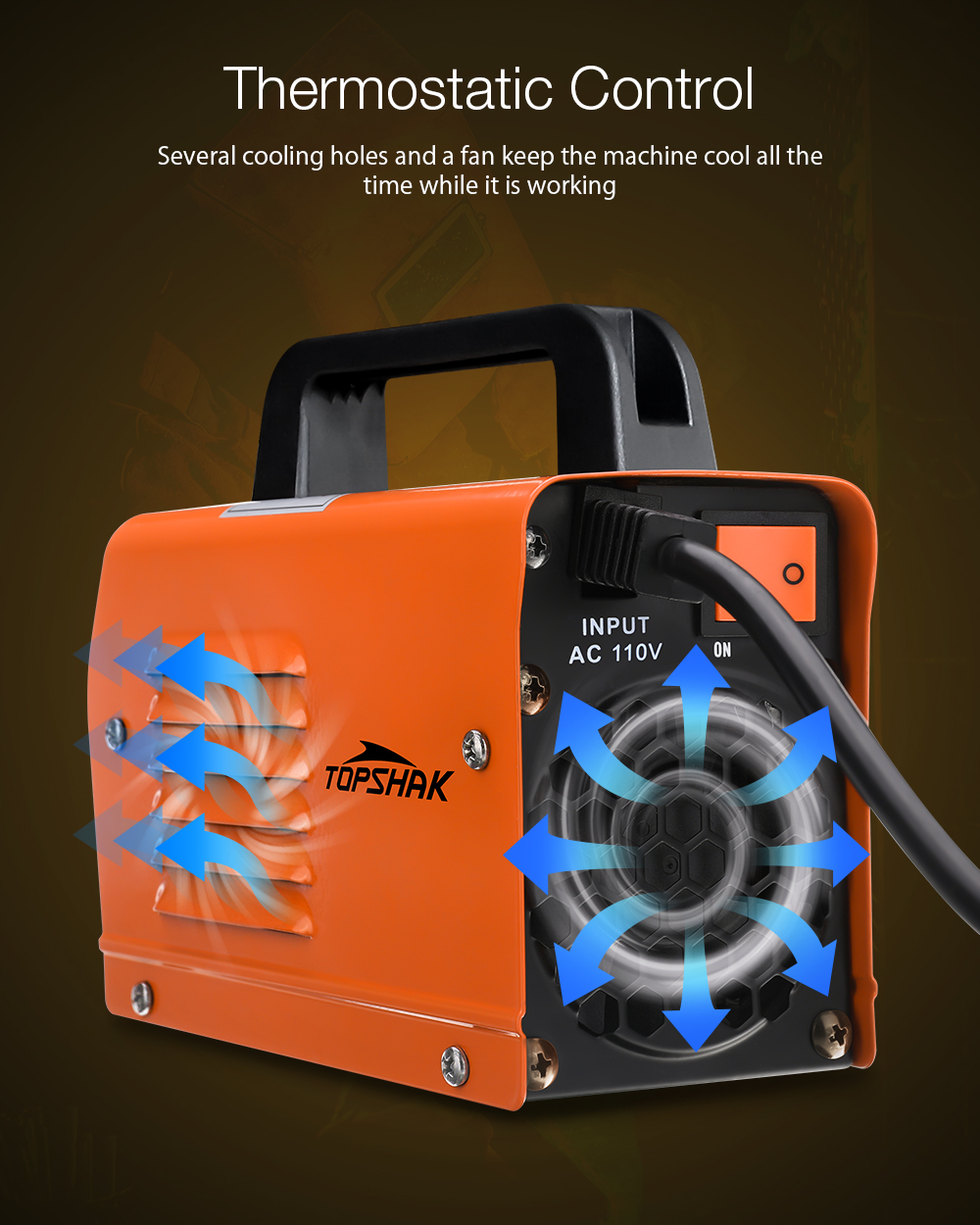

5. Thermostatic Control
Several cooling holes and a fan keep the machine cool all the time while it is working.

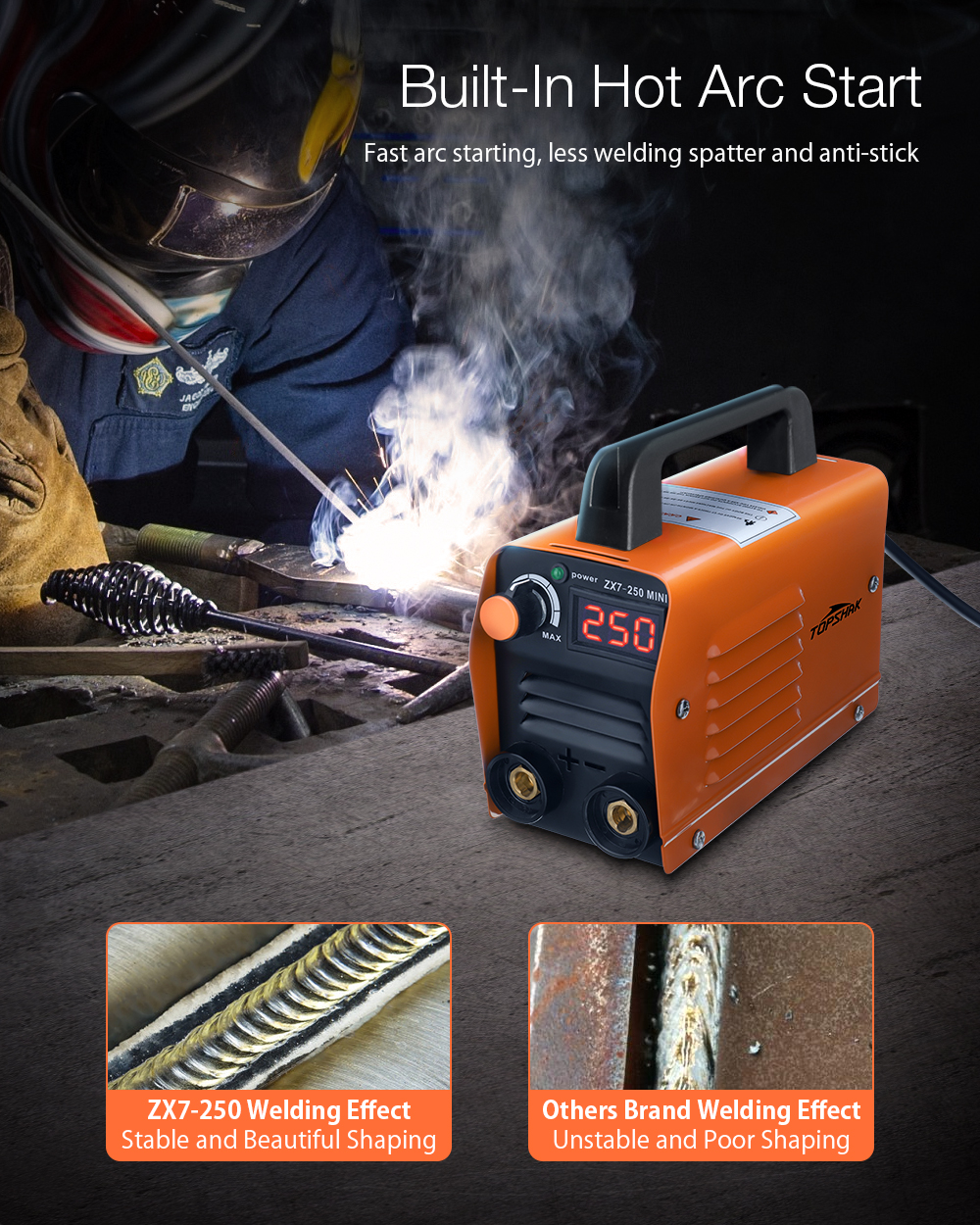

6. Built-In Hot Arc Start
Fast arc starting, less welding spatter and anti-stick
7. Stable and durable
Compact, heavy-duty stainless steel body and durable orange paint for long life.
Specification:

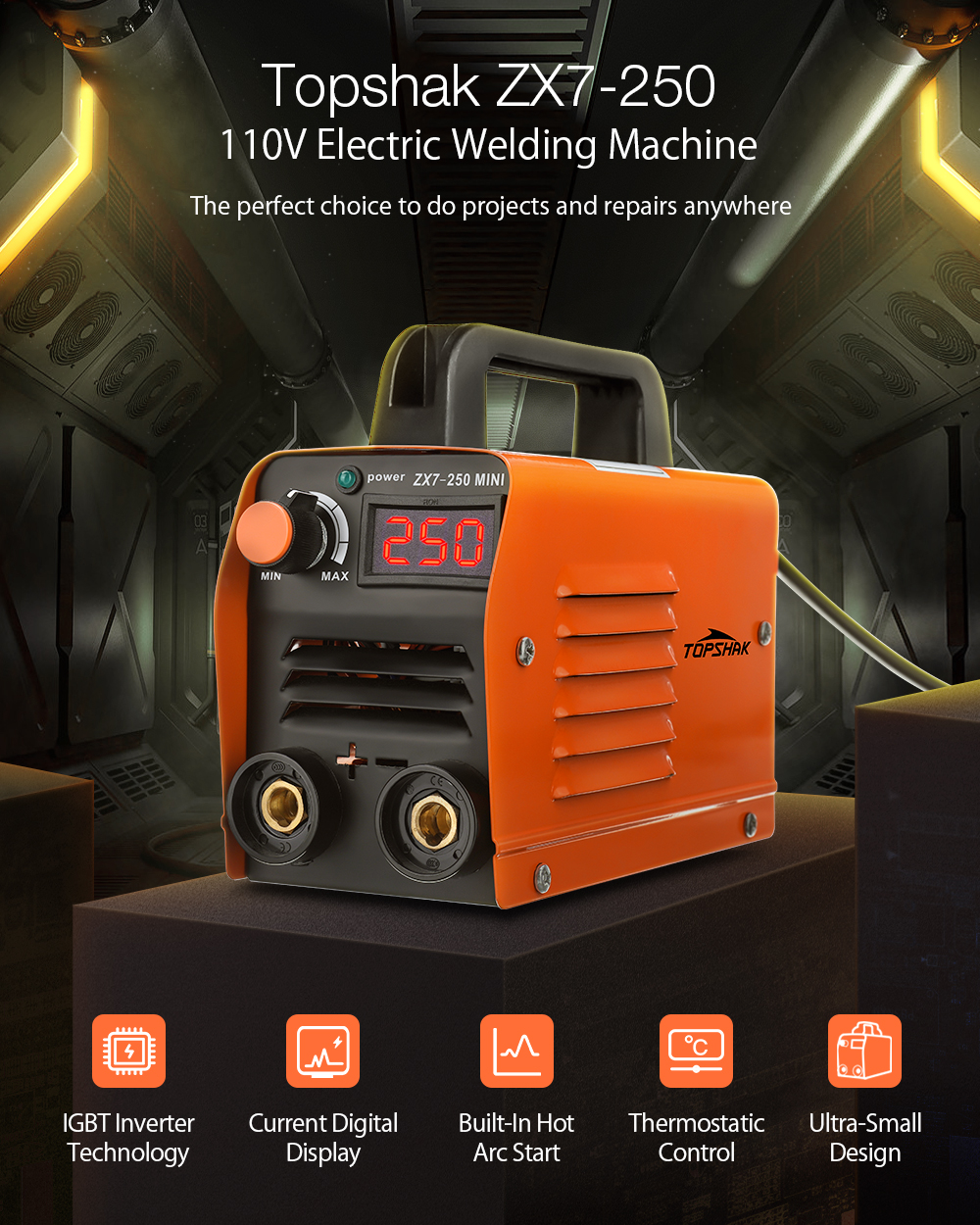

Model | ZX7-250 |
Input Power Voltage | AC110V ±15% |
No-load Voltage (V) | 60 |
Frequency (Hz) | 60 |
Rated Input Power (KVA) | 8.3 |
Output Current Range (A) | 20-250 |
Duty Cycle(%)(25℃) | 60 |
Efficiency (%) | 85 |
Power Factor (COSɸ) | 0.73 |
Insulation Class | F |
Net Weight (Kg) | 1.8 |
Dimensions (MM) | 200*85*120 |
Electrode Diameter (MM) | 1.6-2.5 |
Housing IP Grade | IP21 |
Application | Electrode suitable for 2-8mm plates |

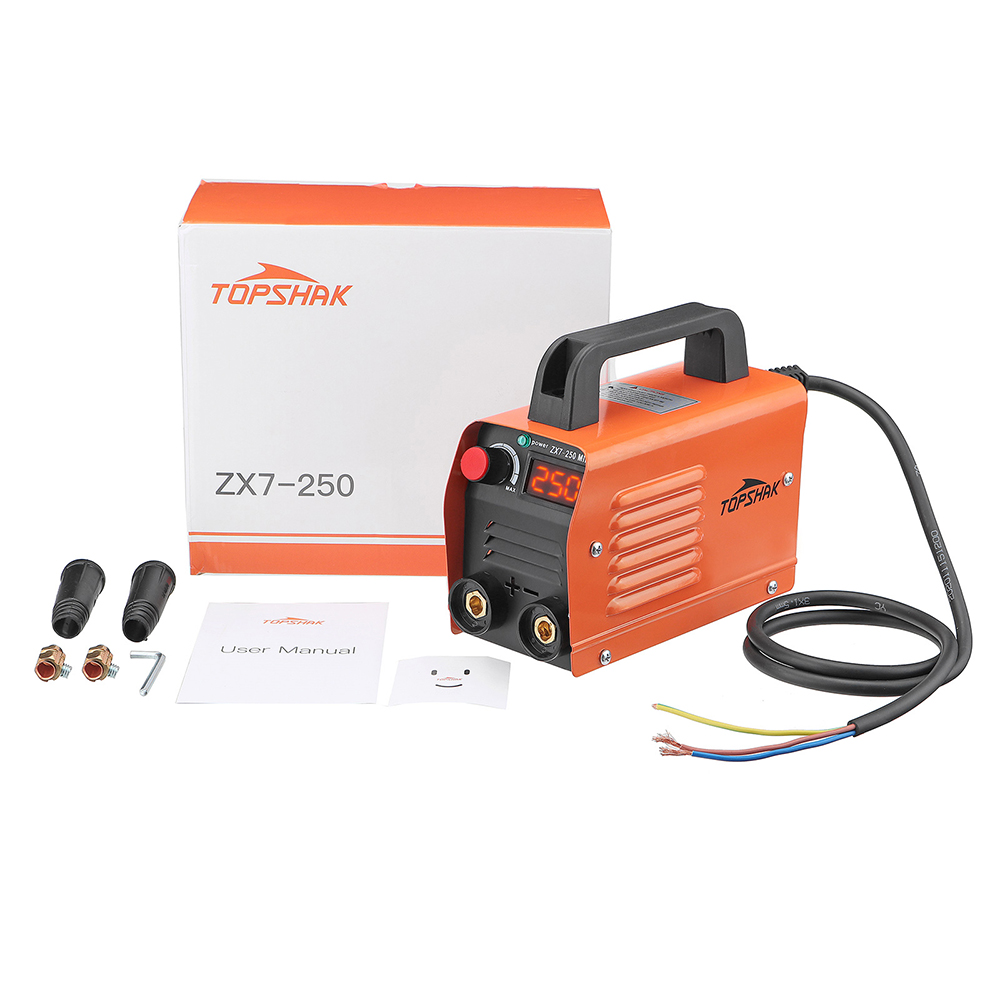

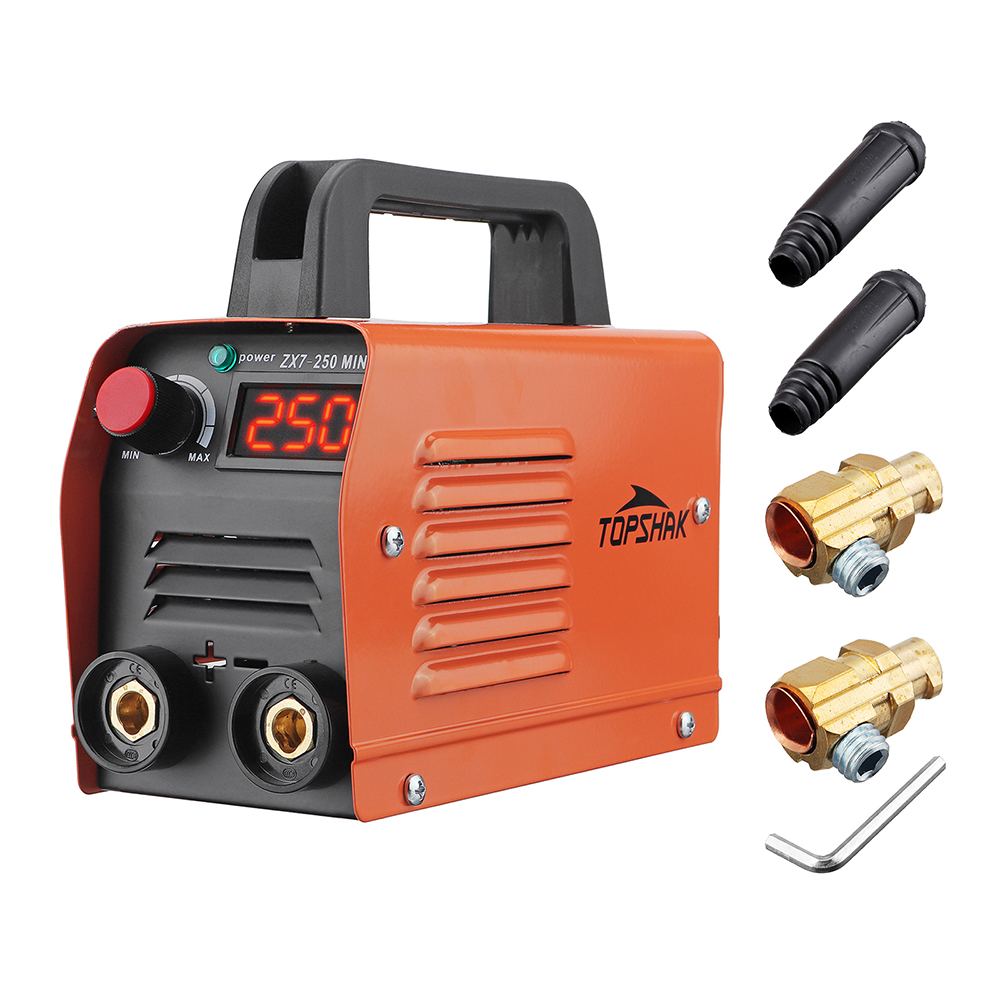

Package included:
1x ZX7-250 Welding Machine
1x English Manual
1x Warranty Card
2x Quick Plug
2x Insulated Electrode
1x T-wrench
