LED digital display modules are becoming increasingly popular, as they offer a wide range of advantages over other forms of display technology. They are bright, durable, and cost-effective – making them an ideal choice for any display-oriented project. Here we have compiled a list of the 10 greatest LED digital display modules that you’ll love. Enjoy.
1. What is a LED Digital Display Module?
A LED Digital Display Module is an electronic module that can be used to display a variety of text and images on a wide range of digital displays. The module features an array of LEDs that gives the user the ability to generate and manipulate images using various software applications. The modules are typically mounted onto a circuit board, allowing the user to easily integrate the display into their project without having to worry about wiring or power supply. This makes them ideal for use in projects such as interactive displays and advertising signage.
2. Advantages of LED Digital Display Modules
LED digital display modules offer a variety of advantages over traditional signage. They are more energy efficient and have a longer lifespan, while also boasting high contrast ratios, wide viewing angles, and low power consumption. Moreover, LED displays enable you to create dynamic content that can be easily changed with minimal effort.
Here we summarize the main points of advantages
- Low power consumption: LED modules are incredibly energy-efficient and consume up to 70% less power than traditional lighting solutions.
- Long life span: LED modules have an average lifespan of over 50,000 hours compared to traditional lights that last 5–15 years.
- Versatile design: With its slim profile and modular design, LED digital display modules offer customizable setup solutions in any environment.
- Easy installation: Simple plug-and-play installation makes setup quick and easy.
- Bright & Clear Display: LED digital displays are bright and clear, making it easier for viewers to read your message.
- Customizable: With customization options, you can create a unique display to fit your needs.
3. Top 10 Greatest LED Digital Display Modules
LED digital display modules provide an excellent way to show off text, images, or videos in a vivid and eye-catching way. From billboards to informational signs, LED digital display modules are perfect for any application. Here are the top 10 greatest LED digital display modules available on the market today:
Each module offers its own unique features and capabilities that make it stand out from others. Whether you need something simple or something more advanced, these models can help you create stunning displays that will wow viewers.

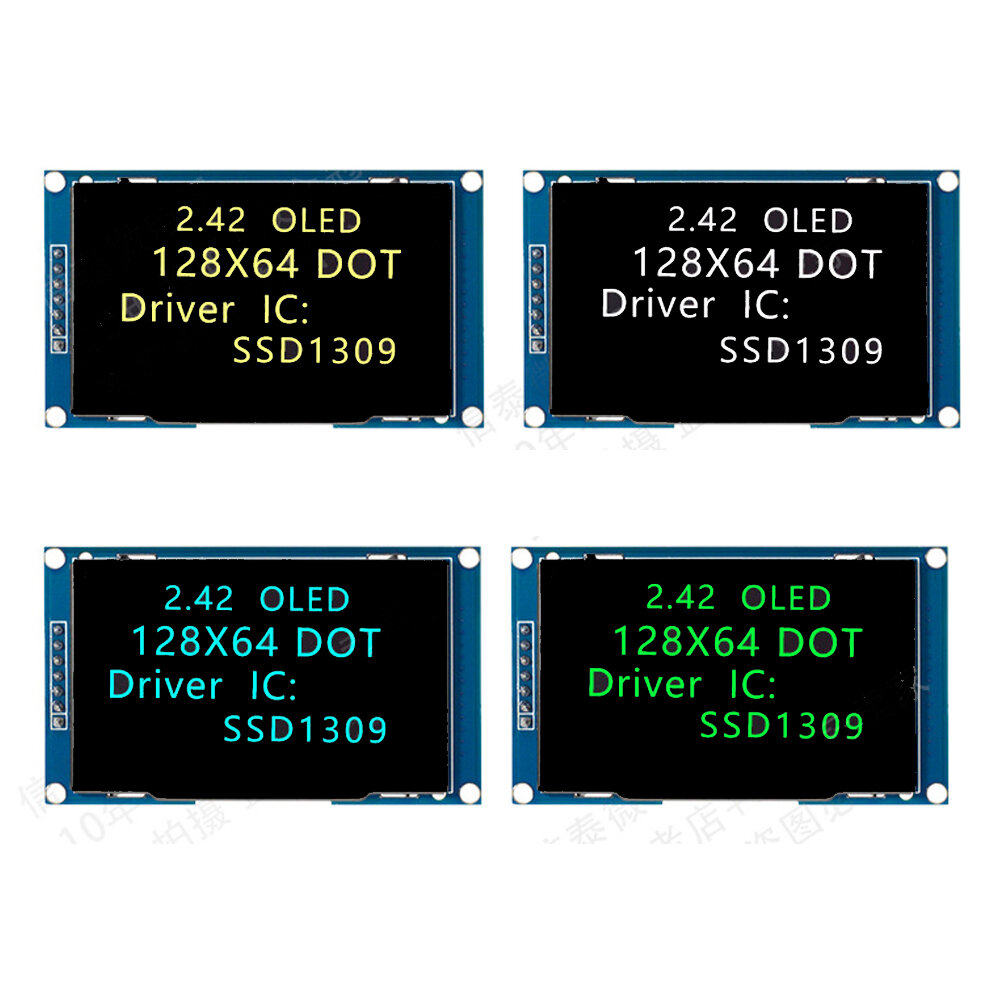

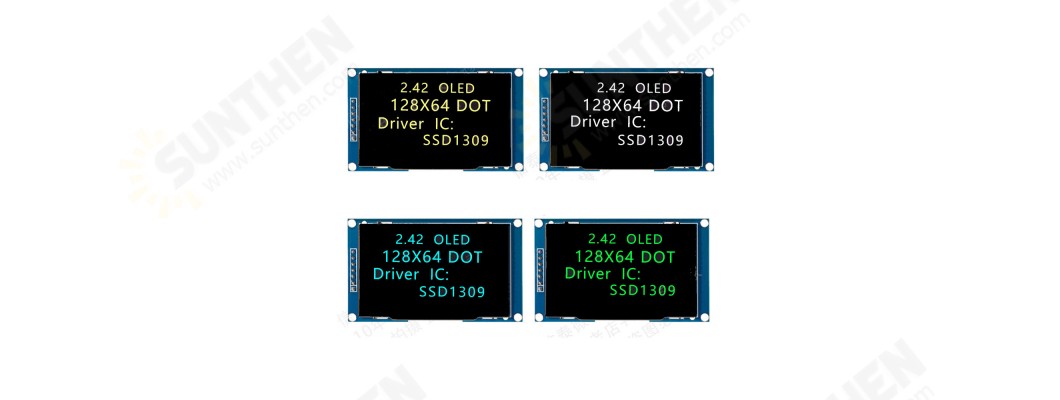

#1-2.42 inch 7PIN OLED Display LCD Screen Module Resolution 128*64 SPI/IIC Interface SSD1309 Driver
Features
Driver chip SSD1309
Support interface IIC/SPI
Resolution 128×64
Display size 2.42 inches
Display color: white/blue/yellow/green (optional)
Module size 71×43.5 (mm)
Glass size 60.5×37.00× (mm)
Display area 55.02×27.49 (mm)
Drive voltage 3.3-5V
Number of pins 7PIN
Viewing angle >160°
Working temperature -40℃~70℃
Storage temperature -40℃~80℃
#2-2Pcs MAX7219 Dot Matrix MCU LED Display Control Module Kit
Advantages
A single module can drive an 8 x 8 common cathode lattice
Operating voltage: 5V
Size: 5 x 3.2 x 1.5 cm (L x W x H)
LED color: red
With four screws hole, an aperture of 3mm
With input and output interfaces, supports multiple modules cascade

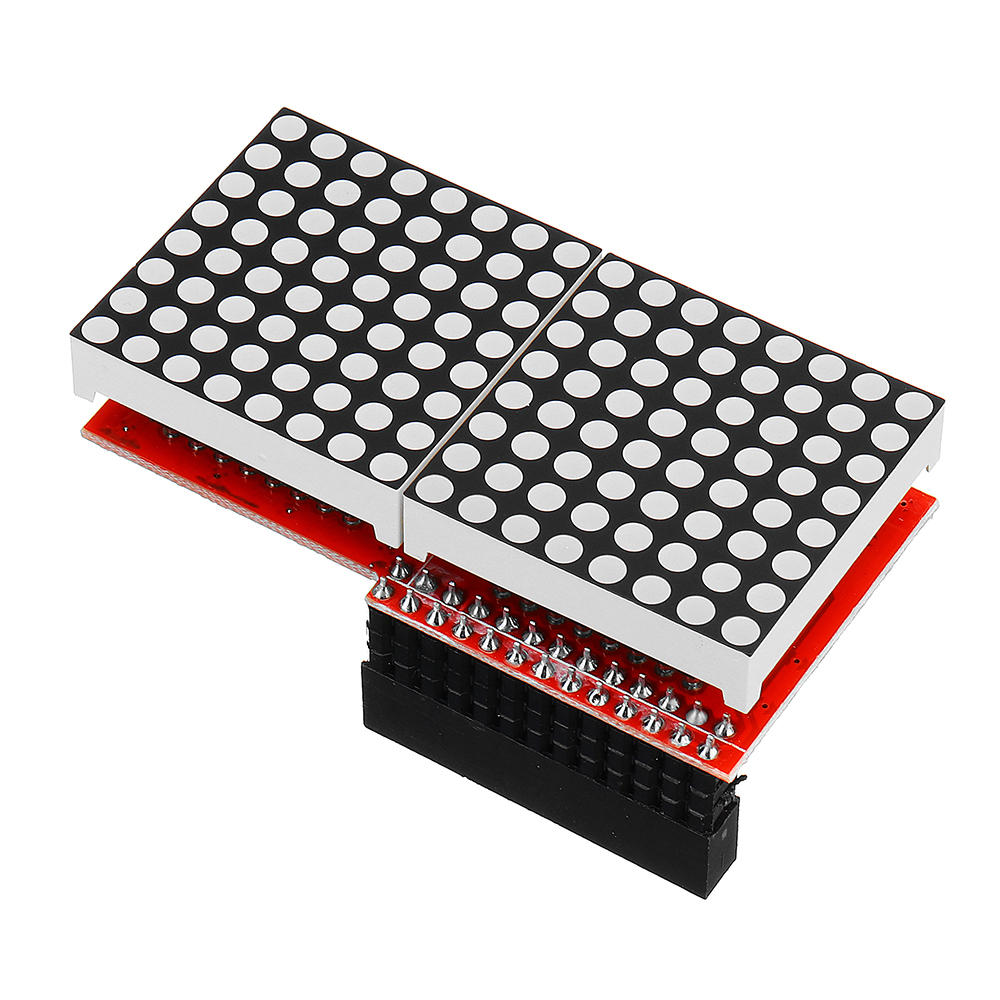

Advantages
Using the LED dedicated constant current control chip, basically, only occupies the Raspberry Pi SPI interface (3 IO + 2 enable) to control 64 LED lights
- Support SPI interface B/B+ involved in Raspberry Pi
- Driver chip: MAX 7219
- Dot matrix type: 8x8 common negative red dot matrix
- Size: 64.3x35x26.5mm

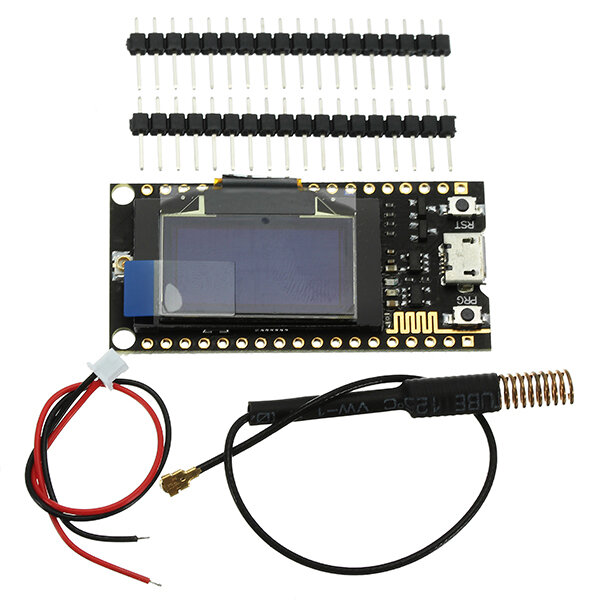

#4-TTGO LORA SX1278 ESP32 0.96 OLED Display Module 16M bytes (128M Bit) 433Mhz
Advantages
This product is a SX1278 chip based on ESP32 WIFI increased OLED, namely LoRa remote modem, 433MHz frequency,
high sensitivity is about -148dBm, +20dBm output power, high reliability, long transmission distance.
The onboard 32MByte Flash, Wi-Fi antenna, 0.96 inch blue OLED display, lithium battery charging circuit, the perfect support for development environment, can be used for program verification
and product development is very simple and fast.
Operating voltage: 3.3V to 7V
Operating temperature range: -40 degrees C to +90 degrees C
Support for Sniffer, Station, softAP, and Wi-Fi Direct modes
Data rates: 150 Mbps@11n HT40, 72 Mbps@11n HT20, 54 Mbps@11g, 11 Mbps@11b
Transmit power: 19.5 dBm@11b, 16.5 dBm@11g, 15.5 dBm@11n
Receiver sensitivity up to -98 dBm
UDP sustained throughput of 135 Mbps

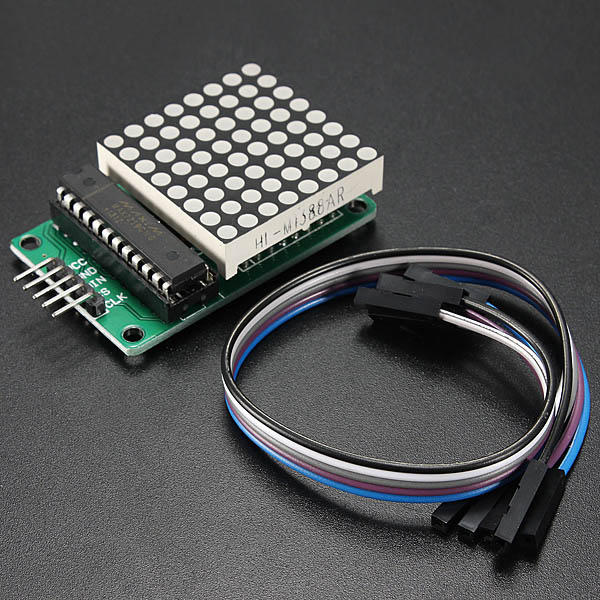

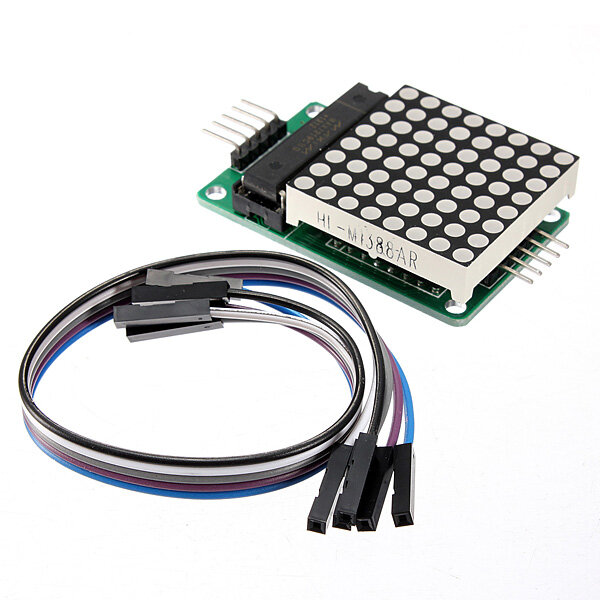

#5-MAX7219 Dot Matrix MCU LED Display Control Module Kit With Dupont Cable
Advantages
A single module can drive an 8 x 8 common cathode lattice
Operating voltage: 5V
Size: 5 x 3.2 x 1.5 cm (L x W x H)
LED color: red
With four screws hole, aperture 3mm
With input and output interfaces, supports multiple modules cascade

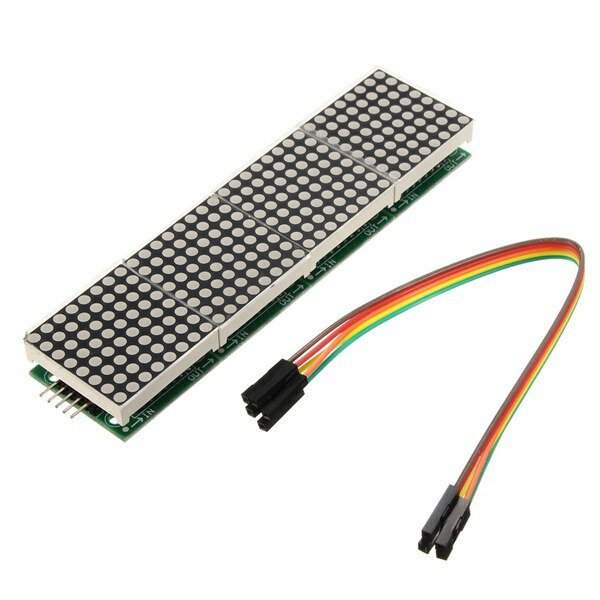

#6-MAX7219 Dot Matrix Module 4-in-1 LED Display Module
Advantages
A single module can drive a 8x8 dot matrix common cathode
Working voltage: 5V
Module size: 12.8 x 3.2 x 1.3 cm (L*W*H)
With 64 fixing screw holes, hole diameter: 3mm
Module with input and output interfaces, support for cascading multiple modules

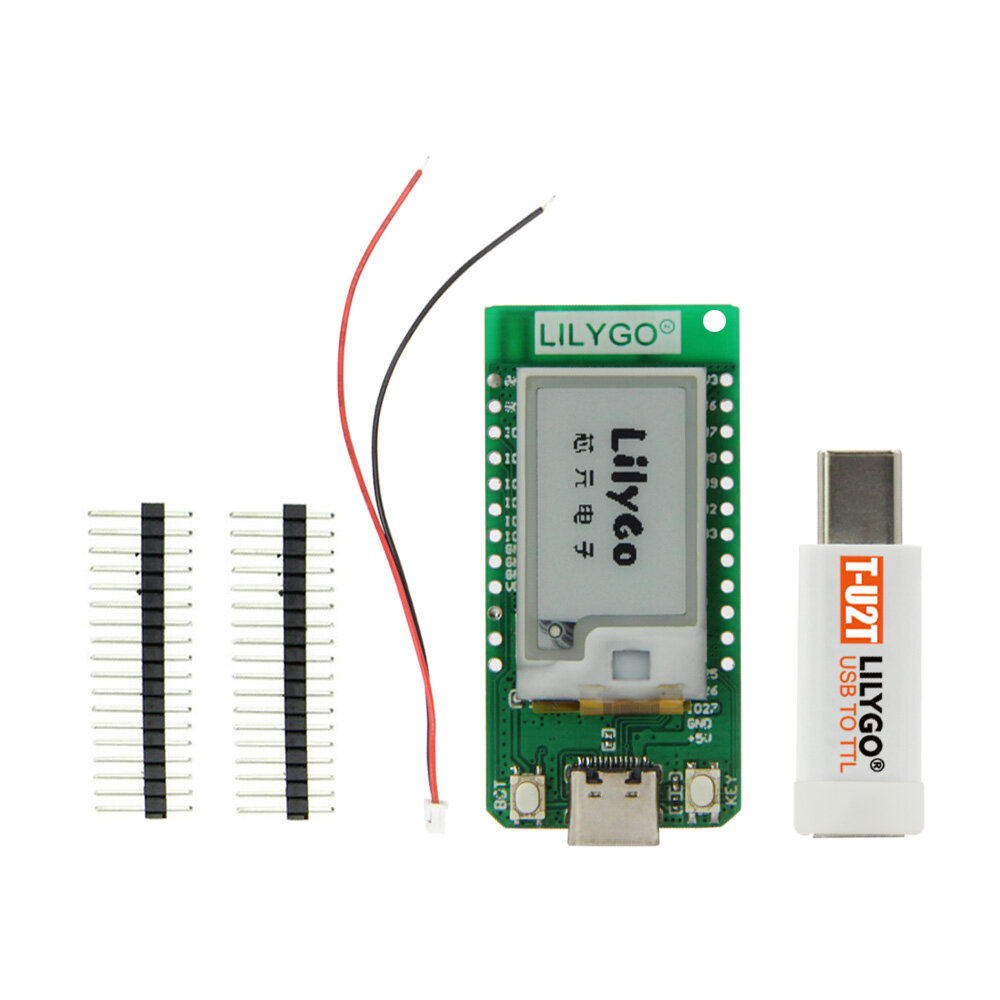

#7-T-Dispay E-paper 1.02 inch Screen OLED Module Adapt to T-U2T USB To TTL Automatic Downloader
Advantages
T-display e-paper:
It is the "brother version" from the T-display TFT version based on the size structure of the TFT version
Change the 1.14 inch TFT display to 1.02 inch e-paper display
Adding PCB positioning holes, 3535 RGB and IPEX antenna sockets, PCB color LILYGO selected bright green PCB with black and white ink screen for the first time, making the overall vision more comfortable.
This is also a product compatible with T-U2T automatic downloader
We will be compatible with the T-U2T automatic downloader on the new version of the product, that is, when you have a T-U2T automatic downloader, it will support the motherboard that requires the USB to TTL function.
T-display E-paper parameters:
-1.02 inch E-paper resolution: 128X80
-ESP32-D0WDQ6-V3
-4MB FLASH
-TP4054 battery charge and discharge chip
-Custom button X2
-RST button
-Type-c USB for T-U2T
-IPX antenna base
-3535 RGB
-Jst 2pin 1.25mm battery connector
-Low power consumption design (sleep power consumption is about 15uA)
Application scenarios:
-Shelf label
-Badge
–DIY
-STEM
-IOT terminal equipment

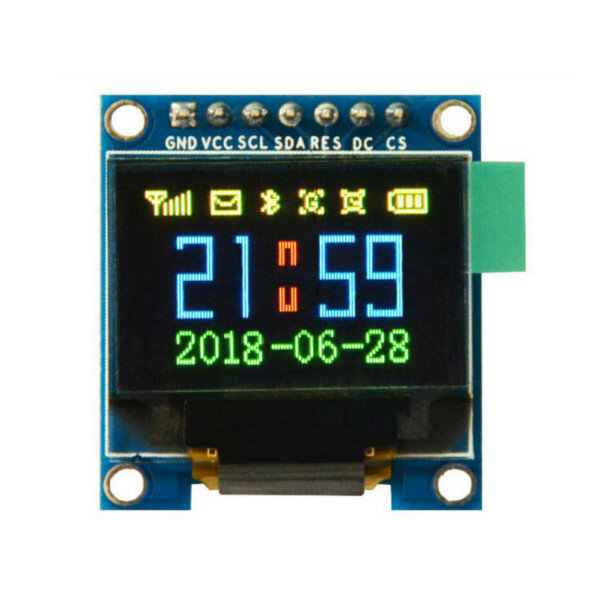

#8-0.95 Inch 7pin Full Color 65K Color SSD1331 SPI OLED Display
Advantages
Size: 0.95 inch
Resolution: 96*64
Drive IC: SSD1331
Color: 65536 color
Interface: SPI interface
PIN NO.: 7Pin
Voltage: 3.3V - 5V
Pin description:
GND: Power ground
VCC: 2.8-5.5V power supply
D0: CLK clock
D1: MOSI data
RST: Reset
DC: Data/command
CS: Chip-select signal

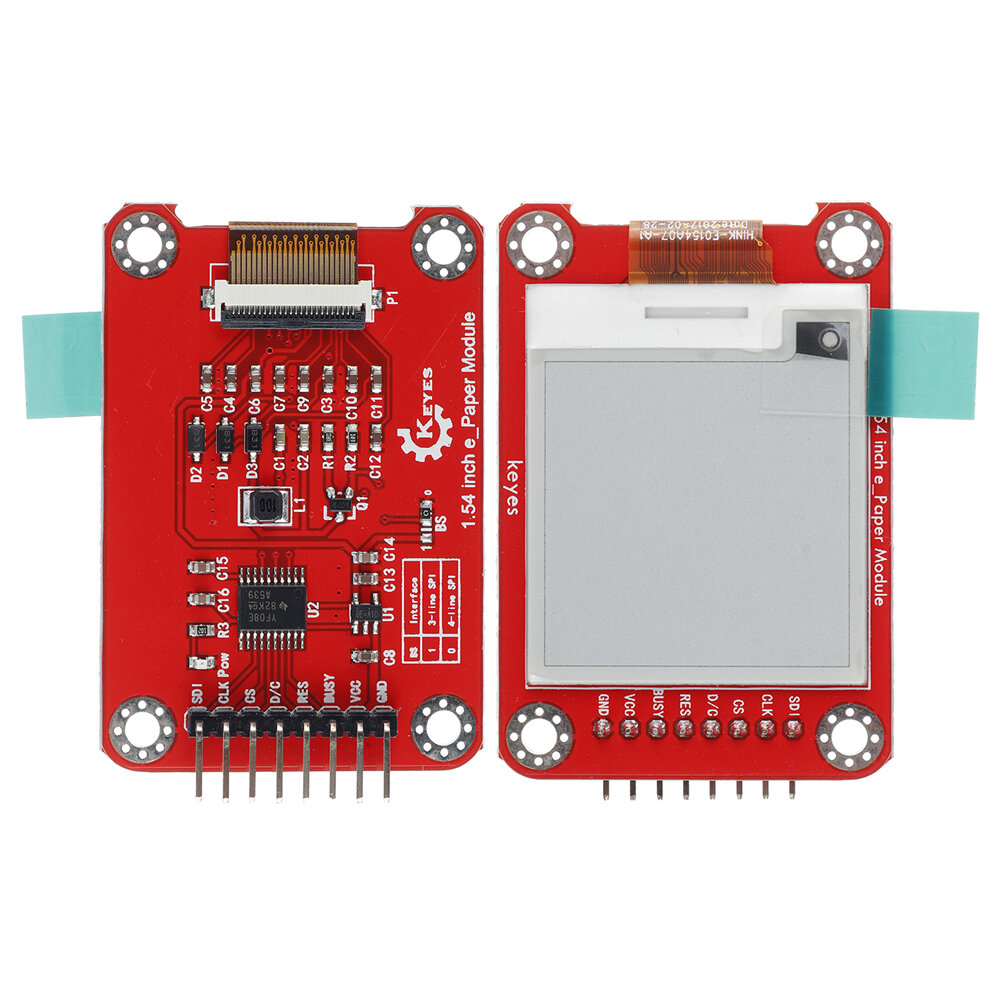

#9-1.54 Inch Electronic Flexible ink Screen Display Module Black and White Dual Color e-Parper OLED
Advantages
Working voltage: DC 5V
Working current: 150mA
Maximum power: 0.75W
Display color: black and white
Display size: 1.54 inch/2.13 inch
Display resolution: 200*200/250*122
Interface type: 8pin header with 2.54mm pitch
Operating temperature range: -20°C to +60°C
Positioning hole size: diameter 3mm
Height: 7mm

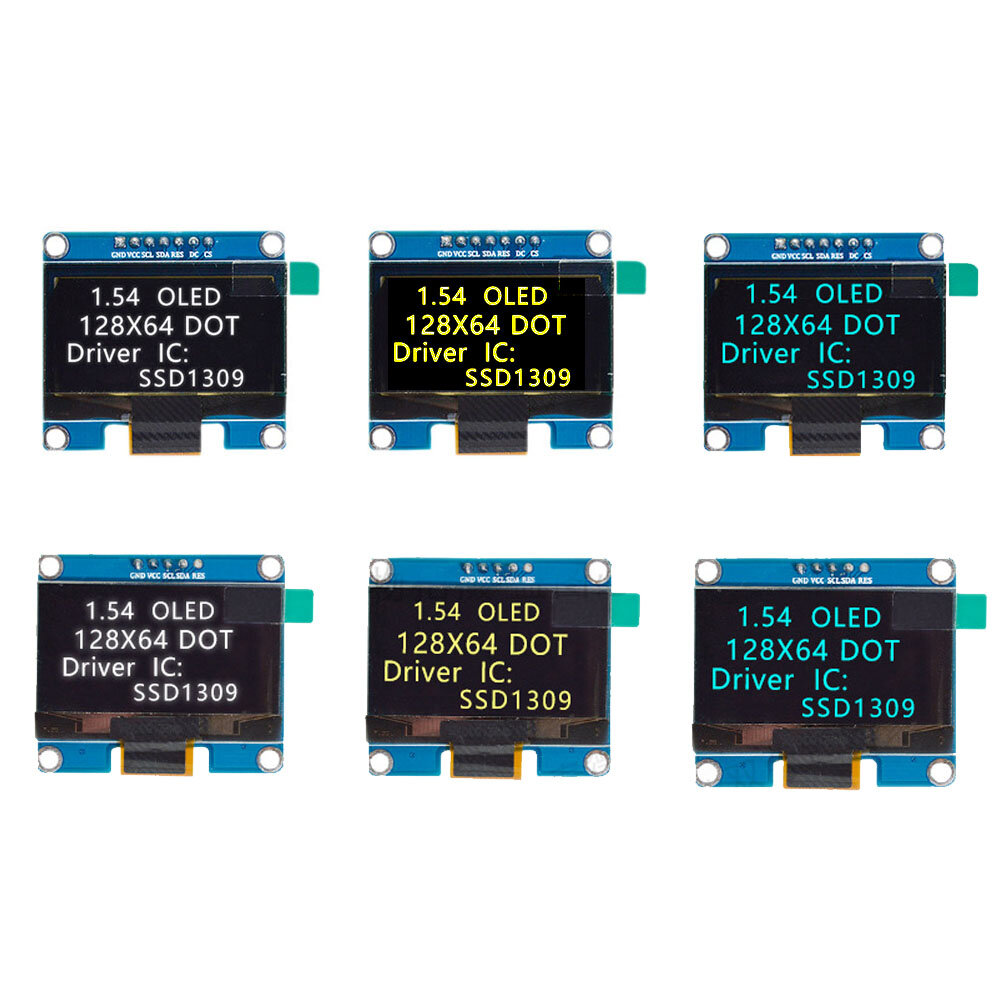

#10-1.54 inch OLED Display LCD Screen Module Resolution 128*64 SPI/IIC Interface SSD1309 Driver
Advantages
Driver chip: SSD1309 driver
Support interface: 7-pin SPI/4-pin IIC
Resolution 128X64
Display size: 1.54 inches
Display Color: White/Blue/Yellow
Module size: 42.4x38 (mm)
Display area: 35.052X17.516 (mm)
Pixel pitch: 0.274X0.274 (mm)
Pixel size: 0.254X0.254 (mm)
Number of pins: 5PINQ.54 pitch single row pin headers, of which the 5th pin RES pin is not used by default) This is 4 pins
Perspective: full perspective
Working temperature: -40℃~70℃
Working voltage: 3.3-5.5V (do not use other power sources)
4. Considerations for Buying a Great LED Digital Display Module
When searching for the best digital display module, it's important to consider the size and resolution of the display, as well as the type of connection needed for your application. Additionally, you want to pay close attention to how much power is needed and if there are any compatibility issues. Researching customer reviews can also be helpful in choosing a reliable product. Ultimately, finding a digital display module that is easy to install, meets all your requirements, and fits within your budget can help make sure that your project goes smoothly.
